High quality waste tire shredder for recycling
- $5000.00 /set
- 1 set
- Jiangyin Xinda Medicine And Chemical Machinery Co., Ltd.
- Jiangsu, China
- Mr Jun Gu
color: | blue or customized | Specification: | carbon |
Main selling points: | automatic | Voltage: | 380v or customized |
Core component warranty: | 1 year | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
brand: | XD | Supply capacity: | 25 sets per quarter |
Warranty: | 12 months | Dimensions (L*W*H): | 2x1x2 |
Origin: | Jiangsu, China | Year: | 2020 |
Work pressure: | 12Mpa | Marketing Type: | New Products 2020 |
Weight (kg): | 1600 kg | port: | Shanghai High Quality Whole Waste Tire Cutting Machine |
Type of tire machine: | tire recycling machine | experience: | More than 10 years of professional experience |
drive: | hydraulic | Local service location: | not any |
After-sales service provided: | Engineers available to service machinery overseas | Handle tire diameter: | No more than 1200mm |
Health status: | new | Video shipment inspection: | if |
Core components: | PLC, engine, bearing, gearbox, motor, gear, water pump | Packaging Details: | Seaworthy packaging that meets export standards, usually wrapped with plastic film before packaging, for high-quality full waste tire cutting machine |
capacity: | 20-40 per hour | Applicable industries: | tire recycling |
Showroom location: | not any | Mechanical test report: | if |
After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Certification: | ISO 9001 certification |
Name: | Whole waste tire cutting machine | type: | tire machine |
Power (kW): | 7.5 kW |

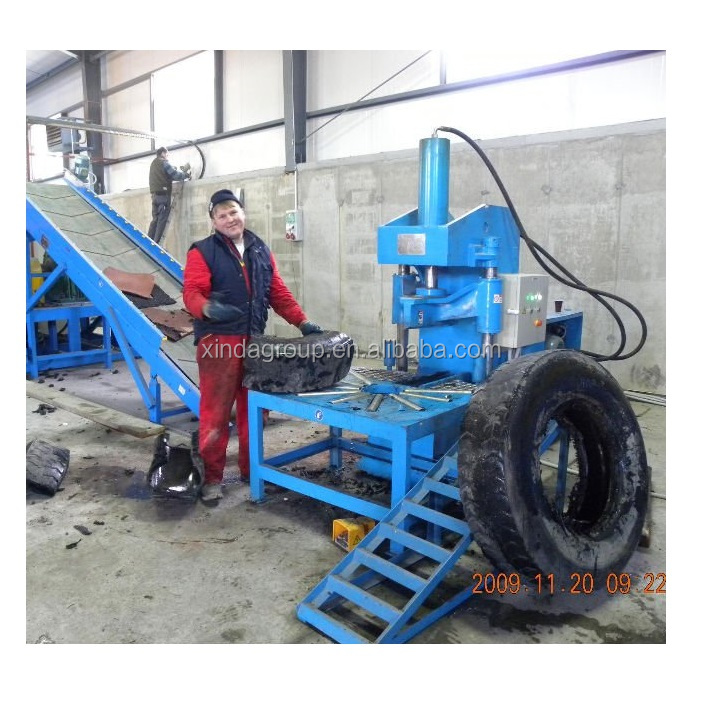

Whole waste tire cutting machine
introduce
This machine is used to cut all kinds of tires, including steel tires, fiber tires, tires need to pull steel wires before cutting into different sizes of rubber blocks. It is mainly composed of motor, rotary platform, rolling frame, fixed blade frame, cutting blade frame, fuselage frame, oil cylinder, hydraulic station and control cabinet.
Structure and Principle
*The blade is made of high-quality imported materials, which are wear-resistant, durable and have a long service life;
*Rolling shelf and rotary platform, easy and quick to operate;
* Automatic repositioning function after each cutting;
* With a stop bar to avoid tire adhesion;
*The hydraulic system adopts the international advanced constant power variable plunger pump technology, with low noise and high pressure, which improves the stability and life of the machine.
Technical data
Model |
1200 |
Capacity (pieces/hour) |
20~40 |
Handling tire(mm) |
≤Φ1200 |
Motor power (Kw) |
5.5-7.5 |
Working pressure (MPa) |
12 |
Weight (T) |
2.5 |
