Uyang Belt PVC PU conveyor belt splicing splice machine pvc splicing machine for sale
- $1500.00 /piece
- 1 piece
- Tianjin Uyang Business Co., Ltd.
- Tianjin, China
- Ms Che Christina
PRODUCT DETAIL
| Main selling points: | automatic | Dimensions (L*W*H): | 1720mm*450mm*430mm |
| Mechanical test report: | if | Marketing Type: | normal product |
| greatest pressure: | 1.5 bar | application: | PVC PU with connector |
| After warranty service: | Engineers available to service machinery overseas | Core components: | pressure vessel |
| Packaging Details: | wooden box | Phase: | single phase or three phase |
| Weight (kg): | 20 kg | Core component warranty: | 1 year |
| place of origin; place of origin: | Tianjing, China | Supply capacity: | 100000 pieces per month |
| Warranty: | 1 year, 1 year | Showroom location: | not any |
| Auxiliary materials: | Silicone cloth or PTFE cloth or stainless steel | Maximum temperature: | 200℃/392℉ |
| port: | any port in China | State of health: | new |
| Types of: | Vulcanizing machine | Package preview: | |
| heating length: | 130/150mm | Video shipment inspection: | if |
| Applicable industries: | Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Printing Shops, Energy and Mining, Food and Beverage Stores | payment terms: | L/C, T/T |
| Material: | aluminum alloy | Power (kW): | 0.5 kW |
| year: | new | Voltage: | 220V/380V |
| Maximum Belt Width: | 600--2100mm | brand: | Yang belt |
Product Description
Water-cooled belt splicing machine
Uyang Belt PVC PU conveyor belt splicing splice machine pvc splicing machine for sale
Heat press machine for PVC tapes, polyurethane tapes (PU tapes) and polyester monofilament synthetic tapes. long life, fast
stitching.
stitching.
product information

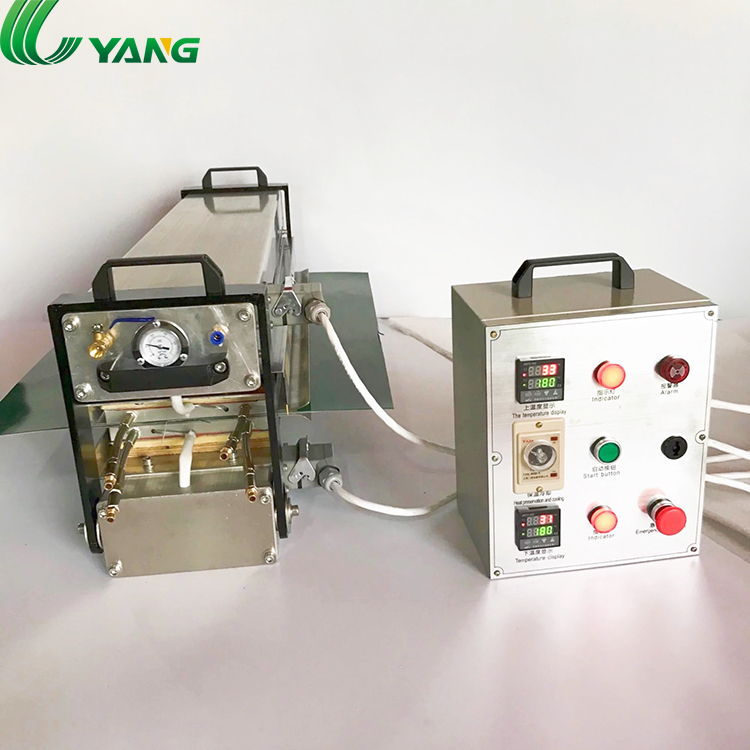

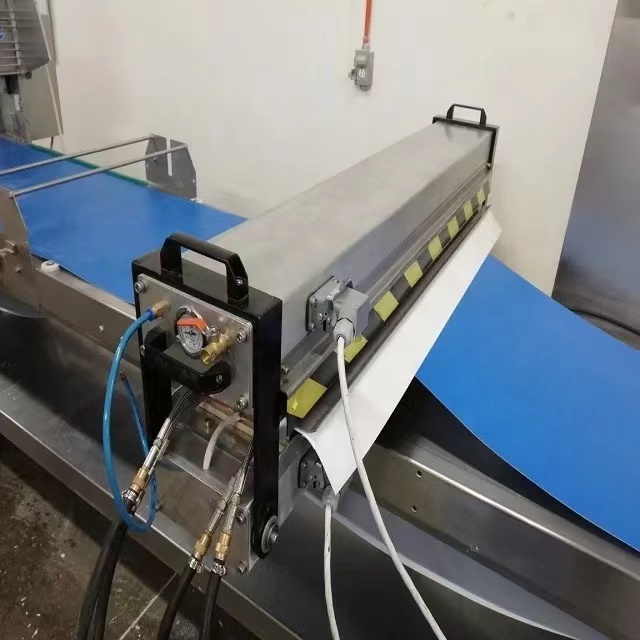

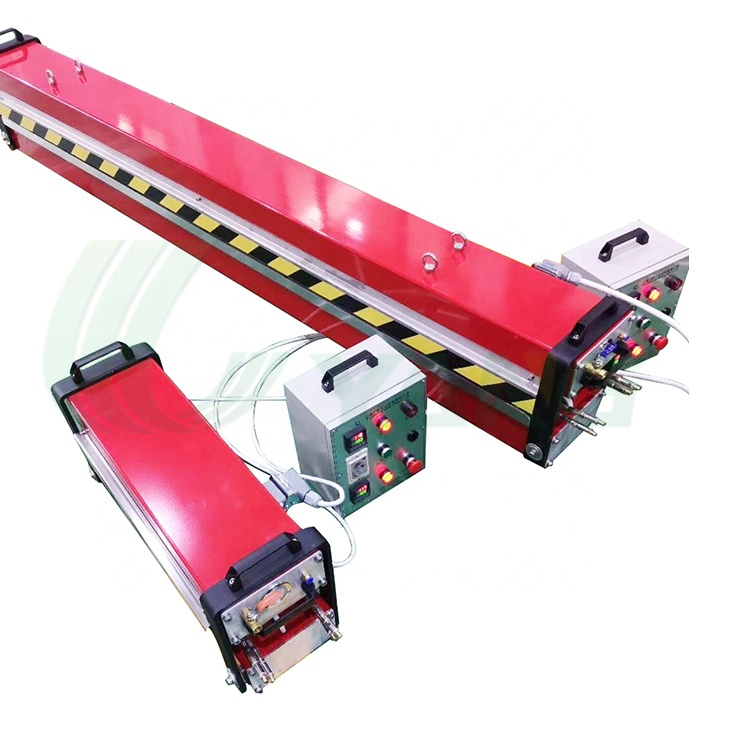

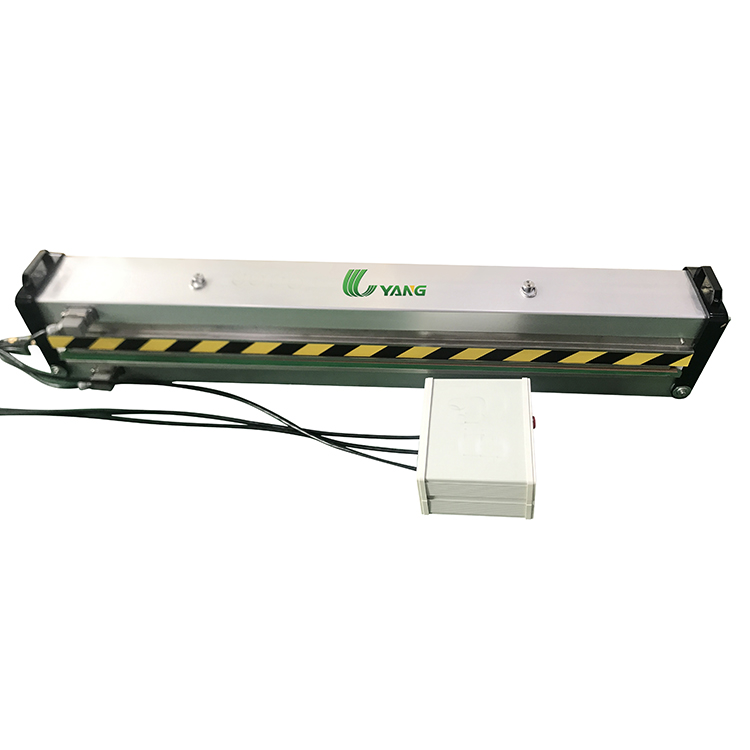

Water-cooled PVC PU belt splicing machine
1. Cooling method: water cooling
2. Maximum belt width from 19″ (500 mm) to 78″ (2000 mm)
3. Machine material: aluminum alloy/stainless steel
4. Working pressure: 2 bars / 28PSI / 0.2Mpa, other working pressures are available upon request
5. Heating effective width: 150mm/200mm
6. Includes belt clip bar.
options:
1. Cooling method: water cooling
2. Maximum belt width from 19″ (500 mm) to 78″ (2000 mm)
3. Machine material: aluminum alloy/stainless steel
4. Working pressure: 2 bars / 28PSI / 0.2Mpa, other working pressures are available upon request
5. Heating effective width: 150mm/200mm
6. Includes belt clip bar.
options:
1. Support frame (for workshop), pneumatic lift
2. Bonding accessories, such as PTFE film & pad, Silicone Pad-set, PVC/PU film, etc. can help better bonding.
2. Bonding accessories, such as PTFE film & pad, Silicone Pad-set, PVC/PU film, etc. can help better bonding.
Product parameters
Model | UY600 | UY900 | UY1000 | UY1300 | UY1600 | UY2100 |
Effective length | 600mm | 900mm | 1000mm | 1300mm | 1600mm | 2100mm |
effective width | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm |
upper counterweight | 18 kg | 30 kg | 35 kg | 35 kg | 57 kg | 4 kg |
lower weight | 20 kg | 30 kg | 41 kg | 41 kg | 63 kg | 102 kg |
total weight | 45 kg | 65 kg | 87 kg | 87 kg | 125 kg | 196 kg |
total length | 720mm | 1020mm | 1410mm | 1410mm | 1910mm | 2420mm |
overall height | 310mm | 310mm | 310mm | 310mm | 390mm | 390mm |
greatest pressure | 2 bar | 2 bar | 2 bar | 2 bar | 2 bar | 2 bar |
maximum temperature | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ |
packing list (L*W*H) (mm) | 1460*500*540 | 1670*520*540 | 2050*480*540 | 2060*480*540 | 2450*550*490 | 2950*600*490 |
Package weight | 72 kg | 90 kg | 135 kg | 145 kg | 200 kg | 264 kg |
Uyang Belt PVC PU conveyor belt splicing splice machine pvc splicing machine for sale
feature:
* Aluminum alloy/stainless steel body and heating plate
* Heating plate, heating zone, width 150mm (if you need 200mm, we have another press)
*Different sizes of belt width from 500mm to 2000mm (for width over 2000mm we use aluminum body)
* For PVC belts, polyurethane belts (PU belts) and polyester monofilament synthetic belts
* The control panel has 2 temperature controllers, controlled independently, the upper heating plate or the lower heating plate can set different temperatures according to your requirements.
* Comes with a belt clip to help secure your belt.
* Air bag (pressure bag)
* air pressure
*Laser cut silicone components, more secure, fully sealed and easy to maintain.
* Easy to use and assemble
* light
* Rapid water cooling system in the platen
* It takes about 15-20 minutes to heat up to 180°C; it takes about 3-5 minutes to cool down from 180°C to 60°C (depending on the size of the press), and the temperature error (on the upper and lower 650mm hot plates) is less than 3°C.
*Air pressure: 0~0.3mpa
* Reliable automatic temperature control panel with time control.
* Including water cooling pump
* Steel structure
* Standard widths: 1.1m, 1.6m, 2.1m to 4000mm, we manufacture up to 6000mm.
* Voltage: 220V or 380V,
* Opening system and steel support are optional if the press needs to be used in workshop.
* Heating plate, heating zone, width 150mm (if you need 200mm, we have another press)
*Different sizes of belt width from 500mm to 2000mm (for width over 2000mm we use aluminum body)
* For PVC belts, polyurethane belts (PU belts) and polyester monofilament synthetic belts
* The control panel has 2 temperature controllers, controlled independently, the upper heating plate or the lower heating plate can set different temperatures according to your requirements.
* Comes with a belt clip to help secure your belt.
* Air bag (pressure bag)
* air pressure
*Laser cut silicone components, more secure, fully sealed and easy to maintain.
* Easy to use and assemble
* light
* Rapid water cooling system in the platen
* It takes about 15-20 minutes to heat up to 180°C; it takes about 3-5 minutes to cool down from 180°C to 60°C (depending on the size of the press), and the temperature error (on the upper and lower 650mm hot plates) is less than 3°C.
*Air pressure: 0~0.3mpa
* Reliable automatic temperature control panel with time control.
* Including water cooling pump
* Steel structure
* Standard widths: 1.1m, 1.6m, 2.1m to 4000mm, we manufacture up to 6000mm.
* Voltage: 220V or 380V,
* Opening system and steel support are optional if the press needs to be used in workshop.
