PVC PU conveyor belt European style layering machine pvc layering machine
- $1400.00 /piece
- 1 piece
- Tianjin Uyang Business Co., Ltd.
- Tianjin, China
- Ms Che Christina
PRODUCT DETAIL
| port: | any port in china | Core component warranty: | 1 year |
| After-sales service provided: | online support | Core components: | motor, water pump |
| payment terms: | L/C, T/T | Voltage: | 220V/380V |
| Marketing Type: | normal product | Main selling points: | long lasting |
| Health status: | new | Advantage: | high precision |
| Showroom location: | not any | Mechanical test report: | if |
| Warranty: | 1 year | Applicable industries: | Building materials store, manufacturing plant, machinery repair shop, food and beverage factory, food store, print shop, construction, energy and mining, food and beverage store |
| Origin: | Tianjing, China | After warranty service: | 1 year |
| Suitable: | light conveyor belt | Packaging Details: | wooden box |
| Final product: | conveyor belt | Supply capacity: | 100000 pieces per month |
| type: | European style | raw material: | steel |
| application: | PLY splitter | Weight (kg): | 65 |
| brand: | Yang belt | Video shipment inspection: | if |
| color: | blue or customized |
Product Description

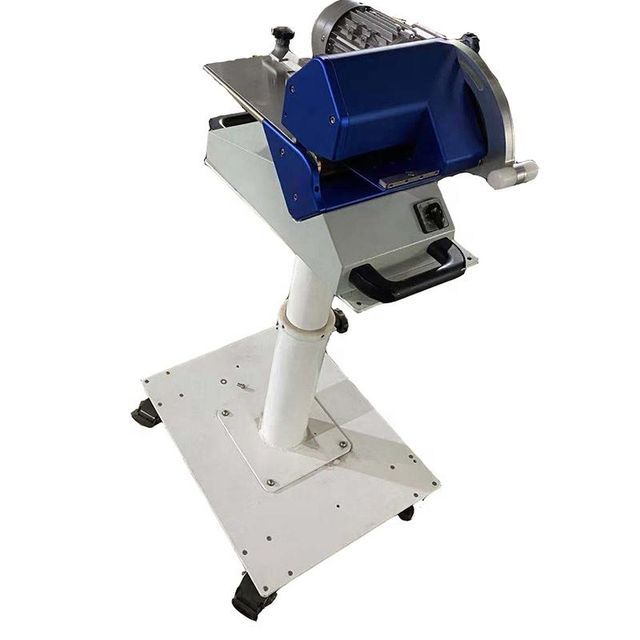

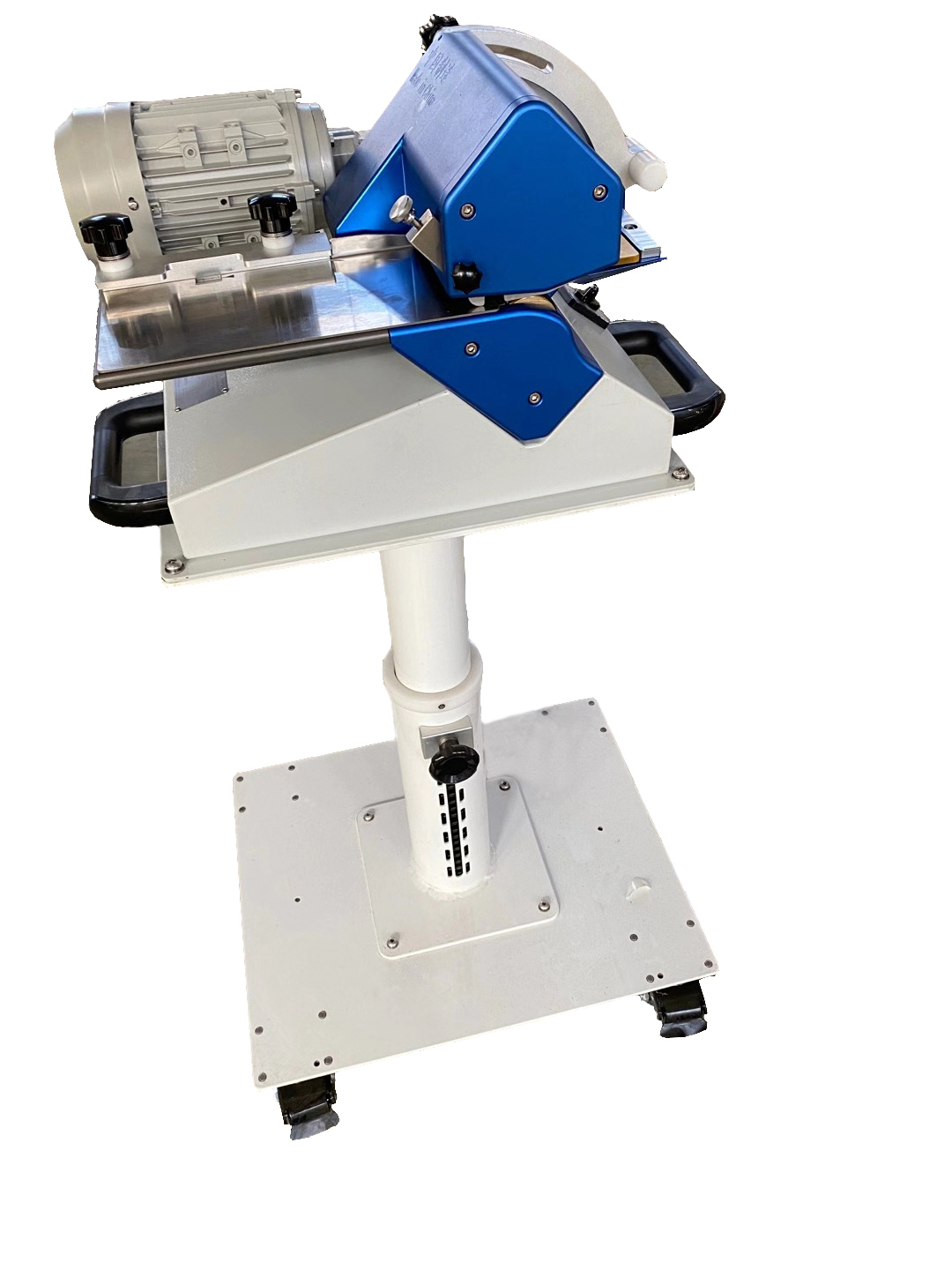

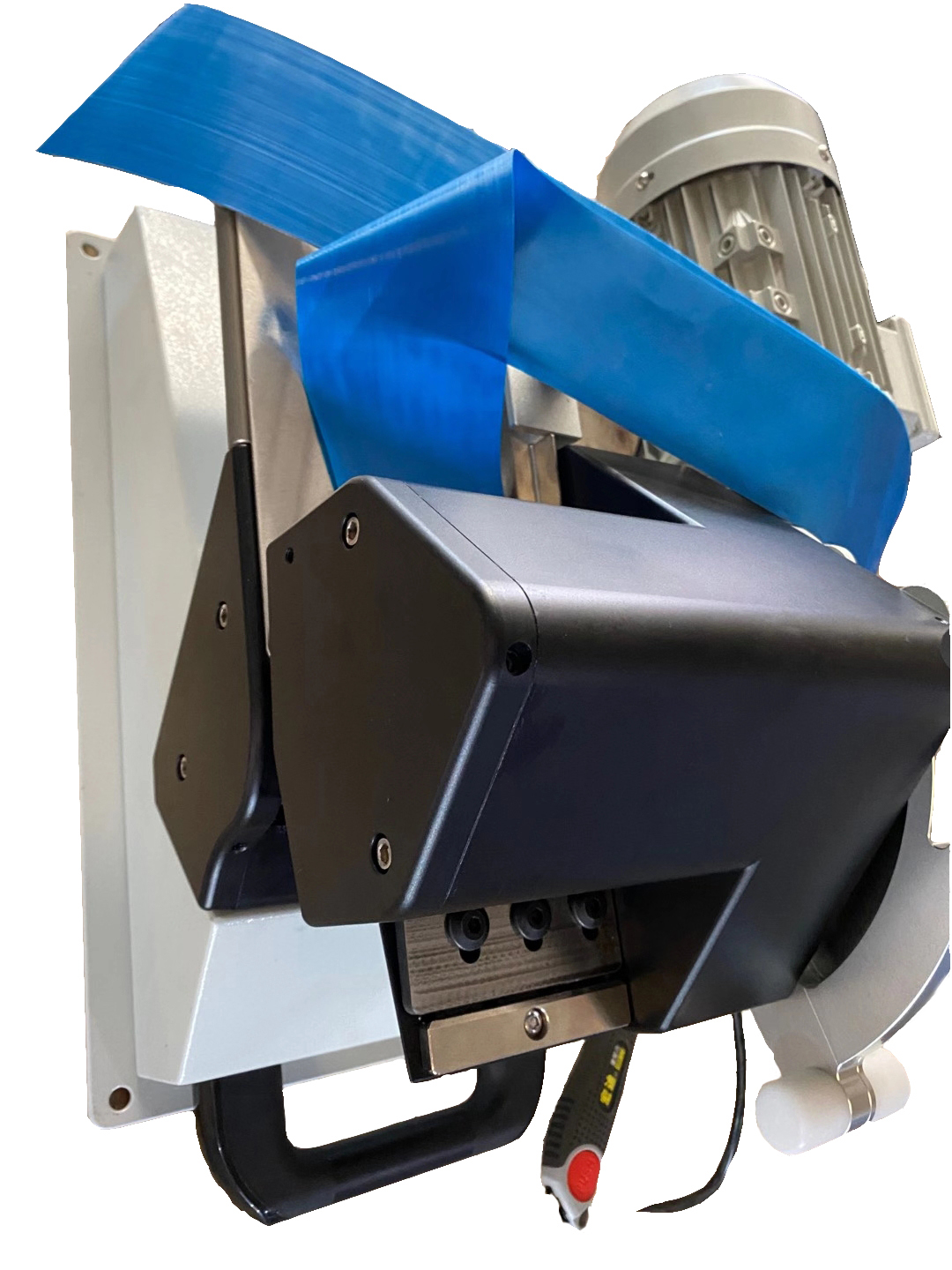

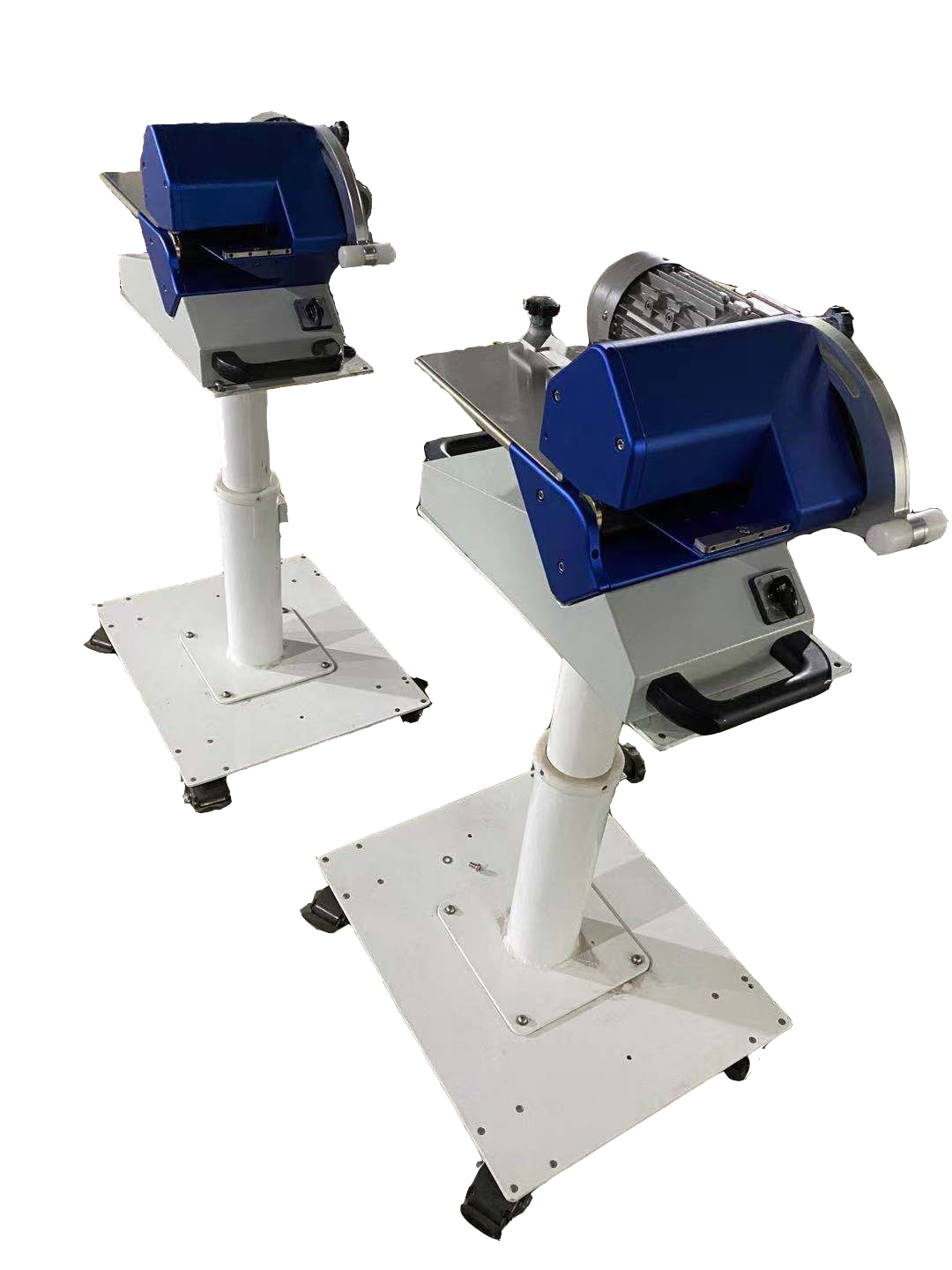

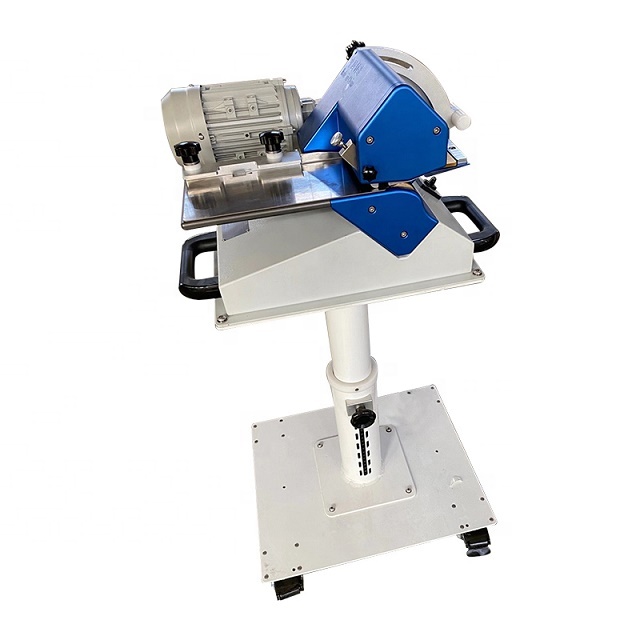

New design high precision layering machine European style pvc layering machine
Belt Layer Separators are designed to separate fabric for splicing at the end of 2-ply and 3-ply belts for high quality splicingProduction information:
1. Machine material: aluminum structure
2. Split depth 130mm
3. Split thickness: 1~15mm
4. Applicable belts: PVC PU belts, light rubber belts, homogeneous PU belts.
5. Motor power: 0.37KW/50Hz
6. Electrical connection: 380V three-phase, 220V single-phase can be provided upon request
options:
1. Wheeled tripod for easy workshop movement
2. Step knife is optional, and the separated cover can be cut directly after splitting
1. Machine material: aluminum structure
2. Split depth 130mm
3. Split thickness: 1~15mm
4. Applicable belts: PVC PU belts, light rubber belts, homogeneous PU belts.
5. Motor power: 0.37KW/50Hz
6. Electrical connection: 380V three-phase, 220V single-phase can be provided upon request
options:
1. Wheeled tripod for easy workshop movement
2. Step knife is optional, and the separated cover can be cut directly after splitting
New design high precision layering machine European style pvc layering machine
* Separation belt layer 2-layer and 3-layer conveyor belt
* Brand new replacement carbide steel blade
* Suitable for PVC, PU straps and rubber straps

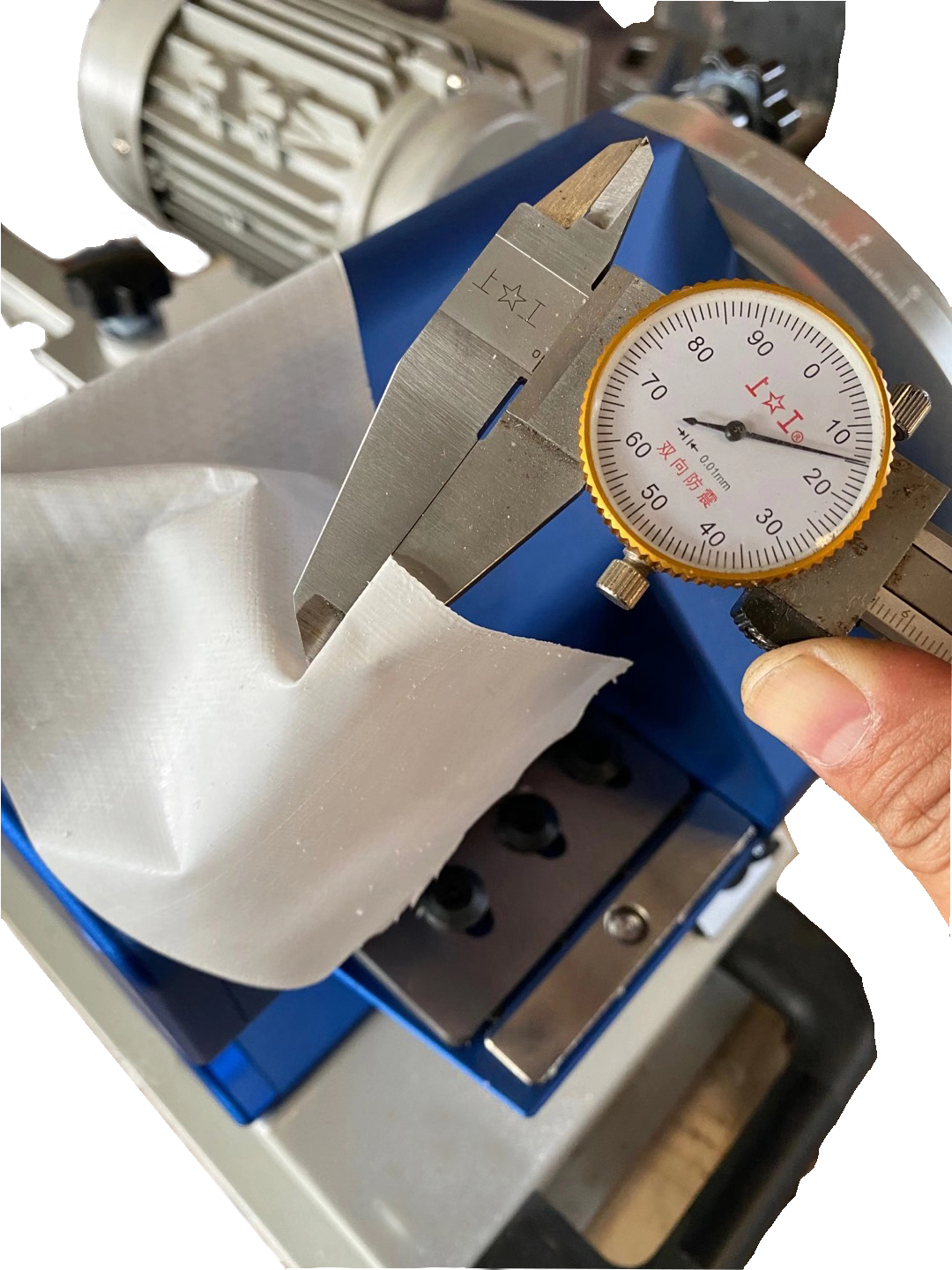

* Equipped with scales, high sorting accuracy, easy work and high efficiency
*Foot pedal start/stop
* With a cover, the staff cannot touch the blade, and the operation is safer.
* Adjust the blade position by the position scale.
* Geared motor, 1370 r/min 50hz, 1660 r/min 60Hz, 1.07A
* The pulling roller exerts pressure on the belt through the gas spring to ensure that the belt is evenly pressed.
* Can be turned forward and backward - useful if it is necessary to wind the belt backwards.
* Side guide for adjusting cutting width, with width scale
* The standard is 380V three-phase, suitable for all power sources
* Brand new replacement carbide steel blade
* Suitable for PVC, PU straps and rubber straps
* Equipped with scales, high sorting accuracy, easy work and high efficiency
*Foot pedal start/stop
* With a cover, the staff cannot touch the blade, and the operation is safer.
* Adjust the blade position by the position scale.
* Geared motor, 1370 r/min 50hz, 1660 r/min 60Hz, 1.07A
* The pulling roller exerts pressure on the belt through the gas spring to ensure that the belt is evenly pressed.
* Can be turned forward and backward - useful if it is necessary to wind the belt backwards.
* Side guide for adjusting cutting width, with width scale
* The standard is 380V three-phase, suitable for all power sources
detailed drawing
