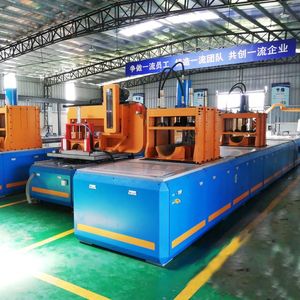

50 tons of FRP light pole hydraulic pultrusion machine

PRODUCT DETAIL
payment terms:letter of credit, wire transferLocal service location:not any
Core components:PLC, bearing, motor, gear, pumpWarranty:1 year
Applicable industries:manufacturing plantCore Components Warranty:1 year
After-sales service provided:Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support, video technical supportPackaging Preview:
Health status:newVideo external inspection:if
Packaging Details:Packing: The machine is surrounded by plastic film, and the bottom of the machine is supported by a wooden pallet, or packed with the surrounding plastic film and wooden box.Supply capacity:30 sets per month
port:Shenzhen/Guangzhoubrand:Renda
place of origin; place of origin:Guangdong, ChinaMain selling point:automatic
Showroom location:not anyAfter Warranty Service:Video technical support, online support, on-site maintenance and repair services
Marketing Type:normal productMechanical test report:if



01. Advantages of Renda pultrusion machine



  1. The pultrusion machine adopts an advanced programmable controller system, and the electrical system and hydraulic system are assembled with world-renowned brand components (such as standard electrical components, hydraulic oil pumps, solenoid valves, electro-hydraulic valves, pressure valves, etc.).
  2. Select high-quality materials, and use CNC and other advanced manufacturing processes to process mechanical parts to ensure the straightness and running accuracy of the machine, and ensure the smooth running of the machine
  3. The frame of the fuselage is designed and manufactured with thickened steel to ensure that the rigidity of the machine does not yield when the large tonnage is pulled.
  4. The line and circuit cables of the whole machine are connected according to the European CE standard, with clear markings for easy inspection and maintenance
  5. The design of the whole machine production line well meets the requirements of the FRP pultrusion process, ensuring that users feel smooth when using the Renda pultrusion machine
  6. The equipment application failure rate is low and the service life is long.

02. List of pultruder models



- Hydraulic Reciprocating Pultruder Model List-

Do not. Model

Rally.Max

(kN)

Clamping force.Max

(kN)

Traction speed

(mm/min)

Reciprocating

travel

(mm)

Window size

(WxHxL)



Clamping cylinder stroke

(mm)

1 RDLJ-Y6T 60 60 0.1~1.2m/min 600 600x200x400 200
2 RDLJ-Y10T 100 100 0.1~1.2m/min 600 600x300x400 250
3 RDLJ-Y15T 150 150 0.1~1.2m/min 600 800x350x500 250
4 RDLJ-Y20T 200 200 0.1~1.2m/min 600 900x400x500 250
5 RDLJ-Y30T 300 300 0.1~1.2m/min 600 1000x500x600 250
6 RDLJ-Y40T 400 400 0.1~1.2m/min 600 1200x600x800 250
7 RDLJ-Y50T 500 500 0.1~1.2m/min 600 1500x600x1000 250
8 RDLJ-Y60T 600 600 0.1~1.2m/min 600 1500x600x1000 250



attention:

1. This is just the general model, if your resin system isepoxy or polyurethane, may be different from the general model, or your other size requirements, please tell me your detailed requirements, we will confirm the machine model with you.

2. If you have other larger pulling and clamping force requirements, please consult us, we also do80T and 100Tforce, and even larger pultruders.



03. Introduction to the process flow of pultrusion production line

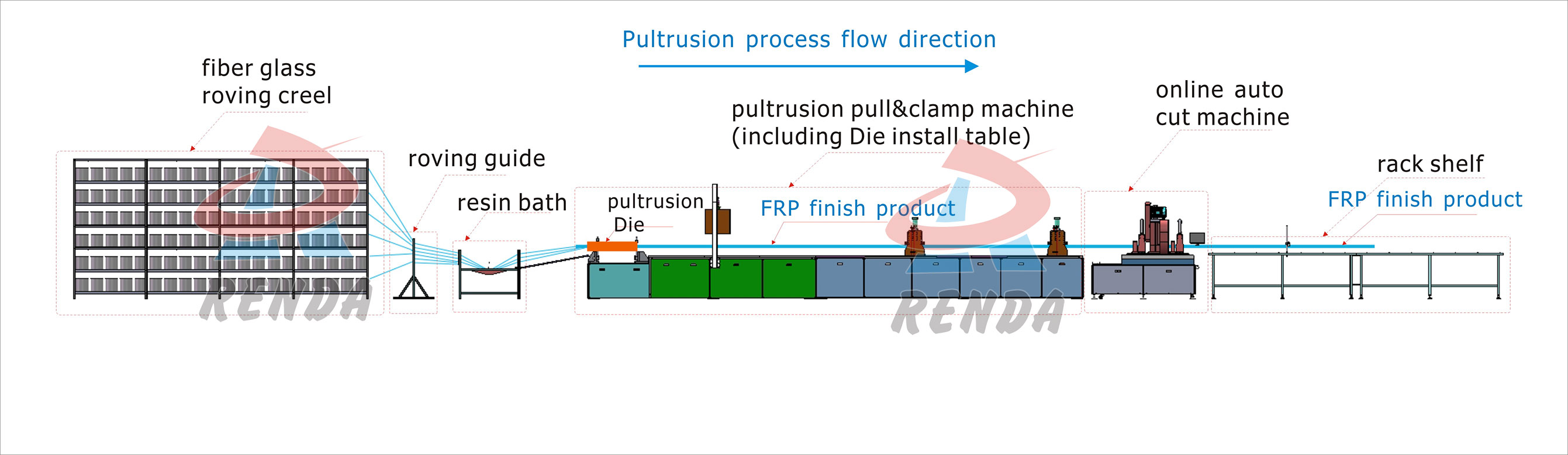

- Layout drawing of pultrusion production line process -







Note-1:

In fact, as"Pultrusion production line process layout display",The entire pultrusion production line consists of:

1). roving creel,

2). Roving Guide,

3). resin bath (or injection machine, if the mold you are using is an injection mold),

4). Pultrusion dies and preforms,

5). pultrusion machine,

6). online automatic cutting machine,

7). Finished FRP product rack.

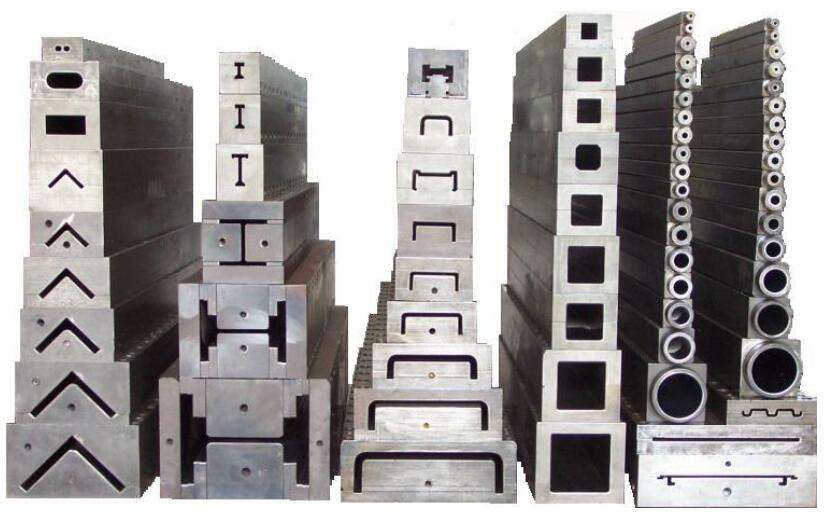

04. Pultrusion die

Note-2:

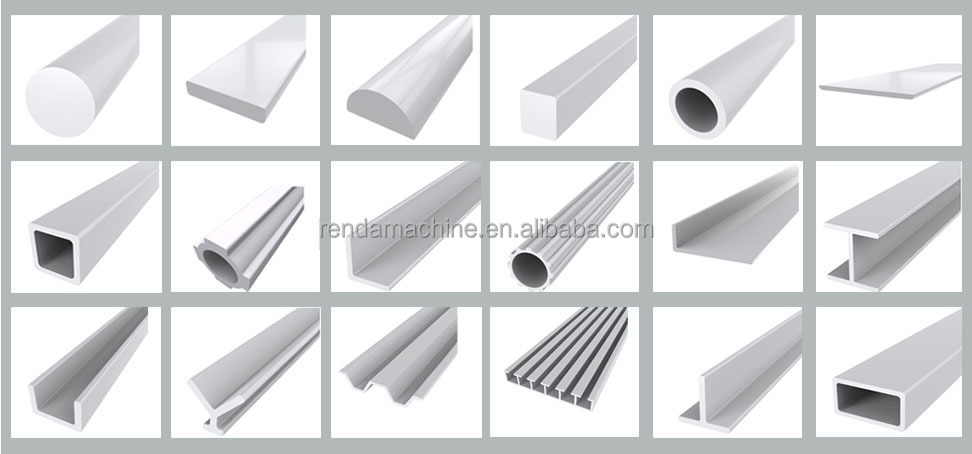

         In addition to the pultrusion machine production line, we at Renda also specialize in designing and manufacturing various pultrusion dies, some die types and FRP profiles, as shown in the picture above, we provide a full range of pultrusion die production services: including dies, preforms, heat transfer tools . We believe we can provide you with a perfect set of pultrusion molds to produce the best FRP products for you.

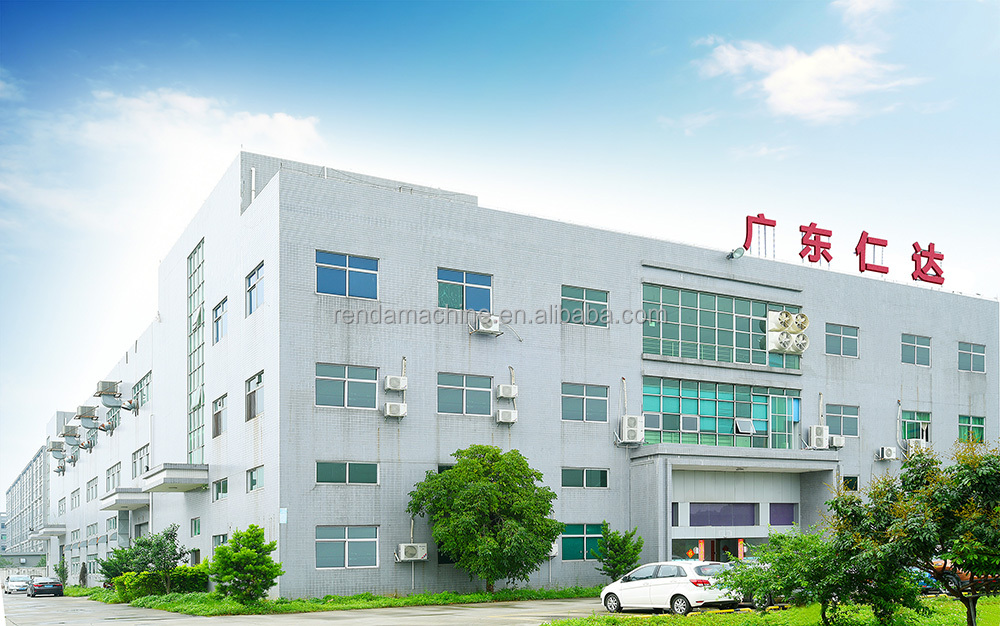

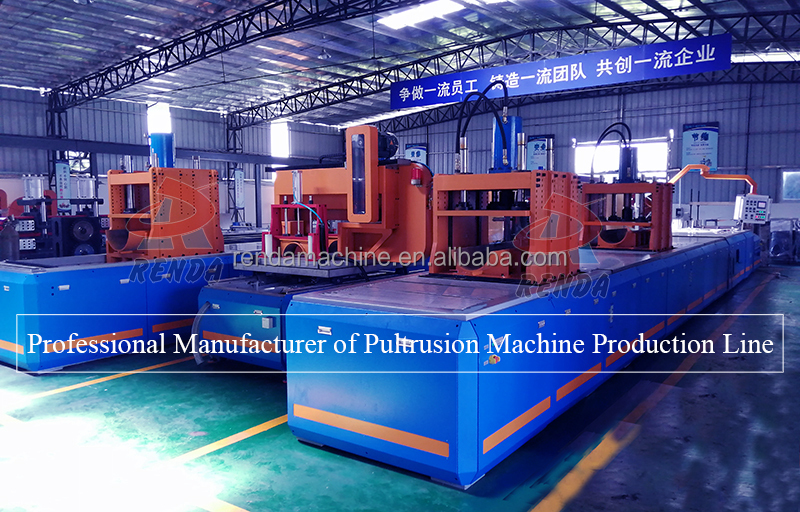

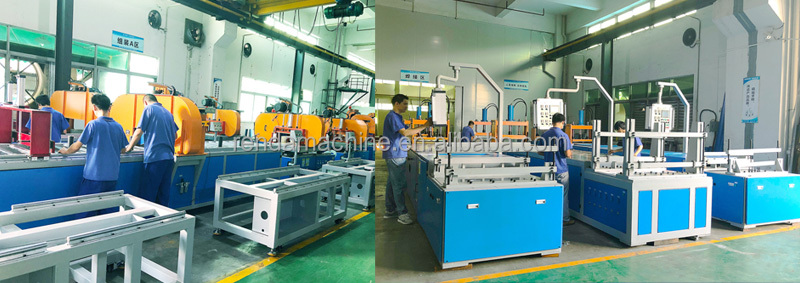

05. Photo to know more about our company
