Splitter with PVC PU belt
- $1200.00 /piece
- 1 piece
- Tianjin Uyang Business Co., Ltd.
- Tianjin, China
- Ms Che Christina
PRODUCT DETAIL
| Origin: | Tianjing, China | Video outbound inspection: | if |
| Applicable industries: | Manufacturing plants, machinery repair shops, food and beverage plants, print shops, construction works, energy and mining, food and beverage outlets | Health status: | new |
| Weight (kg): | 65 | payment terms: | L/C, T/T |
| Main selling points: | long lasting | Package preview: | |
| Voltage: | 220V/380V | strength: | 12 kW |
| Supply capacity: | 100000 pieces per month | Suitable material: | PVC PU PE belt |
| Warranty: | 1 year, 1 year | Core components: | motor, pump |
| Key words: | Belt Separator | port: | any port in China |
| application: | cutting tape | brand: | Yuyang belt |
| Advantage: | long service time | Finished product: | conveyor |
| Showroom location: | not any | pack: | wooden box |
| Packaging Details: | wooden box | Mechanical test report: | if |
| Core component warranty: | 1 year | Material: | aluminum alloy |
| Marketing Type: | normal product |
Product Description

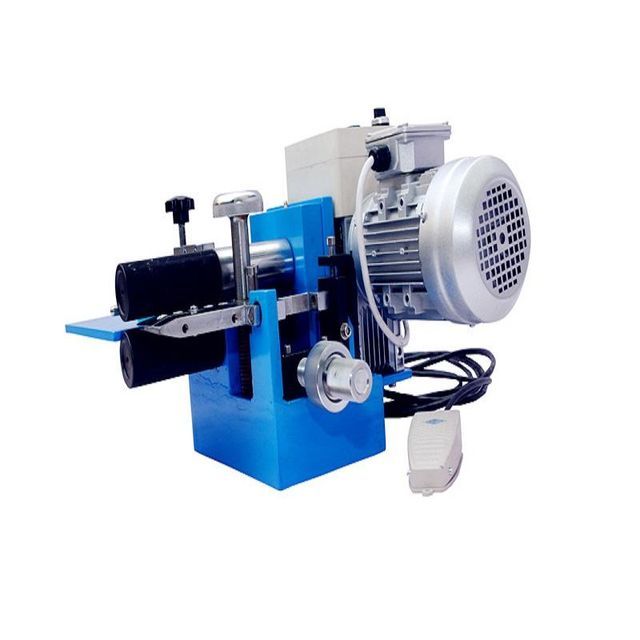

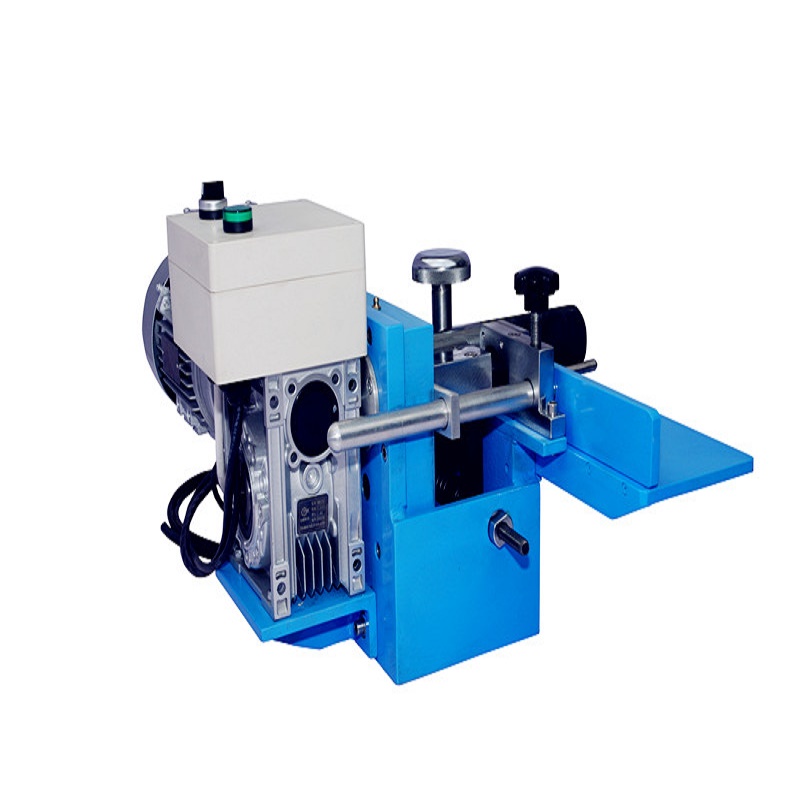

PVC PU belt separator
Designed to separate fabric for splicing at the end of 2-ply and 3-ply conveyors for top quality splicing. fully automatic
Unit for quick preparation of PVC PU or rubber straps. Increase productivity and reduce human error.
Unit for quick preparation of PVC PU or rubber straps. Increase productivity and reduce human error.
Production information:
1. Machine material: steel structure
2. Seam depth 150mm
3. Split thickness: 1~15mm
4. Applicable belts: PVC PU belts, light rubber belts, homogeneous PU belts.
5. Motor power: 0.75KW/50Hz
6. Electrical connection: 380V 3 phase
1. Machine material: steel structure
2. Seam depth 150mm
3. Split thickness: 1~15mm
4. Applicable belts: PVC PU belts, light rubber belts, homogeneous PU belts.
5. Motor power: 0.75KW/50Hz
6. Electrical connection: 380V 3 phase
Specification
PVC PU belt separator PVC PU belt separator
* In order to separate the belt layer, the belt layer can be divided into two layers, three layers or four layers etc.
* easy maintenance
* Economical design, it will be your good choice if you don't need to separate the belt layers too much.
* Carbide steel knife, replaceable, easy to replace.
* Suitable for PVC, PU belts and rubber belts
* Split width 150mm
* Motor speed: 1400 rpm 1.88A
* Adjusting bolt: set the upper and lower roller distance according to the layer thickness.
* The maximum split thickness is 15mm, if you have any special requirements, please feel free to let me know.
* With foot switch, easy to operate
* 380V three phase
* Power: 750W
* Machine net weight: 46kgs
* easy maintenance
* Economical design, it will be your good choice if you don't need to separate the belt layers too much.
* Carbide steel knife, replaceable, easy to replace.
* Suitable for PVC, PU belts and rubber belts
* Split width 150mm
* Motor speed: 1400 rpm 1.88A
* Adjusting bolt: set the upper and lower roller distance according to the layer thickness.
* The maximum split thickness is 15mm, if you have any special requirements, please feel free to let me know.
* With foot switch, easy to operate
* 380V three phase
* Power: 750W
* Machine net weight: 46kgs

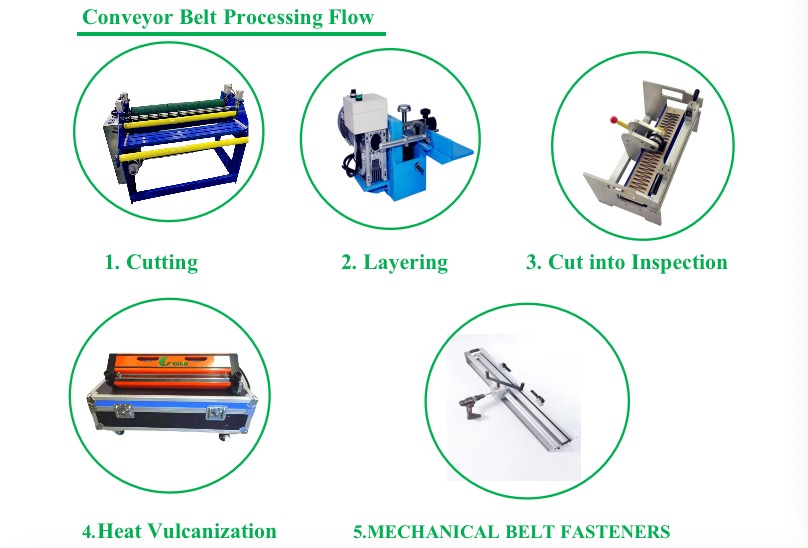

Conveyor belt processing flow
