IKEDA 9122 Portable Endoscopy Camera Medical Imaging Equipment HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology
- $1800.00 /set
- 1 set
- Xuzhou Akx Electronic Science And Technology Co., Ltd.
- Jiangsu, China
- Mr AKX XZ
PRODUCT DETAIL
| Pixels: | 2,100,000 pixels | Video output: | HDMI, DVI, CVBS |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Credit Card | application: | For ENT, Orthopedics, Urology, Gynecology, Hysteroscopy, Laparoscopy |
| Supply capacity: | 500 sets per month | type: | endoscope camera, endoscope |
| Advantages 5inch m: | Combining HD camera, light source, 15-inch monitor as an endoscope camera set | light source: | 80W LED light source |
| brand: | Ikeda | Instrument classification: | level one |
| Monitor: | 22 inch high definition medical monitor | model: | YKD-9122 |
| solve: | 1080 lines | port: | Shanghai, Shenzhen, etc. |
| Origin: | Jiangsu, China | Image size: | 1920x1080 |
| characteristic: | endoscopy | After-sales service: | online technical support |
| camera: | 1/2.8 inch SONY CMOS HD camera | Warranty: | 2 years |
| Packaging Details: | Bubble packing + carton + standard wooden box Portable endoscope/endoscope HD camera IKEDA |
Product Description
product code | YKD-9122 | ||||
camera | 1/2.8/inch Full HD SONY CMOS, 1/3 inch SONY CMOS | ||||
Image size | 1920x1080P/1305*977 | ||||
frame rate | (1920x1080)60fps | ||||
scanning system | line-by-line scan | ||||
pixel | 2,100,000 pixels | ||||
solve | 1080P | ||||
LED light source | 80W, cold light source | ||||
video output | DVI, HDMI, CVBS | ||||
Minimum illumination | 0.5LUX | color temperature | 5100-7000K | ||
Luminous flux value | ≥800 lumens | Color rendering index | ≥90 | ||
/monitor | 22 inches | AC input | AC100-240V 50/60HZ | ||
video recording | Built-in USB | weight | 9.85 kg | ||
white balance | waybill and waybill | Dimensions (mm) | 528*105*370 | ||
camera control | White Balance and Photo Capture | SNR | 50dB, tolerance 20% | ||

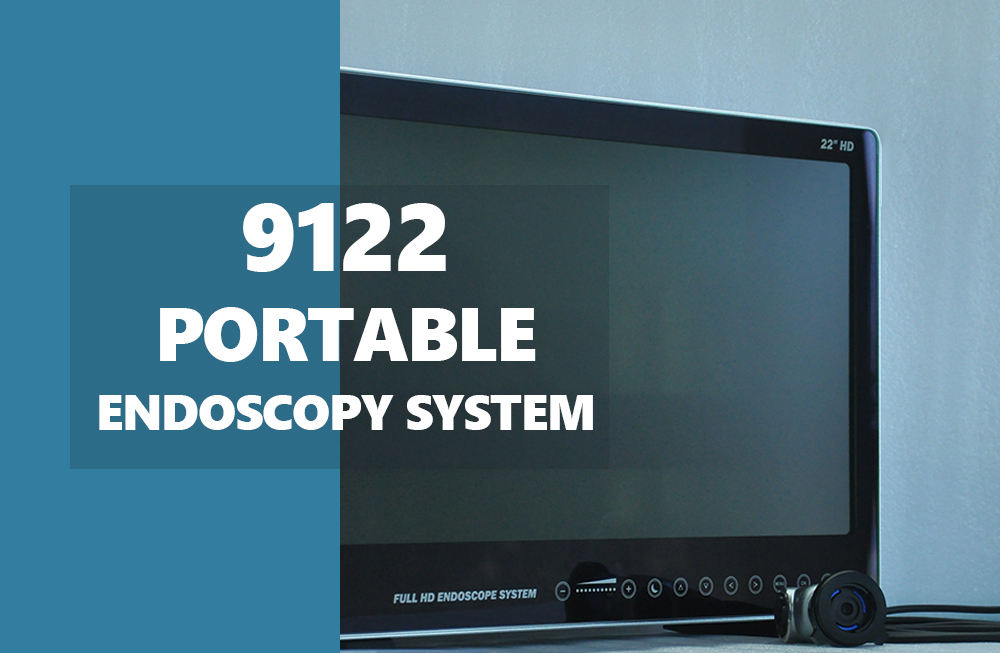

YKD-9122The video system center combines LED light source, camera, monitor and processor in one box, defining a new simplified way in the operating room. The intuitive touch panel with buttons allows for easy and fast control without interrupting the program.

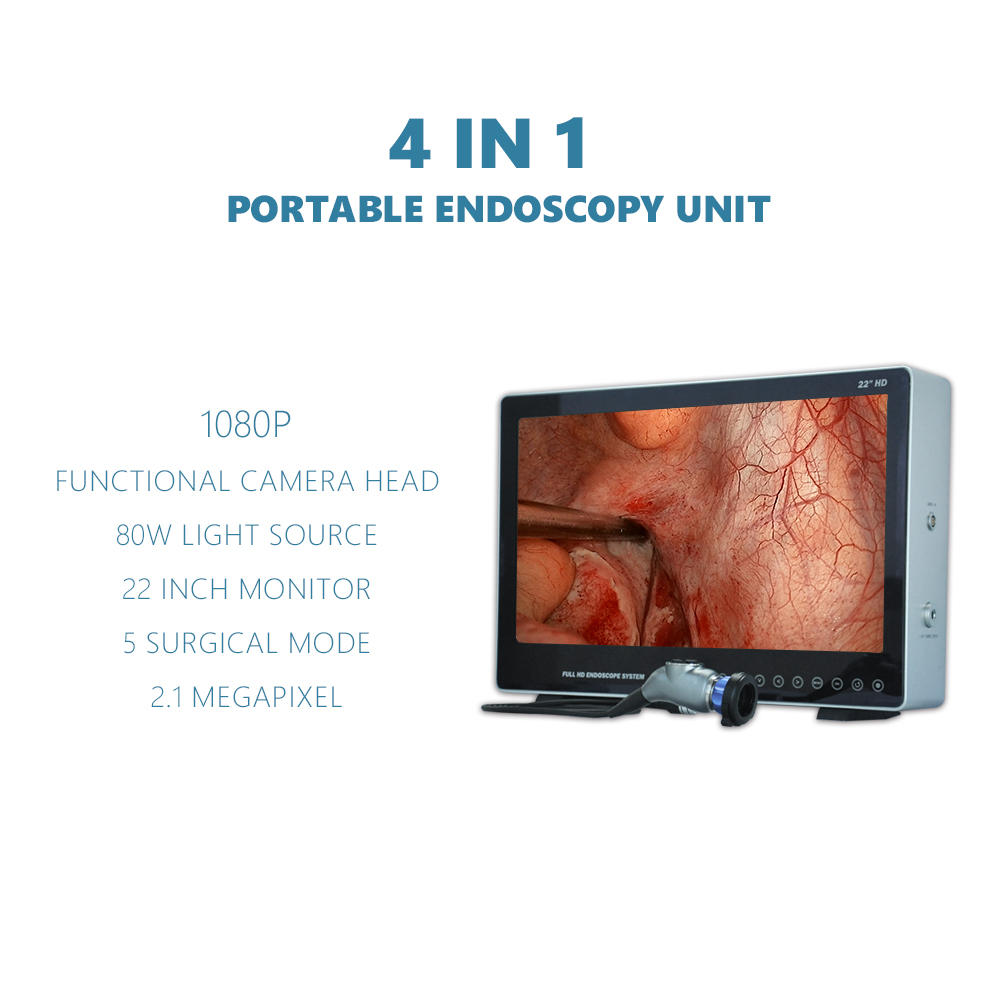

4 in 1: Camera 2.1MPixels+ LED light source+monitor+HD video recorder.
Medical Grade HD Display:22 inches.
Built-in USB: FHD image storage.IPX8 waterproof camera: We always ensure high cost performance.

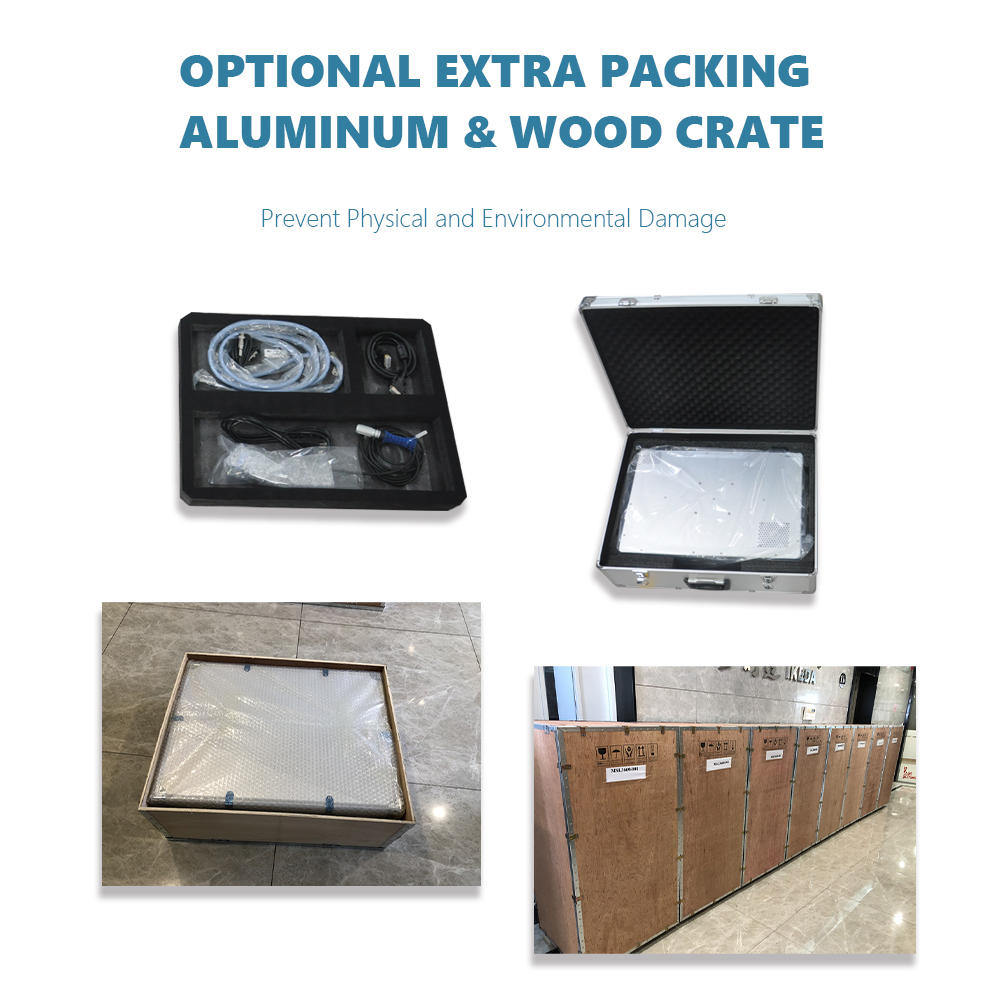

Optional extra aluminum case: Easy to carry and save on shipping.
Ease of operation and functionality: Including operating room switch, white balance, color tone, video, U disk, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma setting, zoom in/out, screen freeze and flip, resolution, output frame rate wait.
IKEDA imaging systems can be used in all areas of hospitals and clinics such as Arthroscopy, ENT, PTED (Percutaneous Percutaneous Transforaminal Endoscopic Discectomy), Cystoscopy, Percutaneous Nephroscopy, Ventriculoscopy, Catheteroscopy , Hysteroscopy, Proctoscopy, Sigmoidoscopy, Urological Resectoscope, Orthopedic Endoscopy, Laparoscopy, Catheteroscopy, Breast Implantation Endoscopy, Thoracoscopy, Fiber Nasopharyngoscope, Fiber Choledochoscope, Fiber Bronchus endoscope, fiberoptic ureteroscope, APP hernia repair, lacrimal duct, minimally invasive varicose veins, etc.
The camera is suitable for both rigid and flexible fiberscopes, such as sinusscopes, otoscopes, laryngoscopes, cystoscopes, arthroscopes, spinal endoscopes, hysteroscopes, laparoscopes…
The camera is suitable for diagnostics and surgery.
The camera is suitable for both rigid and flexible fiberscopes, such as sinusscopes, otoscopes, laryngoscopes, cystoscopes, arthroscopes, spinal endoscopes, hysteroscopes, laparoscopes…
The camera is suitable for diagnostics and surgery.

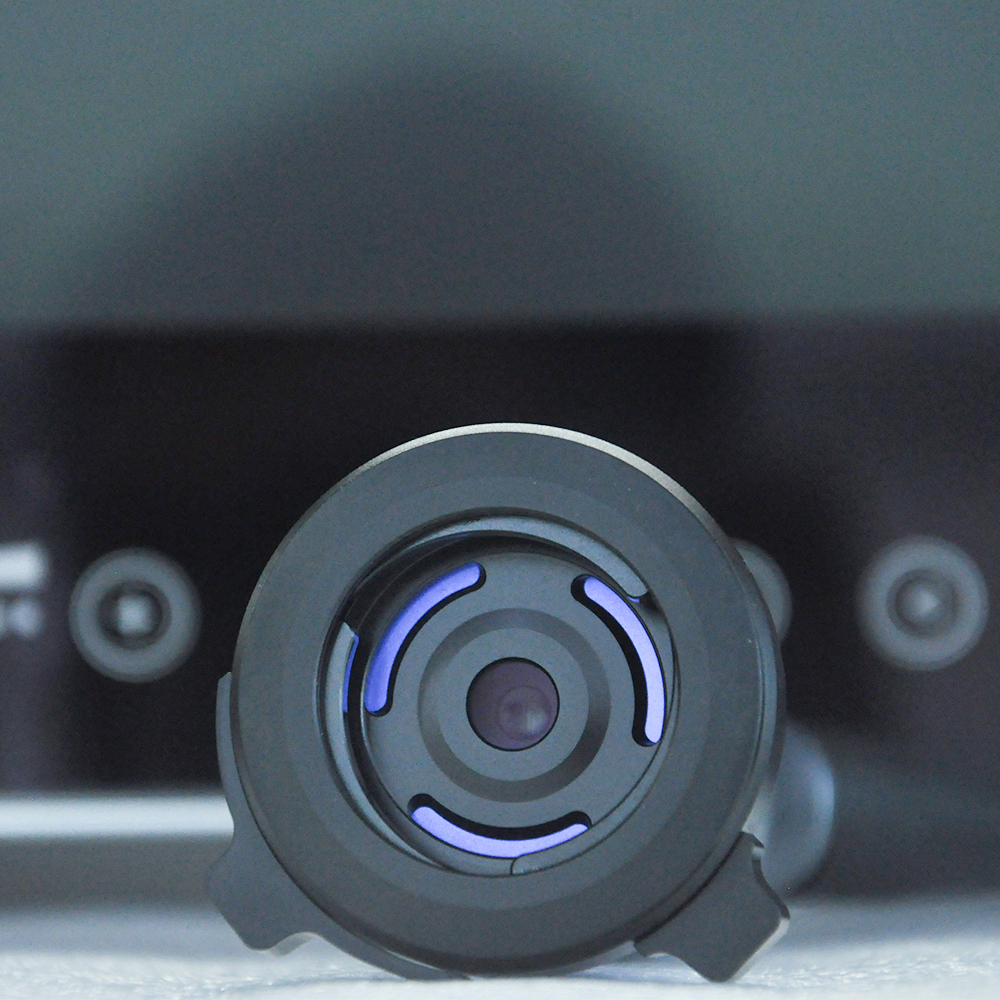

Full HD camera
We can define auto white balance as an adjustment that allows the camera to choose the best white balance and color temperature settings for a given scene. IKEDA HD cameras are best at finding the correct white balance and
Maximize clinic productivity at the lowest cost.
rigid endoscope
ultimate brilliance
Enjoy rich, accurate colors with deeper contrast and crisp detail. The smallest chromatic aberrations are accurately reflected, providing clearer, richer and more lifelike colors.
IkedaEfforts have been made to achieve laparoscopic visibility equivalent to open surgery by providing high-definition video imaging systems with advanced technology.
They have introduced a range of new, easy-to-use technologies designed to revolutionize the way medical disease is detected, characterized and sampled. We want to support every endoscopist. in each process. every day.
