YKD-9100 Full HD Endoscopic Camera Imaging System Portable Folding ENT Equipment with Workstation

PRODUCT DETAIL
Camera sensor:1/2.8'' Sony CMOSSupply capacity:50 sets per month
feature:Built-in workstation to print reportsmodel:YKD-9100
size of the picture:1920*1080PInstrument classification:level one
Quality Certification:International Organization for StandardizationShelf life:2 years
Model:YKD-9100Material:metal, plastic, steel
Certificate:CE ISO13485Pixels:2.1 million pixels
place of origin; place of origin:Chinalight source:Built-in 80W LED cold light source
payment terms:L/C, Western Union, T/T, MoneyGramEnergy source:electrical
port:any port in Chinabrand:Ikeda

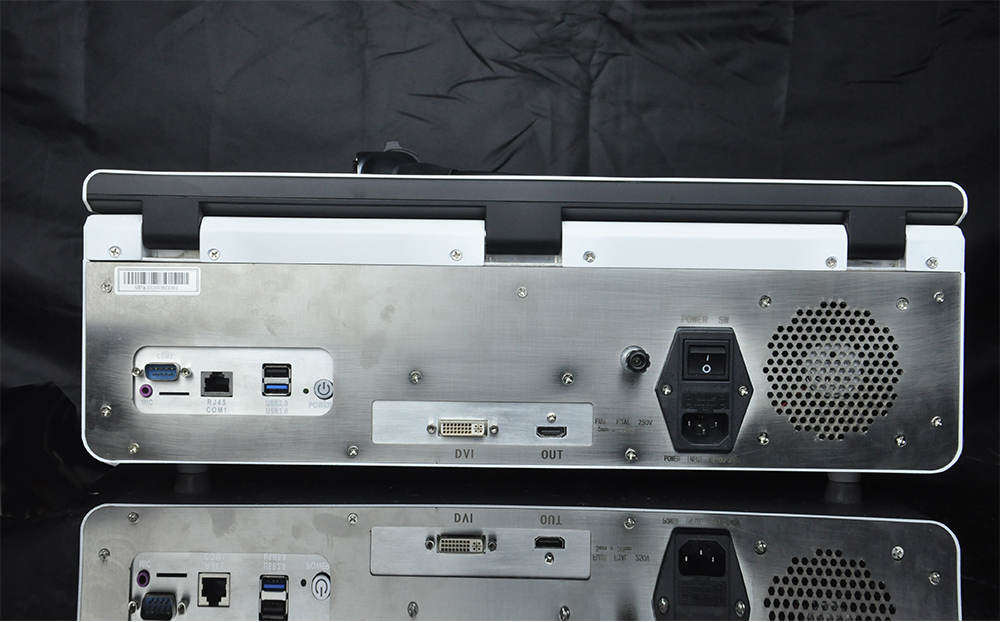

Video output:Via "DVI, HDMI, CVBS" video outputwhite balance:auto white balance
Warranty:2 yearsapplication:endoscopic surgery
After-sales service:online technical supportsafety standard:GB15979-2002
Product Description
product code
YKD-9100
camera
1/2.8/inch Full HD SONY CMOS, 1/3 inch SONY CMOS
size of the picture
1920x1080P
frame rate
(1920x1080)60fps
scanning system
line-by-line scan
pixel
2,100,000 pixels
resolution
1080P
LED light source
80W, cold light source
video output
DVI, HDMI, CVBS
Minimum illumination
0.5LUX
color temperature
5100-7000K
Luminous flux value
≥800 lumens
Color rendering index
≥90
/monitor
19 inches
AC input
AC100-240V 50/60HZ
video recording
Built-in USB
weight
10 kg
white balance
waybill and waybill
Dimensions (mm)
461*395*163
camera control
White Balance and Photo Capture
SNR
50dB, tolerance 20%

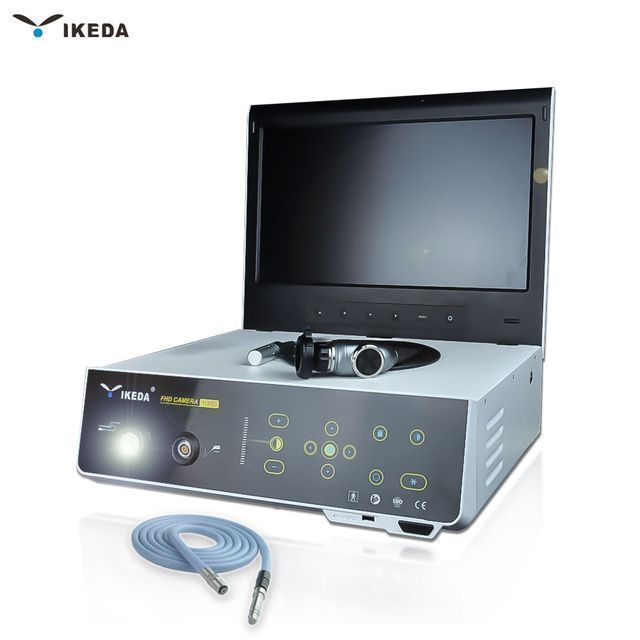

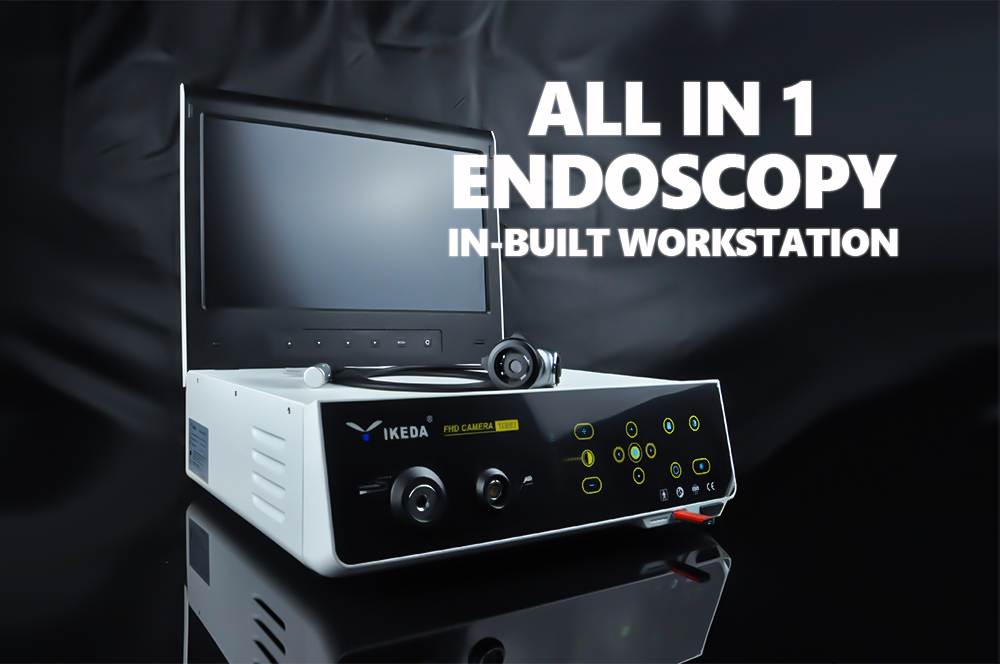

YKD-9100The video system center combines LED light source, camera, monitor, processor and workstation in one box, defining a new simplified way in the operating room. The intuitive touch panel with buttons allows for easy and fast control without interrupting the program.

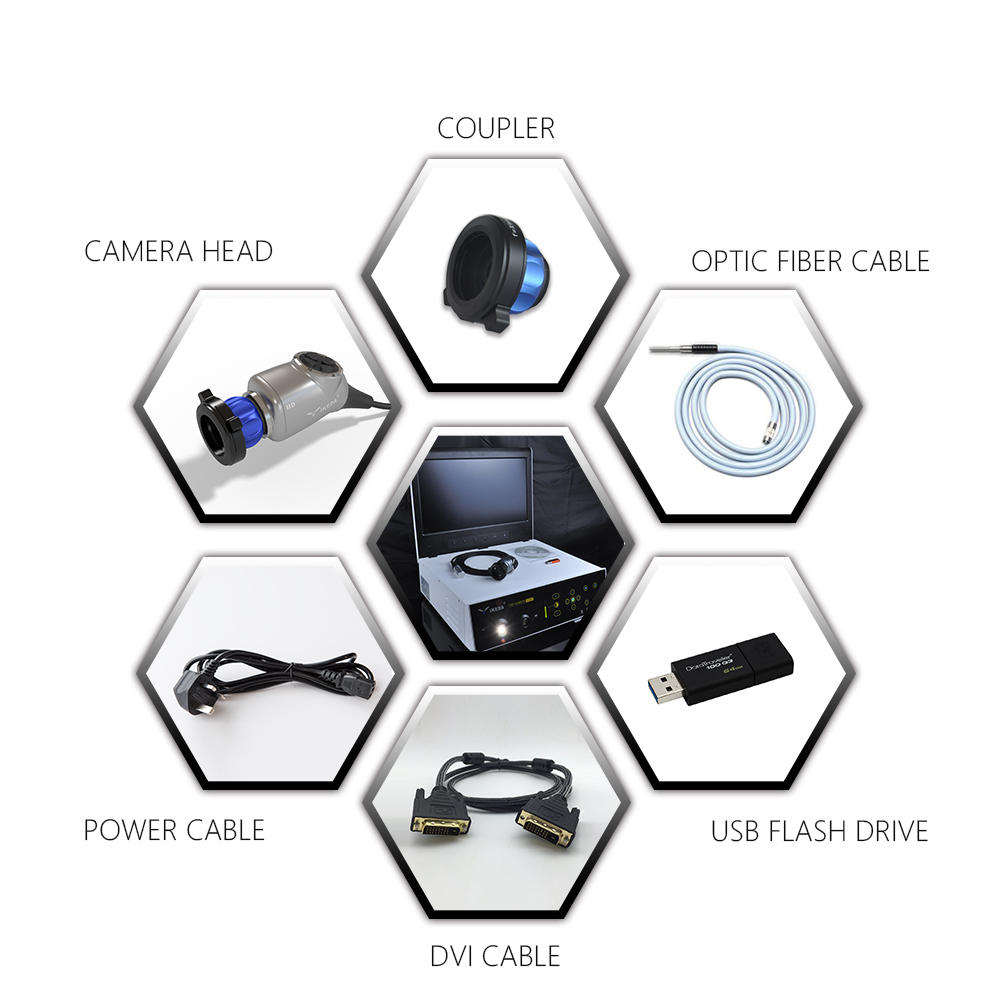

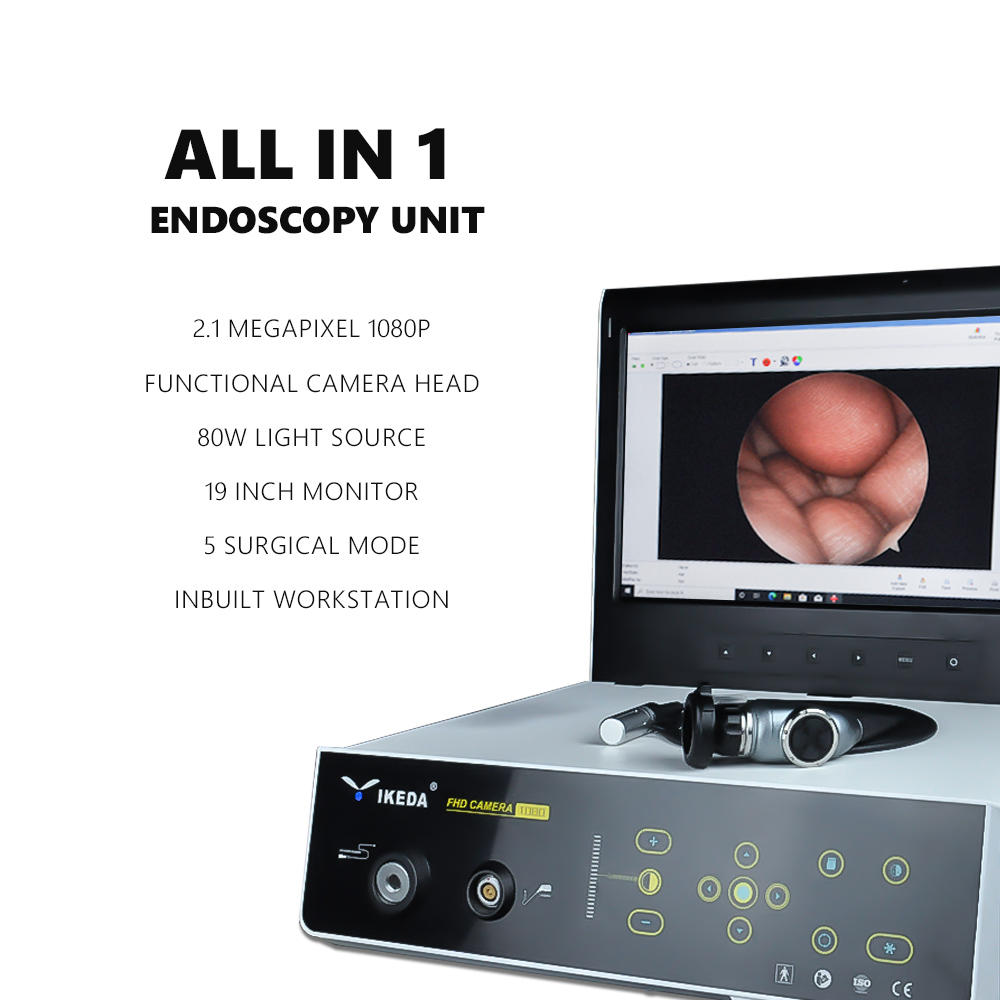

5 in 1: Camera 2.1MPixels+LED light source+display+HD video recorder+workstation.
Medical Grade HD Display:19 inches.
Built-in USB: FHD image storage.

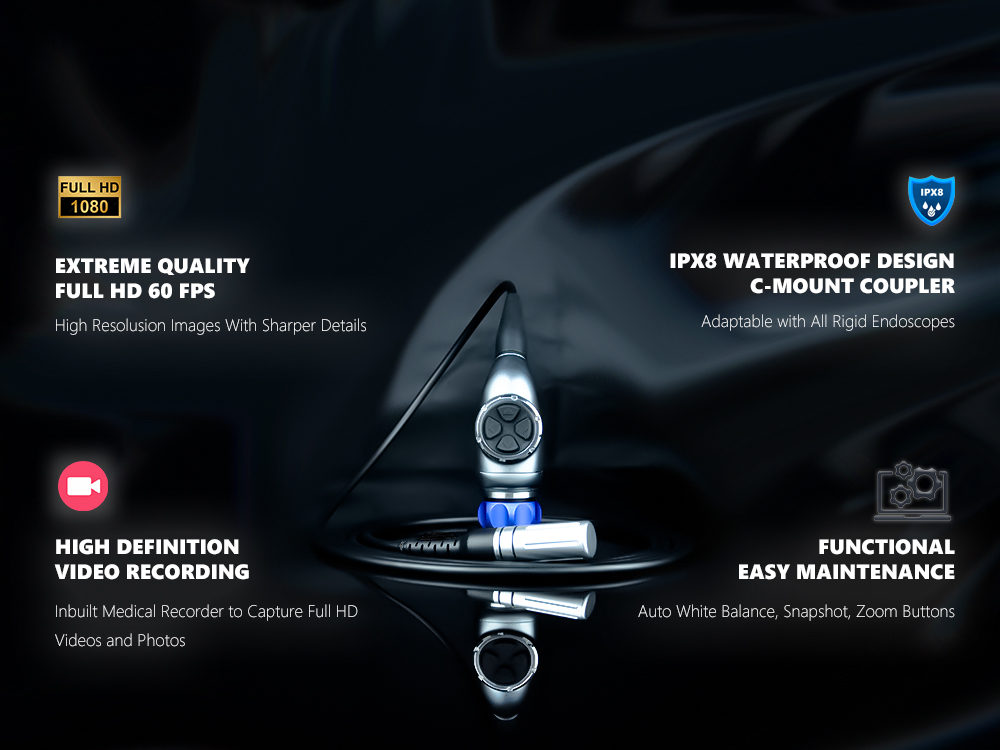

IPX8 waterproof camera: We always ensure high cost performance.
Optional extra aluminum case: Easy to carry and save on shipping.

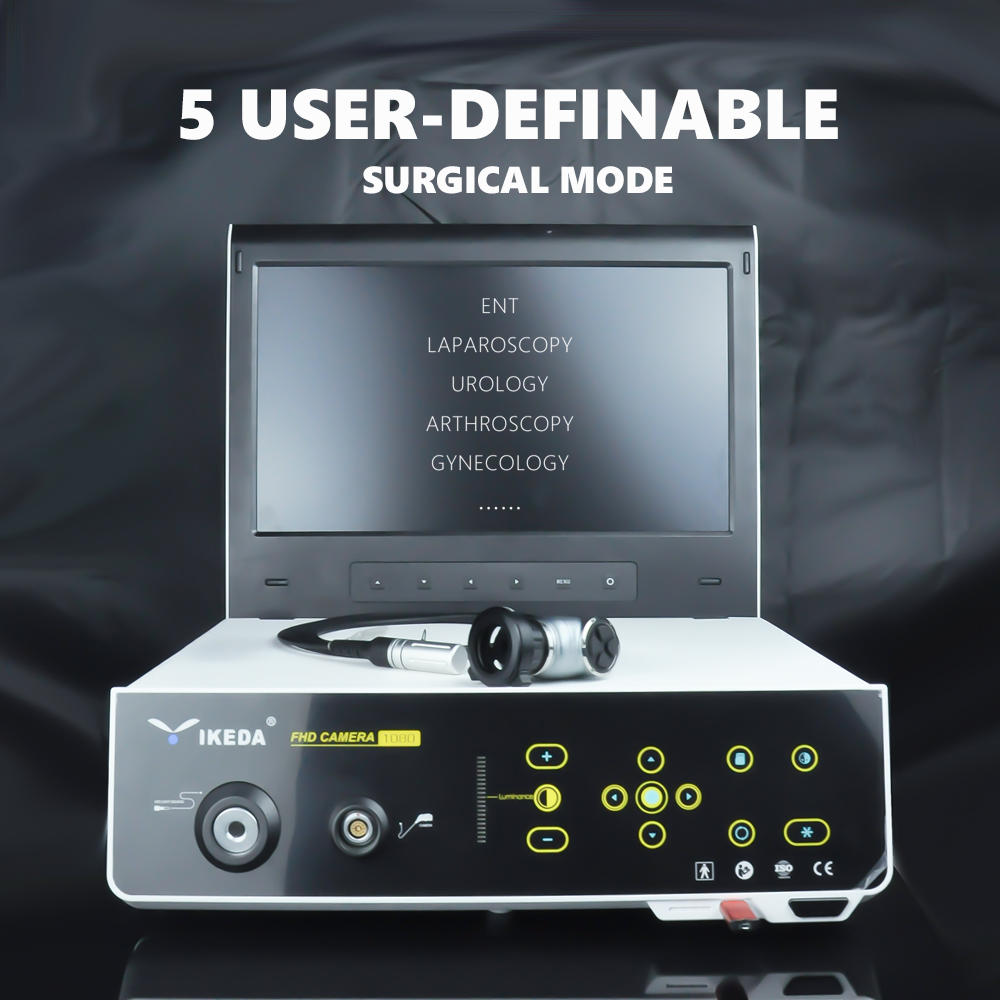

Ease of operation and functionality: Including operating room switch, white balance, color tone, video, U disk, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma setting, zoom in/out, screen freeze and flip, resolution, output frame rate Wait.

IKEDA imaging systems can be used in all areas of hospitals and clinics such as Arthroscopy, ENT, PTED (Percutaneous Percutaneous Transforaminal Endoscopic Discectomy), Cystoscopy, Percutaneous Nephroscopy, Ventriculoscopy, Catheteroscopy , Hysteroscopy, Proctoscopy, Sigmoidoscopy, Urological Resectoscope, Orthopedic Endoscopy, Laparoscopy, Catheteroscopy, Breast Implantation Endoscopy, Thoracoscopy, Fiber Nasopharyngoscope, Fiber Choledochoscope, Fiber Bronchus endoscope, fiberoptic ureteroscope, APP hernia repair, lacrimal duct, minimally invasive varicose veins, etc.
The camera is suitable for both rigid and flexible fiberscopes, such as sinusscopes, otoscopes, laryngoscopes, cystoscopes, arthroscopes, spinal endoscopes, hysteroscopes, laparoscopes…
The camera is suitable for diagnostic and surgical applications.

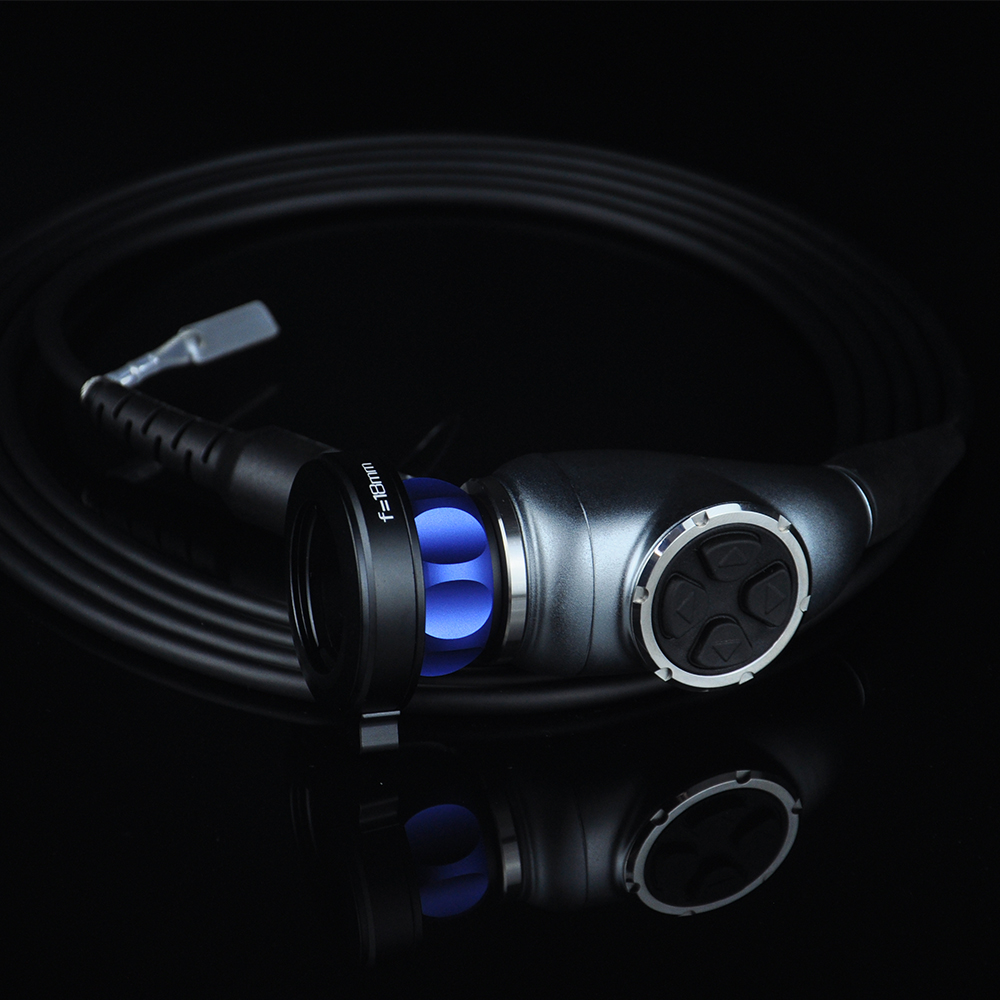

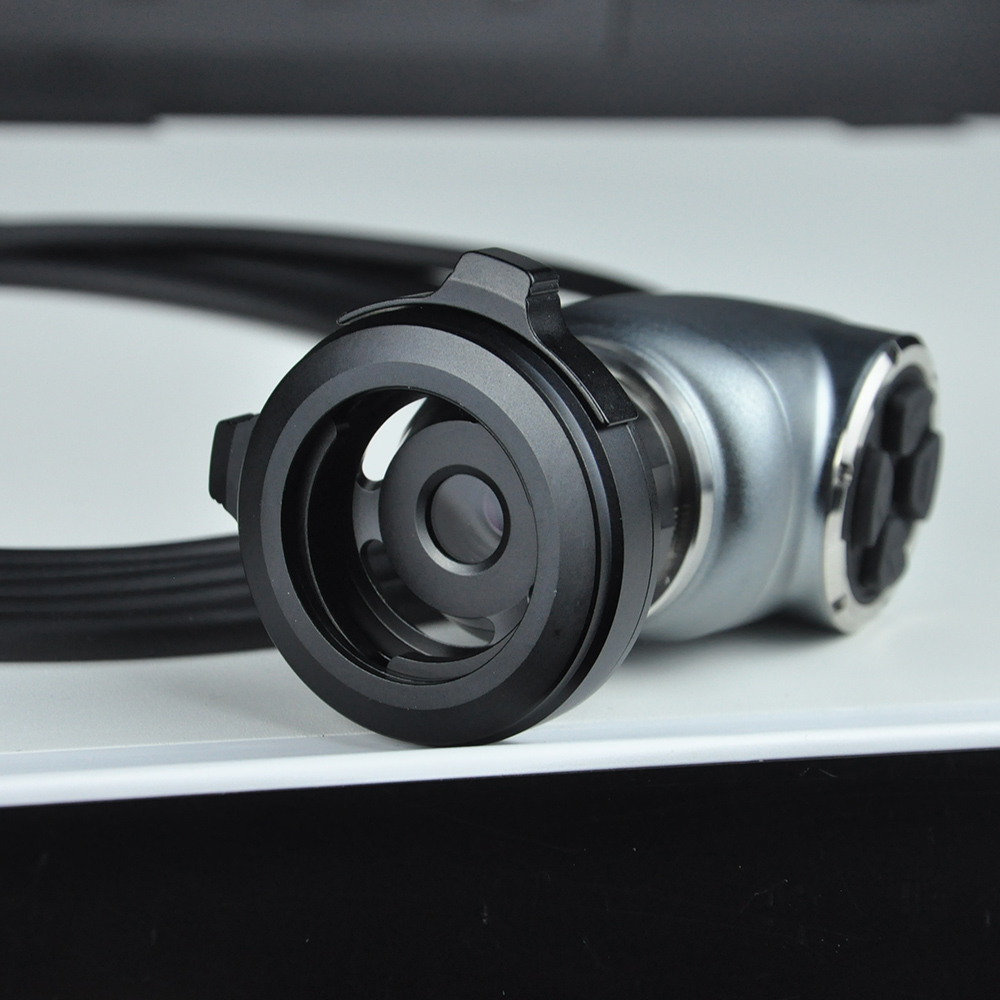

Full HD camera

We can define auto white balance as an adjustment that allows the camera to choose the best white balance and color temperature settings for a given scene. IKEDA HD cameras are best at finding the correct white balance and
Maximize clinic productivity at the lowest cost.

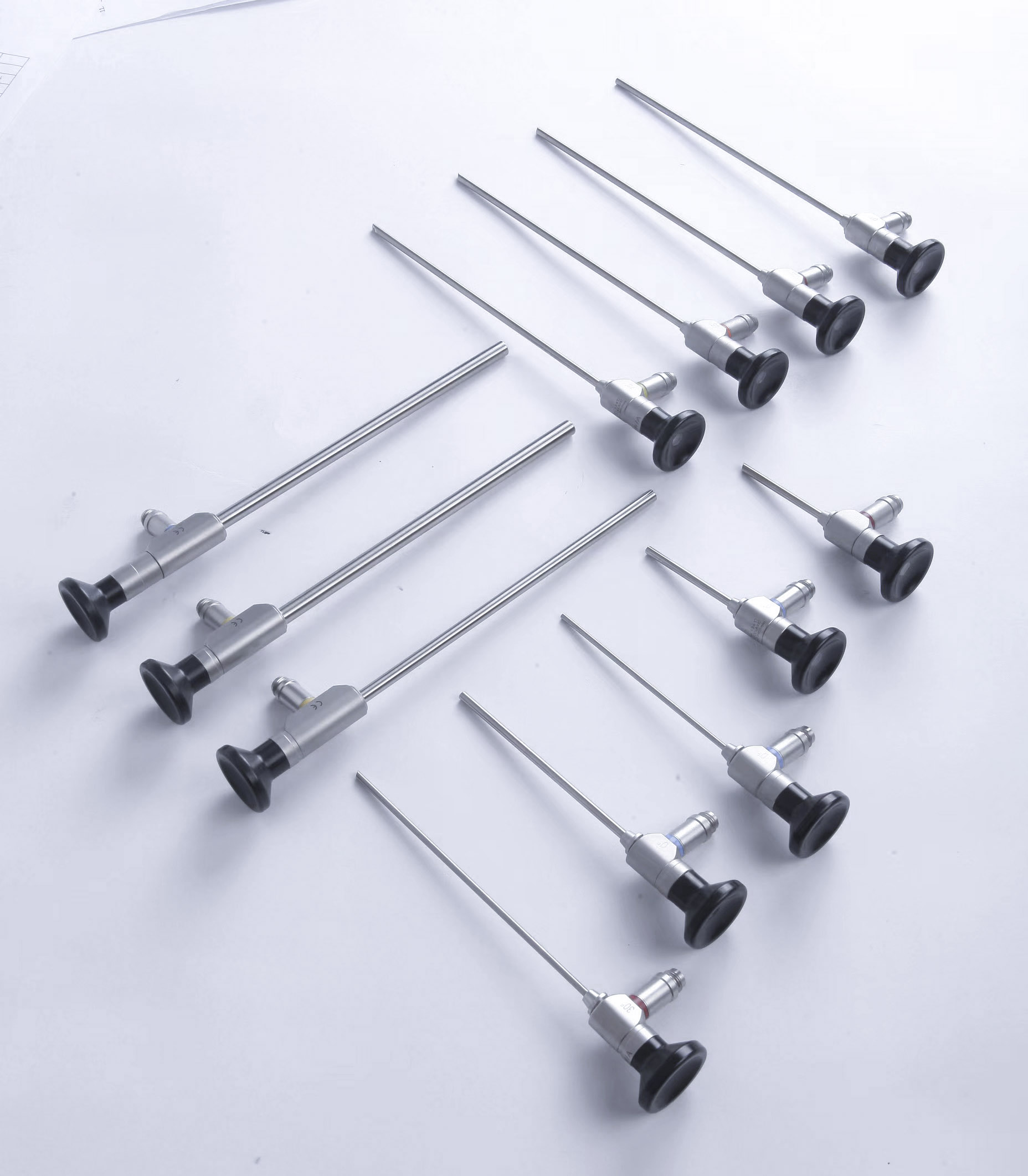

rigid endoscope

It has a wide range of applications and is suitable for rigid endoscopes such as laparoscopy, hysteroscopy, cystoscopy, arthroscopy, and sinusoscopy. We provide you with high magnification, high definition, high definition plus and 4K endoscopes.

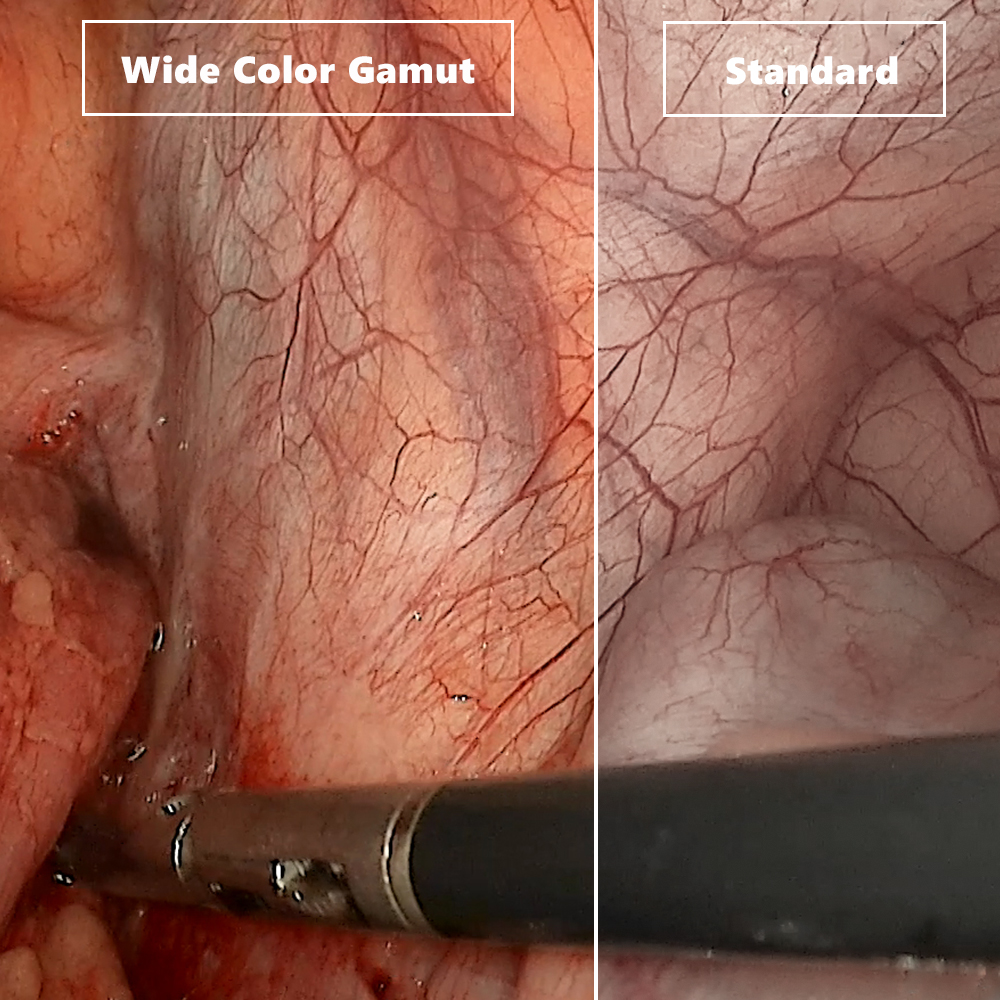

ultimate brilliance

Enjoy rich, accurate colors with deeper contrast and crisp detail. The smallest chromatic aberrations are accurately reflected, providing clearer, richer and more lifelike colors.

IkedaEfforts have been made to achieve laparoscopic visibility equivalent to open surgery by providing high-definition video imaging systems with advanced technology.
They have introduced a range of new, easy-to-use technologies designed to revolutionize the way medical disease is detected, characterized and sampled. We want to support every endoscopist. in each process. every day.
