Product Description

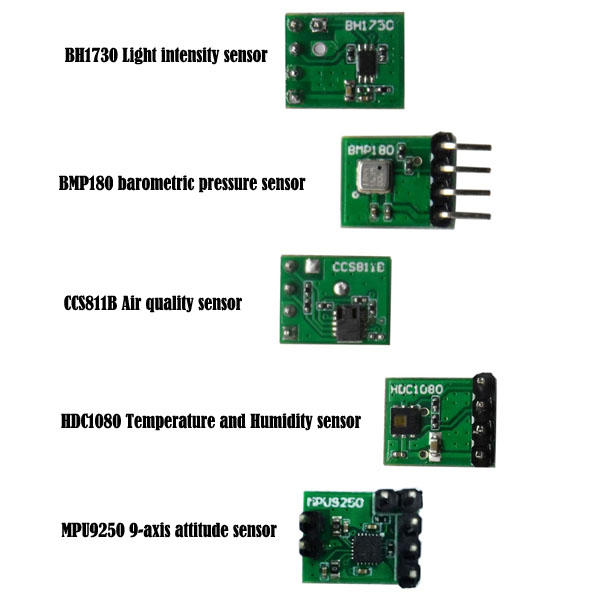

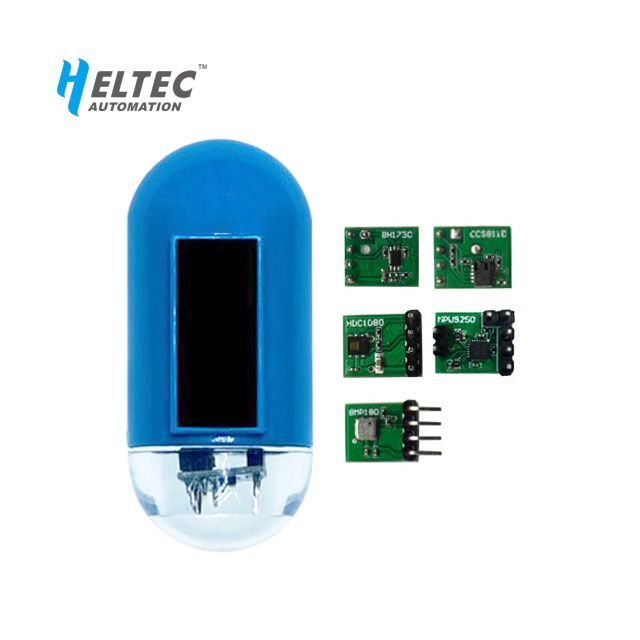

> Replaceable sensor design;
>Based on ASR6501
>Support AT command
>Low power consumption and solar
CubeCell – Capsule Solar Sensor HTCC-AC02
CubeCell(TM) is a new product series launched by the Heltec team, mainly for LoRa/LoRaWAN node applications.
The CubeCell (TM) family is based on ASR605x (ASR6501, ASR6502), which have integrated PSoC® 4000 series MCU (ARM® Cortex® M0+ core) and SX1262. We have done a lot of porting and development, so that it perfectly supports Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels.
The CubeCell (TM) family is based on ASR605x (ASR6501, ASR6502), which have integrated PSoC® 4000 series MCU (ARM® Cortex® M0+ core) and SX1262. We have done a lot of porting and development, so that it perfectly supports Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels.

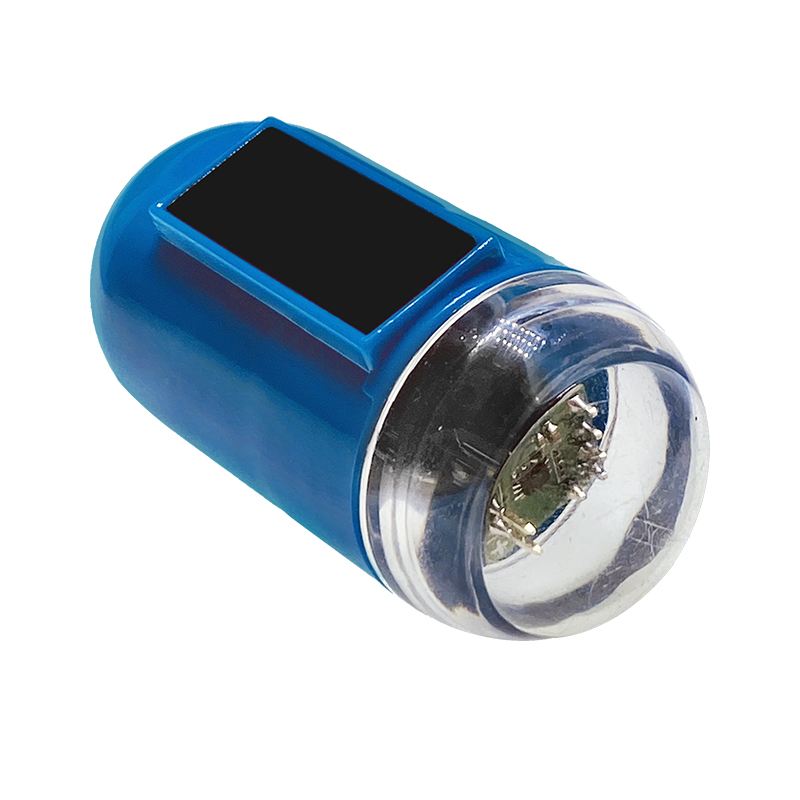

HTCC-AC02 is a LoRa end node sensor. With complete housing and protection measures, it can be directly deployed into real applications.

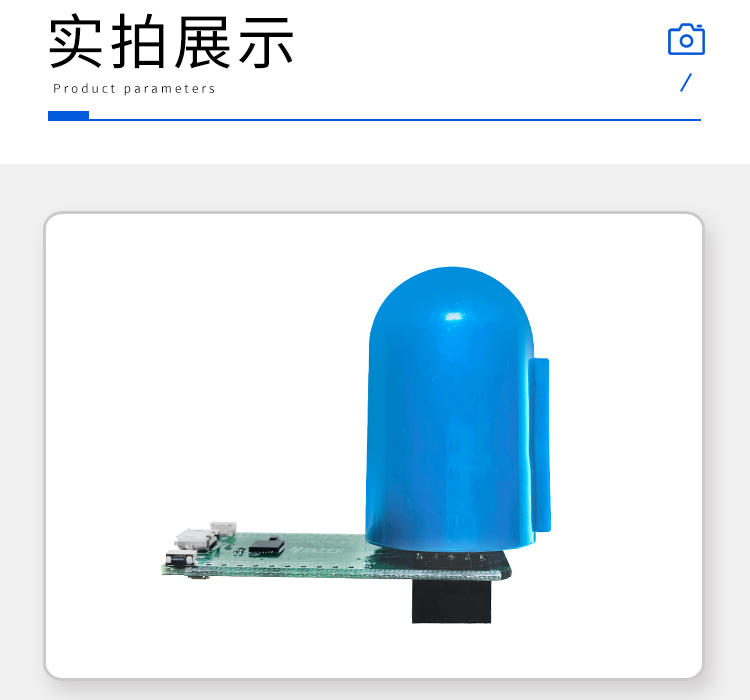

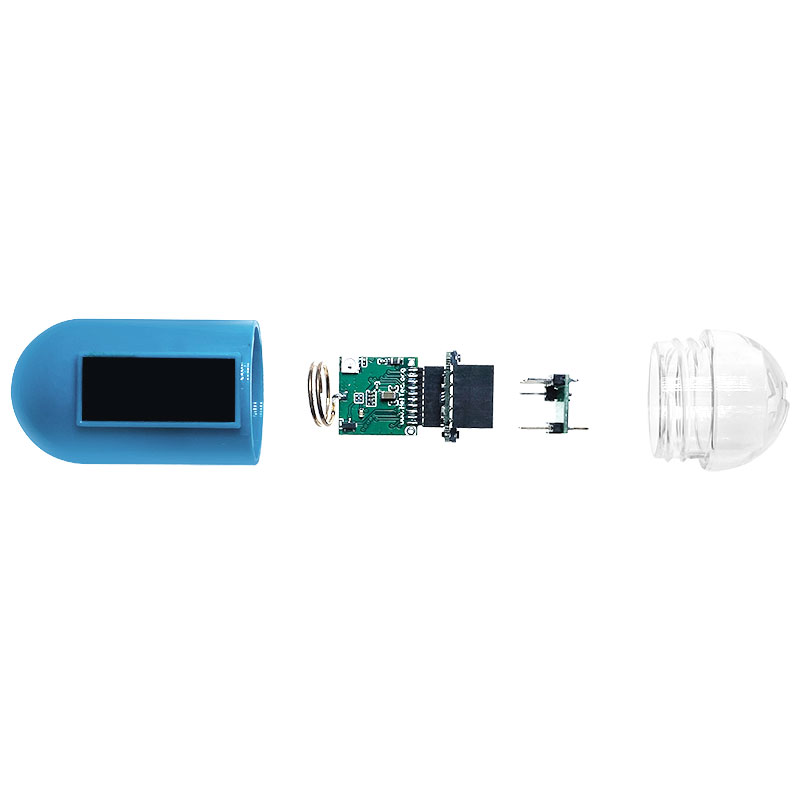

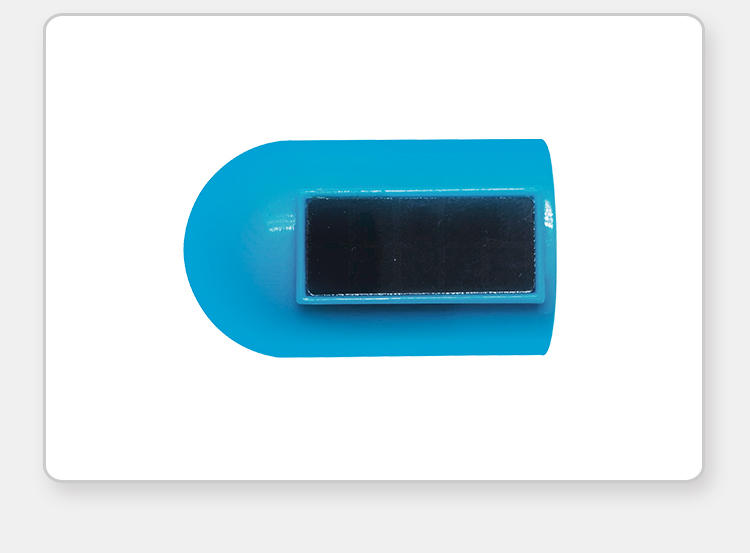

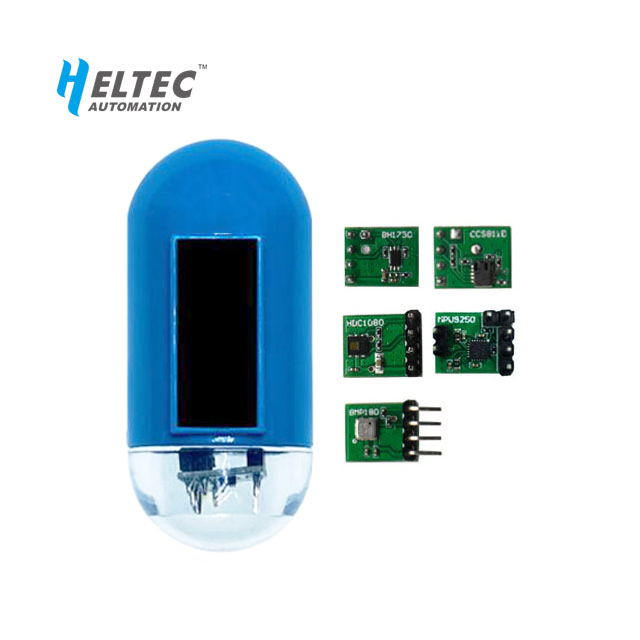

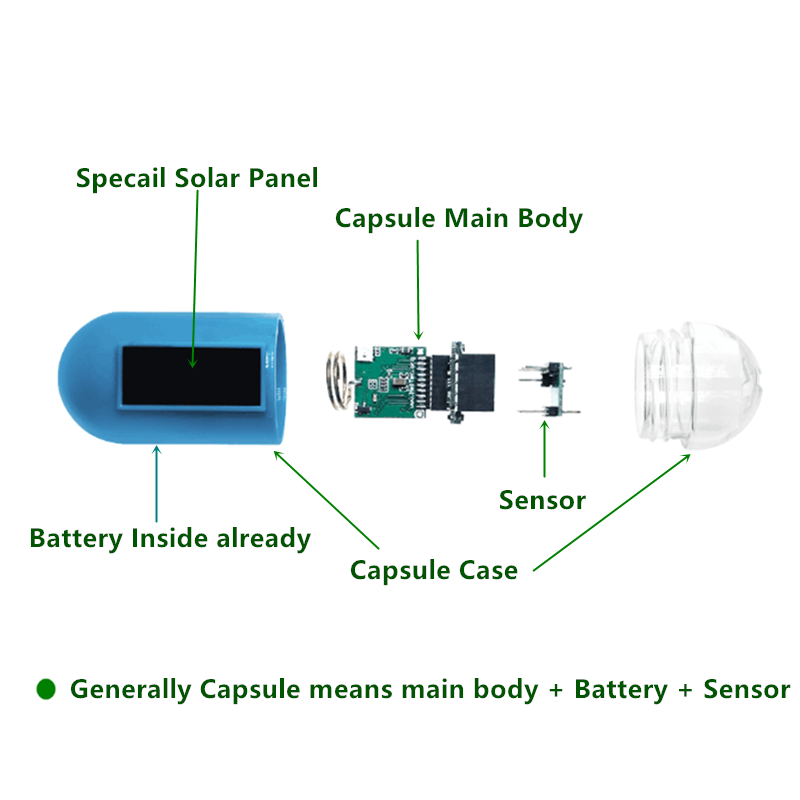

product display

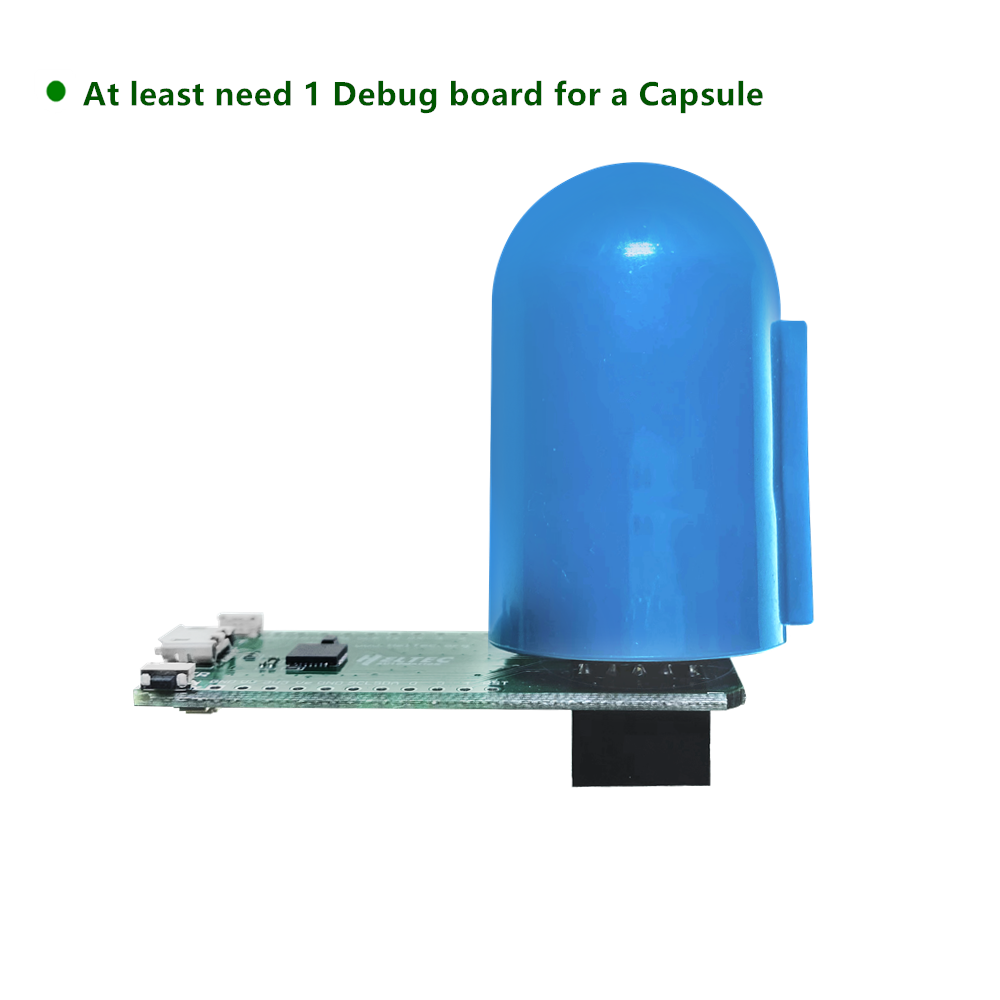

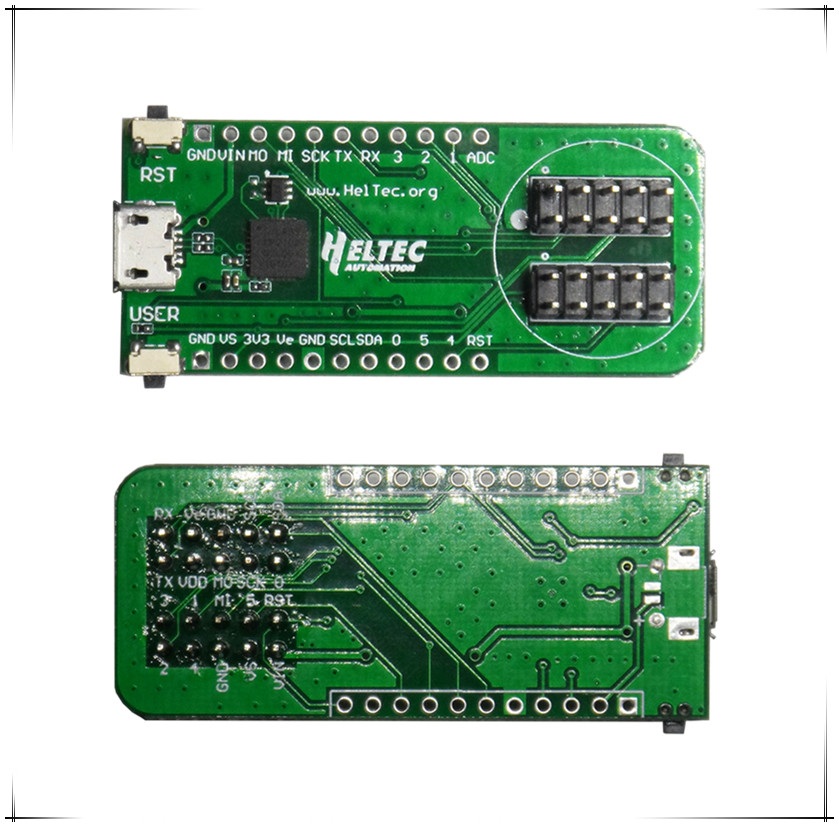

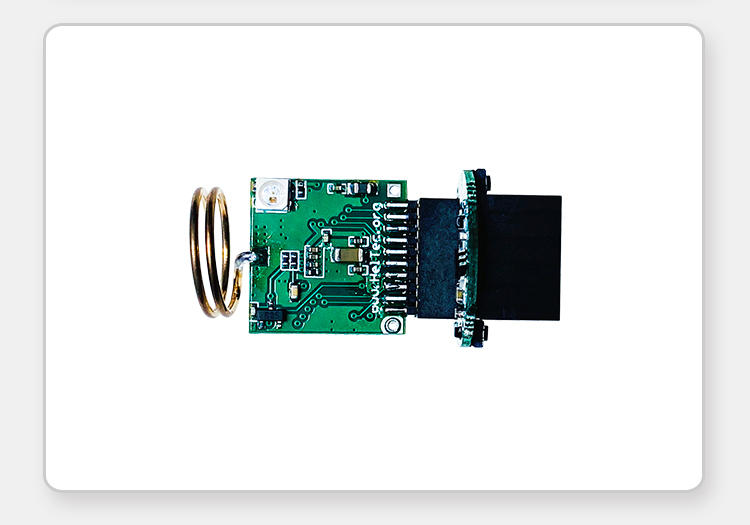

The capsule has a matching debugging board, which is convenient for copying the program and charging the battery
The HTCC-AC01 is part of the "CUBECELL" series and has the following features:
▶ Perfect Arduino Compatibility!
▶CE and FCC certification;
▶Internal RGB lights;
▶ The chip is based on ASR6052 and has integrated PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
▶LoRaWAN 1.0.2 support;
▶Ultra-low power consumption design, deep sleep 3.5uA;
▶Onboard solar management system, connected to 5.5 solar panels;
▶Reserve the battery pad;
▶Impedance matching is good, communication distance is long.
▶CE and FCC certification;
▶Internal RGB lights;
▶ The chip is based on ASR6052 and has integrated PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
▶LoRaWAN 1.0.2 support;
▶Ultra-low power consumption design, deep sleep 3.5uA;
▶Onboard solar management system, connected to 5.5 solar panels;
▶Reserve the battery pad;
▶Impedance matching is good, communication distance is long.

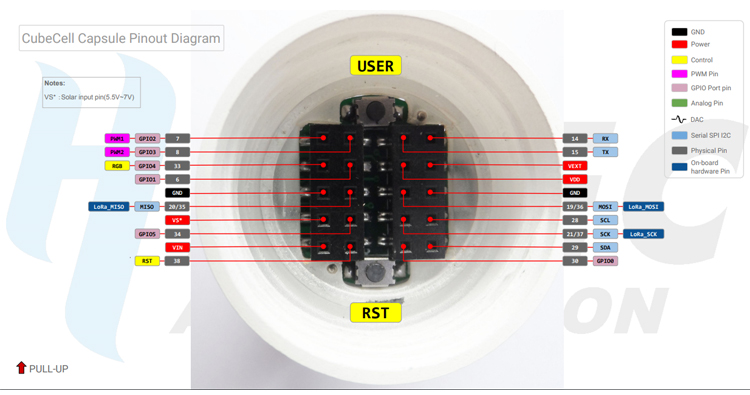

source | scope | ||
single chip microcomputer | ASR6501 (48 MHz ARM® Cortex® M0+ MCU, 128KB Flash, 16KB SRAM) | ||
LoRa chip | ASR6501 (Semtech® LoRa® Transceiver SX1262 assembled in-house) | ||
LoRa working frequency band | EU_433, CN_470_510, EU_863_870, US_902_928 | ||
LoRa maximum output power | 22±1dB | ||
hardware resources | Serial x 1; Interface x 1; I2C x 1; SWD x 1; Pulse Width Modulation x 3 | ||
12-bit ADC; 8-channel DMA engine | |||
6 general purpose inputs and outputs | |||
flash | 128KB internal flash memory | ||
interface | Micro USB x 1; LoRa (IPEX) x 1 | ||
size | 15mm diameter, 67mm length | ||
USB-UART bridge | not any | ||
Battery Type | 3.7V lithium battery (solder pad) | ||
battery detection circuit | √ | ||
External device power control (Vext) | √ | ||
low power design | Deep sleep 3.5uA | ||
electrical characteristics | Health status | at the lowest limit | typical | maximum |
power supply | USB power supply (≥500mA) | 4.7V
| 5V
| 6V |
Lithium battery (≥250mA) | 3.3V
| 3.7V
| 4.2V
| |
3.3V (pin) power supply (≥150mA)
| 2.7V
| 3.3V | 3.5V
| |
5V (pin) power supply (≥500mA)
| 4.7V | 5V
| 6V | |
Power Consumption (mA) | LoRa Receive Mode | 10mA | ||
LoRa 10dBm output
| 70 mA
| |||
LoRa 14dBm output
| 90 mA | |||
LoRa 17dBm output
| 100mA
| |||
LoRa 20dBm output
| 105mA
| |||
Sleep Mode (VBAT/Battery Powered)
| 11uA
| |||
Sleep mode (3.3V header powered)
| 3.5uA | |||
output | 3.3V pin output
| 500mA
| ||
External device power control (Vext 3.3V)
| 350mA |
Perfect Arduino compatible! Why did we choose Arduino?
Developers of IoT applications are mostly software engineers. I'm sure no software engineer wants to waste their life configuring registers, system clocks, and then lighting LEDs... Arduino is based on C++. Developers only need to call the API, such as the familiar Serial.begin(115200); Arduino is well-known and simple enough to make IoT application development easier; thousands of Arduino library resources; developers can run on Windows®, Mac OS® , Linux using Arduino®. But the traditional PSoC development platform only supports Windows® system; https://github.com/HelTecAutomation/ASR650x-Arduino
Why did we choose the ASR650x series?
Developers of IoT applications are mostly software engineers. I'm sure no software engineer wants to waste their life configuring registers, system clocks, and then lighting LEDs... Arduino is based on C++. Developers only need to call the API, such as the familiar Serial.begin(115200); Arduino is well-known and simple enough to make IoT application development easier; thousands of Arduino library resources; developers can run on Windows®, Mac OS® , Linux using Arduino®. But the traditional PSoC development platform only supports Windows® system; https://github.com/HelTecAutomation/ASR650x-Arduino
Why did we choose the ASR650x series?
The ASR650x series currently includes two chips: ASR6501 and ASR6502. This series has integrated PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262 LoRa chip, which has great application significance! The circuit size and cost can be greatly reduced.
