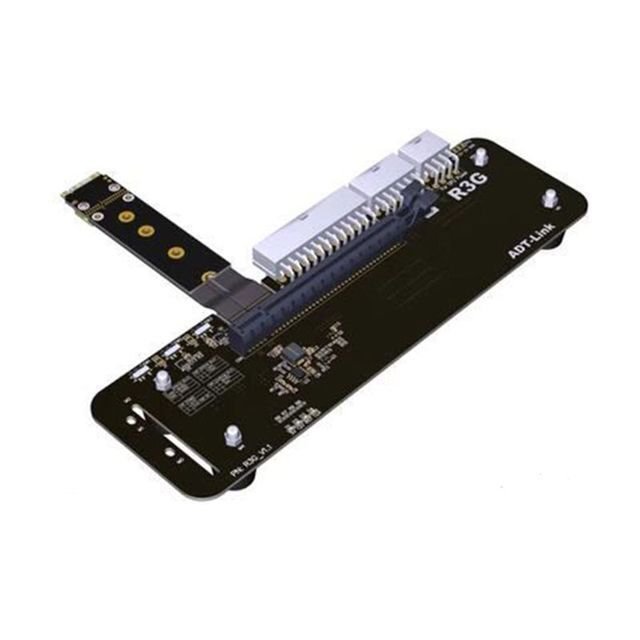

M.2 key M External Graphics Card Stand Bracket with PCIe3.0 x4 R43SG/R43SG-TU Riser 32Gbs For ITX STX NUC VEGA64 GTX1080ti
- $36.90 /piece
- 1 piece
- Shenzhen SHCHV Technology Co., Ltd.
- Guangdong, China
- Mr Tiger Wang
PRODUCT DETAIL
| Product Type: | Extension board; | Type: | Extension board; |
| Model Number: | L0143; | Usage: | For ITX STX NUC VEGA64 GTX1080ti; |
| Package: | Yes; | Model: | R43SG/R43SG-TU; |
| Description: | M.2 key M External Graphics Card; | Payment Terms: | L/C,Western Union,T/T; |
| Place of Origin: | Guangdong, China; | Condition: | 100%new; |
| Compatible With: | For ITX STX NUC VEGA64 GTX1080ti; | Brand Name: | SHCHV; |
Product Description
Pls Note:
For 70cm cable, we can't guarantee that PCIE 3.0 speed can be reached, because the length of the cable will affect the signal. Pls take it into account before purchase.
For 70cm cable, we can't guarantee that PCIE 3.0 speed can be reached, because the length of the cable will affect the signal. Pls take it into account before purchase.
Length is customizable,cable prices of different lengths are not the same,pls contact us if you need!
Brand: ADT
Product model: R3G series products
Product Name: Graphics card external adapter board extension cable
Wire length: 25cm, 50cm (other length bulk orders can be customized)
Graphics card compatibility: support for new graphics cards shipped after 2015 (old graphics cards shipped before 2014 are not
supported)
Motherboard compatibility: ITX/STX motherboard, NUC, only supports M.2 NVMe interface Does not support M.2 SATA interface, does
not support M.2 WiFi interface, does not support M.2 WWAN interface
Power Description: The model that supports the power supply is DELL 12V/18A/220W power supply, or the standard ATX power supply.
Please prepare or purchase the power separately.
Bandwidth speed: PCIe3.0x4 (32G/s)

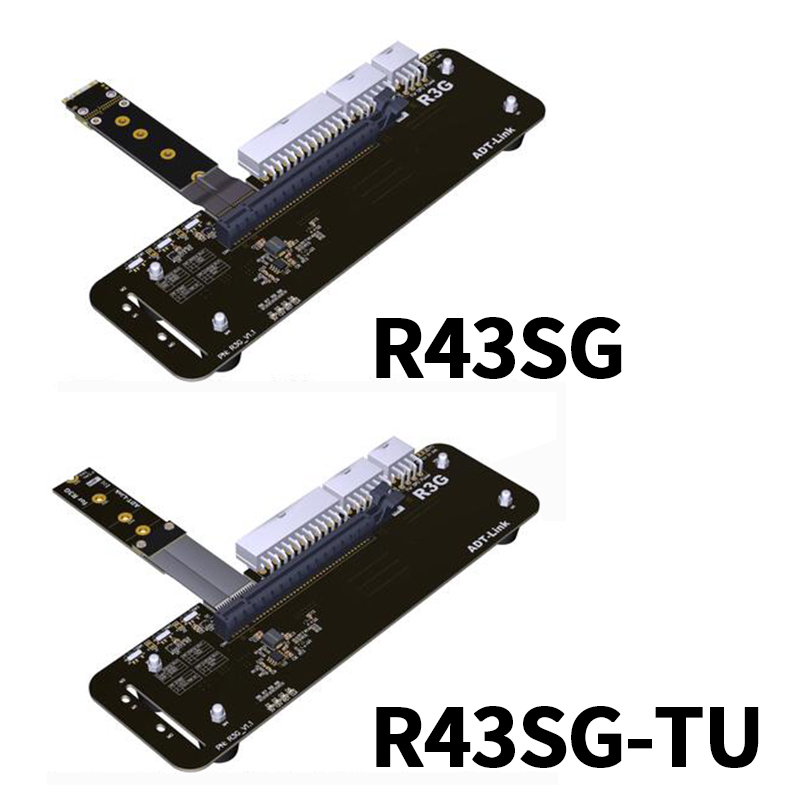

Model Description: R43SG (M.2 NVMe interface)
Brand: ADT
Product model: R3G series products
Product Name: Graphics card external adapter board extension cable
Wire length: 25cm, 50cm (other length bulk orders can be customized)
Graphics card compatibility: support for new graphics cards shipped after 2015 (old graphics cards shipped before 2014 are not
supported)
Motherboard compatibility: ITX/STX motherboard, NUC, only supports M.2 NVMe interface Does not support M.2 SATA interface, does
not support M.2 WiFi interface, does not support M.2 WWAN interface
Power Description: The model that supports the power supply is DELL 12V/18A/220W power supply, or the standard ATX power supply.
Please prepare or purchase the power separately.
Bandwidth speed: PCIe3.0x4 (32G/s)
Model Description: R43SG (M.2 NVMe interface)
Note:
1. We highly recommend to use it for PC desktop, not for laptop. There is low success rate for laptop due to the Incompatibility,
especially for HP, Dell, Lenovo)
2.Professional use is highly recommended. This item don't include user manual, and we don't support technical support, pls take it
into account before placing the order.
3.If the BIOS is not recognized, please update the BIOS to the latest version from the official website of your motherboard.
4. System support: Only supports Win10 1909 and later version.
1. We highly recommend to use it for PC desktop, not for laptop. There is low success rate for laptop due to the Incompatibility,
especially for HP, Dell, Lenovo)
2.Professional use is highly recommended. This item don't include user manual, and we don't support technical support, pls take it
into account before placing the order.
3.If the BIOS is not recognized, please update the BIOS to the latest version from the official website of your motherboard.
4. System support: Only supports Win10 1909 and later version.

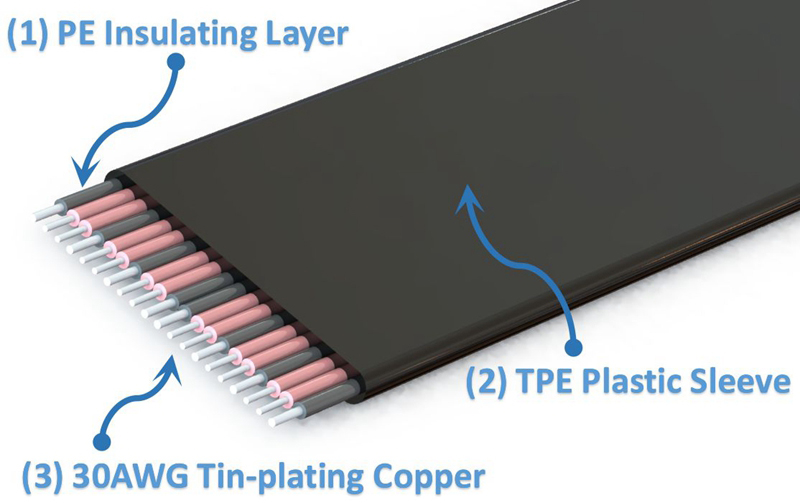

EMI Shielding with Conducting Polymer
The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
Cable Length Description:
R3G series cable length has 25 cm or 50 cm can be selected, the following is the line length of 50 cm. refer to the blue dimension of the figure below.
Power Supply Description:
Supporting power supply is DELL 8-pin 12V/18A/220W, or standard PSU power supply. The power supply should be prepared by the buyer or purchased separately.
R3G series cable length has 25 cm or 50 cm can be selected, the following is the line length of 50 cm. refer to the blue dimension of the figure below.
Power Supply Description:
Supporting power supply is DELL 8-pin 12V/18A/220W, or standard PSU power supply. The power supply should be prepared by the buyer or purchased separately.
Installation step

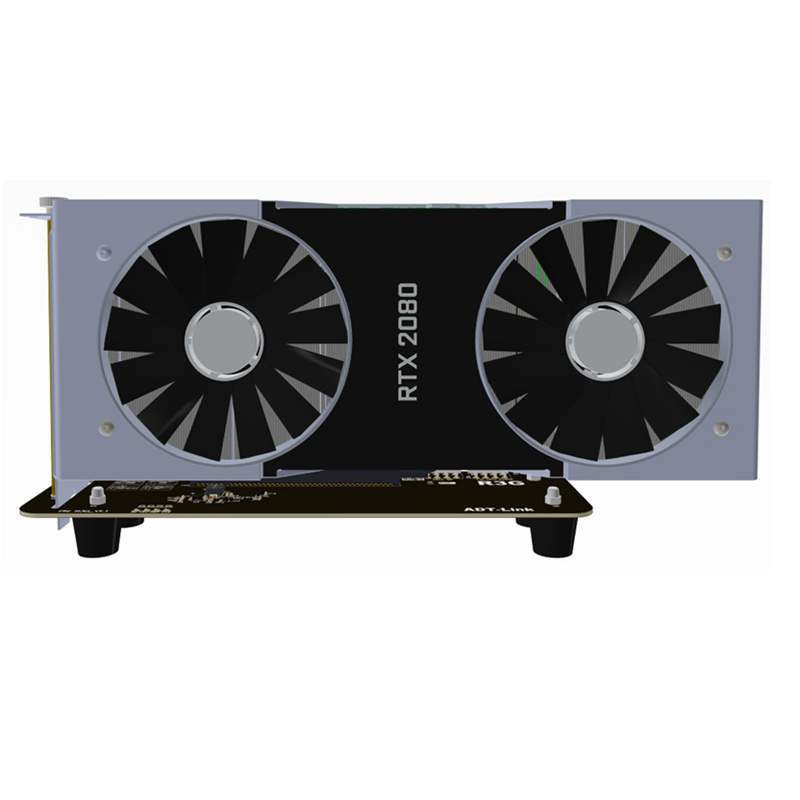

1. Install the hexagonal copper pillar and insert the graphics card into the PCIe x16 slot. The screw is tightened so that the
graphics card will not shake or fall off.

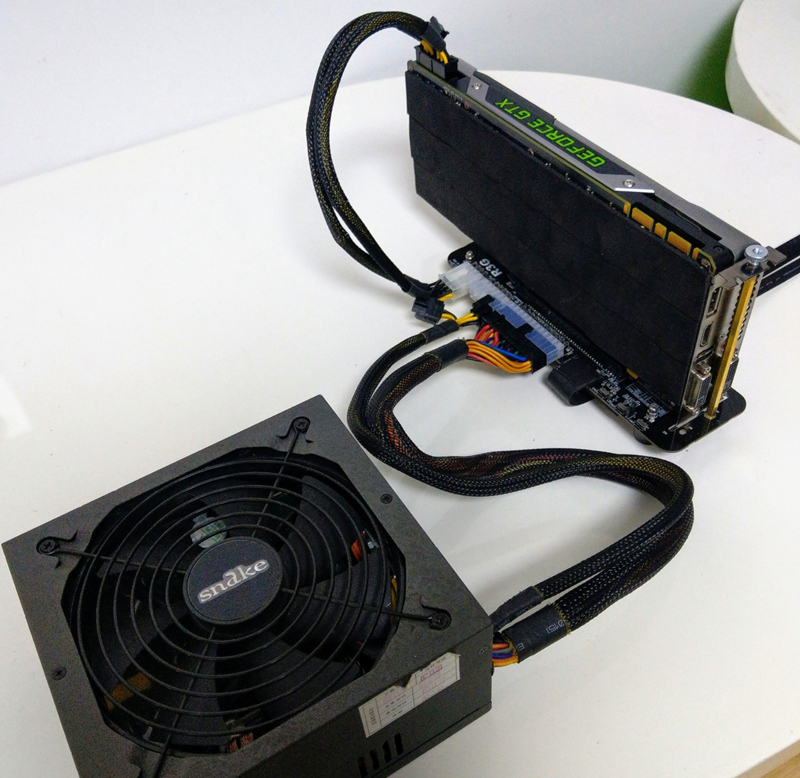

2. Install ATX power supply or DELL power supply, including graphics card power cord should also be connected, after installed, DELL power supply will light orange lights.
3. You can plug in the M.2 cable when the computer is off. After power on, the ATX power supply will automatically start the fan to turn. If you use the DELL power supply, the green light will turn on. At this time, the R3G board will turn on two green lights. The system will recognize the card automatically. Please install the graphics card driver. The installation of the driving process may prompt the computer to restart.
4. finish.
graphics card will not shake or fall off.
2. Install ATX power supply or DELL power supply, including graphics card power cord should also be connected, after installed, DELL power supply will light orange lights.
3. You can plug in the M.2 cable when the computer is off. After power on, the ATX power supply will automatically start the fan to turn. If you use the DELL power supply, the green light will turn on. At this time, the R3G board will turn on two green lights. The system will recognize the card automatically. Please install the graphics card driver. The installation of the driving process may prompt the computer to restart.
4. finish.
