IOT Wireless Soil EC PH Analyzer Moisture Temperature Nutrient Sensor

PRODUCT DETAIL
theory:temperature sensormodel:G7-AD-SE
RF power:10dBminterface:rs232/rs485
Custom Support:OEM, ODMbrand:Yismin
Material:metal, waterprooftype:radio frequency module
Analog sensor:4~20mA signal inputproduct name:temperature moisture sensor
RF Wireless:433 MHz, 4.8Kbit/spayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,PayPAL
Supply capacity:1000 sets of temperature and humidity nutrition sensors per monthPackaging Preview:
place of origin; place of origin:HongkongPackaging Details:Carton, IoT Wireless Soil EC PH Analyzer Temperature Moisture Nutrient Sensor
Display type:analog and digitalWarranty:2 years
port:HongkongCertification:CE FCC RoHS

IoT Wireless Soil EC PH Analyzer Temperature Moisture Nutrient Sensor







G7-AD Wireless Analog Sensor System

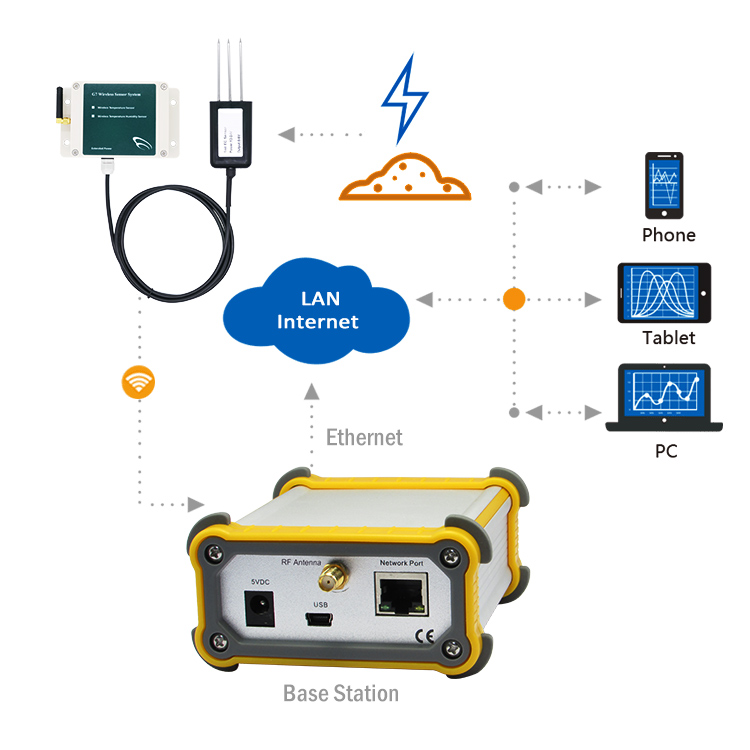

Using the G7 wireless analog sensor and base station, you can start monitoring sensor measurements remotely online.

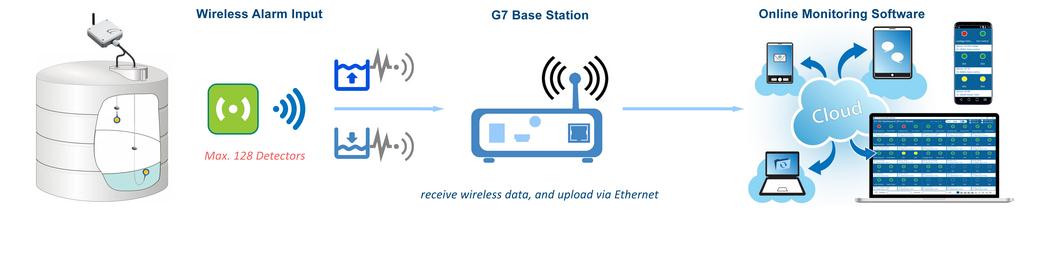

The Wireless Sensor G7 wirelessly transmits measurements from any industrial analog sensor with a 4-20mA/0-5VDC signal to the base station. The base station collects all wireless sensor readings and periodically uploads them to a central server via the Modbus TCP protocol.

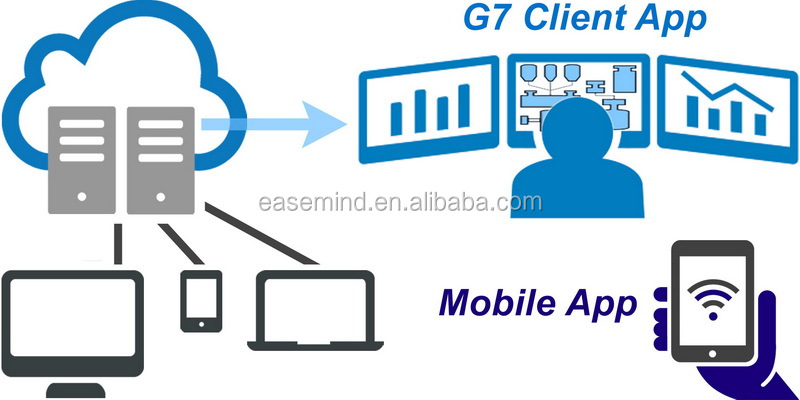

The G7-Centre App receives data from the base station via the Internet or LAN.

G7 client app for Windows10, iOS, Android displays and stores all incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding changes in measurements, users can be alerted by high or low sensor readings, such as air pressure, water level, load cells, or carbon dioxide.

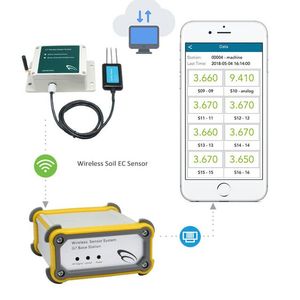

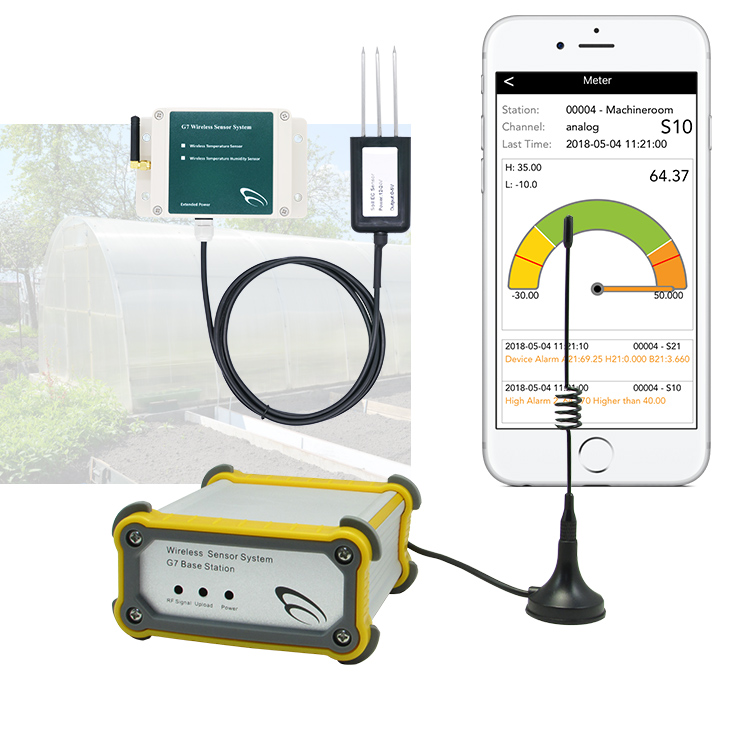

Wireless Soil EC Sensor
* 0 ~ 10000 uS/cm
* liquid or soil



application:
- Agriculture, Agriculture
- Greenhouse
- water supply







【Product name】Wireless weighing sensor, wireless pressure sensor, wireless liquid level sensor, wireless weather station

Wireless wind speed sensor, wireless analog temperature sensor, wireless PM2 air quality sensor







[in the package]

1 x Base Station and RF Antenna

1 AC/DC adapter

1 x Ethernet cable

Up to 64 wireless sensors in one system

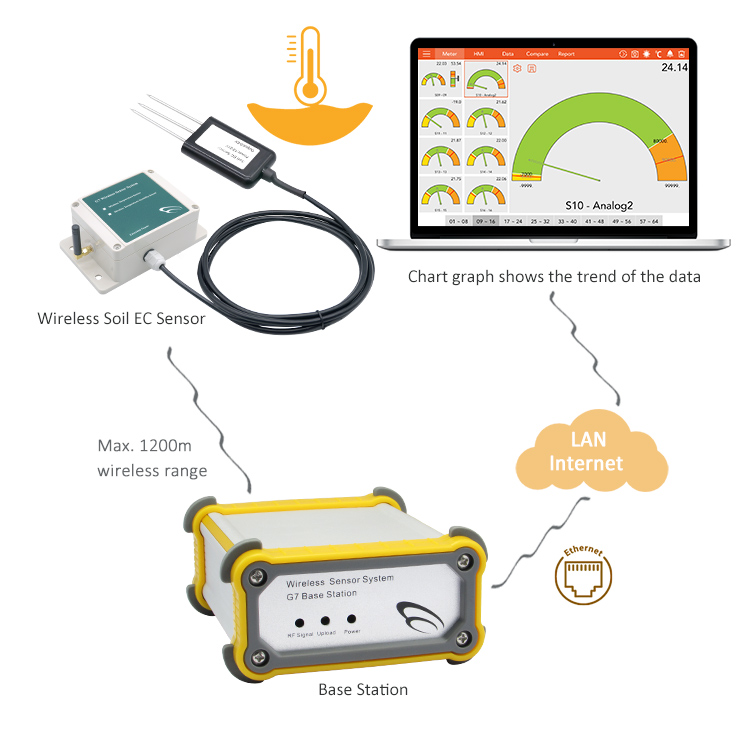

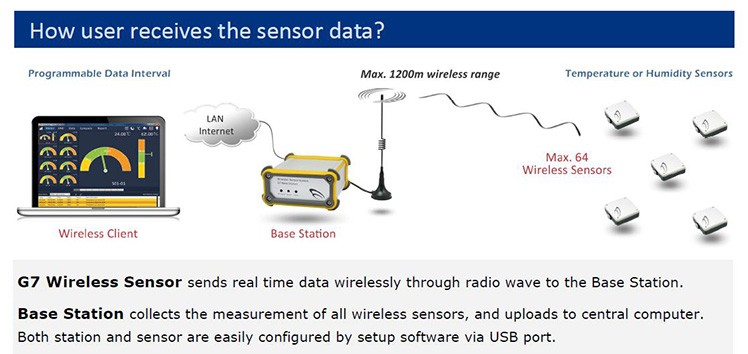

[How does this work]

(1) Wireless sensor

The sensor transmits analog sensor readings wirelessly to the base station via radio frequency up to 1200 meters. Its internal battery runs for an average of one year. All sensors are waterproof and internal/external antennas are adjustable.

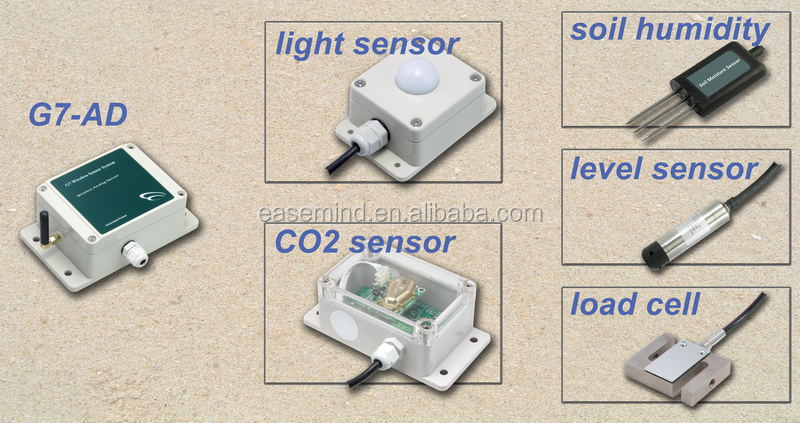

* G7-AD wireless analog sensor

* G7-D2 wireless digital alarm input

* G7-T2/TX wireless temperature sensor

* G7-H2/H3 wireless temperature and humidity sensor

* G7-T2/TX-Ex Wireless Temperature Sensor【Extended Power】

* G7-H2/H3-Ex wireless temperature and humidity sensor [extended power]

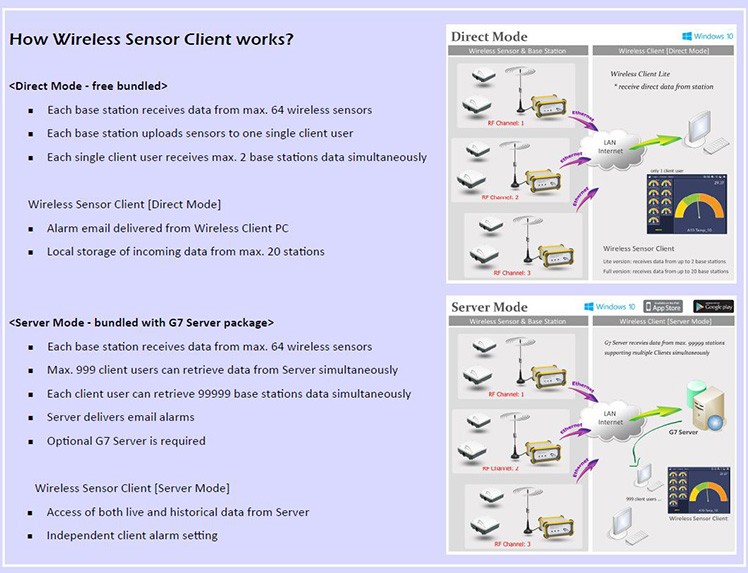

(2) Base station

It is the gateway between users and sensors. The base station receives readings from the maximum value. There are 64 wireless sensors within a range of 1200m. The station is connected to the Internet or a LAN connection. The information of all sensors collected in one data record is then sent to a central computer via LAN or Internet with Modbus TCP protocol.

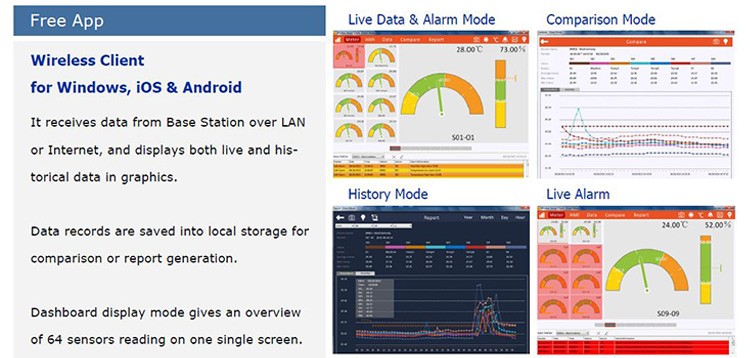

(3) G7 Wireless Client App for Windows, iPad, Android

By using the free G7 Client Lite, users can receive data from base stations via LAN or the Internet. Data will be saved to a file for future analysis and displayed graphically with real-time alarm alerts.























【Technical Specifications】



G7-AD

wireless analog sensor

analog sensor

4~20mA signal input



0~5VDC signal input

Transmission interval:

User programmable 5s ~ 4 hours

Sensor number:

unique 8 digits

RF Wireless:

433 MHz, 4.8Kbit/s

RF power:

10dBm

Wireless distance:

1200 meters (unlocked)

Action Score:

80mA (data transmission)

Standby Rating:

~3.0uA (sleep mode)

Operating Voltage:

7~10V DC

Battery Life:

Average 1-2 years

aspect:

115 x 90 x 55 mm



base station



protocol:

Active TCP



Modbus TCP

network port:

10/100M Ethernet

data pack:

Instant access to incoming data from connected sensors

RF Wireless:

433 MHz, 4.8Kbit/s

RF address/band:

255/15

Operating Voltage:

5~20V DC

score:

< 130mA

Operating temperature:

-35 ~ 75 °C

aspect:

70 x 65 x 35 mm













































[application]





* Real-time monitoring of water network - flow or pressure sensors

* Oil/gas networks, pumping stations – flow or level sensors

* Real-time monitoring of groundwater level

* Environmental monitoring system - wind/CO2/pressure/light sensor

* Remote industrial equipment monitoring

* Wide-area equipment monitoring, such as power plants, antenna towers

* Collect and report measurement device data via Wi-Fi

* Food chain, warehousing, transportation, building management

* Agriculture, agriculture, laboratory, medical industry - load cell, CO2, light sensor

















software

software
(1) Setup software
The free and user-friendly setup software for Windows provides a user-friendly graphical interface to configure the Smart Data Logger.
It allows users to save, export and import configuration files.

(2) Central software
Free Center Software is a small tool that receives data via GPRS, Ethernet or Wi-Fi for testing purposes.

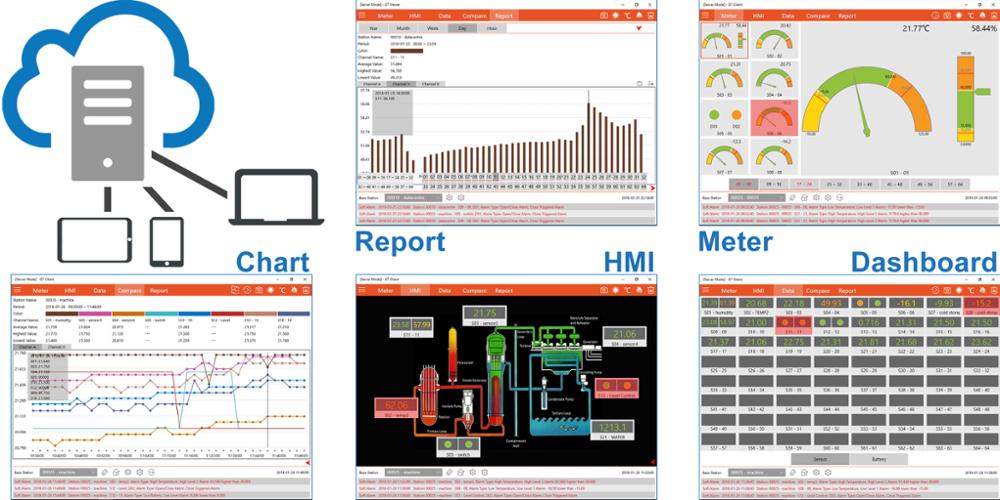

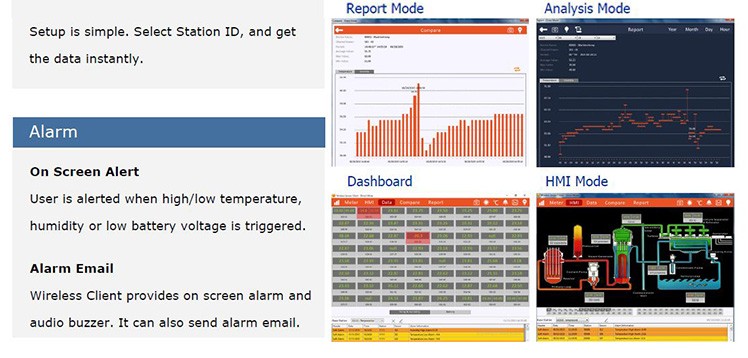

(3) NET client application for Windows, iPad, Android
Free NET Client Access live or logged data directly from Smart Data Logger. The sensor readings are then displayed in graphical mode on a PC, iPad or Android tablet.
It allows users to monitor real-time sensor readings in a graphical chart or HMI.

(4) Ultimate server client software package [optional]
Ultimate Server is designed to manage large numbers of intelligent data loggers. It simultaneously processes data received in UDP and TCP protocols via GPRS, Ethernet, Wi-Fi and SMS. It manages the database of incoming data, data loggers and remote client users.
Ultimate Client allows users to monitor real-time and historical data in graphical charts or HMI.
