RIKA RK520-01 Waterproof Industrial Plant Irrigation Soil Moisture Test Sensor RS232 RS485

PRODUCT DETAIL
port:any port in ChinaCustom Support:OEM, ODM
type:Soil temperature and humidity sensorPackaging Details:1 piece per box
brand:day cardplace of origin; place of origin:Hunan, China
temperature range:-30~70°CSoil Moisture Accuracy:±3%
Supply capacity:5000 pieces per monthIntellectual property level:IP68
payment terms:L/C,Western Union,D/P,D/A,T/TWarranty:1 year
Building Materials:ABSmodel:RK520-01
supply:12-24Voutput:4-20mA, 0-5V, RS485
Probe Material:316SSTemperature Accuracy:±0.2°C
thing:Soil Moisture and Temperature SensorsSoil moisture range:0-100% m3/3

RIKA SENSOR - Weather Station No.1, follow the steps below to verify
Contact us for the latest catalog! ! !

Company Profile



Manufactured by RIKA SENSOR



Product Description

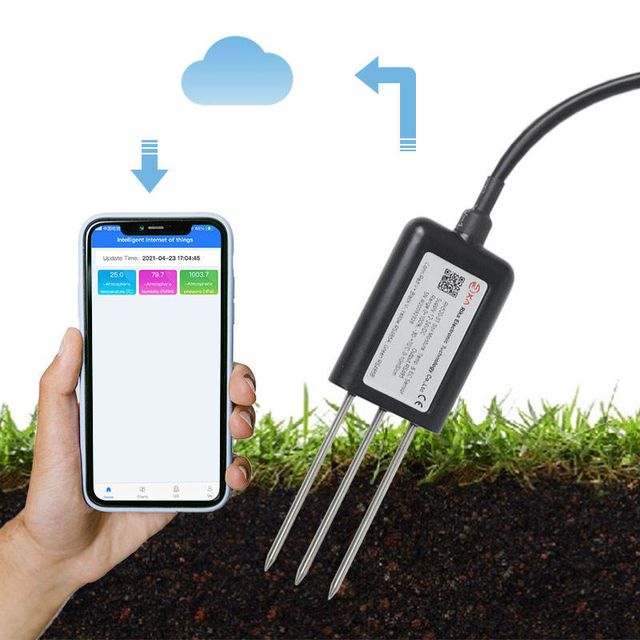

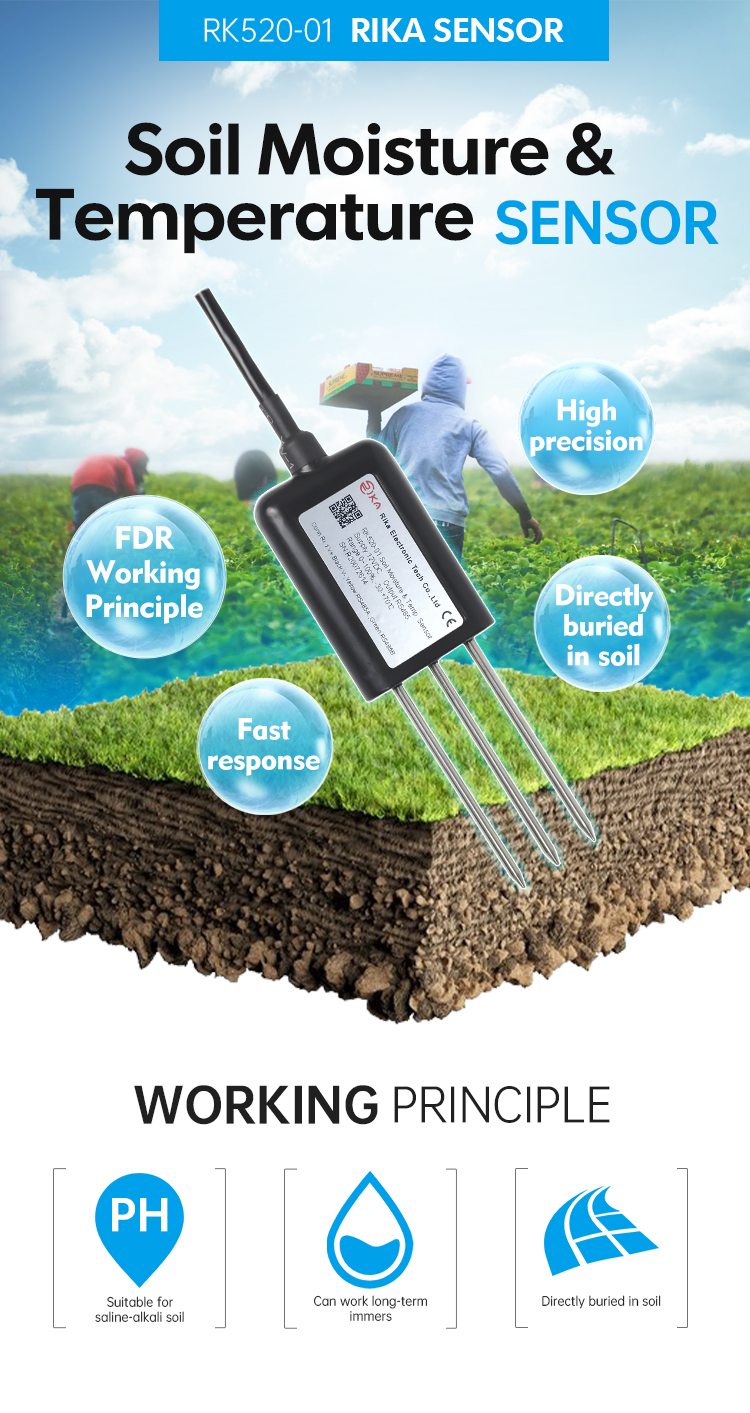

RK520-01 Soil moisture and temperature sensor with integrated humidity and temperature measurement.

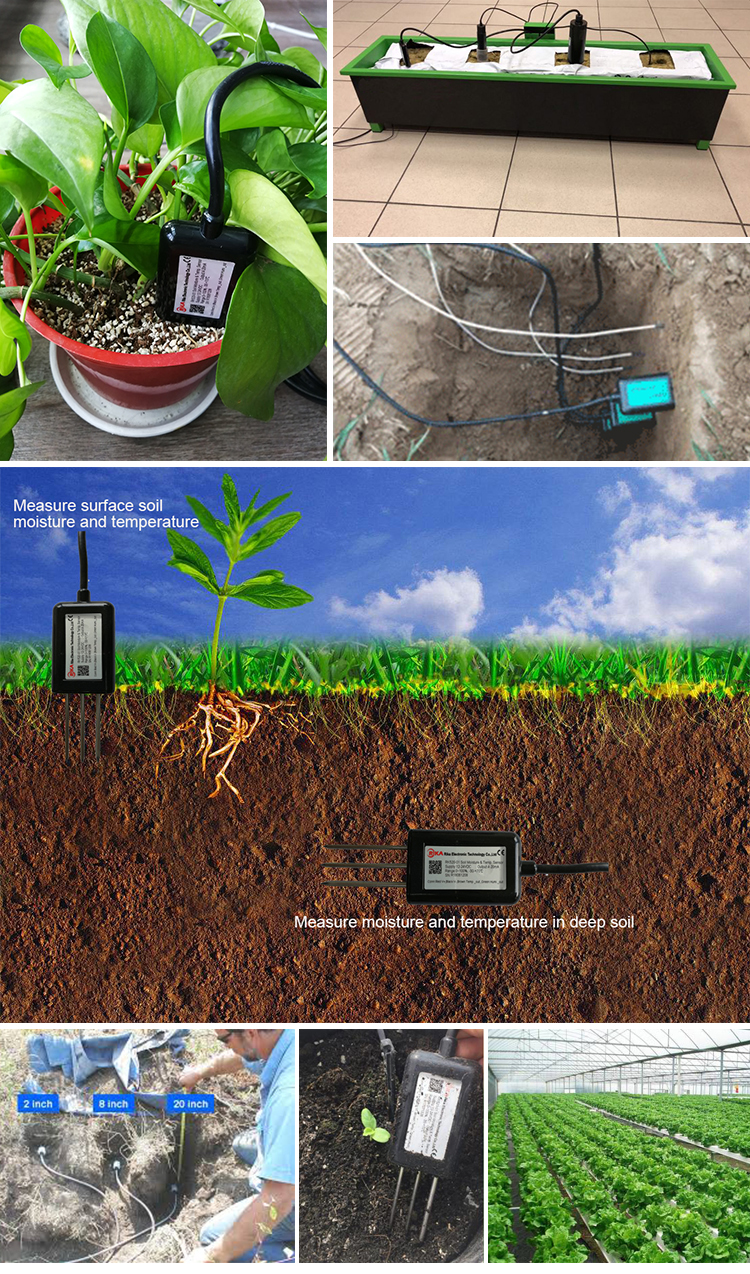

Stainless steel probes are inserted into the soil surface or soil profile to quickly test soil moisture and temperature. The moisture measurement part is designed according to the FDR principle, and the volume of soil moisture content is measured by measuring the dielectric constant of the soil. The temperature part adopts precision platinum resistance elements, and the product has built-in drift calibration and temperature compensation circuits, which can be adapted to most applications. Probes can be permanently embedded in the ground and connected to a data logger for unlimited testing.



Technical Specifications



thing

Technical Specifications

moisture

temperature

scope

0-100% (m3/Meter3)

-30℃-+70℃

accuracy

±3%(0-50%)

±0.2℃

output signal

4-20mA, 0-5V, 0-2V, RS485 optional

Response time

<1s

supply

5VDC, 12-24VDC

Effective measurement area

The probe center diameter is 70mm, and the cylinder height is 70mm

housing

ABS

aspect

71*45*16mm(Probe: 2*Ø3*55mm,1*Ø4*55mm)

Operating temperature

-40℃-+80℃

Ingress protection

IP67

storage

10-60℃@20%-90%RH

Probe material

316L stainless steel

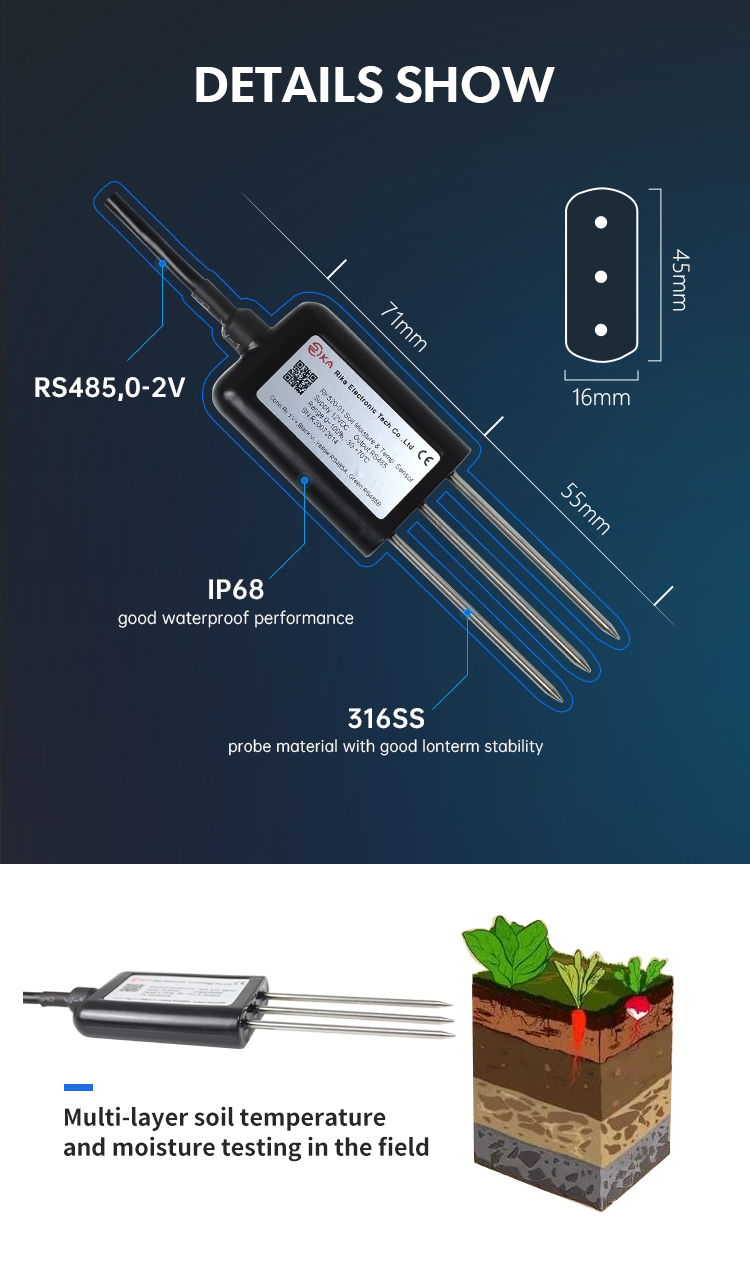

Details display





our app



purchase guide



In order to recommend suitable products to you, please tell me your information below:

1. What test parameters do you need?--Optional with soil temperature and humidity.(You can choose one or both parameters optional)



2. What output signal do you need? -- We have 4-20mA, 0-5V, 0-2V, RS485 optional. If you have other special requirements, please specify.

3. What power supply do you need? -- We have 12-24V, 5V optional. If you have other special requirements, please specify.

4. What is the length of the cable you need? - Standard is 2m. If you have special requirements, please specify.

5. Quantity?

6. Price item: CIF or Exw or FOB? -- In case of CIF, please tell us your detailed shipping address for shipping calculation.



7. Your full company name, address, zip code, contact person, telephone, fax, etc.

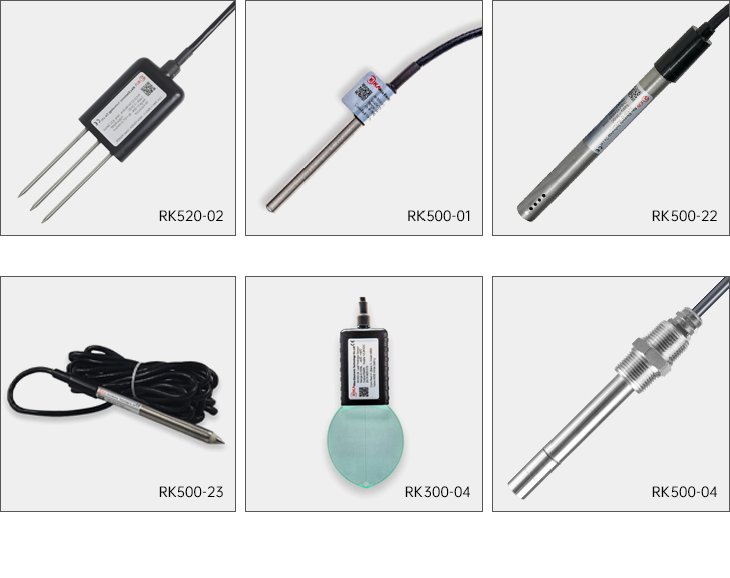

Related Products
