ISO 2531 ISO 9001 k9 Water supply system ductile iron pipe price per meter of water supply cast iron pipe

PRODUCT DETAIL
Package preview:product name:EN545 /ISO2531/EN598 Ductile Iron Pipe
transportation:Bulk ship or containerMaterial:Ductile Iron
Connector type:T typeapplication:Drinking water/sewage
port:Shanghai, Qingdao, Tianjin, Guangzhou, Ningbo Portlength:Customer requirements
standard:ISO2531/EN545/EN598, ISO2531/EN545/EN598type:casting
shape:roundpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Pipe wall thickness:K7/K8/K9/C40/C30/C25Certification:ISO9001:2000
test:100% water pressure testedExternal coating:Galvanizing, asphalt paint or epoxy paint, etc.
Supply capacity:50,000 tons per monthProcessing services:Welding, bending, punching, uncoiling, cutting
pull:420 MPaYield strength (≥MPa):600
Surface treatment:black paintPackaging details:Standard export airworthy packaging. Suitable for all kinds of transportation, or as needed
model:DN100-DN2000Place of origin:Shandong Province, China
hardness:230HBKey words:Ductile iron pipe cap
Inscription style:Customer requirementsbrand:Hongqiao
Inner coating:Mortar cement lining
Product parameters
Name
Ductile iron water supply pipe
Material
C, Si, Mn, P, S, Mg
length
6m or customized
color
black red
Advantage
Anti-corrosion; various types; anti-penetration; anti-aging; good durability
processing
Asphalt outer layer, cement mortar lining
pricing term
Ex-factory price, FOB, CNF, CFR, CIF, FCA, DDP, DDU, etc.
expiration of pay
T/T, L/C, Western Union
delivery time
7-15 days after receiving T/T or L/C deposit
Advantages: anti-corrosion; various types; anti-penetration; anti-aging; good durability
Processing of exterior coating with asphalt and interior lining with cement mortar
1.Standards: ISO2531, EN545, EN598, ANSI/AWWA, C151/A21
2. Effective length: 6m/5.5m
3. Lining: ordinary Portland cement, sulfate-resistant cement, high alumina cement.
4. Outer coating: zinc primer plus asphalt or epoxy coating
5. Transportation: bulk carrier or 20'/40' container
6. Rubber: NBR, SBR, EPDM conform to ISO4633/EN681.1

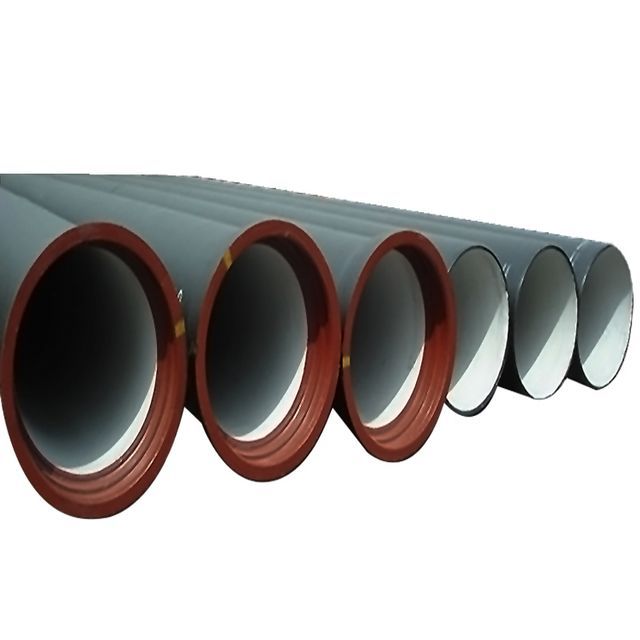

Product Details
Ductile iron pipe 1. The pipe produced has good straightness, good wall thickness and good mechanical properties. 2. Use flexible quick-plug joints and rubber gaskets to facilitate the installation of centrifugally cast T-shaped ductile iron pipes. 3. Pipes are produced in accordance with ISO2531, EN545, and EN598 standards. 4. The pipeline is push-connected. Coated with zinc + asphalt paint, lined with cement mortar. 5. Gasket materials include NR, NBR, EPDM, etc.
factory inventory
1. Internal pressure resistance: Centrifugal ductile iron has the essence of iron and the performance of steel, so ductile iron pipes have excellent safety performance than pipes made of other materials. The design working pressure is much higher than that of pipes made of other materials, and the safety factor is quite high. The possible burst pressure is three times the working pressure. 2. External pressure resistance: High external pressure resistance can eliminate the requirements for pipe beds and protective covers, making pipeline laying reliable and economical. 3. Inner anti-corrosion layer: The inner layer of ductile iron pipe is centrifugally sprayed with cement mortar. The cement lining complies with the international standard ISO4179, ensuring that the mortar is strong and smooth. The motor coating does not fall off, does not scale, and has a uniform thickness, ensuring that the drinking water transported by the pipeline is well protected. 4. Protective coating: Ductile iron pipes are sprayed with zinc, which actively protects the pipes through the electrochemical action of zinc and iron. With high chlorinated resin coatings, pipelines will receive enhanced anti-corrosion protection. The amount of zinc sprayed on the surface of each pipe is not less than 130g/m², which complies with ISO8179 standards. We can also increase the zinc spray thickness or zinc spray aluminum alloy layer according to customer needs.
