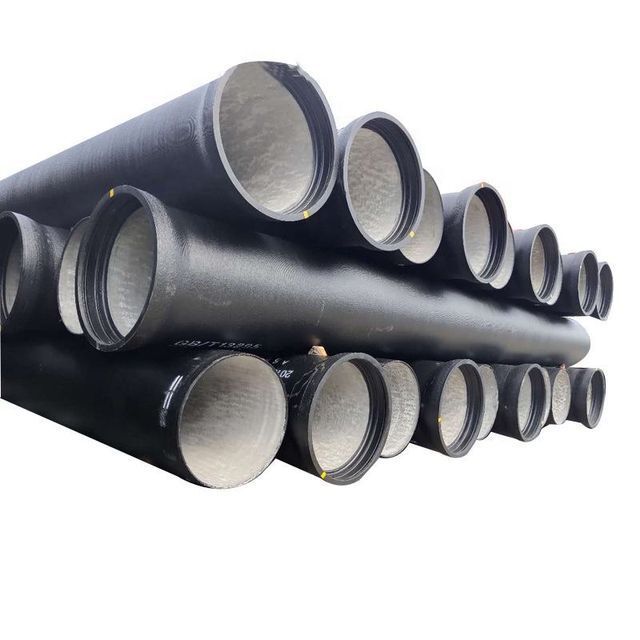

ISO2531 EN598 Standard DN80~DN2600 class K9 ductile cast iron pipe and pipe fittings price iron pipes
- $800.00 / 1 - 9 pieces
$670.00 / 10 - 19 pieces
$620.00 / 20 - 49 pieces
$550.00 / >=50 pieces - 1 piece
- Shandong Divine Machinery Co., Ltd.
- Shandong, China
- Mr
PRODUCT DETAIL
| Package Preview: | ; | Internal coating: | Portland, Sulphate Resistant, High-Aluminum cement mortar lining; |
| Yield (≥ MPa): | 300 MPa; | Place of Origin: | Shandong, China; |
| Usage: | Water Systerm; | Length: | 5.7M/6.0M; |
| Model Number: | JG-9005; | Brand Name: | JG SDIP; |
| Product name: | High quality ISO2531 EN545 black ductile cast iron pipes; | Supply Ability: | 500 Tons per Day; |
| Transportation: | Bulk Vessel or Container shipment; | Color: | Black; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Shape: | Round; |
| Processing Service: | Centrifugal Cast; | Packaging Detail: | The product packing : wrapped by steady strips. Also can according to client's requirements.; |
| Material: | Ductile iron,Ductile Iron; | Packing: | Bundle; |
| Application: | pipeline, Water supply pipes, drainage pipes,etc.; | Type: | Seamless; |
| Standard: | ISO2531/EN545/EN598; | External Coating: | Zinc + bitumen painting,Fusion bonded epoxy coating,etc; |
| Certification: | WRAS, ISO2531, EN545, ISO9001, ISO14001, 18001,; | Hardness: | 230HB; |
| Joint Type: | T-type (Push-on), K-type, Self-Restrained; | Pipe Wall Thickness: | K7, K8, K9, C40, C30, C25, etc; |
| Pull Strength: | >420MPa; | Port: | Lianyungang; |

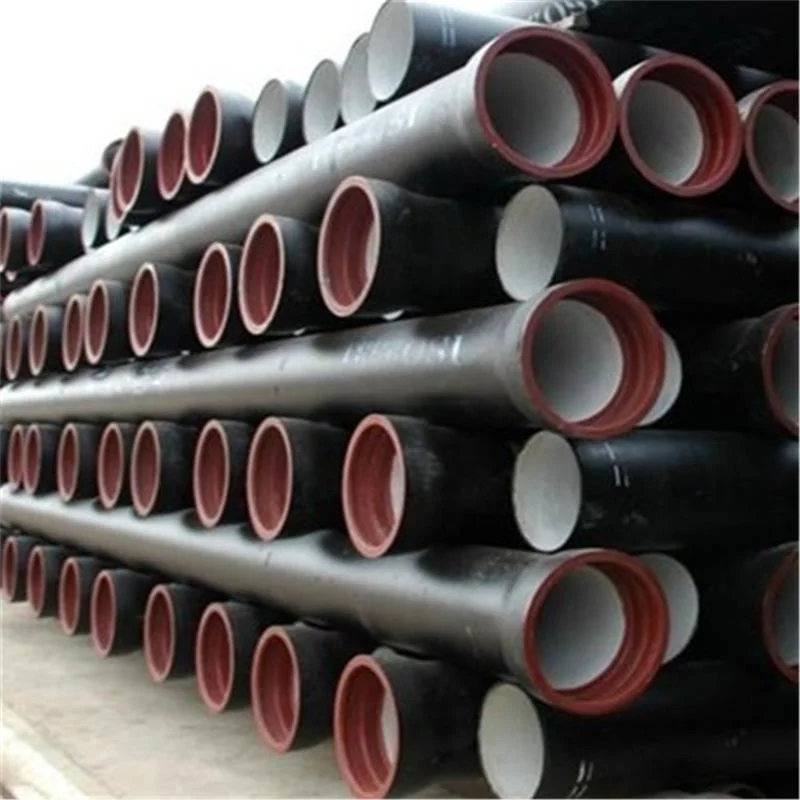

Product Description
High quality C40 C30 C25 K9 ISO2531 EN545 black ductile cast iron pipes
Specifications:
1) The standard of pipe: ISO 2531, EN545 , EN598.
2) Pipe class: K7, K8, K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.
5) Internal lining: cement mortar lining as per ISO4179
6) Zinc coating: at least 130g/m2 as per ISO 8179
7) Bitumen painting: at least 70um as per ISO 8179
8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
9) DN 80 - 2,600 mm
10) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life
time
11) Checked by automatic inspection equipment
12) Chemical composition: (%)
a) C: 3.5 - 4.0
b) Si: 1.9 - 2.6
c) Mn:0.15 - 0.45
c) P: <0.06
d) S: <0.02
13) Mechanical properties
a) Tensile strength: ≥420MPa
b) Yield strength: ≥300Mpa
c) Hardness: ≤230HB
d) Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥7

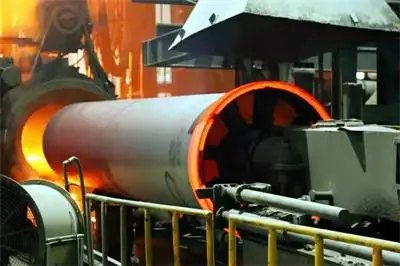

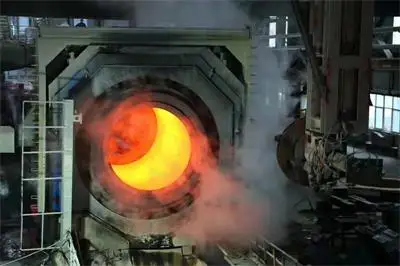

14) Process and testing:
a) Induction furnace and treated metal (Chemical analysis of raw material, spheroidizing & Nodularity)
b) Casting (Visual check and weight check)
c) Heat treatment (Micro structure)
d) Hydrostatic test (Pressure test)
e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance)
f) Zinc spraying (Thickness testing)
g) Lining and coating (100% visual check, thickness testing randomly)
i) Marking and packing (100% visual check)
15) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc.
Packing: Bundled with steel belts or in bulk
Shipment: In bulk or container

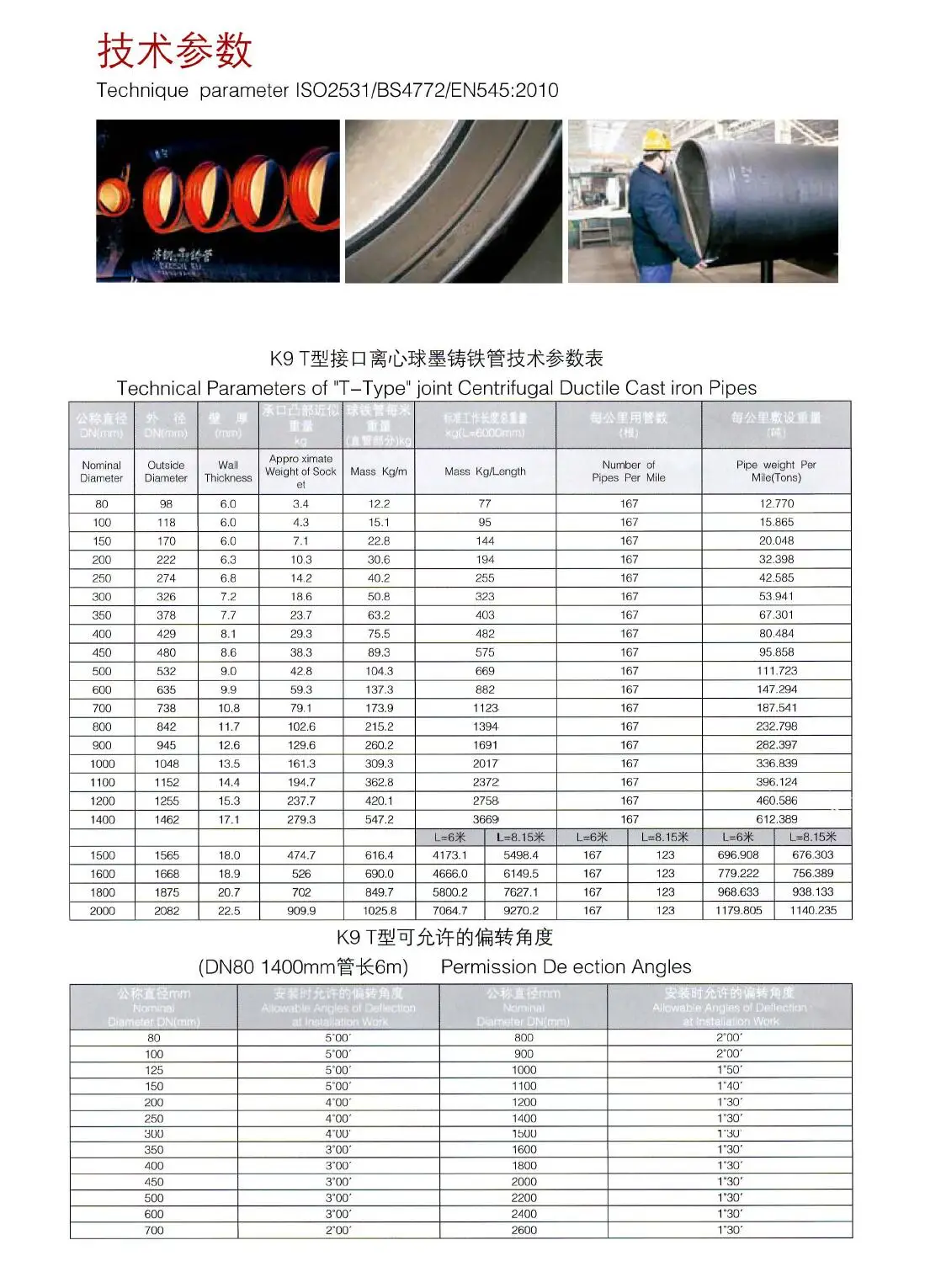

Specification
High quality C40 C30 C25 K9 ISO2531 EN545 black ductile cast iron pipes | ||||||||

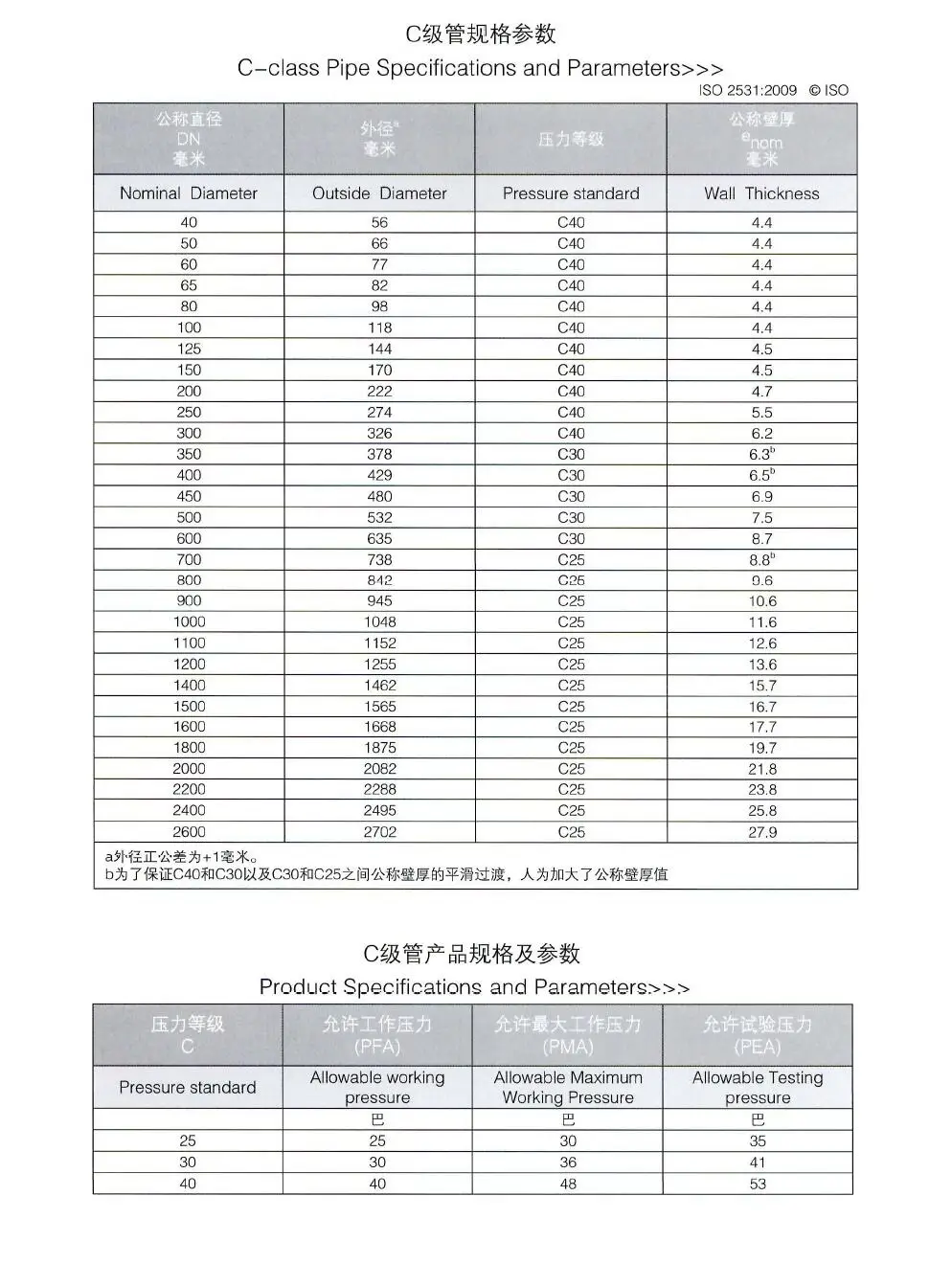

C-class Pipe Specifications and Parameters | ||||||||
Nominal Diameter (MM) | Outside Diameter (MM) | Pressure standard | Wall Thickness (MM) | |||||
80 | 98 | C40 | 4.4 | |||||
100 | 118 | C40 | 4.4 | |||||
150 | 170 | C40 | 4.5 | |||||
200 | 222 | C40 | 4.7 | |||||
250 | 274 | C40 | 5.5 | |||||
300 | 326 | C40 | 6.2 | |||||

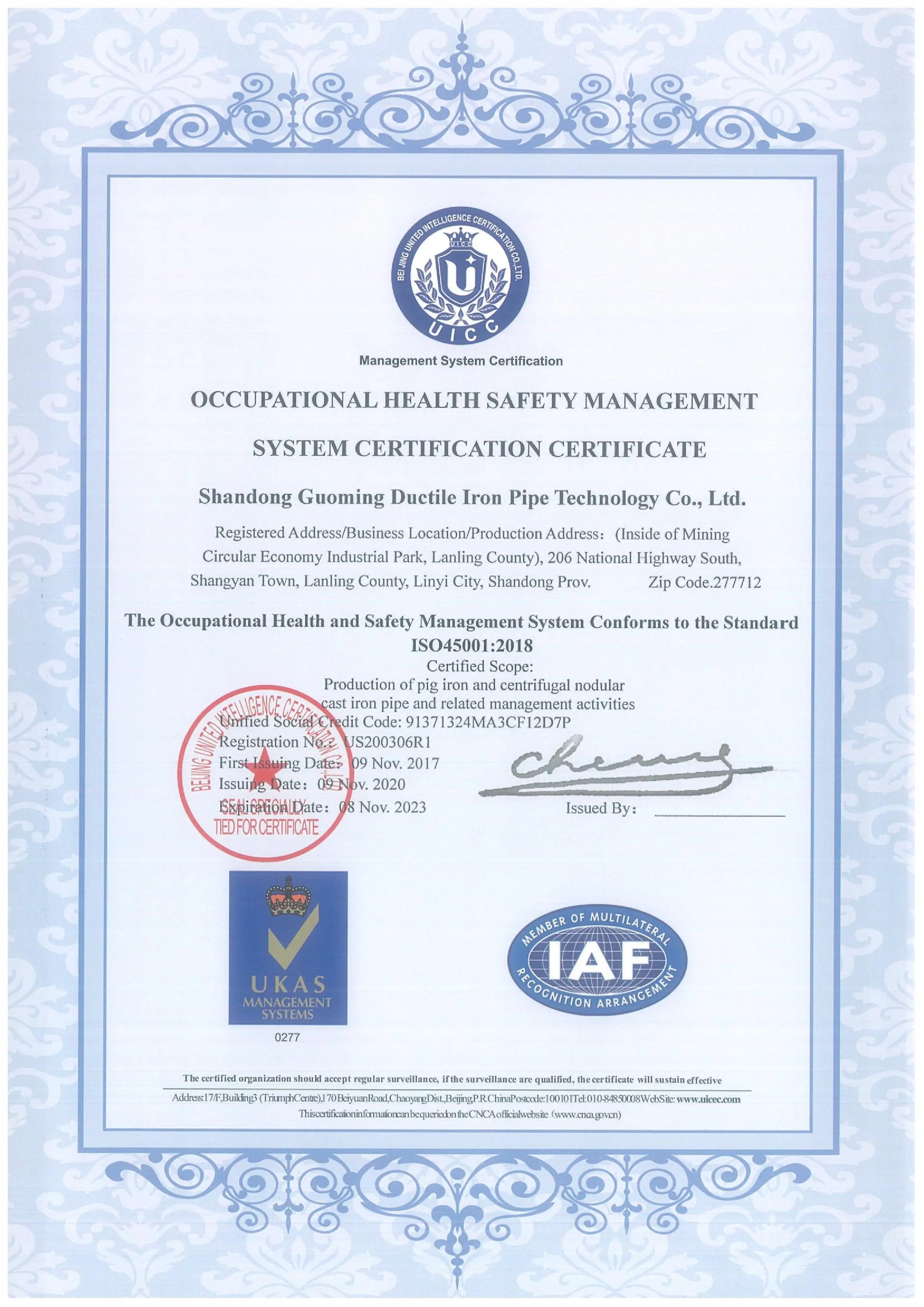

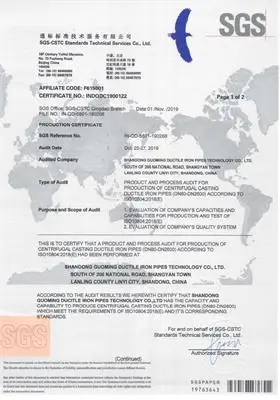

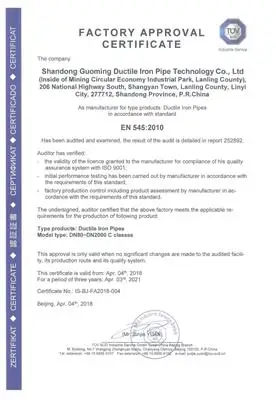

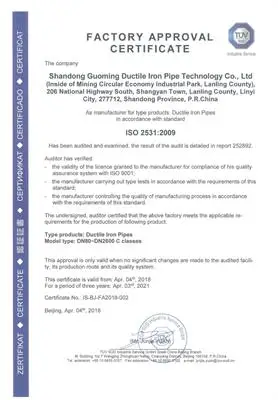

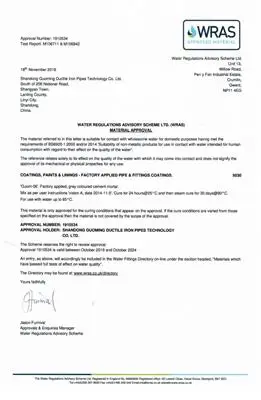

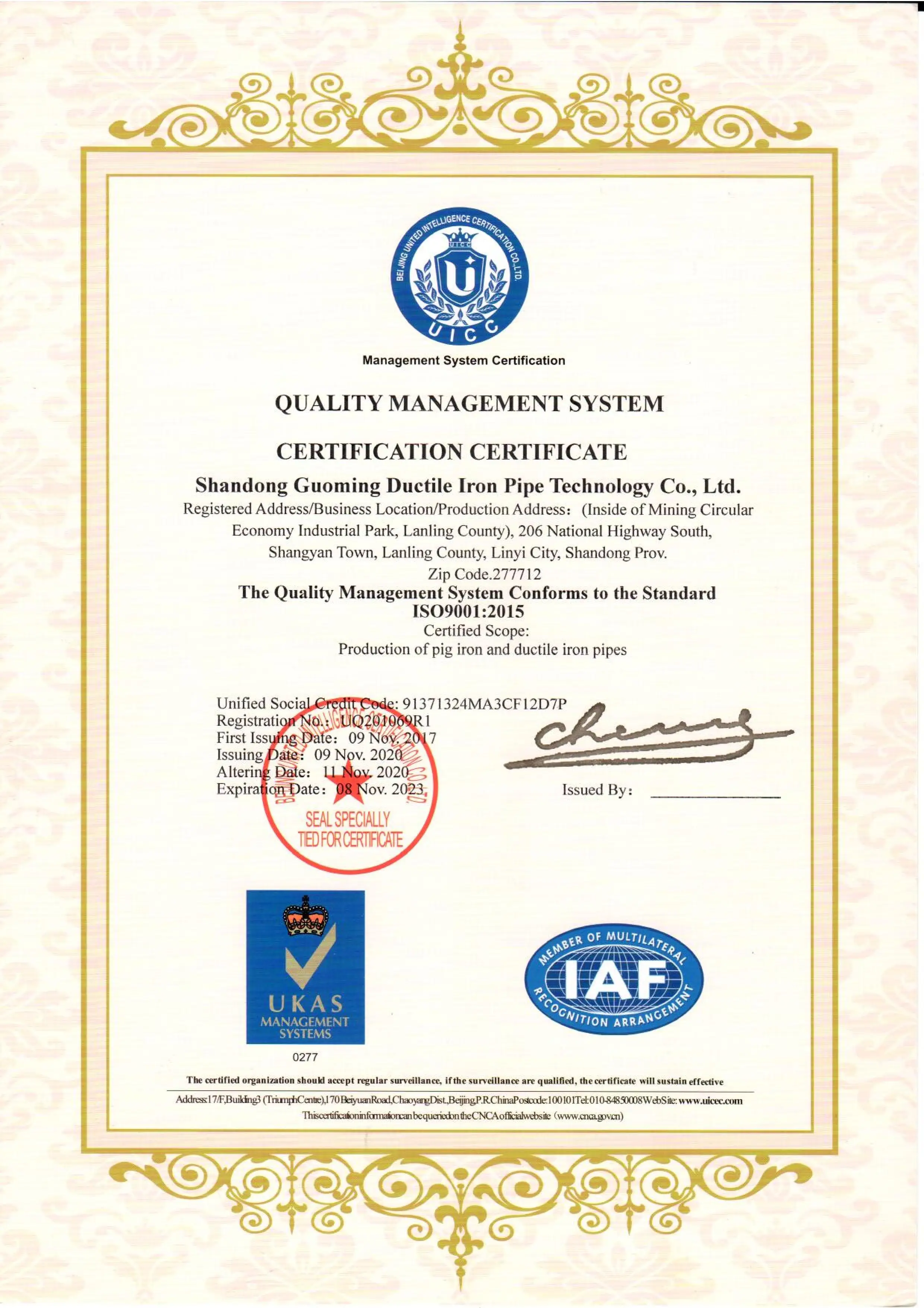

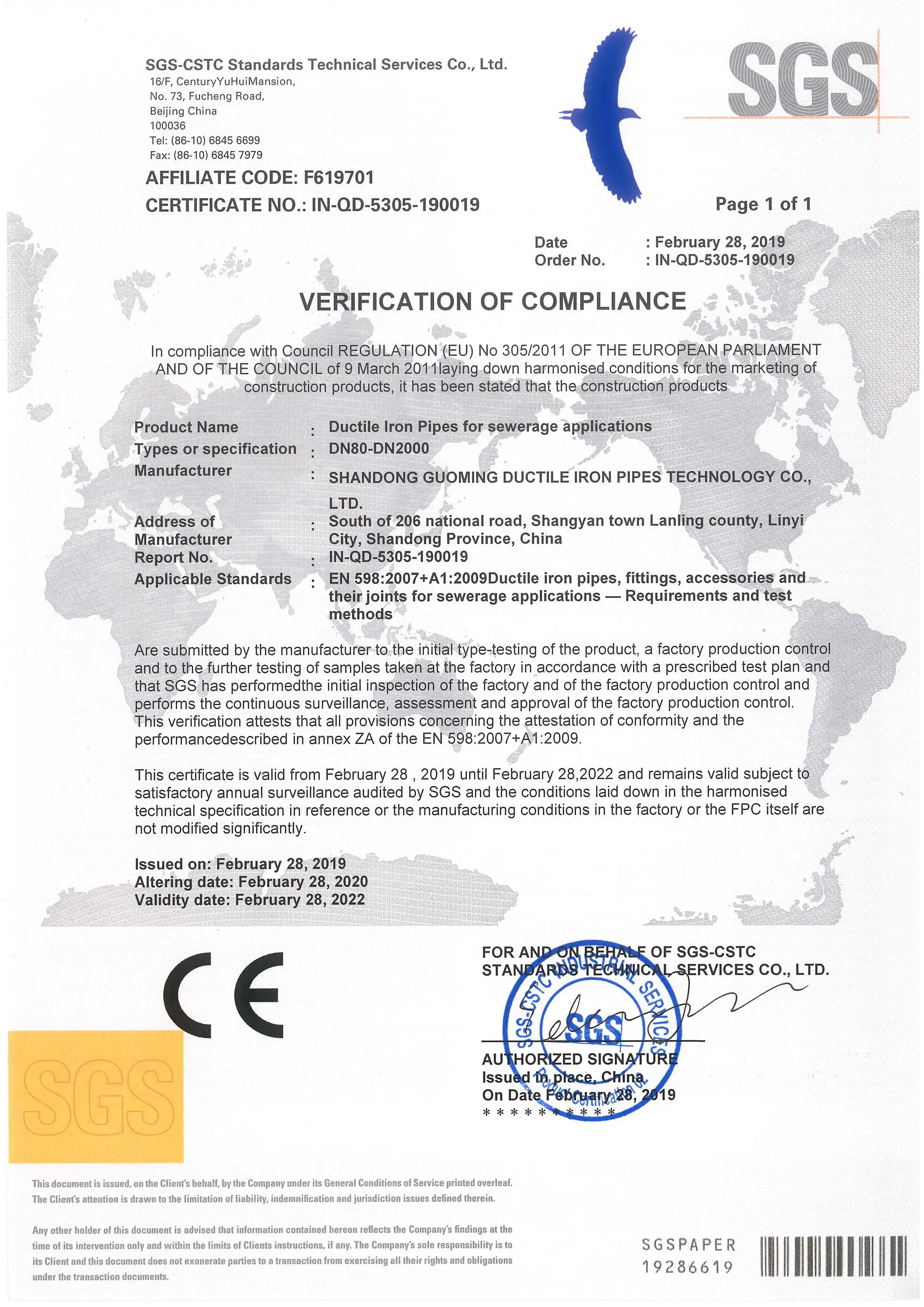

Certifications

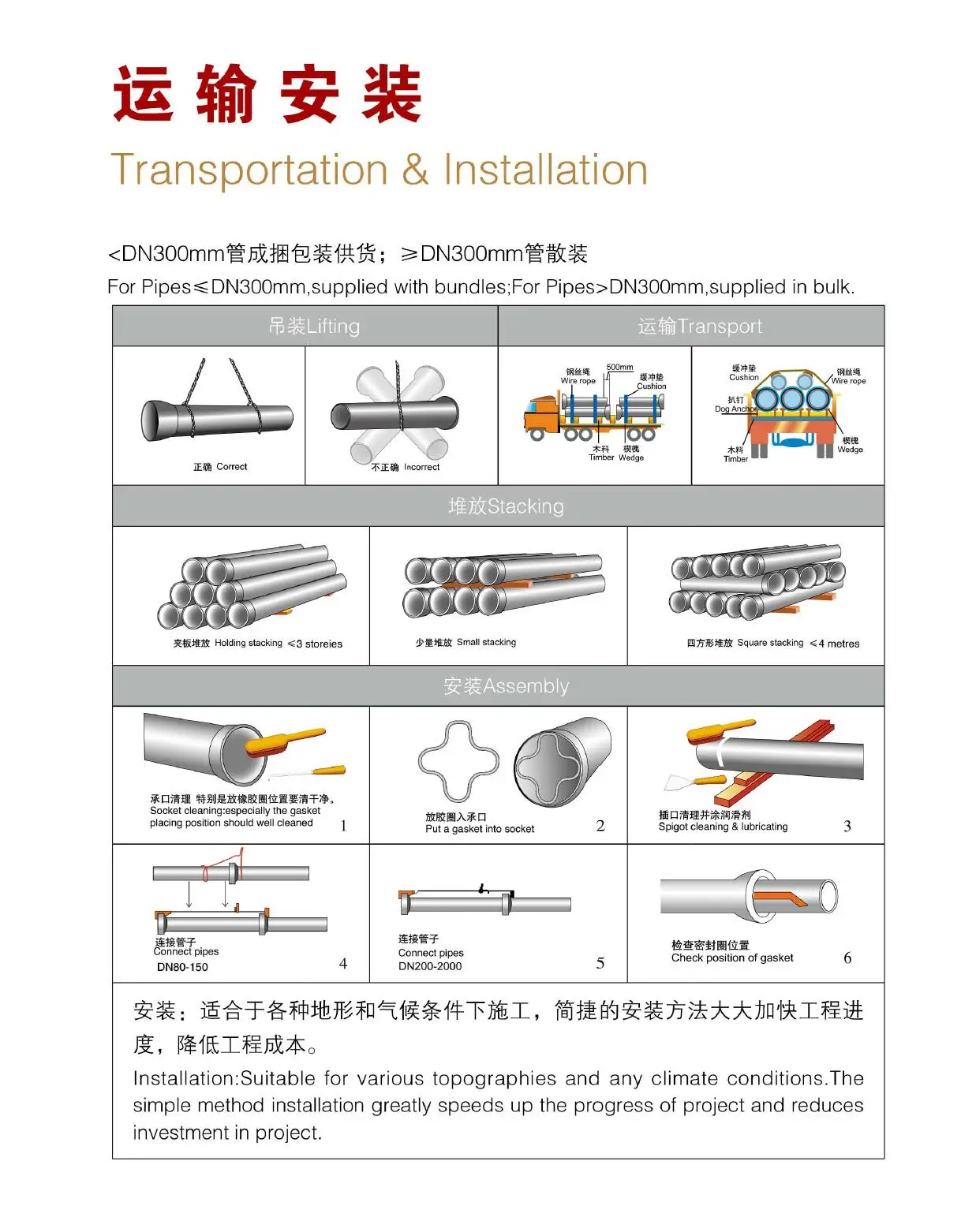

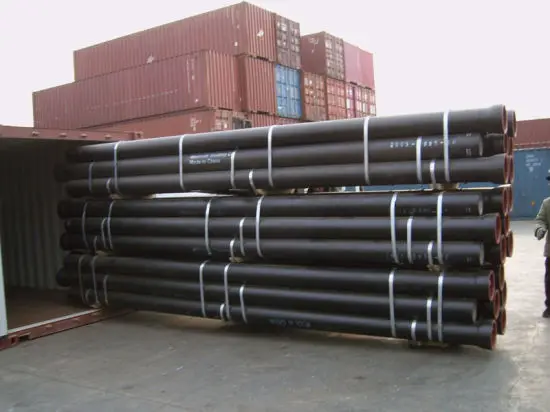

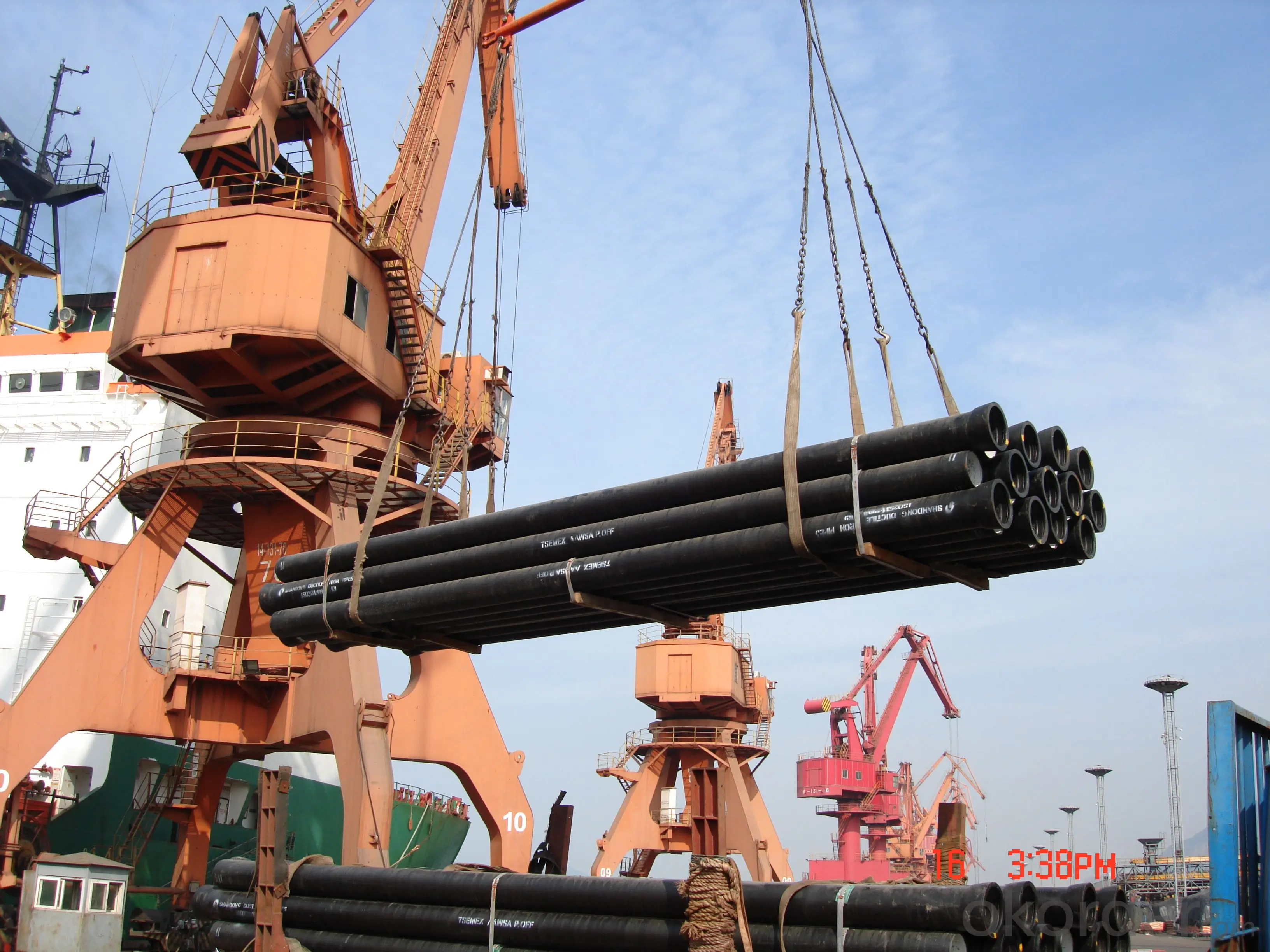

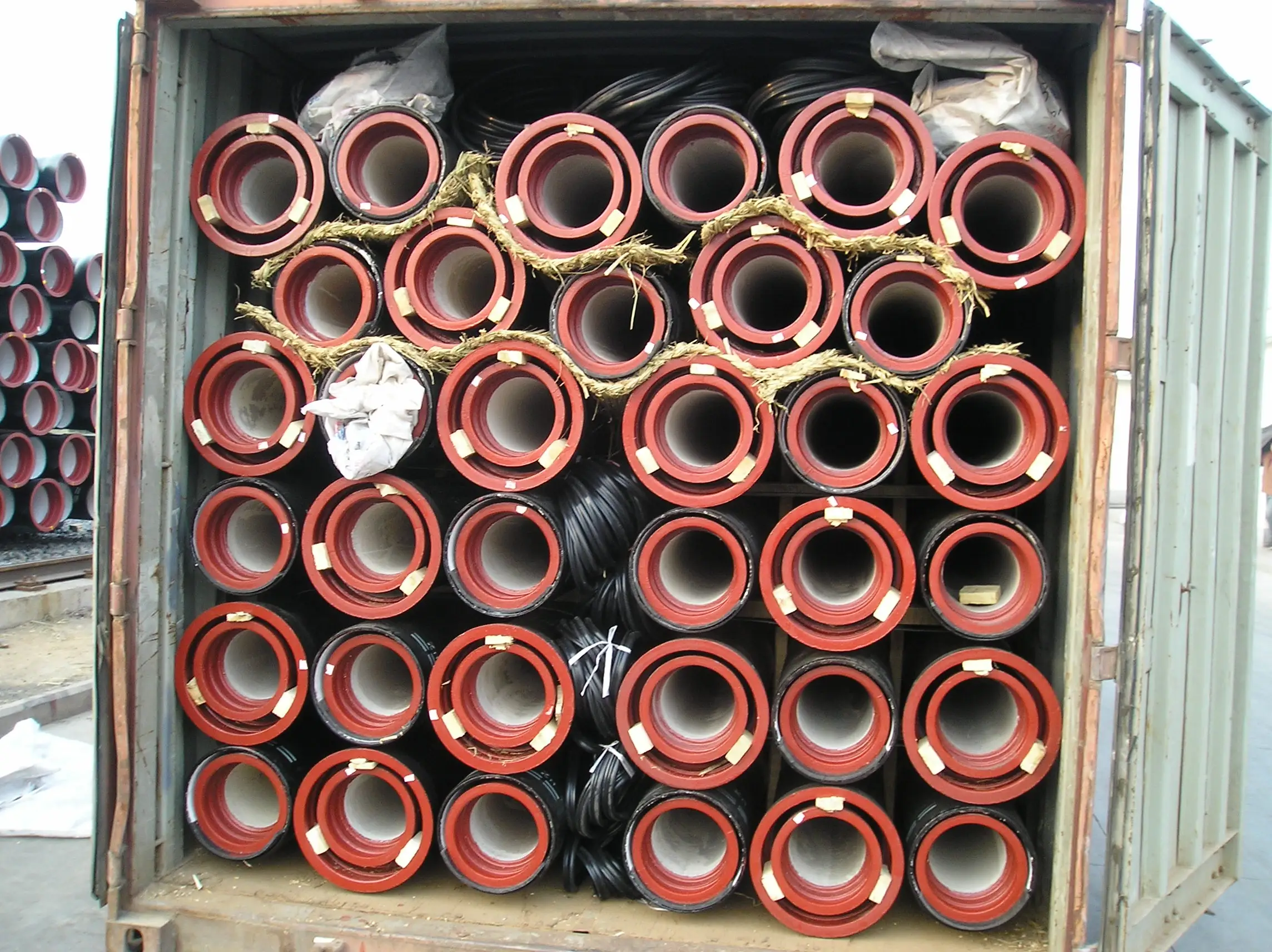

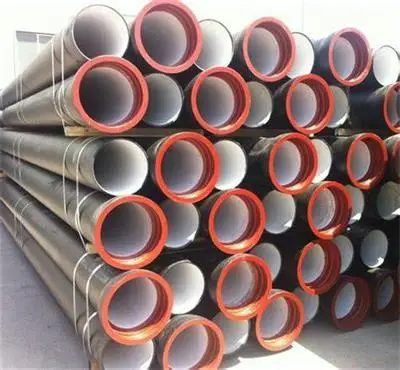

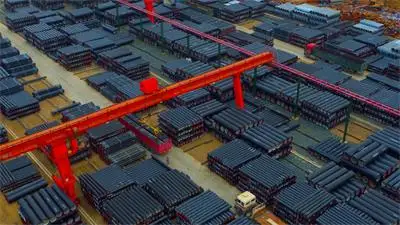

Packing & Delivery
Customer Photos

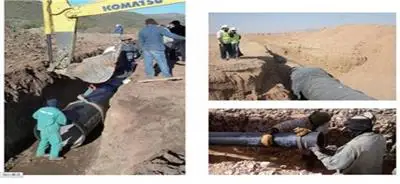

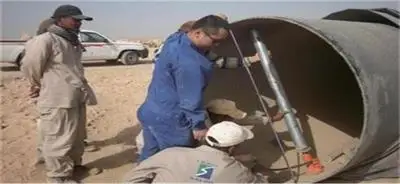

PROJECTS SHOW

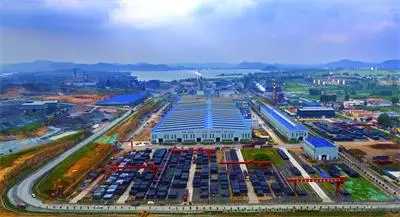

Company Profile
FAQ
Can you provide us some samples for testing?
Yes, we can provide you the free samples.
Can I have my own Logo on the product?
Yes, you can send us your drawing and we can make your logo.
How to control and guarantee your shipment quailty?
1) Our factories are ISO9001 certified facility;
2) Ex factory inspecttion by our own laboratory;
3)SGS/BV Third party inspection before deilvery.
How long is your delivery time ?
Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to
quantity.
What's your terms of payment ?
30% T/T in advance , balance before shipment. Or against L/C . And D/P , D/A ,L/C for free options.
What's your trade terms ?
FOB , CNF, CIF , CFR or according to client's requirements .
Can I have my own Logo on the product?
Yes, you can send us your drawing and we can make your logo.
How to control and guarantee your shipment quailty?
1) Our factories are ISO9001 certified facility;
2) Ex factory inspecttion by our own laboratory;
3)SGS/BV Third party inspection before deilvery.
How long is your delivery time ?
Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to
quantity.
What's your terms of payment ?
30% T/T in advance , balance before shipment. Or against L/C . And D/P , D/A ,L/C for free options.
What's your trade terms ?
FOB , CNF, CIF , CFR or according to client's requirements .
