Industrial crystallization tanks, evaporative crystallizers, vacuum crystallizers
- $40000.00 / 1 - 1 sets
$39800.00 / >=2 sets - 1 set
- Geling (shanghai) Environmental Technology Co., Ltd.
- Shanghai, China
- Ms miss zhang
| Marketing Type: | New Products 2020 | Voltage: | custom made |
| Applicable industries: | Manufacturing plants, food and beverage plants, farms, energy and mining | payment terms: | L/C, Western Union, T/T, MoneyGram |
| application: | Fine Chemicals | Key words: | Forced circulation crystallizer |
| After-sales service provided: | Engineers available to service machinery overseas | Core component warranty: | 1 year |
| State of health: | new | Warranty: | 1 year |
| Showroom location: | not any | Certification: | ISO9001 |
| Material: | SUS304/316L/Titanium | brand: | gel |
| weight: | depends on ability | Packaging Details: | Wooden case/soft cloth packing |
| Supply capacity: | 100 sets per year | product name: | Industrial crystallization equipment |
| Video shipment inspection: | Not available | Mechanical test report: | if |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Dimensions (L*W*H): | Designed |
| Main selling points: | high productivity | place of origin; place of origin: | China Shanghai |
| port: | Shanghai | strength: | customized |
| Weight (kg): | 2000 |

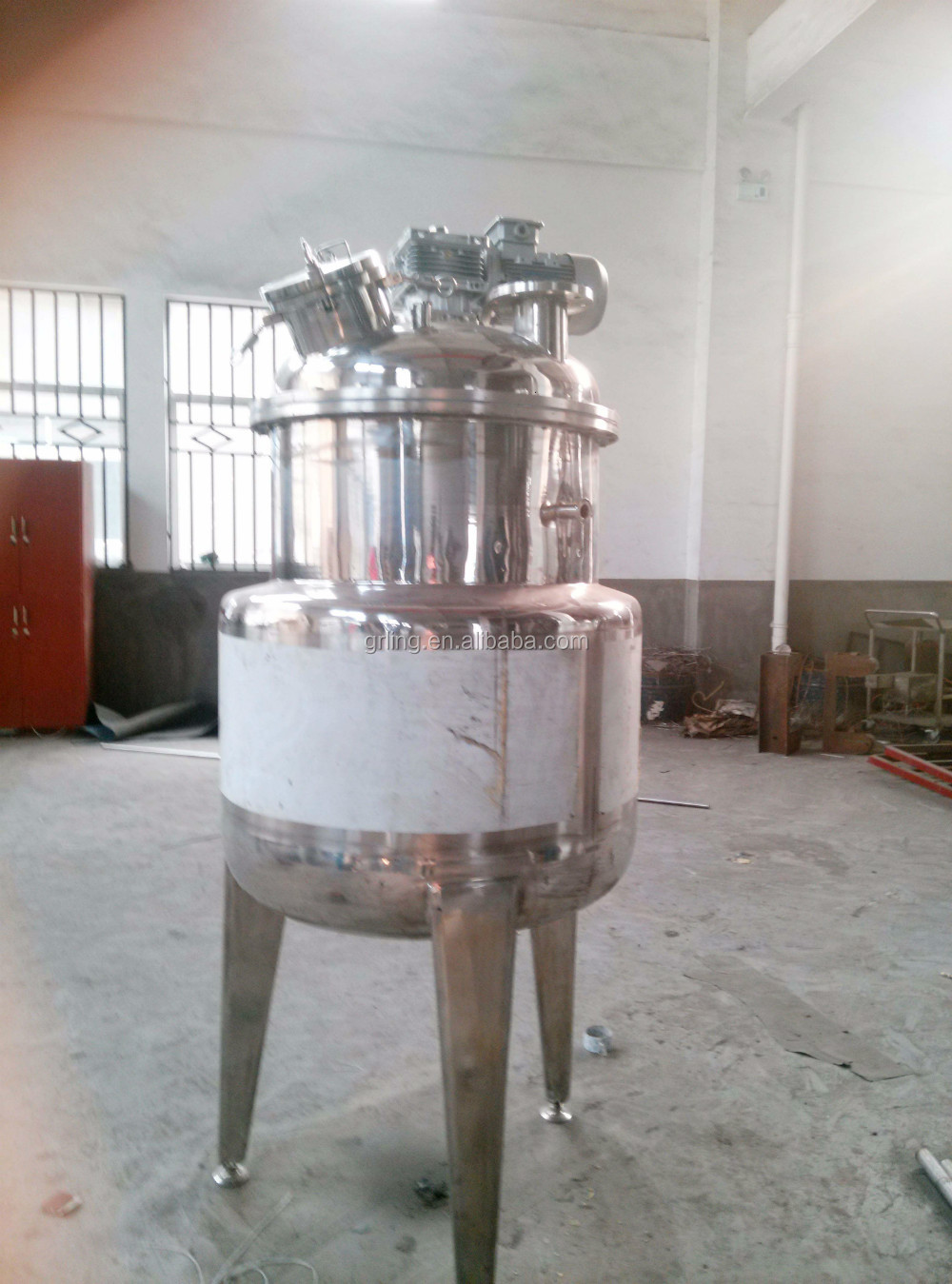

Negative pressure vacuum crystallizer
1. Introduction

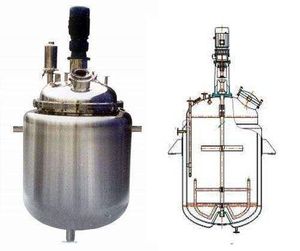

A vacuum negative pressure crystallizer is a tank-type vessel that is heated/cooled through a jacket or internal piping. Crystallizers can be used in evaporative crystallizers and cooling crystallizers. It is equipped with an internal stirrer to increase crystallization strength. Crystallizers can be operated continuously or batchwise. Larger sized crystals will be obtained using batch operation, but such crystals will be discharged together with the mother liquor, which may affect the product purity.
The vacuum crystallizer has simple structure and convenient operation, and is suitable for the operation of small-capacity products. (such as chemical reagents or biochemical reagents)
The vacuum negative pressure crystallizer has the advantages of low energy consumption, small footprint, simple operation and convenient maintenance. Widely used in food, chemical, pharmaceutical, wastewater and environmental engineering industries.
2. Main features
1. This equipment obtains crystallization by reducing partial solvent supersaturation.
2. This equipment adopts jacketed or tubular heaters, combined with high-efficiency agitator and vacuum negative pressure for evaporation, the solution is fed from the bottom of the heater, circulates to the top of the inner heater, and then flows into the central conduit, so that the evaporation cycle can continue .
3. Stable operation, easy cleaning, no heavy work, no steam, water, and material leakage in the workplace. Optimizing the working environment is conducive to applying for GMP certificates.
4. Adopt the design of diversion tube and high-efficiency agitator to form an internal circulation channel, with high efficiency, concentrated concentration of 30-40%, and uniform final product particles.
