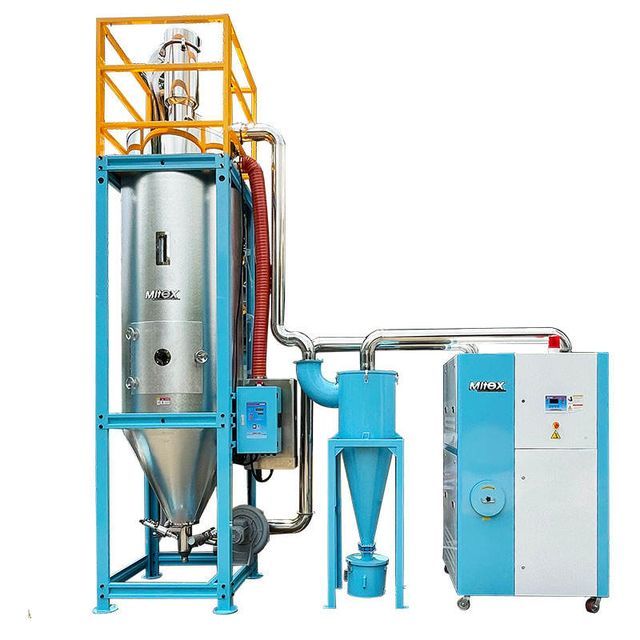

Industrial plastic PET sheet crystallization machine dehumidification dryer
- $7000.00 / 1 - 4 sets
$6500.00 / >=5 sets - 1 set
- Dongguan Mitex Automation Machinery Co., Ltd.
- Guangdong, China
- Ms Jess Wang
PRODUCT DETAIL
| application: | Crystallization of PET flakes | Applicable industries: | manufacturing plant |
| Health status: | new | volume: | 200 kg |
| Bulk density: | 0.65 | Blower: | 200W |
| Packaging Details: | Wooden box packaging plastic crystallization equipment | Core components: | engine |
| Marketing Type: | normal product | port: | Shenzhen |
| brand: | Metex | Motor Power: | 1.5KW |
| Supply capacity: | 50 sets per month | payment terms: | L/C, D/P, D/A, T/T |
| Package preview: | product name: | PET flake crystallizer | |
| Dimensions (L*W*H): | 905x710x2690 mm | Video outbound inspection: | if |
| Voltage: | 380V/three-phase/50Hz | Material: | stainless steel 201 |
| Heater: | 11 kW | Certification: | CE |
| Core component warranty: | 1 year | capacity: | 100 kg/h |
| Weight (kg): | 450 | Mechanical test report: | if |
| Origin: | Guangdong, China | Showroom location: | Indonesia |
| strength: | 12.5 kW | Main selling points: | low maintenance cost |
| Warranty: | 1 year |
detailed image

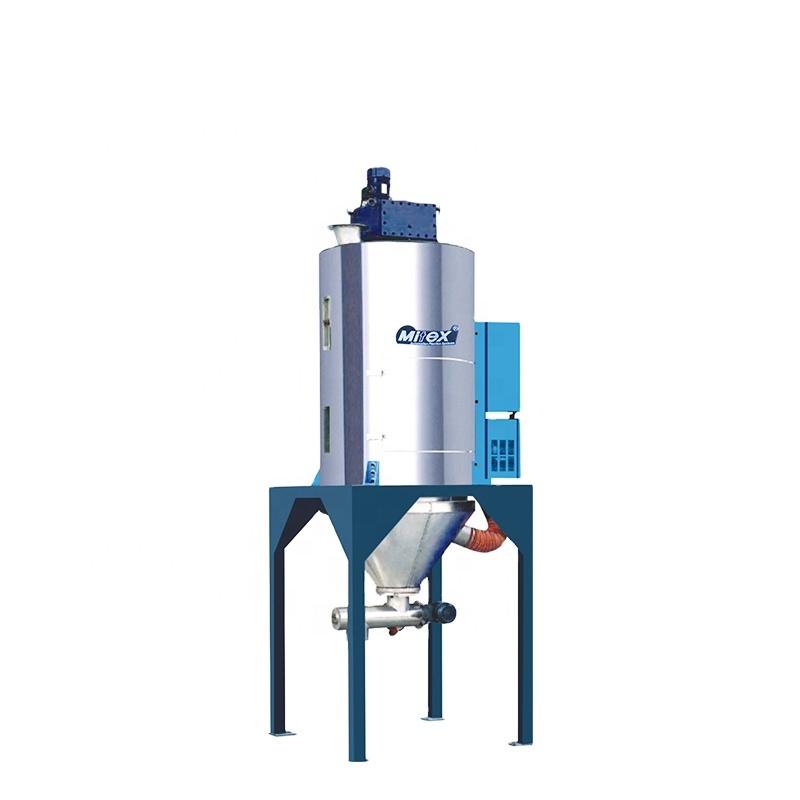

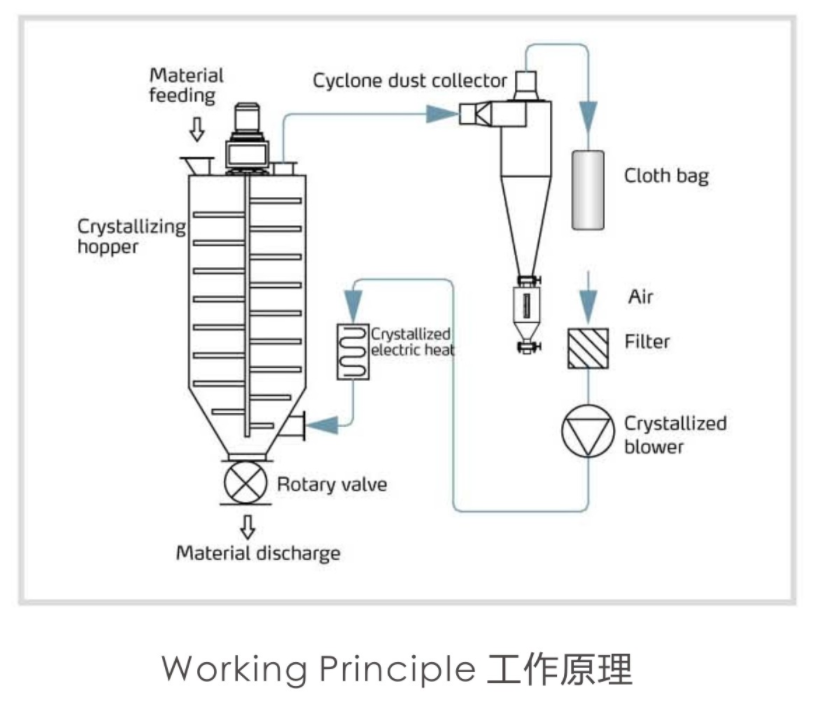

The MD-HCR closed loop crystallizer is used for constant crystallization of uncrystallized PET regrind or pellets. processing
After that, the material can be dried and dehumidified directly.
The crystallized material can be transported to the storage bin or drying hopper
After that, the material can be dried and dehumidified directly.
The crystallized material can be transported to the storage bin or drying hopper
feature | feature | |
1. Reliable and high-quality material output, scientific structural design. | ||
2. The mixing hopper prevents agglomeration, the continuous stirring of the paddle and the directional rod prevents agglomeration, Material degrades during heating. | ||
3. Continuous automatic operation, automatic monitoring of the temperature in the hopper to ensure reliable output High quality crystalline material. | ||
4. To meet different requirements, use online crystallization to directly discharge into processing or capture processing and storage Crystallize material for later reuse. | ||
5. Safety design, the inspection door and the detachable cone section are equipped with a safety interlock device, which is convenient for cleaning. | ||
before crystallization
after crystallization
Product parameters
Model | MD-HCR | ||||||||||||||
100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | ||||||||
Volume (L) | 160 | 300 | 450 | 600 | 750 | 900 | 1200 | 1500 | |||||||
Heater (kW) | 6.2 | 11 | 18 | 20 | number 22 | twenty four | 30 | 36 | |||||||
Blower (W) | 200 | 200 | 240 | 340 | 1500 | 1500 | 2200 | 2200 | |||||||
Motor (kW) | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 3.75 | 3.75 | 3.75 | |||||||
Capacity (kg/hour) | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | |||||||
Dimensions (cm) | 80*62*211 | 90*71*269 | 112*95*276 | 122*103*286 | 130*107*316 | 125*103*322 | 133*108*385 | 147*115*378 | |||||||
