Industrial reverse osmosis membrane 4040 for reverse osmosis water system

PRODUCT DETAIL
payment terms:L/C, T/T, Western UnionStable rejection rate:99%
Packaging Details:By standard carton or palletAfter-sales service provided:online support
Work pressure:150PSI (1.05Mpa)Average permeate flow:2500GPD
product name:RO membrane 4040Supply capacity:100,000 reverse osmosis membranes 4040 per month
Warranty:1 yearapplication:Pure water production in reverse osmosis system
port:Tianjin/Guangzhou/Shanghai/ShenzhenTest water TDS:2000PPM
place of origin; place of origin:Tianjing, Chinabrand:green filter
Product Description

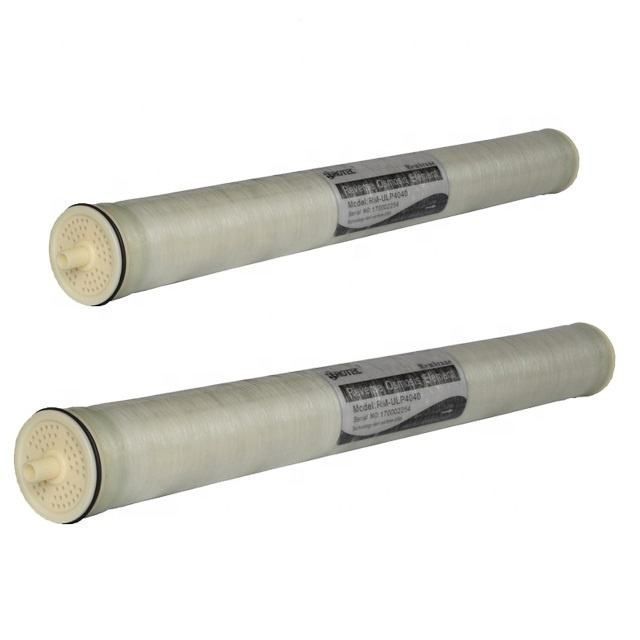

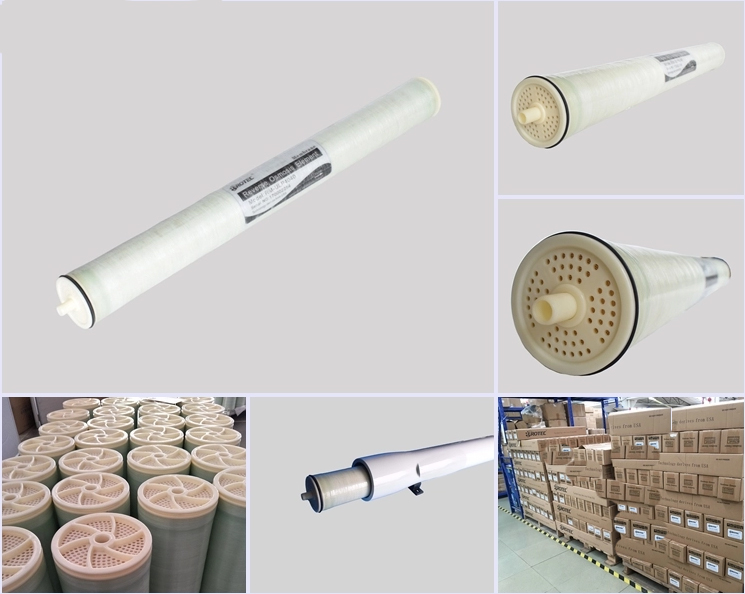

Industrial reverse osmosis membrane 4040 for reverse osmosis water system

RO or Reverse Osmosis is a technology commonly used in water desalination, likewise, RO removes dissolved impurities from water after undergoing advanced micro-treatment. The reverse osmosis membrane is widely used and very important as the key element used in the reverse osmosis system, China Frotec produces and sells very good quality reverse osmosis membranes in the Chinese market and the world market, our membrane quality has been inspected and approved by the Chinese market welcome.



Ultra-low pressure reverse osmosis membrane elements – ULP series
Suitable for desalination of water sources with TDS lower than 2000ppm, such as surface water, ground water, tap water, municipal water, etc.

Brackish Water RO Elements – BW Series
It is suitable for desalination treatment of surface water, ground water, tap water, municipal water, etc. Below TDS 3000ppm

ModelActive membrane areasquare feet (square meters)Average permeability GPD (cubic meter/day)Working pressure PSI (Mpa)Rejection rate (%)
ULP-402136(3.3)1000 (3.8)150 (1.05)≥ 99.0

BW-4021

36(3.3)900 (3.6)225 (1.55)≥ 99.5
ULP-404078(7.2)2500 (9.8)150 (1.05)≥ 99.0
BW-404078(7.2)2500 (9.8)225 (1.55)≥ 99.5
ULP-8040400(37.2)10500 (39.7)150 (1.05)≥ 99.0
BW-8040400(37.2)10500 (39.7)225 (1.55)≥ 99.5



Test Conditions

Test Pressure……………………………………… 150psi (1.03MPa) ULP

225psi (1.55MPa) weight

Test solution temperature………………………………… 25℃

Test solution concentration (NaCl)…………………… 2000ppm

PH value of test solution………………………………. 7.5-8

Single element recovery…………………………………. 15%



extreme working conditions

Maximum working pressure…………………………………600psi (4.14MPa)

Maximum inlet water temperature…………………………. 45℃

Maximum water intake SDI15 ………………………………… 5.0

Influent free chlorine………………………………<0.1mg/L

Influent water pH range during continuous operation... 3 ~ 10

PH value range of influent water during chemical washing……………… 2 ~ 12

Single element maximum pressure drop………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………………
