Ink High Speed Mixer/High Speed Mixer
- $100.00 /set
- 1 set
- Laizhou Yuanda Chemical Industry Machinery Factory
- Shandong, China
- Mr Xiaobin Liu
| heating method: | electro-thermal | capacity: | 200-5000L |
| application: | liquid | usage: | light industry |
| Main selling point: | competitive price | Video external inspection: | if |
| Barrel volume (L): | 2000 | Lifting: | hydraulic |
| brand: | YDHJ | Voltage: | 380/415/220V |
| Certification: | Chief Executive | Local service location: | not any |
| Function: | mixed raw materials | place of origin; place of origin: | Shandong China |
| Dimensions (L*W*H): | refer to | Packaging Details: | Plywood |
| Material: | SUS304,SUS304L,SUS316,SUS316L | Applicable industries: | Manufacturing plants, mechanical repair shops, food and beverage plants, farms, restaurants, food stores, printing plants, construction works, energy and mining, advertising companies |
| Power (kW): | 30kW | port: | Qingdao |
| Type of machine: | paint machine | Spindle speed range (rpm): | 1 - 1480 rpm |
| Product Category: | Printing ink | Warranty: | 1 year |
| Supply capacity: | 100 sets per month | Core components: | Motors, gears, pressure vessels, gearboxes, pumps, PLCs, bearings |
| Additional features: | milling | maximum. Loading capacity: | 2000L |
| After-sales service provided: | Engineers can serve machinery overseas, online support, video technical support | Health status: | new |
| maximum. Loading capacity (L): | 2000 liters | speed: | 0~1500rpm |
| Processing material: | Chemical, food, medicine | Mixer Type: | Homogenizer |
| Core Components Warranty: | 1 year | Mechanical test report: | if |
| After Warranty Service: | Video technical support, online support | strength: | 1.1-45kw |
| Packaging Preview: | Weight (kg): | 400kg | |
| Showroom location: | not any | Marketing Type: | Hot Products of 2019 |
| payment terms: | letter of credit, wire transfer |

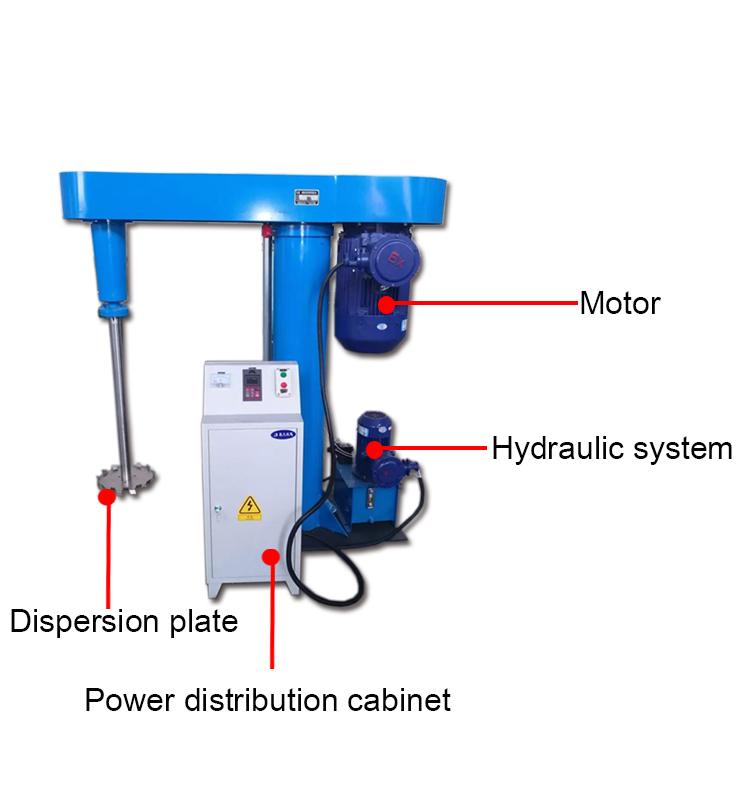

Ink high speed mixer
application
Applications for high speed dispersers include, but are not limited to: dispersing, suspending, emulsifying, dissolving, homogenizing, mixing and breaking up clumps of high viscosity materials (up to 300,000 CPS).
Paints, varnishes and printing inks:Preparation of coating batches, carbon paper coatings, artist coatings, primers and rust removal coatings, fillers, dispersion and coating coatings, varnish pastes, printing inks, resin solutions, textile printing inks, etc.
plastic:Preparation of all types of PVC, PU pastes, masterbatches and plastic putties.
Adhesive:Preparation of rubber, neoprene, resin and other types of adhesives.
Chemicals:Preparation of filler dispersions, coatings, insulating materials, bitumen-based sealants, greases and lubricants.
feature
High-speed dispersers are designed to meet the needs of a wide range of industrial applications. Easy to operate, high efficiency, reduce cost and shorten operation time.
|
Main Specifications |
scope |
| main motor | Stepless speed regulation 1.545kw |
| impeller | Ø200-Ø400 |
| frame rotation angle | 360° |
| maximum. Stirring shaft speed | 1000mm, 1100mm |
| Impeller speed | 125-1250r/min |
| maximum. Stirring shaft speed | 1000mm, 1100mm |
Any interest please email us!
Engineers can go overseas to install and debug machines.
The machine is guaranteed for 12 months.
