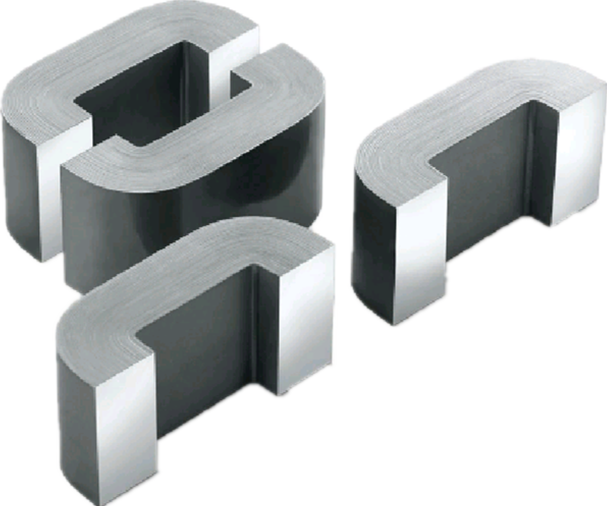

Insulating coating laminated steel sheet silicon soft iron c core

PRODUCT DETAIL

Single package size:	20X16X10 cm	type:	Oriented silicon steel
Gross weight per piece:	0.770 kg	Material thickness:	0.05mm, 0.08mm, 0.1mm, 0.23mm, 0.27mm, 0.3mm and 0.35mm.
tolerant:	±0.5mm	grade:	China Railway
Core loss:	P17/50 ≤ 0.85(W/kg)	Packaging Details:	Export carton and pallet with anti-corrosion paper and PE protective film
Packaging Preview:		Material brand:	Baosteel, NSC, JFE, TKS, POSCO, NLMK
thickness:	0.23 - 0.3 mm	Application 1:	Transformers, sensors and magnetic components for electronic equipment
shape:	steel coil	delivery time:	8-14 days
Application 2:	Automotive sensors, solar inverters, smart home	model:	GB CD12.52580
Processing service:	Welding, cutting, winding	Magnetic flux density:	B8≥1.87(T)
Material properties:	CRGO&CRNGO	Product shape:	CEO & Custom
standard:	Aisi	Sales unit:	single product
place of origin; place of origin:	Jiangsu, China	technology:	cold rolled
Typical relative permeability:	4000	Craft:	Tape
Surface treatment:	coating

CRGO & CRNGO Standard and Customcore

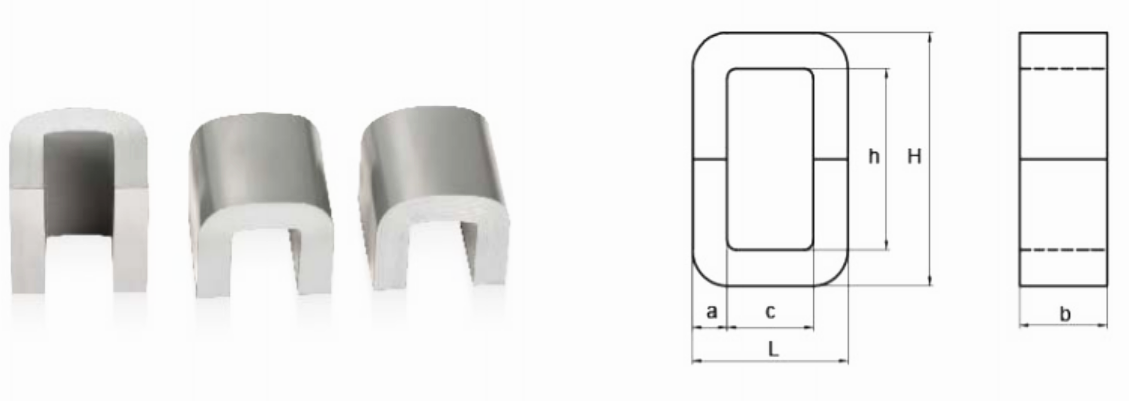

Electronic equipment

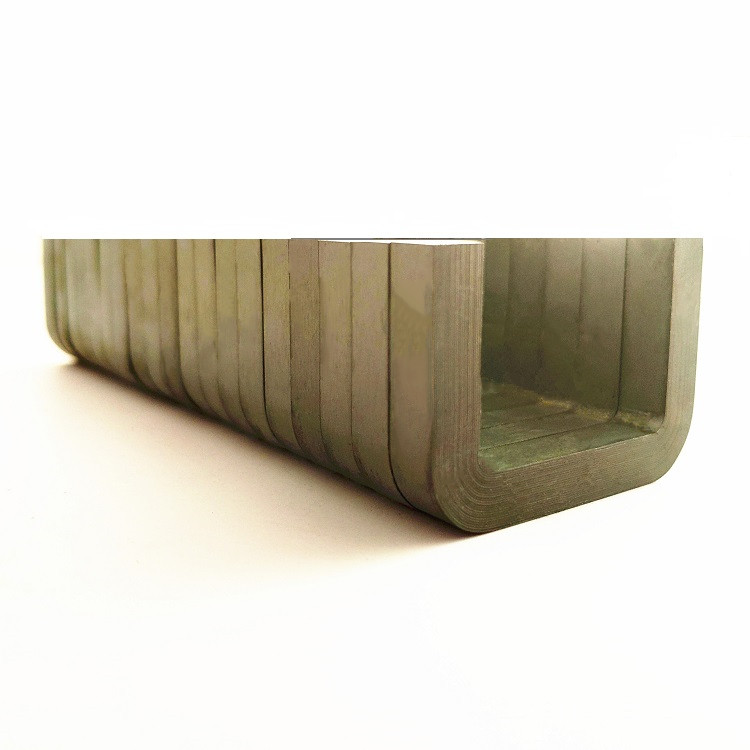

detailed image

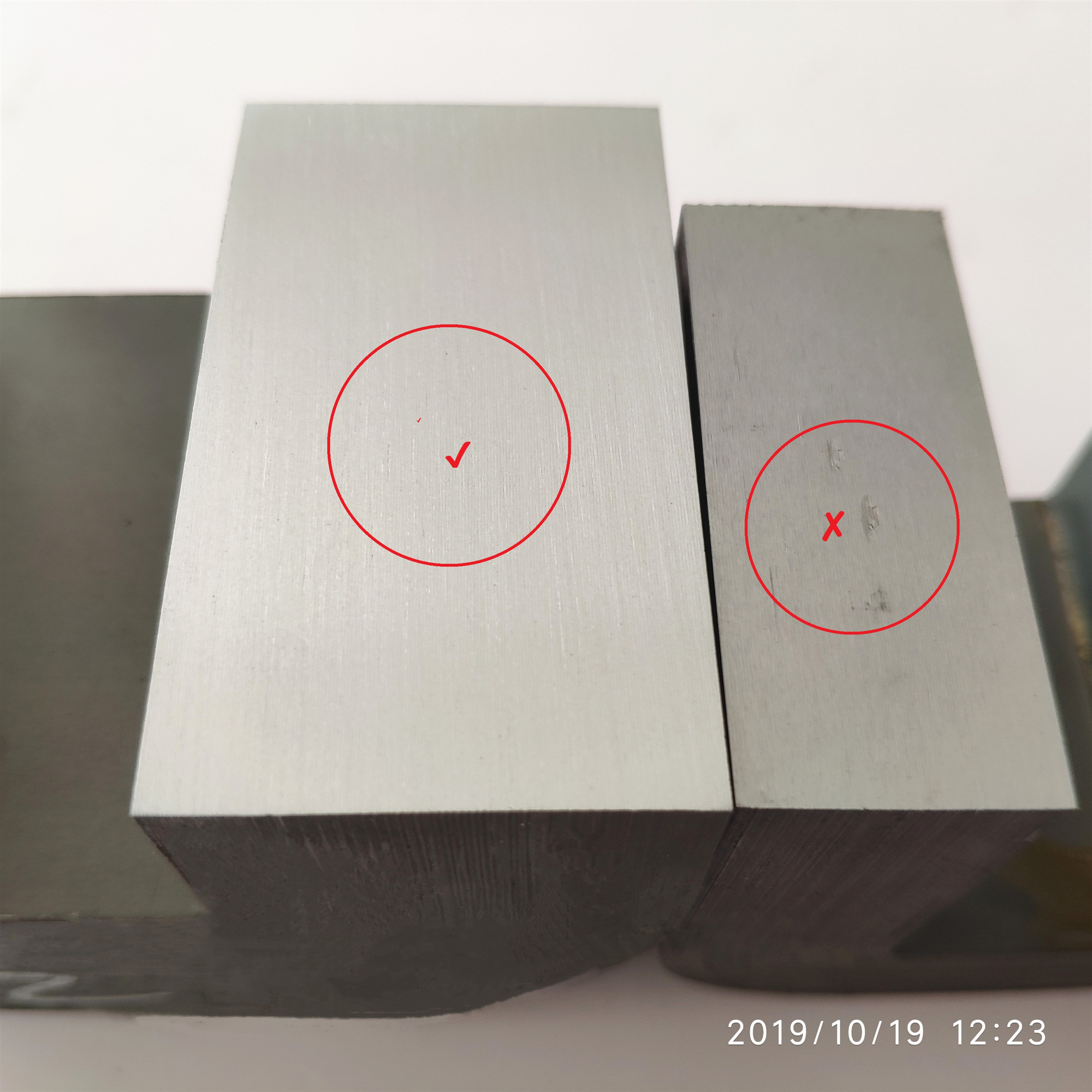

cut

surface

Smooth surface to ensure core characteristics such as current loss, excitation voltage

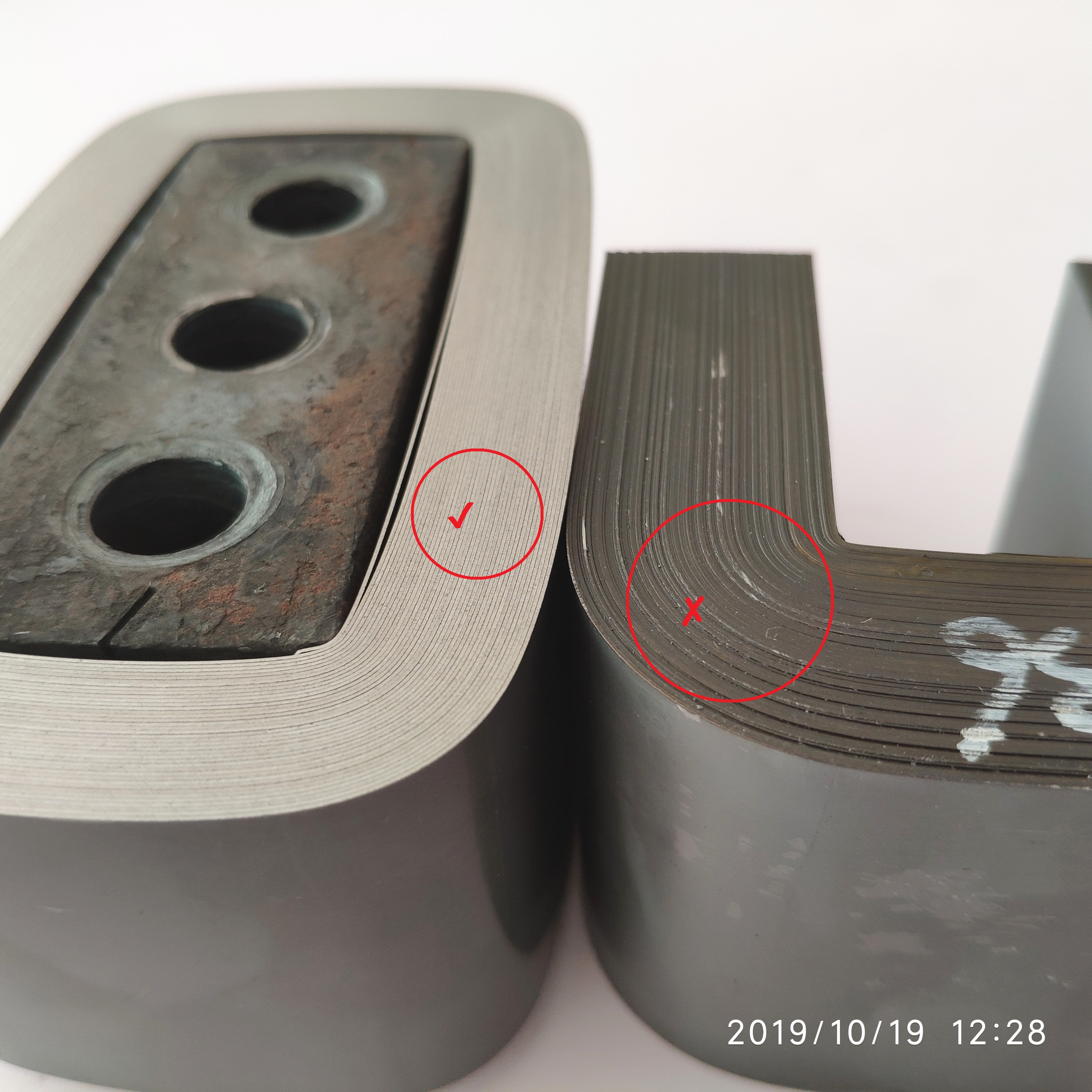

winding

Flatness

Not only affects the appearance, but also shows the high precision of the winding equipment

Evenness

size

Consistent overall height and width outside facilitates assembly

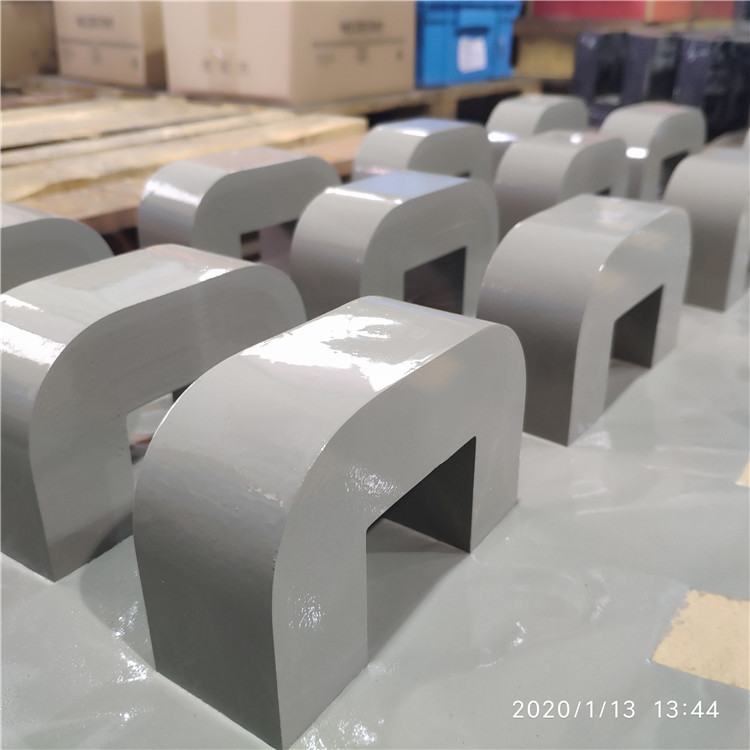

welding	Spot welding is firm and smooth, no penetration of two layers
winding	The winding is tight, and the end of the sheet cannot be turned up
Flatness	Surface unevenness is less than 0.1mm
fineness	No crystalline particles (no crystalline particles in the cut surface)
face cut	No obvious cracks on the cutting surface (no light transmission and peeling between layers)
surface	Visual inspection for no burrs, rust or deformation (deformation is controlled within tolerance)
product	Does not contain Pb\Cd\Hg\Cr\PBBs\PBDEs

technology

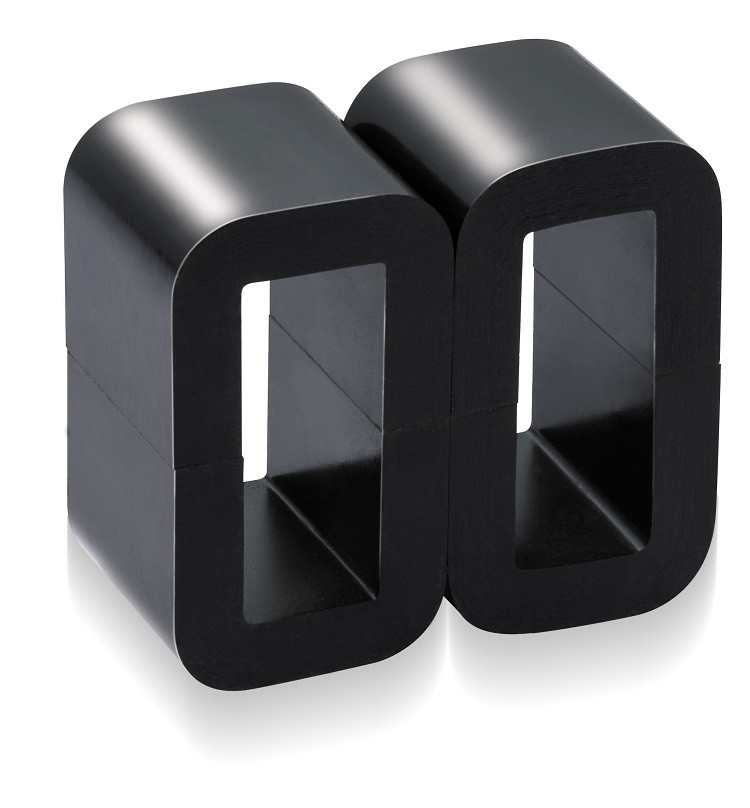

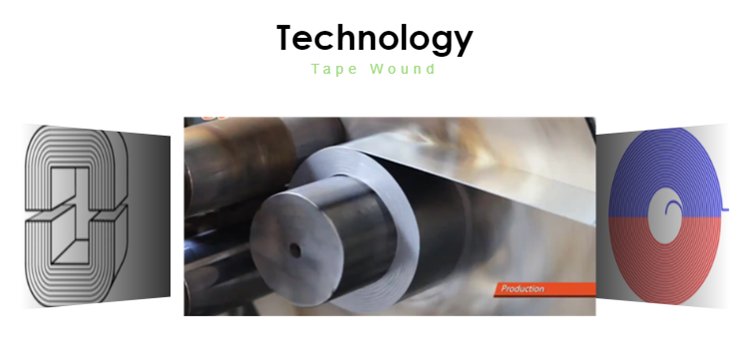

CRGO tape wound cores

A long, continuous silicon steel strip is tightly wound into a spiral

Advantages: no air gap, high magnetic performance, easy to roll

Weaknesses: Difficult to wind large cores and realize mechanization
