Integrated Waste Scrap Metal Aluminum Alligator Shear
- $6000.00 /set
- 1 set
- Jiangyin Dinghua Environmental Protection Technology Co., Ltd.
- Jiangsu, China
- Ms Cynthia Li
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Energy & Mining; | blade length: | 600mm; |
| Max blade opening: | 280mm; | Marketing Type: | Ordinary Product; |
| Key Selling Points: | Competitive Price; | Max. Cutting Force (Ton): | 120; |
| Brand Name: | Dinghua; | Certificate: | ISO9001; |
| Material / Metal Processed: | Brass / Copper,ALLOY,Carbon Steel,Aluminum,stainless steel,scrap iron; | Supply Ability: | 100 Set/Sets per Year; |
| After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; | Machine Type: | Alligator Hydraulic Shears; |
| power: | 15; | Payment Terms: | L/C,T/T; |
| Condition: | New; | Local Service Location: | None; |
| Showroom Location: | None; | Warranty: | 1 Year; |
| operation: | PLC; | Video outgoing-inspection: | Provided; |
| Core Components: | PLC,Engine; | Power (kW): | 15; |
| Weight (KG): | 9000; | After Warranty Service: | Video technical support,Online support; |
| Port: | Shanghai; | Max shear force: | 120T; |
| Application: | Industrial Metal Cutting; | Type: | Alligator shear; |
| Name: | scrap metal shear; | shearing frequency: | 8-16times/min; |
| Machinery Test Report: | Provided; | Place of Origin: | Jiangsu China; |
| Warranty of core components: | 1 Year; | Package Preview: | ; |
| Packaging Detail: | Suitable for sea transportation.Wrap the film and secure with wire.Put into wooden cases, the larger machine to take naked.; |

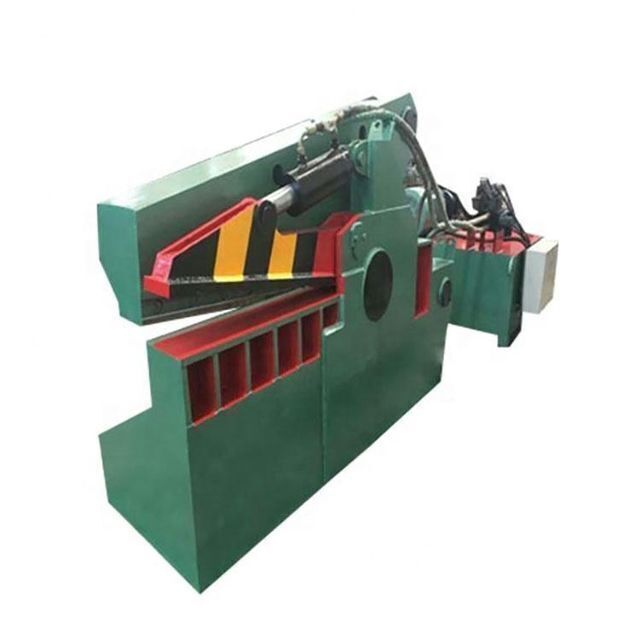

Q43 Hydraulic Scrap Metal Waste Iron Aluminum Copper Cutting Alligator Shear Machine (High Quality)
1. Application:

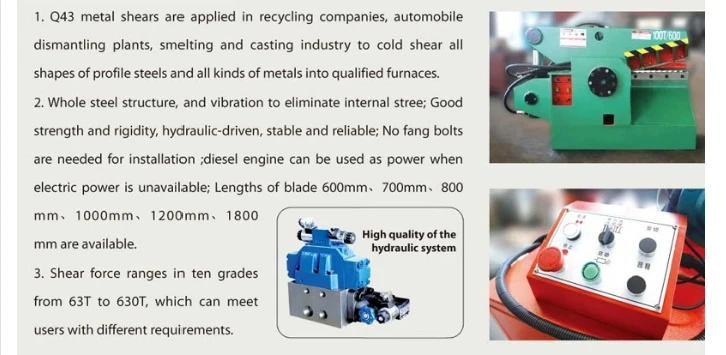

Q43 series hydraulic metal shear machine is applied in recycling companies, automobile dismantling plants, smelting & casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges.
Features:
1)Adopting hydraulic drive, Q43 series feature simple operation & easy maintenance, it's safe & reliable.
2)Shear force 9 grades from 63 to 500 tons; Blade length 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm
3)No footing bolts needed in installation; Diesel engine can be equipped for power
| Type | Max Shear Force(KN/Ton) | Max Holding Force(Ton) | Max Blade Opening(mm) | Blade Length(mm) | Shearing Frequency(times/min) | Material Size(mm) | Power(kw) | |||||||
| Q43-1000 | 1000/100 | 160/16 | 280 | 600 | 8—16 | 40*40φ45 | 11 | |||||||
| Q43-1200 | 1200/120 | 200/20 | 280 | 600 | 8—16 | 45*45φ50 | 15 | |||||||
| Q43-1600 | 1600/160 | 250/25 | 320 | 700 | 8—16 | 55*55φ63 | 18.5 | |||||||
| Q43-2000 | 2000/200 | 250/25 | 380 | 800 | 8—16 | 65*65φ75 | 22 | |||||||
| Q43-2500 | 2500/250 | 250/25 | 450 | 1000 | 8—16 | 70*70φ80 | 30 | |||||||
| Q43-3150 | 3150/315 | 420/42 | 520 | 1200 | 8—16 | 80*80φ90 | 37 | |||||||
| Q43-4000 | 4000/400 | 420/42 | 520 | 1200 | 8—16 | 90*90φ100 | 44 | |||||||
| Q43-5000 | 5000/500 | 500/50 | 650 | 1500 | 8—16 | 100*100φ110 | 60 | |||||||
| Q43-6300 | 6300/630 | 500/50 | 650 | 1500 | 8—16 | 105*105φ120 | 74 | |||||||
FAQ:
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 27 Hongtu Road, Guanshan Asean Park, Nanzha Street, Jiangyin City
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A:We are manufacturer with own factory for 10 years, export proportion 50~60%.
Q4:How can i trust your company?
A:With 10-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
