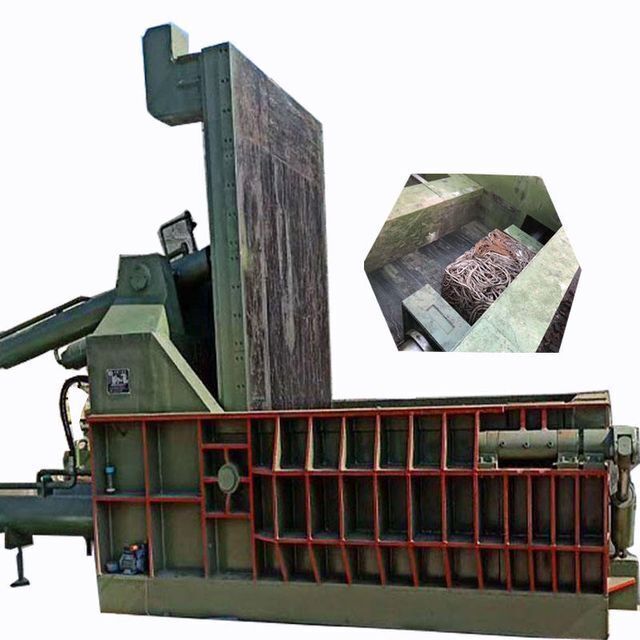

hydraulic used scrap metal baling press machine
- $9000.00 /set
- 1 set
- Jiangyin Dinghua Environmental Protection Technology Co., Ltd.
- Jiangsu, China
- Ms Cynthia Li
| Packaging Detail: | Suitable for sea transportation.Wrap the film and secure with wire.Put into wooden cases, the larger machine to take naked.; | Name: | hydraulic metal baler; |
| Supply Ability: | 100 Sets per Year; | Model Number: | Y81-3150; |
| Warranty: | 1 Year; | Package Preview: | ; |
| Operation: | PLC; | Driven Type: | Hydraulic System; |
| Power (kW): | 60; | Key Selling Points: | Competitive Price; |
| Video outgoing-inspection: | Provided; | After Warranty Service: | Video technical support,Online support; |
| Showroom Location: | None; | Machinery Test Report: | Provided; |
| Chamber size: | 2500*2000*1200mm; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Energy & Mining; |
| Weight (KG): | 30000; | Payment Terms: | L/C,T/T; |
| Nominal Force: | 315T; | bale size: | 600*600mm; |
| Local Service Location: | None; | Marketing Type: | Ordinary Product; |
| warranty: | one year; | Material / Metal Processed: | Brass / Copper,ALLOY,Aluminum,Carbon Steel,Stainless Steel,Scrap iron; |
| Type: | Y81-3150; | Condition: | New; |
| Port: | Shanghai; | Brand Name: | Dinghua; |
| After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; | Function: | for press scrap metal; |
| Warranty of core components: | 1 Year; | motor: | 60KW; |
| Place of Origin: | China; | Core Components: | PLC,Engine; |
| NO. | model | main cylinder force (ton) | chamber size(mm) | bale size(mm) | motor(kw) | Operation | ||||||
| 1 | Y81F/T-1250 | 125 | 1200*700*600 | 300*300 | 15 | Manual Or PLC | ||||||
| 2 | Y81F/T-1600A | 160 | 1600*1000*700 | 350*350 | 22/30 | Manual Or PLC | ||||||
| Y81F/T-1600B | 1600*1200*800 | 350*350 | ||||||||||
| Y81F/T-1600C | 1400*800*700 | 350*350 | 22 | |||||||||
| 3 | Y81F/T-2500A | 250 | 2000*1400*900 | 500*500 | 44/60 | Manual Or PLC | ||||||
| Y81F/T-2500B | 2000*1750*1000 | 500*500 | ||||||||||
| Y81F/T-2500C | 2500*2000*1200 | 600*600 | ||||||||||
| 4 | Y81F/T-3150A | 315 | 2500*2000*1200 | 600*600 | 60/90 | Manual Or PLC | ||||||
| Y81F/T-3150B | 3000*2500*1300 | 600*600 | ||||||||||
| Y81F/T-3150C | 3500*2500*1300 | 600*600 | ||||||||||
| 5 | Y81F/T-4000A | 400 | 3500*3000*1300 | 700*700 | 90/135 | Manual Or PLC | ||||||
| Y81F/T-4000B | 4000*3500*1300 | 800*800 | ||||||||||
| 6 | Y81F/T-6300A | 630 | 3500*3000*1300 | 700*700 | 135/180 | Manual Or PLC | ||||||
| Y81F/T-6300B | 4000*3500*1300 | 800*800 | ||||||||||
| 7 | Y81F/T-8000 | 800 | 4000*3000*1500 | 800*800 | 180 | Manual Or PLC | ||||||
| 8 | Y83F/T-10000 | 1000 | 4000*3000*1500 | 800*800 | 225 | Manual Or PLC | ||||||

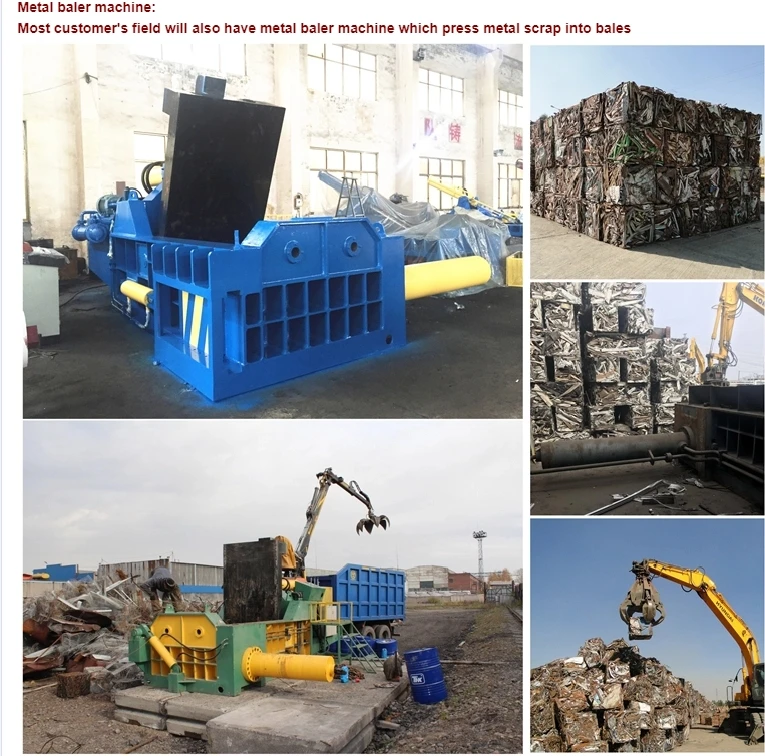

Application:
Y81 series hydraulic Metal baler for steel mills,recycling and processing industry and nonferrous,ferrous mental smelting industry.Can be all kinds of Metal scrap,steelshavings,scrap steel,alumlnum,copper ,and other qualified charging squeezed into a rectangular,cylindrical,otagonal shape and other shapes to reduce the cost of transporation and smelting to rich.Product technical permance with industry leading level.And win the trust of users.
FAQ:
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 27 Hongtu Road, Guanshan Asean Park, Nanzha Street, Jiangyin City China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A:We are manufacturer with own factory for 10 years, export proportion 50~60%.
Q4:How can i trust your company?
A:With 10-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
