Intelligent delta robot gripper for sugar
- $25400.00 / 1 - 1 sets
$24000.00 / 2 - 2 sets
$22000.00 / >=3 sets - 1 set
- Guangzhou Utrust Packaging Equipment Co., Ltd.
- Guangdong, China
- Ms Sarah Huang
| Axis: | 4 (2, 3, 6 available); | Power: | 0.5-3kW; |
| Local Service Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan; | Horizonal Travel: | 400-800mm; |
| Package Preview: | ; | Repeatability: | ±0.1mm; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Features: | Intelligent; |
| Condition: | New; | Marketing Type: | New Product 2020; |
| Supply Ability: | 100 Set/Sets per Month; | Max load: | 3-5kg; |
| Warranty: | 1 year; | Place of Origin: | Guangdong China; |
| Angle accuracy: | ±0.1°; | Packaging Detail: | Intelligent delta robot gripper 1 .inner package:stretch film. 2.outside package:standard export wooden case(Packaging according to the specific legal requirements of customer country).; |
| Payload: | Payload; | Rotation angle: | ±45°/±90°/±180°; |
| Function: | Picking,place,sorting; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Farms; | Brand Name: | UTRUST; |
| Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia; | After Warranty Service: | Video technical support,Online support,Spare parts; |
| Certification: | ISO/CE/TUV; | Core Components: | PLC,Bearing,Gearbox,Motor,Gear; |
| Video outgoing-inspection: | Provided; | Port: | GUANGZHOU; |
| Vertical diameter: | 115-280mm; | Dimension(L*W*H): | 605*605*482mm; |
| Machinery Test Report: | Provided; | Warranty of core components: | 1 Year; |
| Voltage: | 220V/380V; | Max picking height: | 120-410mm; |
| Application: | Food,beverage,medical,chemical; |

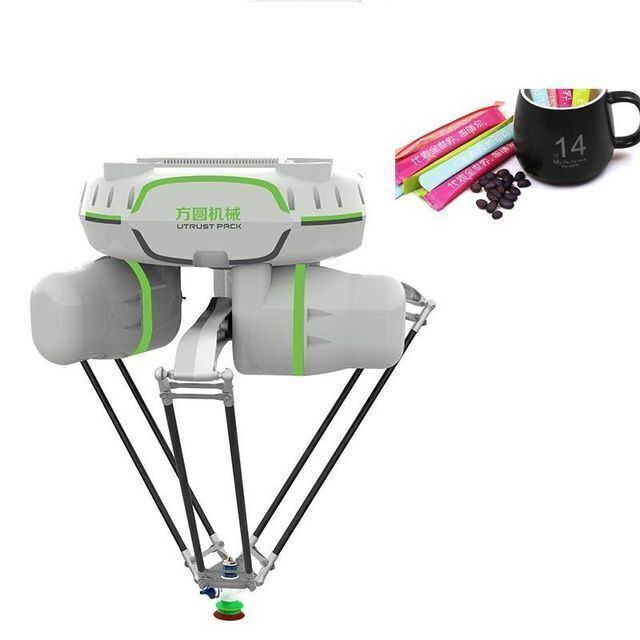

Intelligent delta robot gripper
1. Its body material is mainly made of carbon fiber and aluminum alloy composition.
2. It can accurately identify the target object through a sensor or visual system, motion tracking, picking and placing the target object to the designated position.
3. The high-speed handling unit with robot functionality for free movement in three dimensions provides precision in movement and positioning as well as a high dynamic response at a stable speed of 80 picks per minute.
4. The highly rigid mechanical design and low moving mass make the parallel delta kinematic system with toothed belt axes up to three times as fast as comparable Cartesian systems.
5. Three double rods keep the front unit horizontal at all times. The axes and servo motors do not move with the unit.
6. The parallel kinematic system is suitable for handling loads of up to Max 5 kg.
7. The sachet packs picked and placed by the high-speed paralleled robot units system. In-depth visual recognition for sorting out the front and back and the direction of the sachets. Programmed system sorts out sachets by the right numbers. Connected to the carton machine to complete the automation packaging.
Guangzhou Utrust Packaging Equipment Co., Ltd. Locates at the beautiful backyard garden of Guangzhou city and just 45 minute drive from Guangzhou Baiyun Airport.
Utrust Pack is an enterprise integrating R&D, design, production, sales and installation. It has more than 25 years of experience in various packaging automation equipment and more than 34 patents. Design customization is available for client’s factory layout.
The company mainly produces and sells various packaging equipment such as can sealing machine, vacuum nitrogen filling sealing machine, capping machine, powder/granule/liquid packaging line, robot sorting and so on.
Products are mainly used in food, beverage, medicine, chemical and other industries and sell well all over the world.
The company culture "People leading value for people", which keeps us thinking that helping each other for a better life and a better world.
The company has built a very professional R&D, production, quality control and project management team. The company’s core technical personnel graduated from key universities such as Xi’an Jiaotong University and Guangdong University of Technology.
We have a number of patents and project experience, the engineer team has leading R&D strength, more than 80% of them have a bachelor degree, and some of the engineers have worked for more than ten years.
We insist on making high-quality products, providing customers with professional customized services and better packaging solutions, and bringing customers safe, reliable and cost-effective packaging machinery and service. We will always be your trustworthy supplier for automation equipment and service.
---------------------------------------------------------------------------------------------------------------
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| FAQ | |
| 1, What is your Installation Services? | 2, What about your Guarantee of quality? |
| User manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well | The machine is 1 year warranty, all machine part can be replaced within 1year if broken (not including man made) |
| 3, If we have very special request for the production line,could you help me to do the design? | 4, Can I visit your factory? |
| Experienced mechanical designer customized-design provided. | Yes, welcome please. |
| 5, If we have samples of new products, can you help to analysis and design the machine? | 6, Do you have certificate? |
| Yes, Our technical department can help to analysis, design and test the new products you offered. | Yes, we have some, like CE / TUV. |
