New fashionable servo motor with audio power amplifiers P9001 Mitsubishi Igbt Choose and install Delta
- $6500.00 /set
- 1 set
- Ant Automation Equipment (shenzhen) Co., Ltd.
- Guangdong, China
- Mr Ant Automation ShenZhen
| Repeatability: | 0.1mm | Material: | aluminum |
| brand: | Robot Anno | place of origin; place of origin: | Guangdong, China |
| degrees of freedom: | 3 axis/4 axis | Core Components Warranty: | 1 year |
| Core components: | motor, gear | Weight (kg): | 55 |
| Showroom location: | not any | payment terms: | wire transfer |
| Applicable industries: | Clothing Stores, Building Materials Stores, Machinery Repair Stores, Food and Beverage Plants, Farms, Home, Retail, Food Stores, Construction Works, Energy and Mining, Food and Beverage Stores | Motor Type: | servo motor |
| Health status: | new | Video external inspection: | if |
| Marketing Type: | normal product | port: | Shenzhen |
| product name: | Industrial Delta Robot Arm with Gripper | usage: | Pick and place, palletize, sort, group, reposition |
| Mechanical test report: | if | Packaging Details: | wooden box |
| Supply capacity: | 500 sets per month |
New fashion servo motor driver with Mitsubishi igbt fan audio P9001 power amplifier pick and place Delta
What you must know before placing an order
Dear customer, thank you for visiting our website and products. To better understand our products,
Please allow us to remind you in the following waysTwo hints:
- (1) We setPrice based on different quantities, please contact our sales and inform your estimated order quantity so that we can provide you with a corresponding quotation.
- (2)The above prices do not include shipping,If you don't have your own carrier or freight forwarder, please tell us your shipping address for a shipping quote.
Contact supplier for more details
only"click"here
Function and introduction

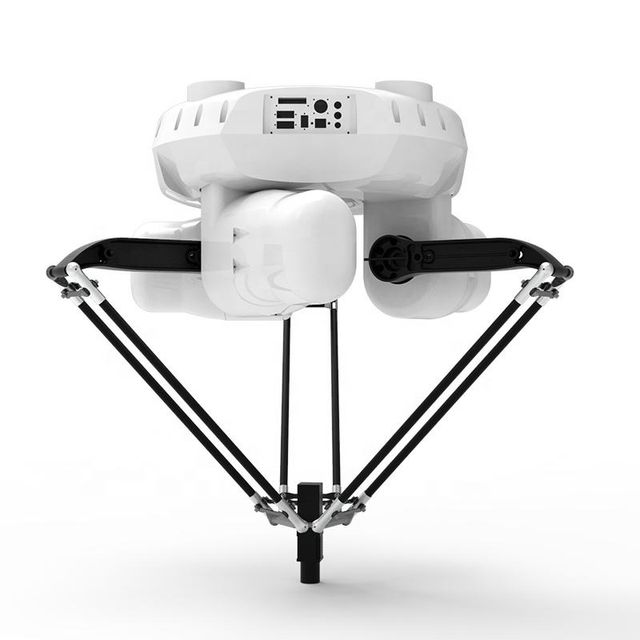

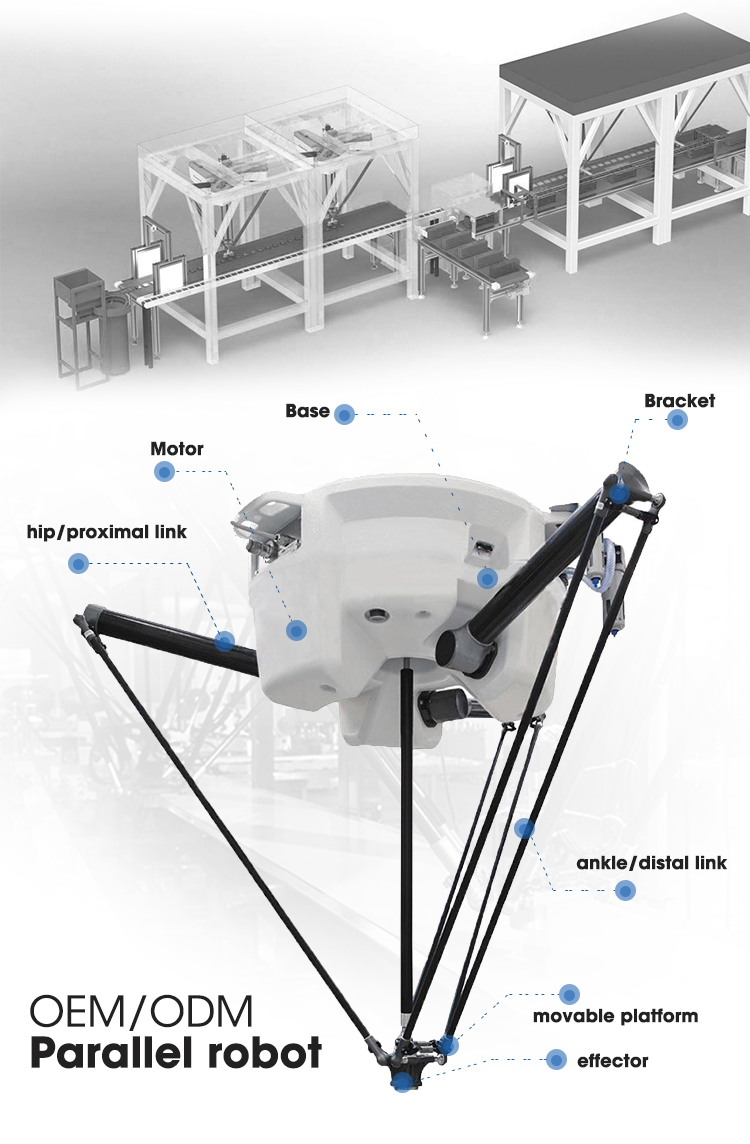

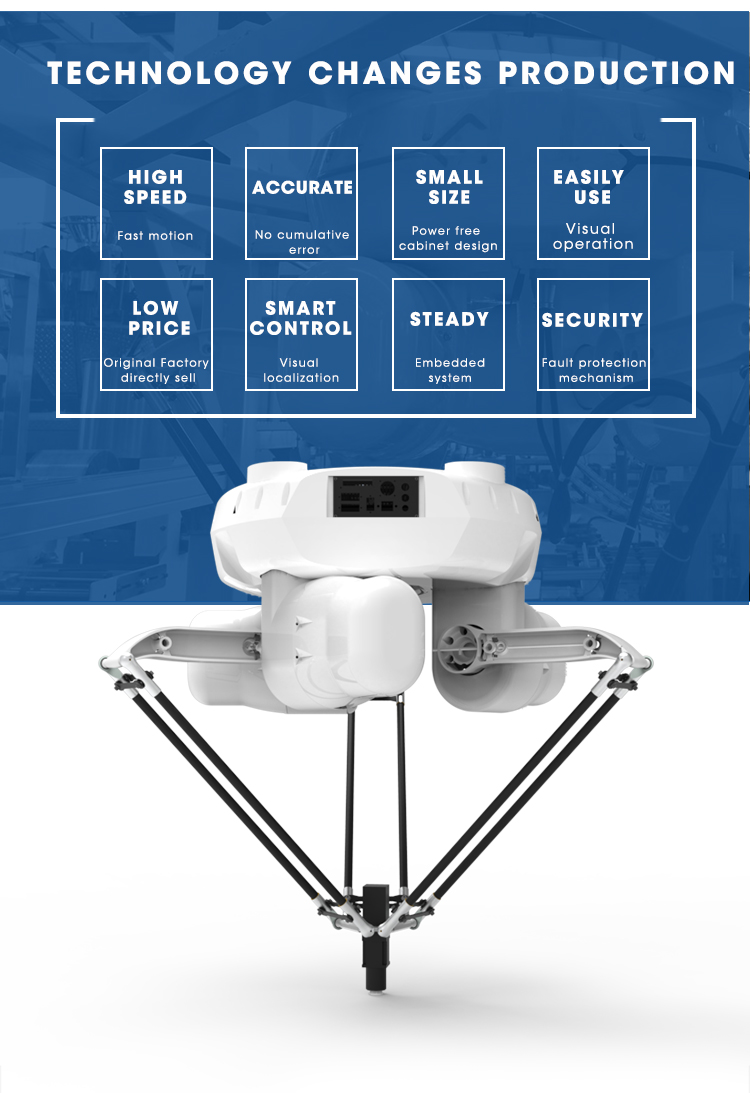

The OY-D is a high-speed robot designed for quick pick and place applications. Its body is made of carbon fiber and aluminum alloy. The leapfrog test beats up to 200 beats per minute. Capture the target object through a sensor or vision system to achieve dynamic tracking pick and place of the target object. The equipment can be widely used in packaging, material sorting, handling, assembly and other fields.

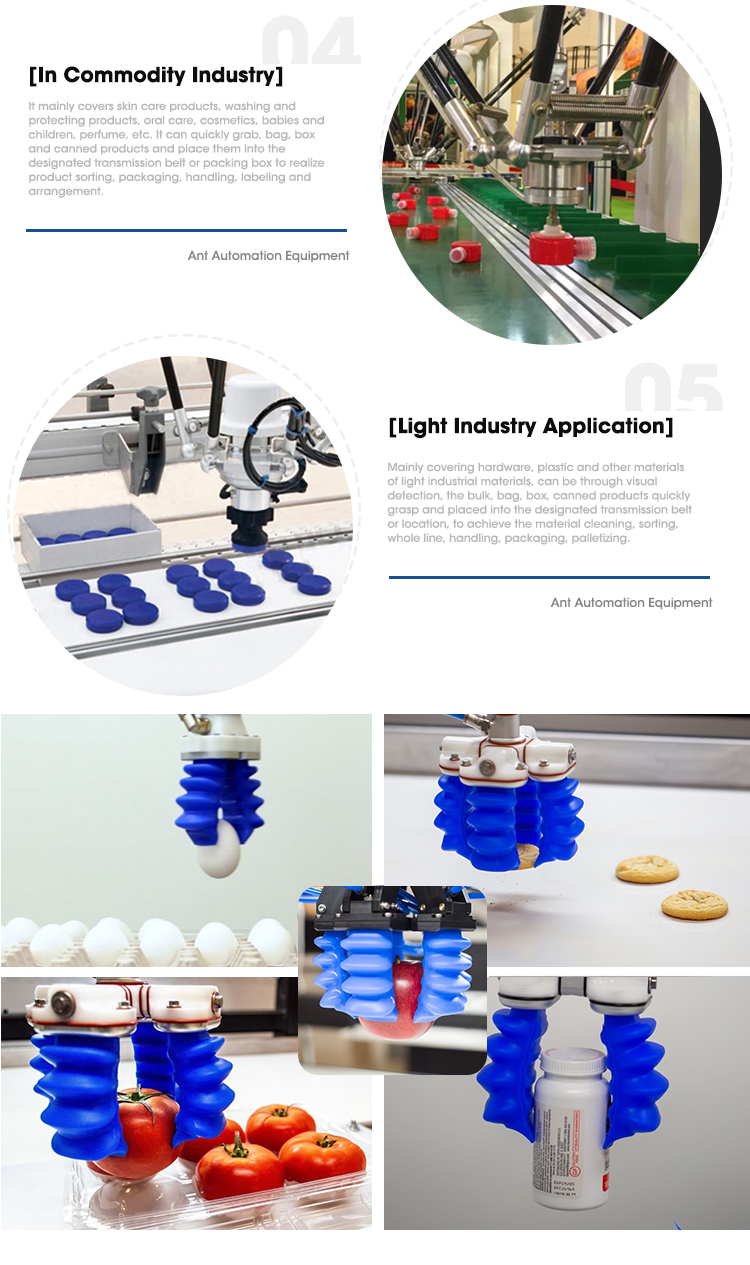

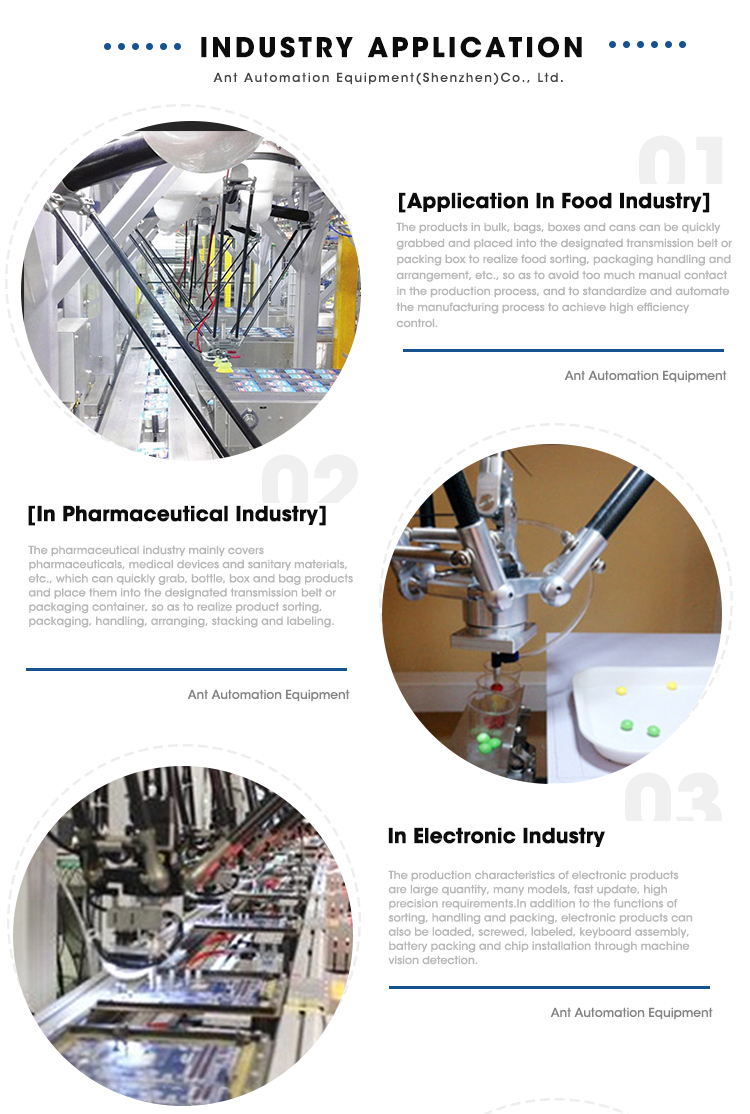

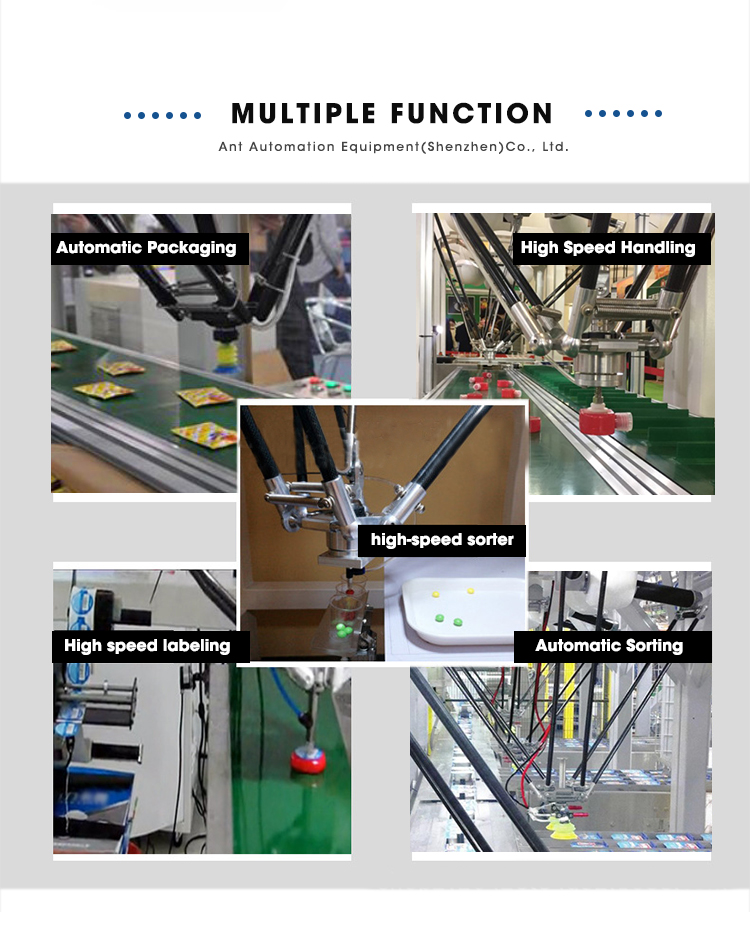

Main application areas:
• Bale
• Sort
• deal with
• assembly
feature
• High movement accuracy
• move quickly
• wide range of motion
• Strong carrying capacity,
• Can be used with vision positioning, conveyor tracking
|

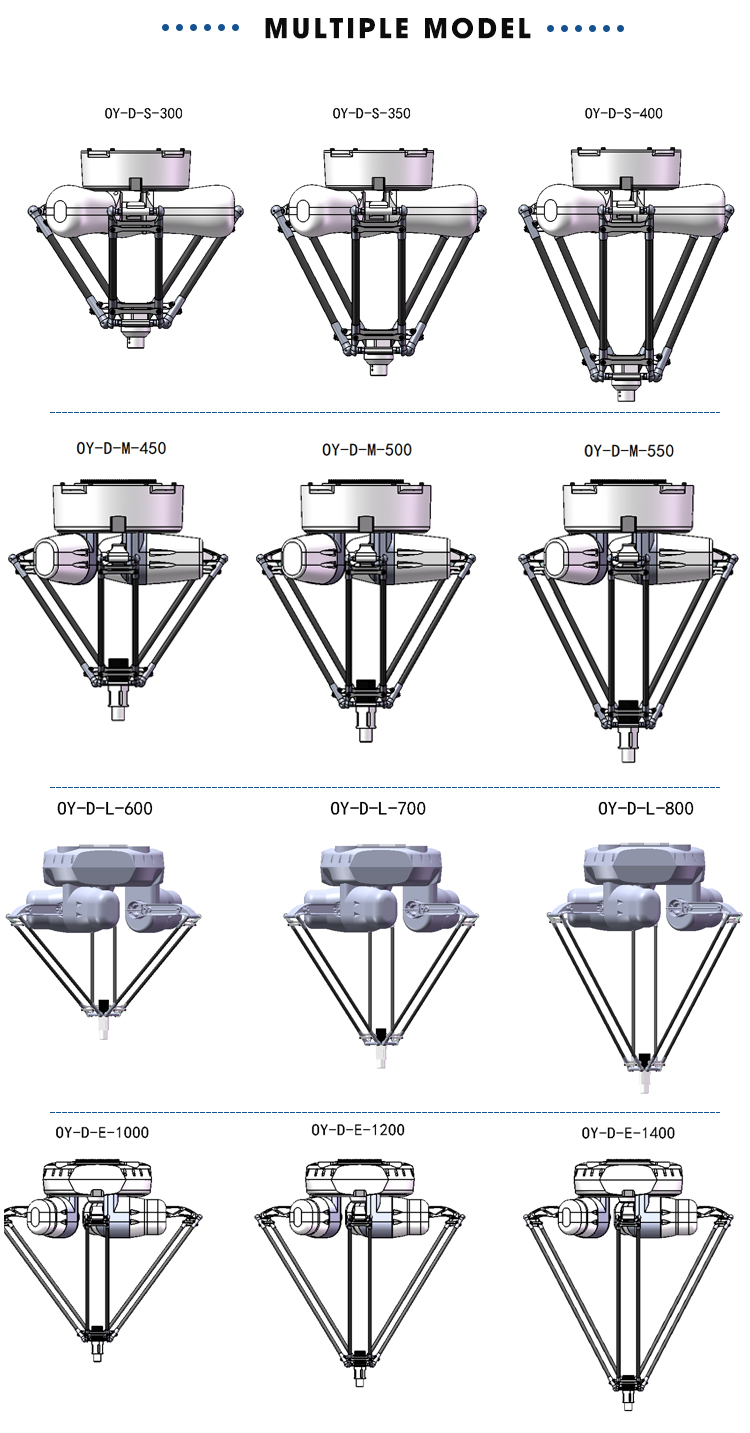

Model |
OY-D-350 |
OY-D-400 |
OY-D-600 |
OY-D-800 |
OY-D-1000 |
|
|
degrees of freedom |
3 axis/4 axis |
|||||
|
Rated payload |
1.5kg |
0.5KG |
2KG |
3KG/5KG |
3KG/5KG |
|
|

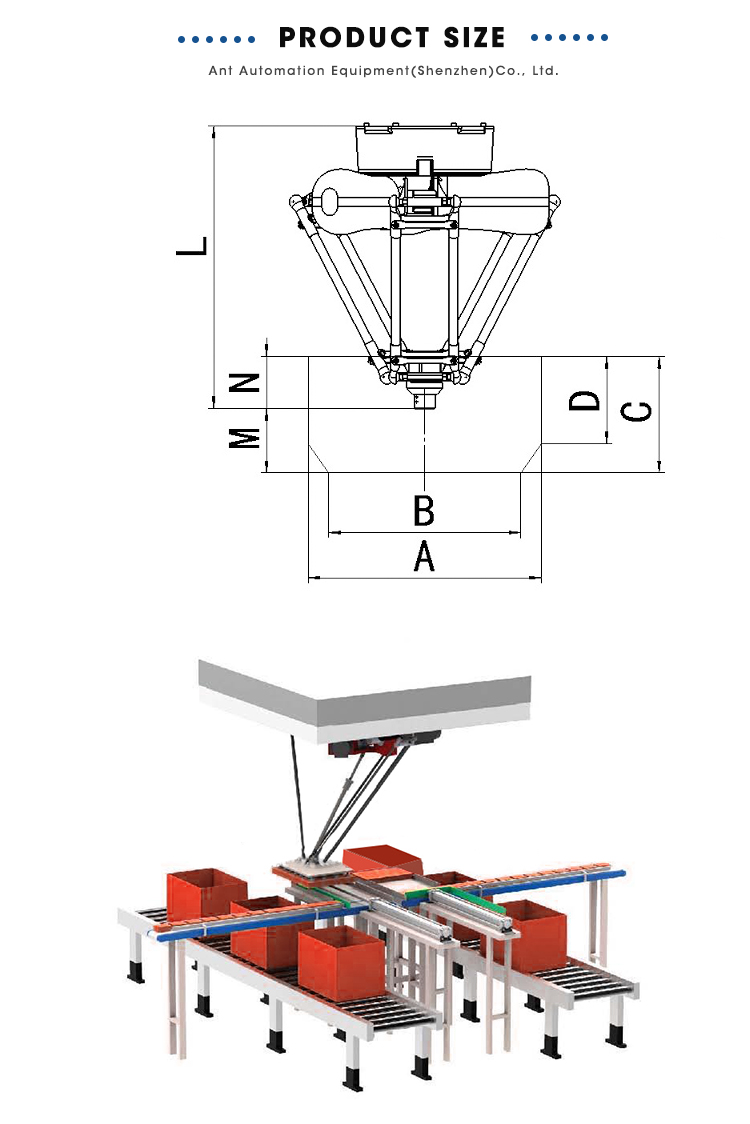

scope |
upper arm length |
160 |
160 |
300 |
300 |
400 |
|
lower arm length |
350 |
400 |
600 |
800 |
800 |
|
|
large |
594 |
650 |
818 |
986 |
998 |
|
|
Meter |
72 |
86 |
115 |
151 |
187 |
|
|
n |
58 |
70 |
195 |
123 |
153 |
|
|
One |
350 |
400 |
600 |
800 |
1000 |
|
|
Second |
297 |
340 |
540 |
720 |
900 |
|
|
C |
130 |
156 |
210 |
274 |
340 |
|
|
D |
91 |
109 |
157 |
191 |
272 |
|
|
Repeatability |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
|
|
motor |
Closed loop stepper motor |
Absolute Servo Motor |
||||
|
total power |
0.5KW (3 axes) 0.42KW (4 axes) |
2.25KW (3 axes) |
||||
|
weight |
18KG |
55KG |
55KG |
|||
|
Protection class |
IP54 |
|||||
