Jiada dishwasher thick film heating tube `XHD-Y-208G075045/230V
- $14.00 / 1000 - 4999 pieces
$13.00 / >=5000 pieces - 1000 pieces
- Xinxiang Jieda Precision Electronics Co., Ltd.
- Henan, China
- Mr RUIDA YANG
| brand: | jidape | application: | Coffee machine, water purifier, beverage machine, electric faucet, hotel, commercial, household |
| Supply capacity: | 300,000 pieces per month | Energy source: | electrical |
| Other names: | Instantaneous Electric Shower Water Heater Element Tube 2080W | strength: | 2080w or customized |
| Minimum order quantity: | 1000 | Warranty: | not any |
| Packaging Details: | carton | Voltage: | 230V |
| Tube: | Stainless steel | payment terms: | L/C,T/T,Western Union,MoneyGram,paypal |
| Pipe diameter: | 75mm or customized | port: | Qingdao |
| After-sales service provided: | not any | model: | XHD-Y-208G075045/230V |
| Packaging Preview: | place of origin; place of origin: | Henan, China | |
| type: | Electric water heater accessories | Certificate: | CQC, RoSH |
| Service life: | >10,000 hours | technology: | Thick film fast heating |
Product Description

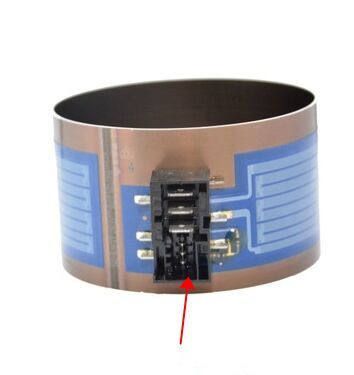

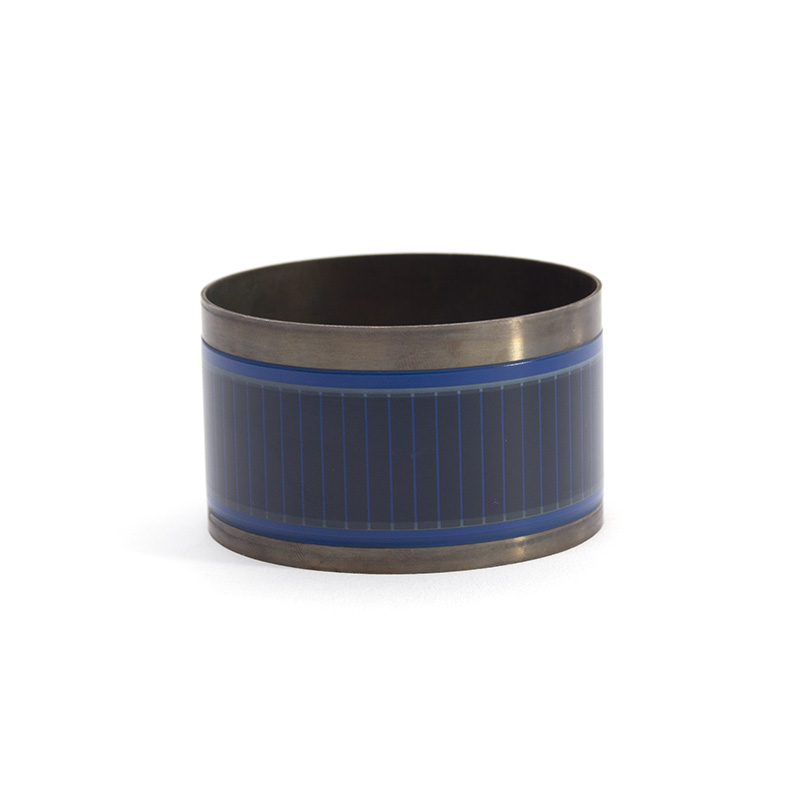

Jiada dishwasher thick film heating tube `XHD-Y-208G075045/230V

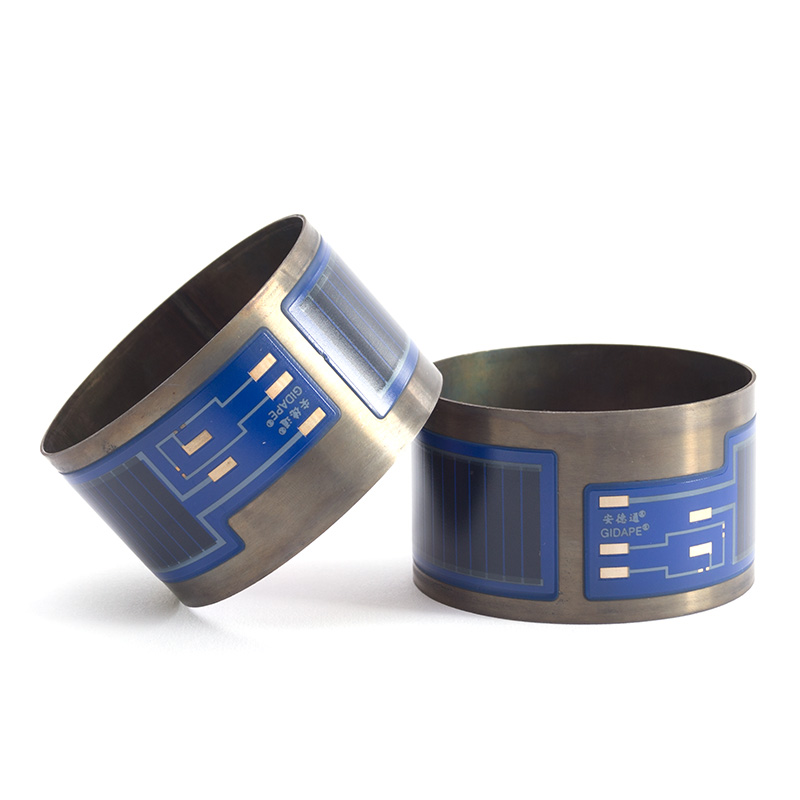

Stainless steel thick film heating technology originated in Europe and the United States. It uses screen printing technology to print layers on the substrate. These layers are insulating media, resistors, conductors, protective glaze, etc., and are sintered at high temperature to form a dense layer of glass-ceramic film, which is not easy to fall off. , not easy to scratch.
In the customer's complete machine application, Jetta GIDAPE's stainless steel thick film heating tube®Anderton®The series has significant advantages such as large heating area, high thermal conductivity (≥98%), fast thermal response (80℃~150℃/S), and long working life (≥10000 hours).
As the first professional manufacturer of stainless steel thick film heating pipes in China, Jetta GIDAPE®Anderton®The product series are mainly stainless steel thick film heating tubes (SUS430 series), covering thick film plates. Currently GIDAPE®Anderton®The diameter distribution of the series of stainless steel thick film heating tubes is Φ18-50mm, the length is 110-150mm, the maximum power of a single tube is 6KW, and the standard product size and power are relatively complete. Special power, voltage, requirements can be customized design.
technical parameter
Jiada dishwasher thick film heating tube `XHD-Y-208G075045/230V
Compared with other immersion water heater elements, Jetta thick film heating tube/element has larger heating area, higher power density and faster heating rate (80℃/S).
1. The circuit is printed on the surface of the stainless steel tube to heat the water flow inside. 5 The insulating layer is sintered on the surface.
2. Large heat transfer area on the tube surface; rapid heating and cooling; utilization rate as high as 97% or more
3. The temperature response is fast, the power density is as high as 60w/cm2, and the heating speed of the heating circuit exceeds 80°C/s.
4. Simple structure, compact shape and wide application
|
aspect |
Φ75mm*45mm(length) |
heat density |
>40W/cm² |
|
acceleration rate |
150℃/sec |
Thermal efficiency |
>96% |
|
heating power |
2080W |
service life |
>10,000 hours |
|
Rated voltage |
220v |
Certificate |
CQC, RoHS |
|
Dielectric strength |
1,500V/5mA/60s |
Power deviation |
-10% - +5% |
|
leakage current |
≤0.25mA |
Insulation resistance |
≥200MΩ |
|
type |
Thick film water flow Instant hot water pipe |
application |
Replacing an Iron Immersion Electric Water Heater |
|
Shield thermistor |
PTC |
Ground Type |
spot welding |
main feature
Jiada dishwasher thick film heating tube `XHD-Y-208G075045/230V
1. The circuit is printed on the surface of the stainless steel tube, the water flow inside is heated, and 5 layers of isolation layers are sintered on the surface.
2. Large heat transfer area on the tube surface; rapid heating and cooling; utilization rate as high as 93% or more.
3. The temperature response is fast, the power density is as high as 60W/cm², and the heating speed of the heating circuit exceeds 80℃/s.
4. Simple structure, compact appearance and wide application.
application
Jiada dishwasher thick film heating tube `XHD-Y-208G075045/230V
Products are widely used in water heaters, water dispensers, water heaters, electric faucets, plumbing machines, under-sink instant water heaters, coffee machines, commercial vending machines, as well as swimming pool water circulation heating, industrial equipment and other business fields, vehicle air conditioners, etc.
It can successfully upgrade ordinary water boiler or water dispenser to instant type without changing its existing structure and improve performance, thereby reducing energy consumption and improving energy efficiency.
