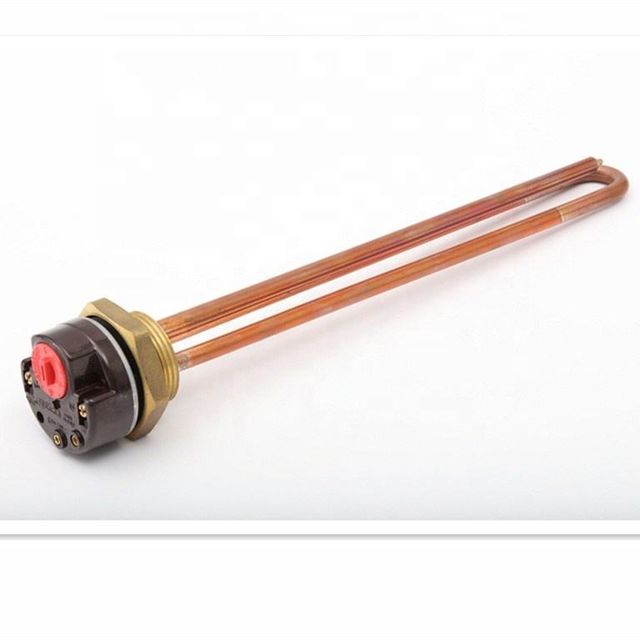

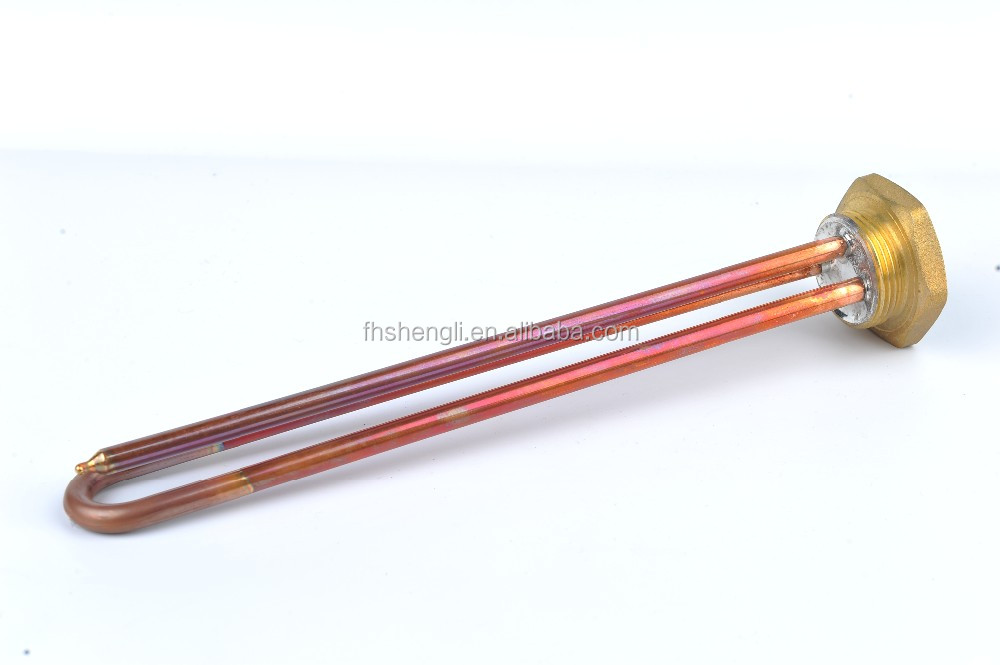

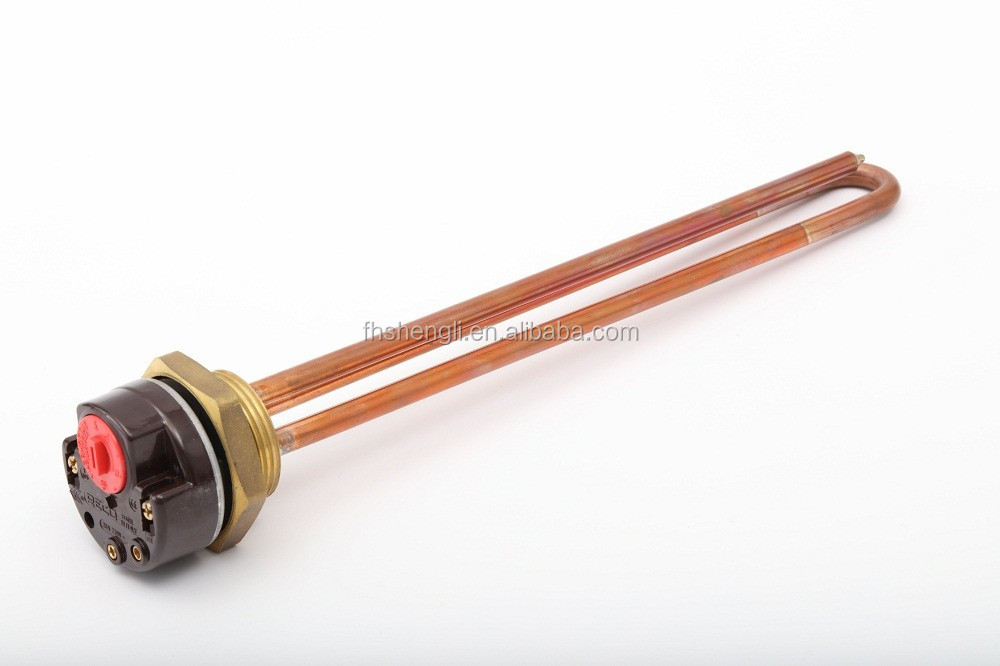

WNA-1 220v 3000kw flanged immersion heater with thermostat for portable electric water heater

PRODUCT DETAIL
Supply capacity:5000 pieces per dayPackaging Details:1pc/polybag, 50pcs/carton
Tube:Copper (T2)Warranty:1 year
Thermostat Type:single securitymodel:WNA-1
After-sales service provided:Return and exchange, overseas call centertype:Electric water heater accessories
seal:Epoxy/Siliconebrand:Holy Righteousness
port:Ningboplace of origin; place of origin:Zhejiang, China
Energy source:electricalInsulation Materials:Medium temperature magnesium powder
application:hotel, familyCertificate:CE.ROHS.IEC60730
Flange size:1"1/4 Brass Flangepayment terms:L/C,Western Union,D/P,D/A,T/T
product description

WNA-1 220v 3000kw flanged immersion heater with thermostat for portable electric water heater

Do not.
The main parameters

1
model.
WNA-1
2
pipe
Copper (T2)
3
strength
1000W-3000W +5%, -10%
4
Voltage
220V-240V/50Hz. 110V/60Hz
5
Pressure test
1800V/S minimum cold state
6
leakage current
Maximum 0.75ma
7

insulation
500MΩ
8
heating resistance wire
Ocr25AI5, Cr20NI80 or as customer's request
9
Warranty
one year
10
total length
300mm
11
flange
1 1/4" Brass Flange with/without Mg Anode Mounting M6/M8
12

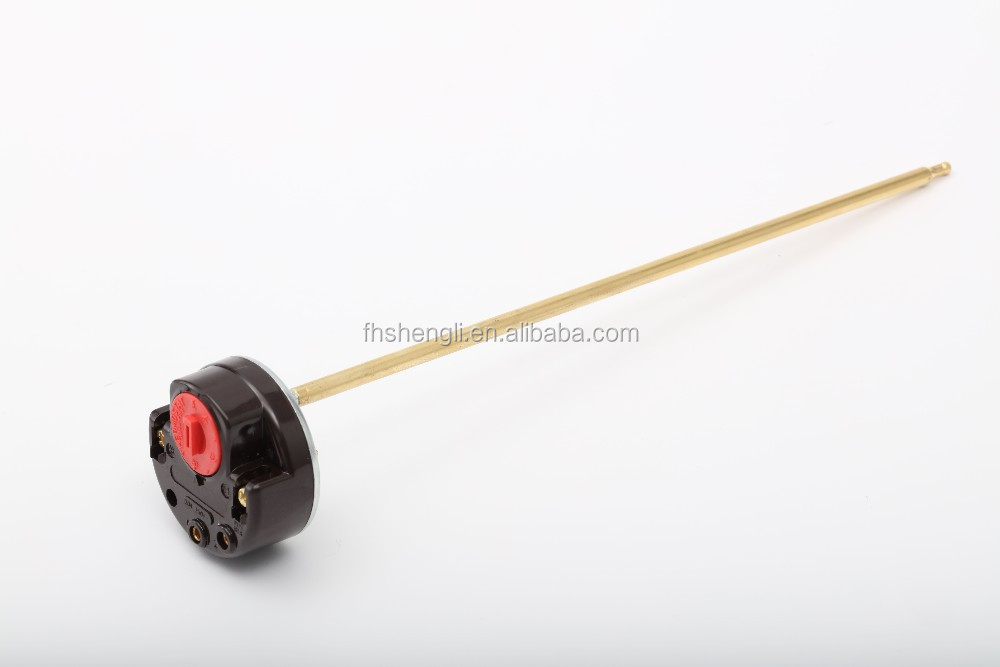

Thermostat
16A 250V. L=275mm. Single safety thermostat.
