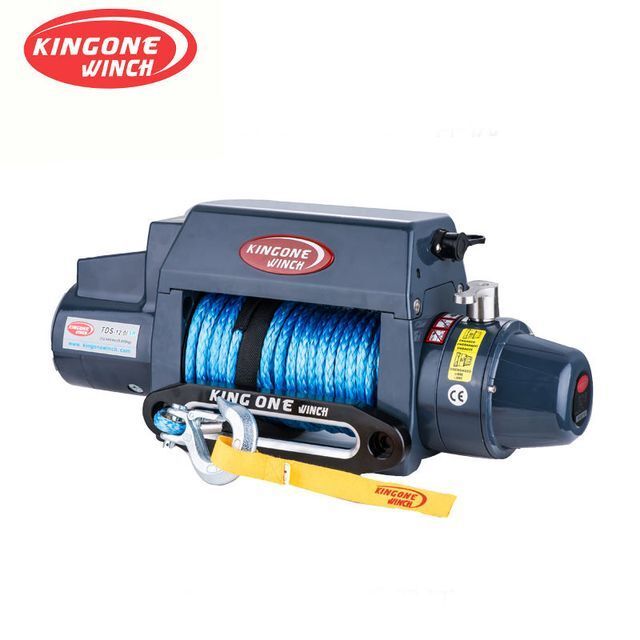

KING ONE WINCH TDS-12.OI 24v synthetic Rope 12000lbs Off-road 4x4 vehicle Electro Winch

  • $585.00 / 1 - 19 pieces
    $526.50 / 20 - 99 pieces
    $468.00 / >=100 pieces
  • 1 piece
  • Ningbo Kingone Industrial Co., Ltd.
  • Zhejiang, China
  • Mr kingone winch
PRODUCT DETAIL
Power Source:Electric;Single package size:64.7X19.8X41 cm;
Model Number:TDS-12.0ISR;Warranty:1years;
Gear Ratio:254:1;Selling Units:Single item;
Single gross weight:50.000 KG;Packaging Detail:Kingone's standard packing (the winch and accessories are packed in the carton,be loaded to the container with metal pallet.);
Brand Name:KING-ONE WINCH;Place of Origin:Zhejiang, China;
Application:AUTO;Voltage:24V;
Packaging & Shipping




















Specification

Line pull:                        5,442kgs/12,000lbs

Motor:                             12V/6.0HP 24V/3.6HP

Gear Train:                     Three stage

Gear Ratio:                     254:1

Freespooling Clutch:    Rotating ring gear

Wire Rope Size:             Φ3/8"×90'(Φ9.5mm×27.4m)

Wire Rope Type:            Aircraft A7×19

Drum Size:                      Φ2.5"×9"(Φ63.5mm×229mm)



Line Speed and AMP Draw (1st layer of rope on the drum)

Load                                                Line Speed                                AMP Draw(12V)                   AMP Draw(24V)

No Load                               29.3FPM/9MPM                            60                                     40

2,000lbs/907kgs                   13FPM/4MPM                          116                                     87

4,000lbs/1,814kgs               9.8FPM/3MPM                          141                                  110

6,500lbs/2,722kgs            7.9FPM/2.4MPM                          178                                  129

8,000lbs/3,650kgs            6.9FPM/2.1MPM                          224                                  165

9,500lbs/4,309kgs            6.2FPM/1.9MPM                          238                                  185

11,000lbs/5,000kgs          4.9FPM/1.5MPM                          270                                  214

12,000lbs/5,442kgs          4.5FPM/1.4MPM                          285                                  217









Company Information

 Over the last decade, KingOne Industrial Co., Ltd specialized in manufacturing superior world-class winch products for our customers. With strict quality control and continuous efforts in innovation, KingOne is striving for providing superior products, attractive price, and reliable customer services. Our winches products have been used for various purposes including load pulling, vehicle recovery,  and recreation. If you are interested in our products and services, please contact us for furthering information.
