KOPPACE 40MP HD Industrial Video Microscope Camera Digital Zoom Lens HD Output + 100X C-Mount Lens for Cell Phone Repair

PRODUCT DETAIL
sensor:40-megapixel CMOS sensorenlarge:100X
Field of view:2.4mm-32mmSales unit:single product
Image Resolution:8432*4744 (TF card), 1920x1080 (TF card)model:KP-4100-100X
TF card:up to 64GBtheory:video microscope
Gross weight per piece:0.700 kgWorking distance:50mm-200mm
brand:KOPPACESingle package size:18X15X10 cm
Sensor size:1/2.3 inchInput voltage:DC 12V
HD Resolution:1920X1080p 60FPSPull the tube:Three eyes
Video resolution:2K@30FPS, 1080p@60FPSplace of origin; place of origin:Guangdong, China
Product Description

KOPPACE 40 MP HD Industrial Video Microscope Camera Digital Zoom Lens HD Output + 100X C Mount Lens for Mobile Phone Repair

Model KP-4100-100X
enlarge 100X
vision 2.4mm-32mm
working distance 50mm-200mm

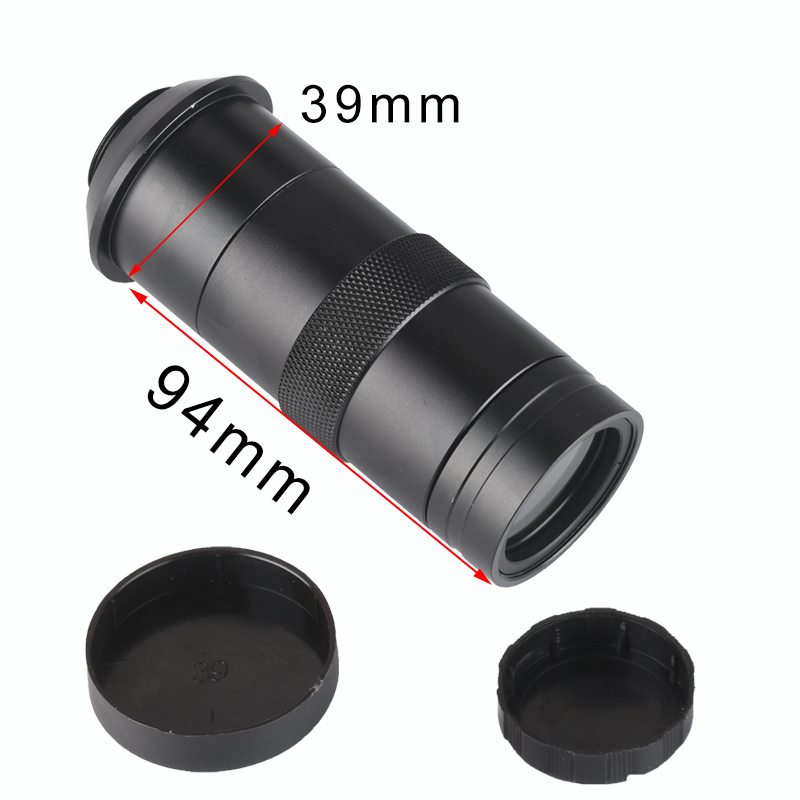

Lens diameter 39mm
sensor 40-megapixel CMOS sensor
Sensor size 1 / 2.33inch
pixel size 1.335μm×1.335μm
interface HD (Type A), USB (Type B), TF card
Image Resolution 8432*4744 (TF card), 1920x1080 (TF card)
Video resolution 2K@30FPS, 1080p@60FPS
HD resolution 1920*1080p 60FPS
HD scale Support 4:3, 16:9, 16:10 screen
USB2.0 (driver-free) 1920*1080@30 1280*720@30 640*480@30
TF card up to 64GB
white balance WB Color Correction/Auto/Manual
R, G, B values ​​are set independently
exposed Auto/Manual.AE value can be set

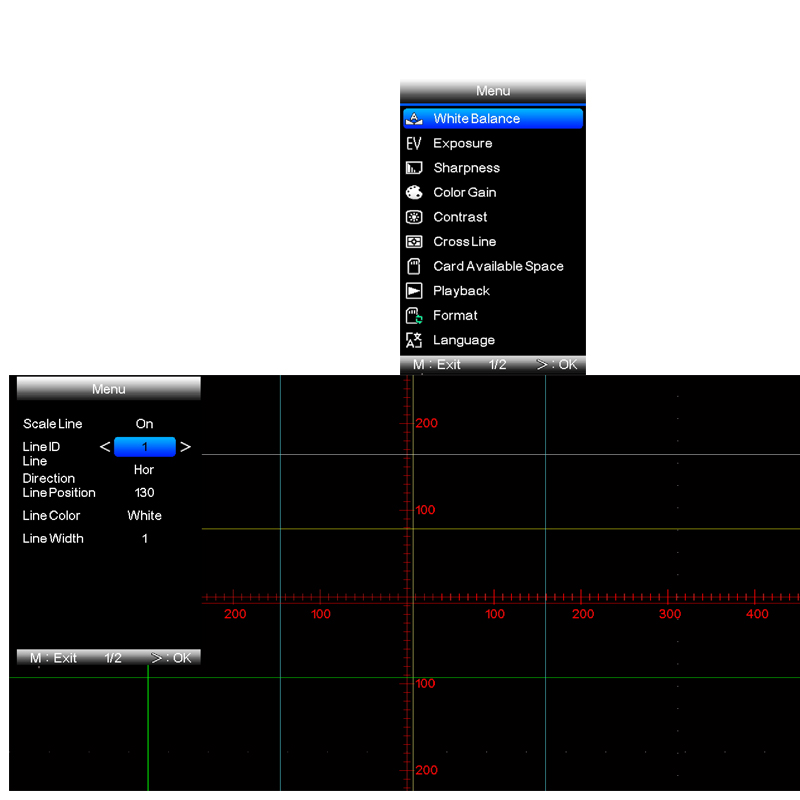

cross line 8 lines. Color & width & position can be set
tick marks 2 lines.
dotted line 2 lines. Can set color & width & position
Sharpness Contrast Color Gain support
single negative support
Mirror horizontal vertical mirror
language English/Simplified Chinese
digital zoom support
Infrared remote control support
Input voltage DC 12V (5-19V), 55-21mm size
energy consumption Maximum 0.15W (12V, 0.12A)
lens mount C/CS

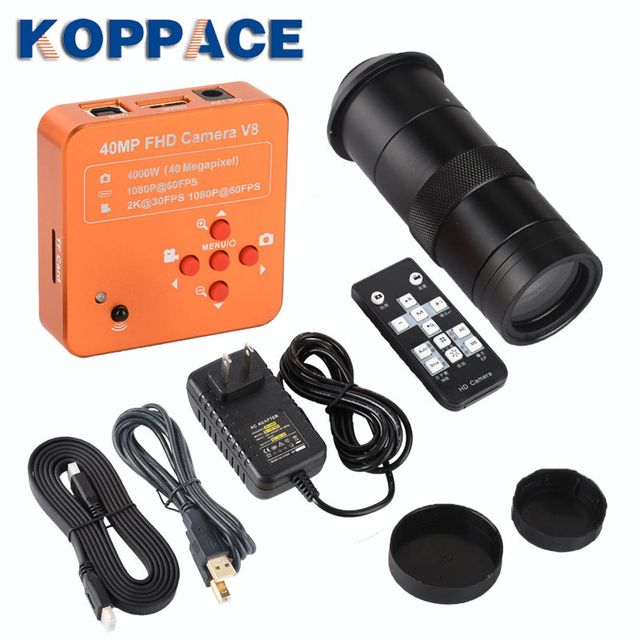

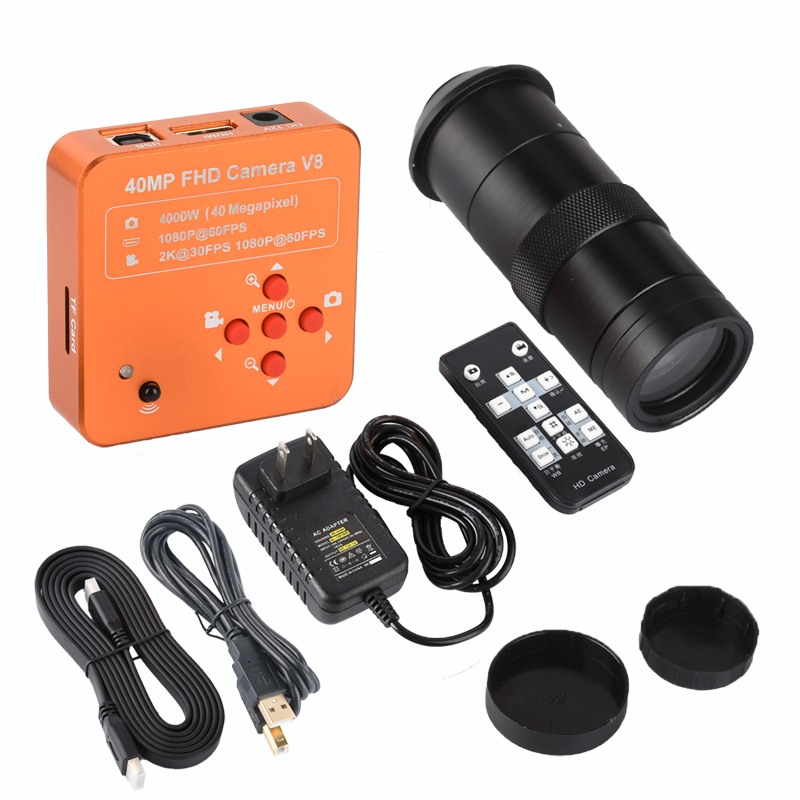

Packing list:

1.4 megapixel microscope camera*1

2. HD cable*1

3. USB data cable*1

4. Camera power adapter*1

5. CD-ROM*1

6. Remote control*1
7. 100X lens*1

notes:

1. This product is mainly high-definition output. The USB-connected computer can only display images, and the monitor can display at the same time as the connected computer, but the parameters cannot be adjusted when connected to the computer. To adjust the parameters, you need to connect the monitor to adjust.
2. The remote control cannot be used when connecting to the computer; using the remote control to adjust parameters needs to be in the state of high-definition connection to the monitor.
3. Connect the computer to provide measurable professional imaging software (need to calibrate the scale separately)
