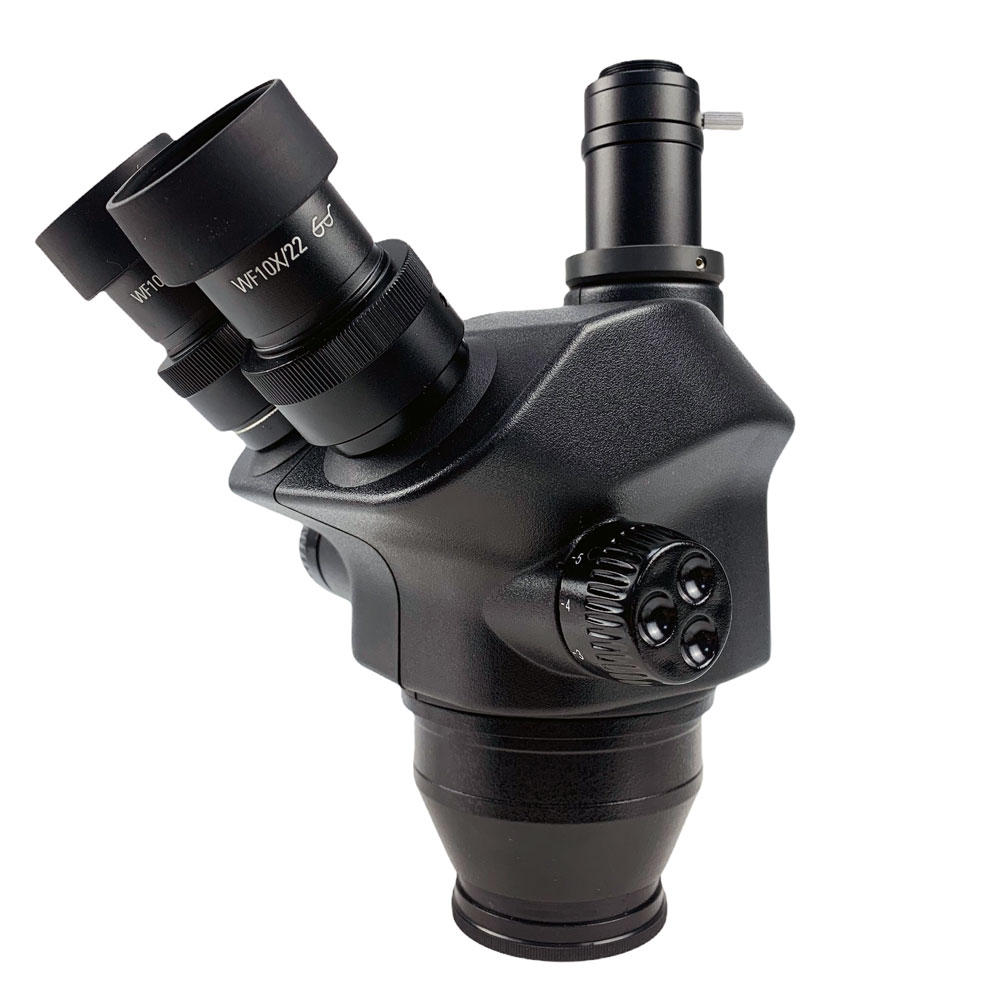

Stereo microscope body ZM-0750TH 7x-50x with trinocular magnification

PRODUCT DETAIL
Pupil adjustment distance:55-75mmWarranty:2 years
brand:AMZ InstrumentsCheck out the header:45 degree tilt
Origin:Zhejiang, ChinaPull tube:Binoculars
model:ZM-0750THCustomization support:OEM,ODM,OBM
Zoom objective lens:0.7X - 5XWorking distance:100mm
Supply capacity:5000 sets per monthscaling ratio:1 : 7
eyepiece:WF10x/22mmport:Ningbo, Shanghai, Guangzhou
Head installation size:76mmPackaging Details:Environmentally friendly packaging: the inner layer is protected by foam plastic, and the outer layer is carton.
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramtheory:Stereomicroscope
detailed drawing
This body usually needs to be used on a microscope stand. Generally, various eyepieces and objective lenses with different magnifications can be selected.

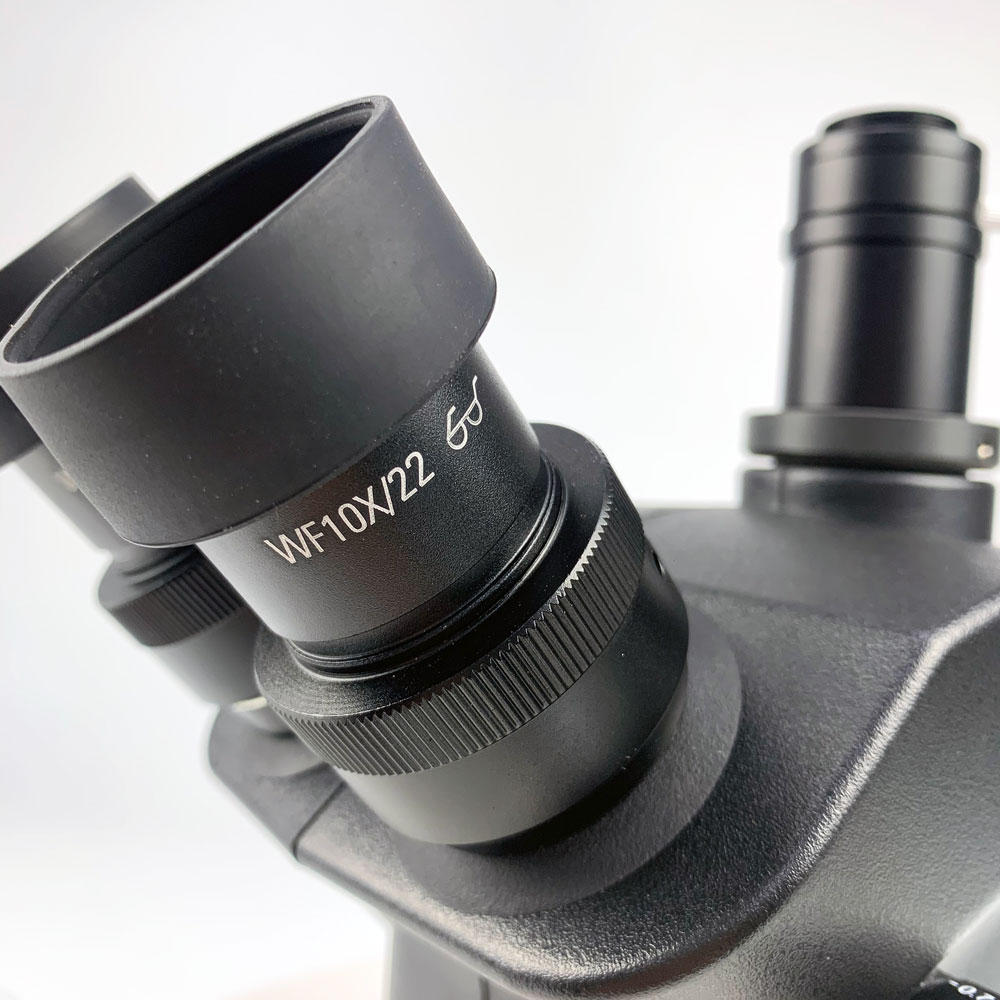

● Adjustable eyepiece, eye point height can be adjusted to compensate for the difference in vision between the two eyes, so that the images of the two eyes are clear and consistent.

The magnification of the lens body is changed by adjusting the zoom knob placed horizontally. Because the knob is smaller, zooming is easier and the picture is stable.
view head
45 degree tilt



pupil adjustment distance
55-75mm



eyepiece
WF10x/22mm



zoom objective lens
0.7X - 5X



scaling ratio
1 : 7



working distance
100mm
Head installation size
76mm
