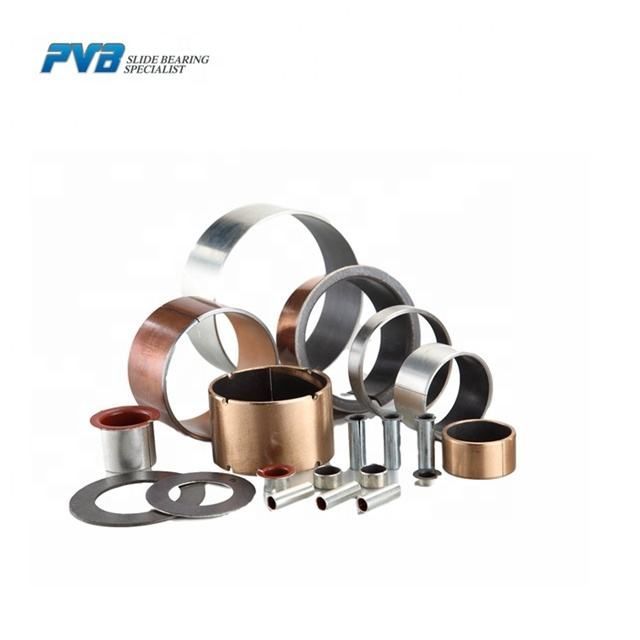

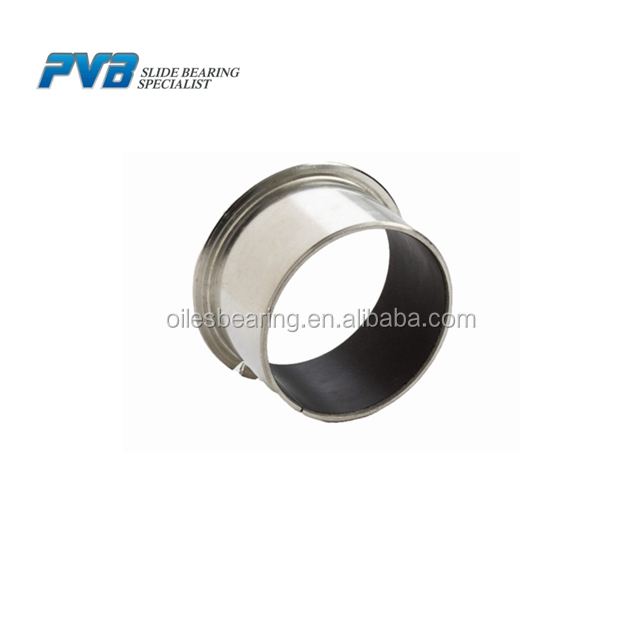

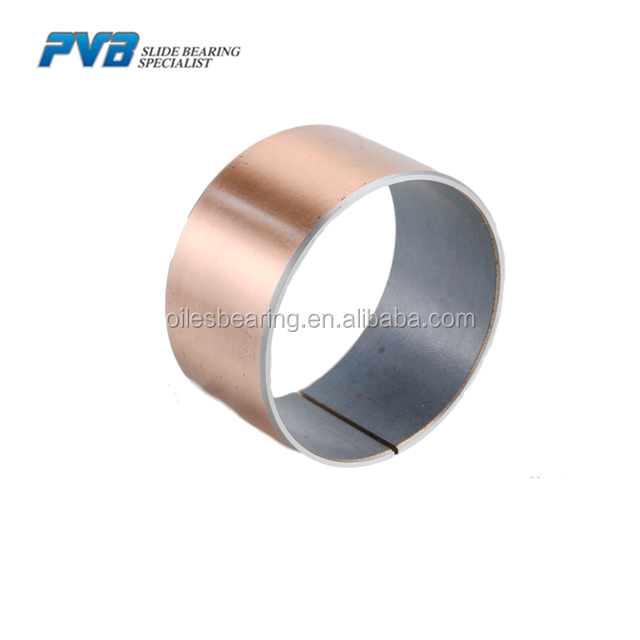

LFB oil-free self-lubricating bearing bushing, PAP P10 composite sliding bearing, SF-1 dry bearing DU bushing
- $0.40 / 10 - 99 pieces
$0.38 / >=100 pieces - 10 pieces
- Jiashan PVB Sliding Bearing Co., Ltd.
- Zhejiang, China
- Ms Catherine Hu
PRODUCT DETAIL
| Applicable industries: | Manufacturing plant, mechanical repair shop, construction engineering, mold industry | payment terms: | L/C, Western Union, T/T |
| port: | Shanghai | Certification: | ISO 9001:2015;IATF 16949:2016 |
| brand: | PVB | standard: | Oiles, Sankyo oilless, MISUMI, VOEST |
| hardness: | >210 | Packaging Details: | Clear the bushes Wrap the bushes with plastic wrap Roll up the bushes with bubble wrap Pack the bushes into export cartons Pack 16 cartons into wooden boxes or wooden pallets |
| model: | PVB010 | Accuracy class: | g6 |
| Lubricant: | Graphite, SL1, SL4 | Specification: | standard size and custom |

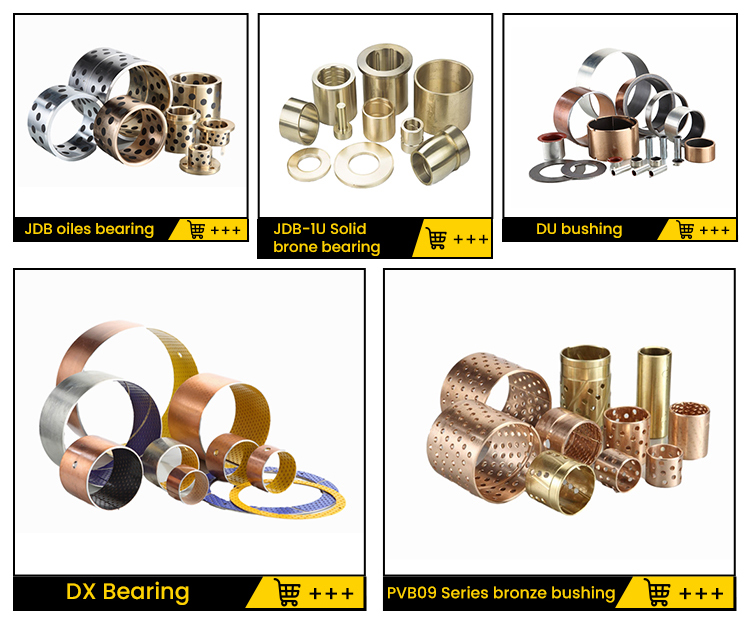

| application: | Automobile mold, plastic industry | other products: | DU bushing, DX bushing, bimetal bearing, oil plate, bronze bearing |
| Package preview: | Origin: | Zhejiang, China | |
| Bush type: | Cylinders, Collars, Thrust Pads, Plates | Substrate: | CuZn25Al5, C86300, SAE 430B |
| type: | slide | feature: | Self-lubricating, maintenance-free |
certified
Specification
Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuZn32Al5Ni3 |
density | 8 | 8.9 | 7.8 | 8.9 | 8 |
HB hardness | >210 | >70 | >150 | >95 | >280 |
Tensile strengthN/mm2 | >750 | >200 | >600 | >260 | >540 |
Yield strengthN/mm2 | >450 | >90 | >260 | >150 | >450 |
Elongation% | >12 | >15 | >10 | >8 | >0.3 |
coefficient of linear expansion | 1.9x10-5/degree Celsius | 1.8x10-5/degree Celsius | 1.6x10-5/degree Celsius | 1.8x10-5/degree Celsius | 1.8x10-5/degree Celsius |
maximum. temperature. | -40~+300 | -40~+400 | -40~+400 | -40~+400 | -40~+150 |
maximum. Load Newton/mm² | 100 | 60 | 50 | 70 | 150 |
maximum. Speed (dry) m/min | 15 | 10 | 20 | 10 | 15 |
maximum. Photovoltaic N/mm2*m/min (lubricated) | 200 | 60 | 60 | 80 | 200 |
compression deformation 300N/mm2 | <0.01 mm | <0.05 mm | <0.04mm | <0.05mm | <0.005mm |
