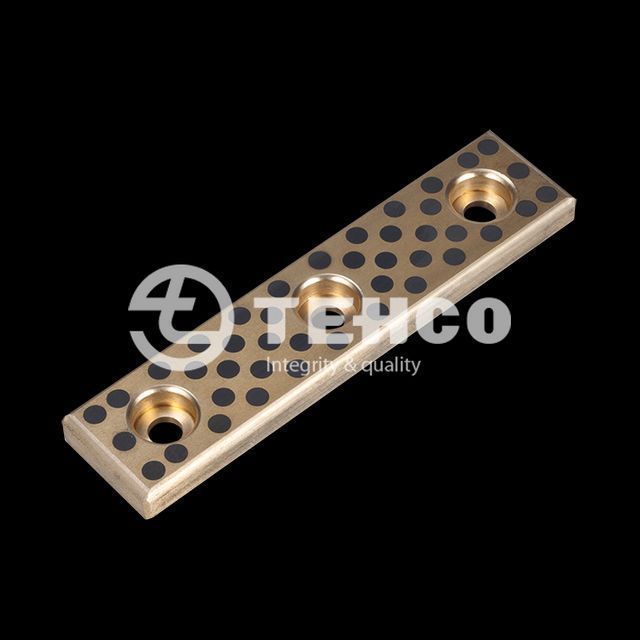

Tehco Factory Bronze Bearing Slides, Brass Bushing Spacers, Copper Graphite Slides
- $4.80 / 10 - 999 pieces
$3.50 / 1000 - 9999 pieces
$1.99 / >=10000 pieces - 10 pieces
- Chizhou Tehco Precision Parts Co., Ltd.
- Anhui, China
- Ms Amanda Du
PRODUCT DETAIL
| Surface treatment: | oiled | Applicable industries: | Construction Engineering, Energy and Mining |
| Supply capacity: | 100000 pieces per month | size: | Customization |
| model: | TCB500P | Certification: | ISO9001, TS16949 |

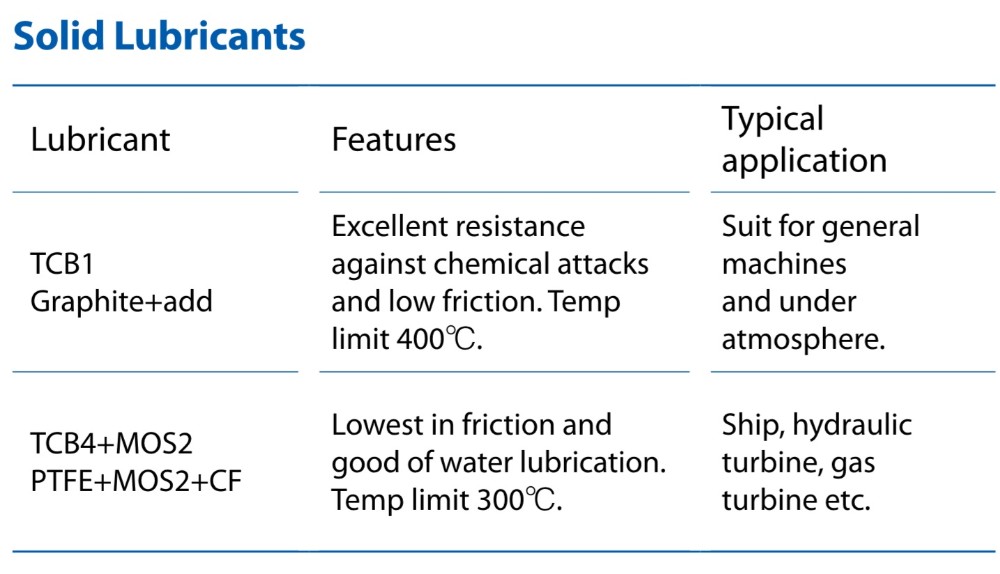

| lubricating: | Graphite, solid lubricant | brand: | TCB |
| Package preview: | color: | Nature | |
| type: | slide | sample: | usable |
| feature: | Good corrosion resistance, self-lubricating | Process method: | CNC machining |
| port: | Shanghai port | Other types: | Sleeves, flanges, gaskets |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Packaging Details: | Packaging Details: Anti-rust paper, carton, wooden box or pallet 1. Inner packing Small products: 100pcs-200pcs each in sealed polybag. For larger products: 2pcs-10pcs per plastic film roll (depending on product size) 2. Outer packing 8pcs-300pcs per carton (depending on product size) 3. Shipping packing 18-24 cartons per wooden case or pallet, Shockproof and safe for transportation. |
| Accuracy class: | High | Origin: | Other countries |
Product Description

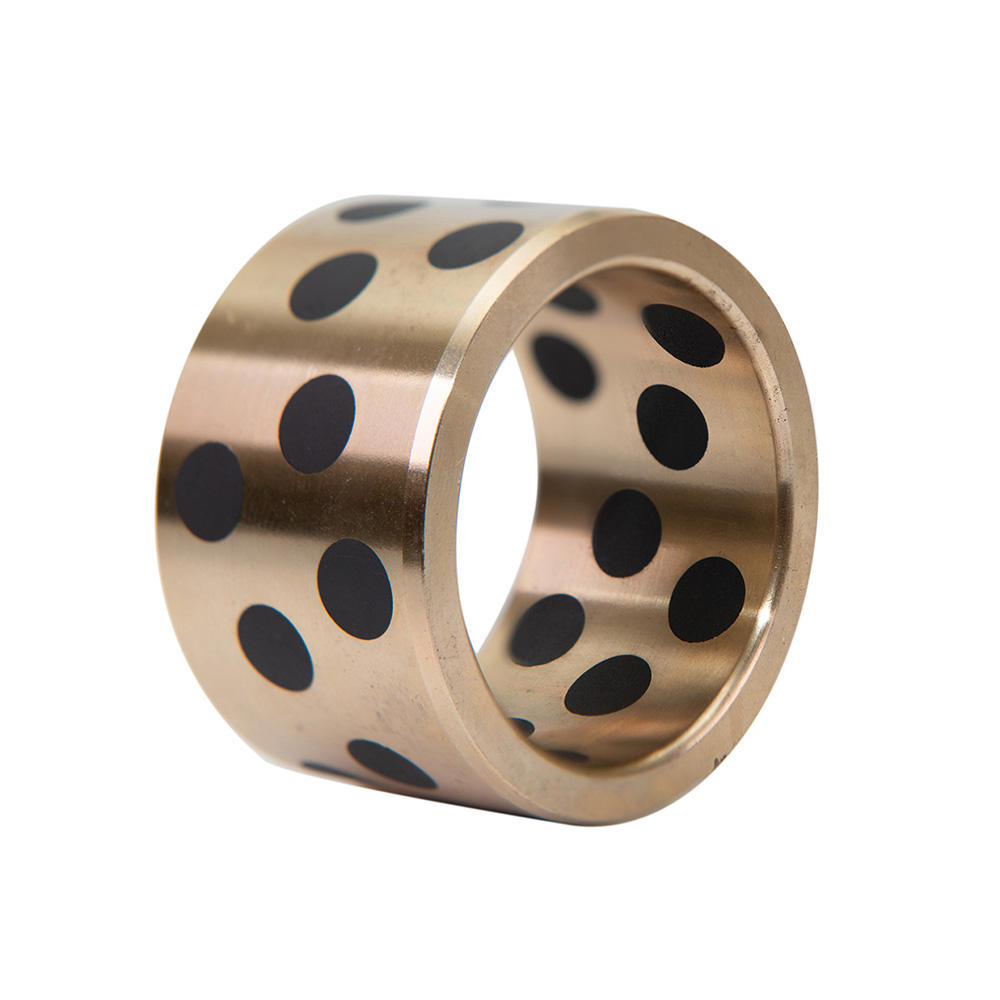

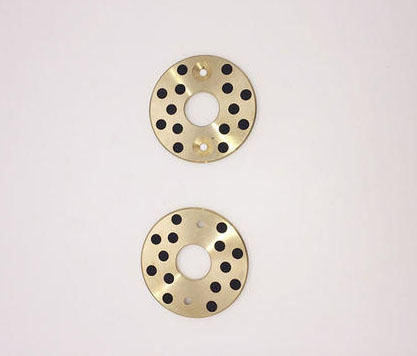

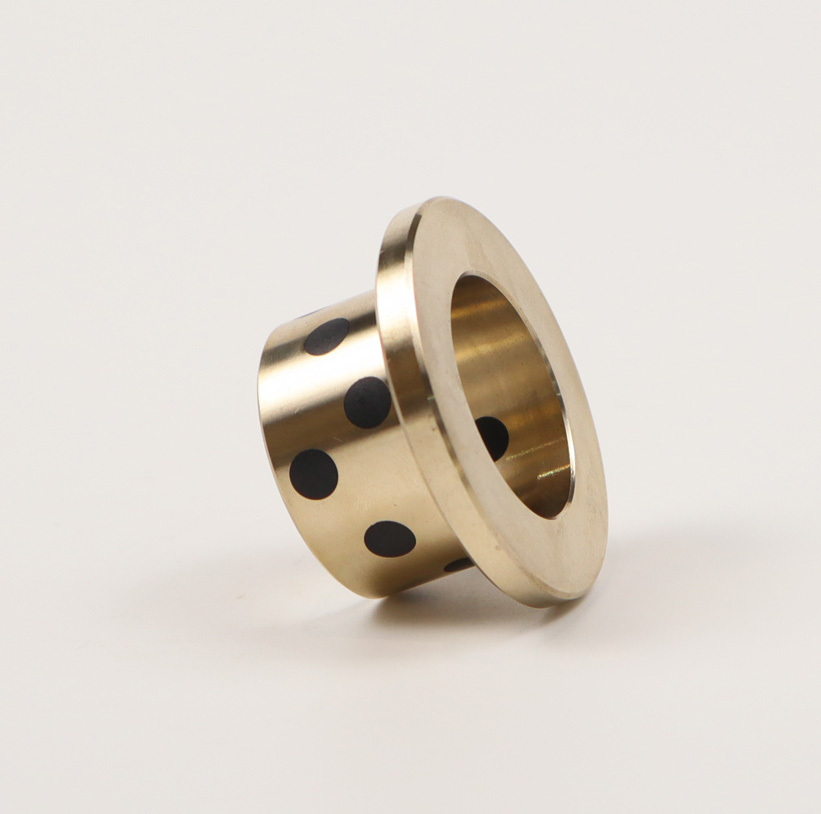

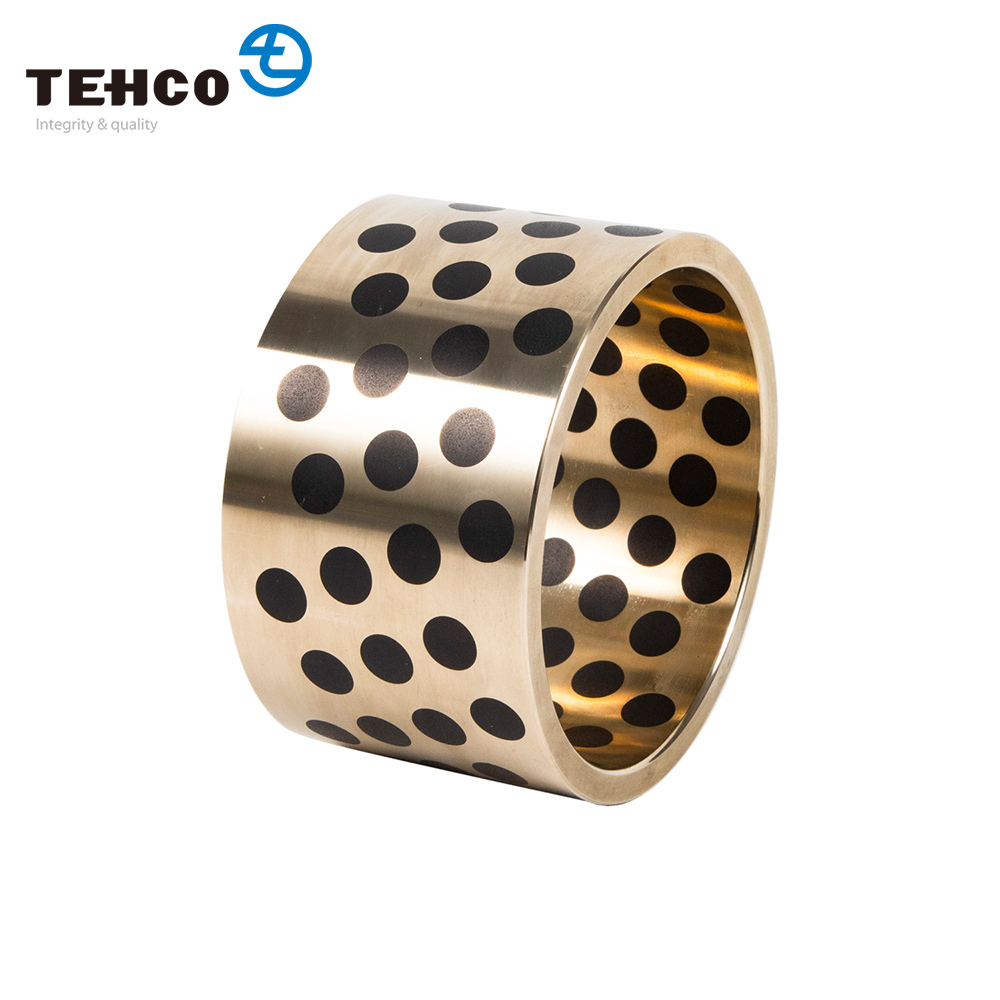

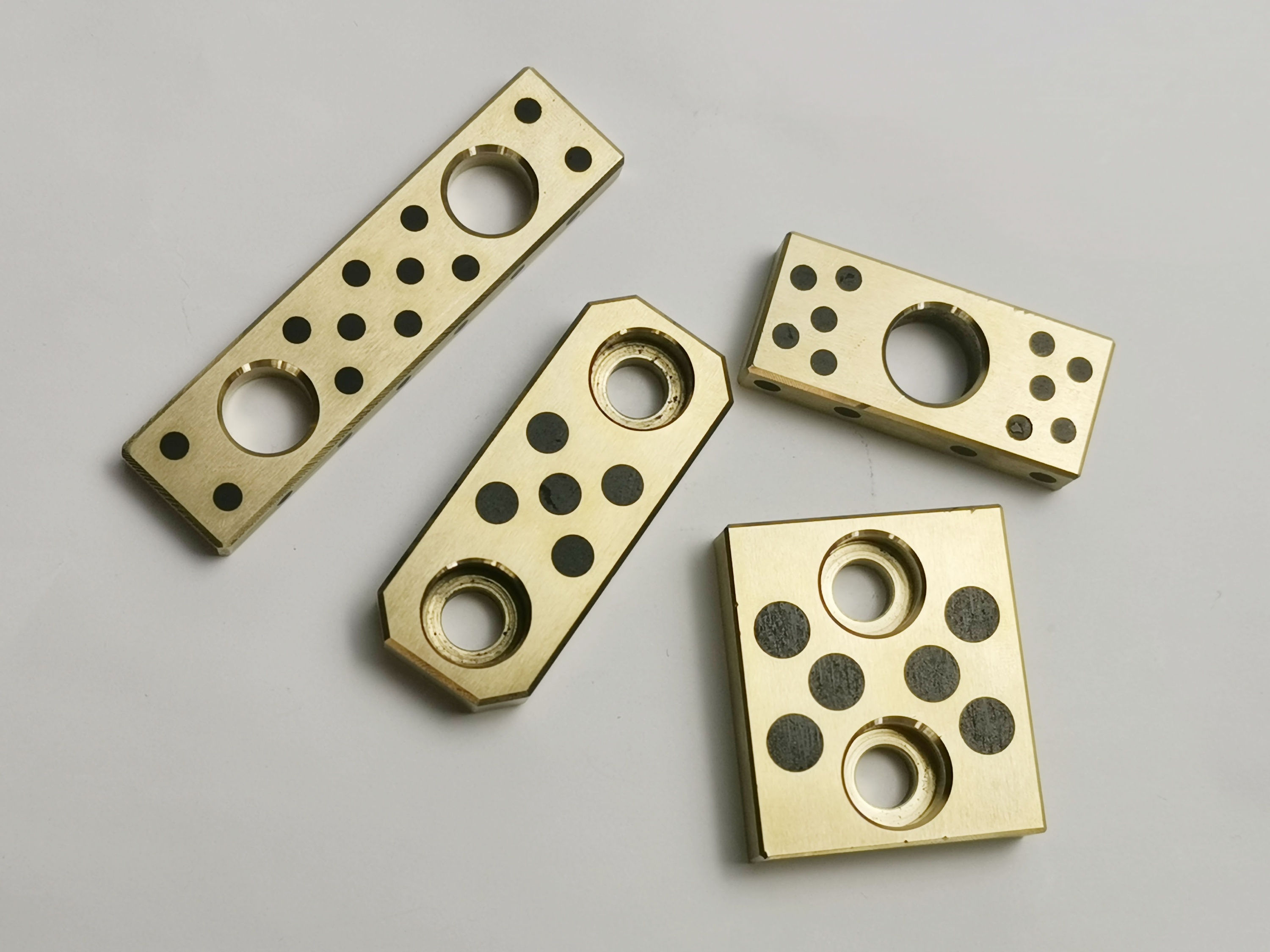

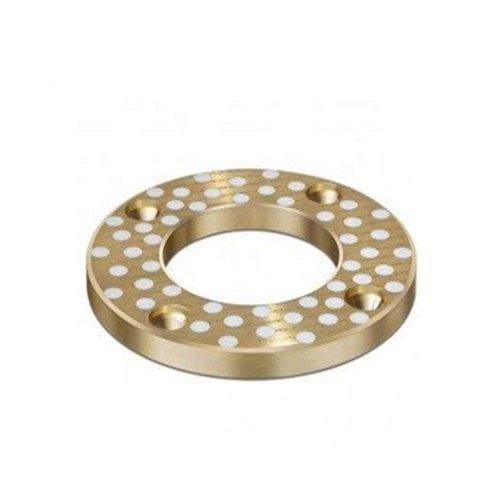

Tehco Factory Bronze Bearing Slides, Brass Bushing Spacers, Copper Graphite Slides

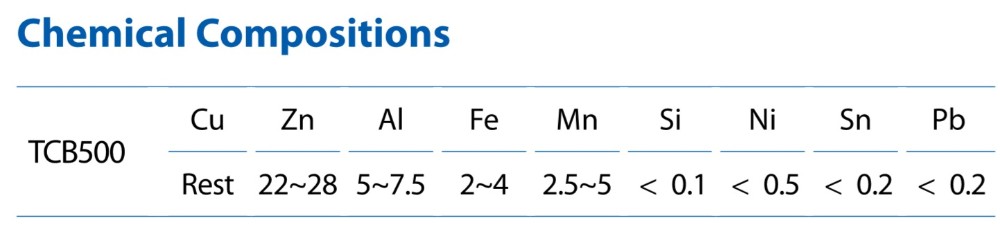

Material | CuZn25Al5Mn4Fe3 | |
typical application | Continuous casting and rolling mills, mining equipment, ships, steam engines, etc. | |
Density g/cm3 | 8 | |
Hardness HB | >210 | |
Tensile strengthN/mm² | >750 | |
Yield strengthN/mm² | >340 | |
Elongation% | >12 | |
Linear expansion coefficient 10-5/℃ | 2.2 | |
Thermal conductivity W(/mk) | 38~55 years old | |
Flexibility Coefficient KN/mm² | 100~140 | |
temperature. limit ℃ | -40~+200 | |
maximum. Dynamic loadN/mm² | 98 | |
Maximum speed m/s | Dry lubrication 0.3; Oil lubrication 1.0 | |
Maximum PV N/mm²*m/s | Dry lubrication 1.65; Oil lubrication 3.25 | |
friction | Dry lubrication 0.12~0.16; Oil lubrication 0.03~0.08 | |
We can also develop this table according to customers' special requirements | ||
