Limit Switch Push Plug Cylindrical Panel Mount AZ7310
- $1.50 / 1 - 1999 pieces
$1.40 / 2000 - 9999 pieces
$1.25 / >=10000 pieces - 1 piece
- Yueqing Jixin Electronic Co., Ltd.
- Zhejiang, China
- Ms cherry Lin
PRODUCT DETAIL
Protection class: | IP40 | Packaging Details: | 100 pcs/box 20 boxes/carton |
maximum. Voltage: | 250V | payment terms: | wire transfer |
Certification: | CLP CCC | maximum. current: | 15A |
brand: | Pin one | Packaging Preview: | |
model: | AZ-7310 | place of origin; place of origin: | philosophical |
Operating temperature: | -5-+65 |
Specification
thing | Micro Switch |
Certification | CLP CCC |
place of origin; place of origin | philosophical |
brand | Pin one |
model | AZ-7310 |
maximum. current | 15A |
maximum. Voltage | 250V |
Operating temperature | -5-+65 |
Protection class | IP40 |

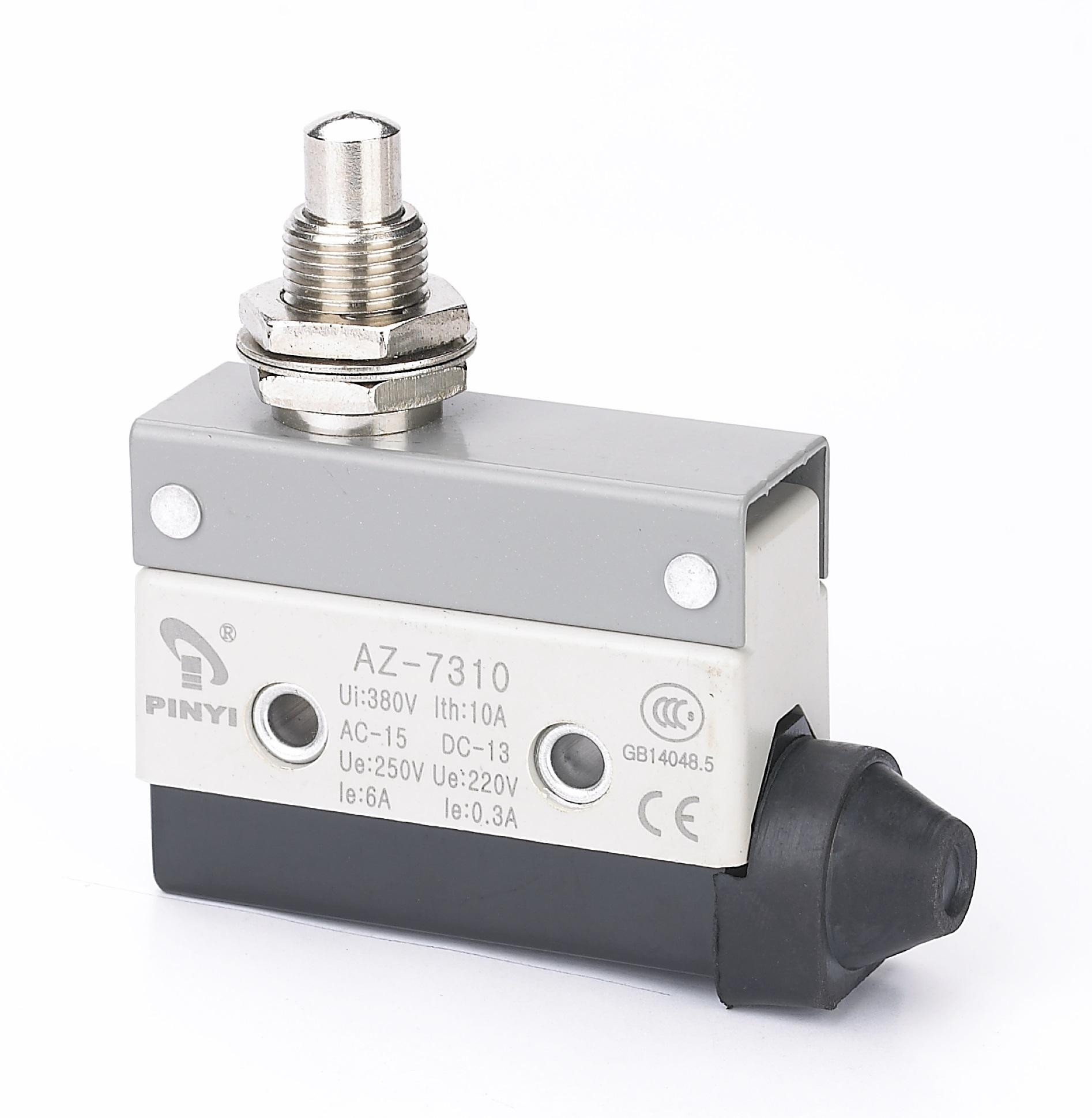

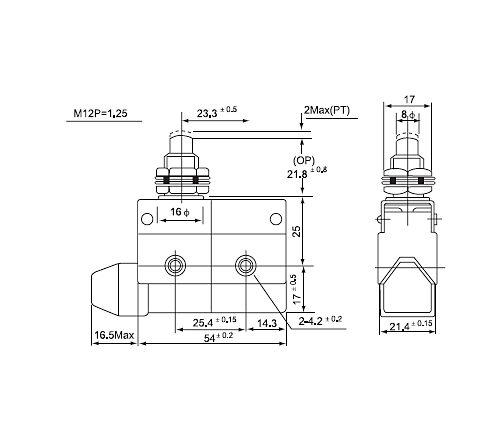

Product display
Product Description
feature:
Economical closed switch
Enclosed switch with built-in basic switch.
Various actuators with adjustable operating position
The shell is covered with high-strength plastic, waterproof and oil-proof.
Mechanical strength is better than TM type micro switch, impact resistance.
Economical closed switch
Enclosed switch with built-in basic switch.
Various actuators with adjustable operating position
The shell is covered with high-strength plastic, waterproof and oil-proof.
Mechanical strength is better than TM type micro switch, impact resistance.
Rated voltage | Non-inductive load (A) | Inductive load (A) | ||||||||||||
Resistive load | lamp load | Inductive load | Motor load | |||||||||||
CNC | Do not | CNC | Do not | CNC | Do not | CNC | Do not | |||||||
125VAC | 10 | 3 | 1.5 | 10 | 5 | 2.5 | ||||||||
250VAC | 10 | 2.5 | 1.25 | 10 | 3 | 1.5 | ||||||||
480VAC | 3 | 1.5 | 0.75 | 2.5 | 1.5 | 0.75 | ||||||||
8VDC | 10 | 3 | 1.5 | 6 | 6 | 5 | ||||||||
14VDC | 10 | 3 | 1.5 | 6 | 6 | 5 | ||||||||
30VDC | 8 | 3 | 1.5 | 6 | 5 | 2.5 | ||||||||
125VDC | 0.5 | 0.4 | 0.4 | 0.05 | 0.05 | 0.05 | ||||||||
250VDC | 0.25 | 0.2 | 0.2 | 0.03 | 0.03 | 0.03 |
Working characteristics | ||
running speed | 0.5mm-50cm/s | |
working frequency | Mechanical: 120 times/min Electrical: 30 times/min | |
Contact resistance | Maximum 15MΩ (initial value) | |
Insulation resistance | 100MΩ minimum (at 500VDC) | |
Dielectric strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity | |
1500VAC. 50/60Hz 1 minute between energized and de-energized metal parts | ||
1500VAC, 50/60Hz 1 minute between each terminal and ground | ||
vibration | 10-55Hz, 1.5mm double amplitude | |
Shock | Mechanical durability: 1,000m/Sec2 (about 100G' S) Failure: 300m/Sec2 (about 30G' S) | |
ambient temperature | -10℃- 80℃ (no freezing) | |
humidity | 95% relative humidity | |
Life | Mechanical: 10,000,000 times or more (below rated OT) Electrical: 500,000 times or more | |
weight | about 60 grams | |
Protect | IEC standard: IP40 |
feature | ||||||||||||
role model | AZ-7100 | AZ-7110 | AZ-7310 | AZ-7311 | AZ-7312 | AZ-7120 | ||||||
OF (maximum) | 600 grams | 600 grams | 600 grams | 600 grams | 600 grams | 150 grams | ||||||
RF (minimum) | 100 g | 100 g | 100 g | 100 g | 100 g | 40 grams | ||||||
PT(max) | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 13.5mm | ||||||
OT(min) | 0.8mm | 5.0mm | 6.0mm | 6.0mm | 6.0mm | 4.0mm | ||||||
MD(Max) | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 3.2mm | ||||||
OP | 30.5±0.8mm | 44±1.2mm | 21.8±1.2mm | 33.3±1.2mm | 33.3±1.2mm | 25±1mm | ||||||
FP | 35mm |
feature | ||||||||||||
role model | AZ-7140 | AZ-7121 | AZ-7141 | AZ-7124 | AZ-7144 | AZ-7166 | ||||||
OF (maximum) | 220 grams | 180 grams | 240 grams | 200 g | 280 grams | 120 grams | ||||||
RF (minimum) | 60 grams | 50 grams | 80 grams | 60 grams | 100 g | |||||||
PT(max) | 8.5mm | 11.0mm | 6.5mm | 11mm | 6.5mm | 250mm | ||||||
OT(min) | 2.5mm | 3.0mm | 2.0mm | 3.0mm | 2.0mm | 11mm | ||||||
MD(Max) | 2.0mm | 2.4mm | 1.5mm | 2.4mm | 1.5mm | 3.2mm | ||||||
OP | 25±1mm | 40±1mm | 40±1mm | 50±1.2mm | 50±1.2mm | |||||||
FP | 32mm | 46mm | 56mm | 35mm |
