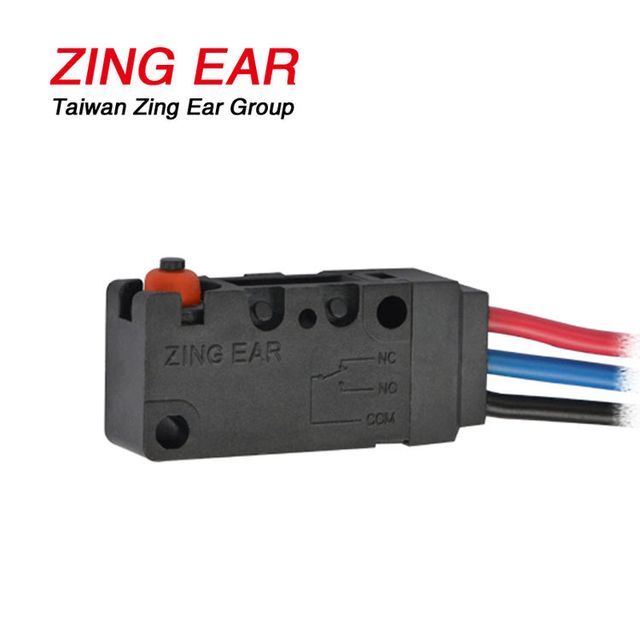

Zing Ear Microswitch Waterproof rubber roller type microswitch
- $0.65 /piece
- 1 piece
- Huizhou Grandye Industrial Co., Ltd.
- Guangdong, China
- Ms Anna Xie
PRODUCT DETAIL
| port: | Hong Kong Shenzhen | thing: | Long life micro switch |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | brand: | Zinger |
| color: | Black | Electrical life: | 10,000 cycles |
| Certification: | ENEC, CQC, CE | lever: | short |
| maximum. current: | 16A | score: | 16A 250VAC |
| product name: | Waterproof mouse micro switch | Place of origin: | Guangdong, China |
| Operating temperature: | -40℃~+85℃ | terminal type: | Quick connection |
| Contact resistance: | Maximum 50m | maximum. Voltage: | 250VAC |
| Packaging details: | 1. Packing: 1000 pieces/carton. 2. Gloss weight: about 4.8kgs For more details, please feel free to contact us | application: | Home appliances |
| model: | G5W11-WZ200-W2 | Is it smart: | No |
| Supply capacity: | 3,000,000 pieces per month | Protection level: | IP67 rating |
| type: | Micro micro switch |
☞For more product details, please click to learn》》》
best shipping cost
1. Provide different shipping methods for you to choose from and find fast and cheap shipping costs.
1. Provide different shipping methods for you to choose from and find fast and cheap shipping costs.
Our advantage
1.Zing Ear factory has high standards in product quality control;
2. We have passed ISO9001, ISO/TS16949, ENEC, RoHS, REACH, CQC and other certifications.
3. Our customers come from all over the world, such as the United States, Britain, Japan, Germany, Argentina, Mexico, and Singapore
4. Provide one-stop service to customers
Product Description

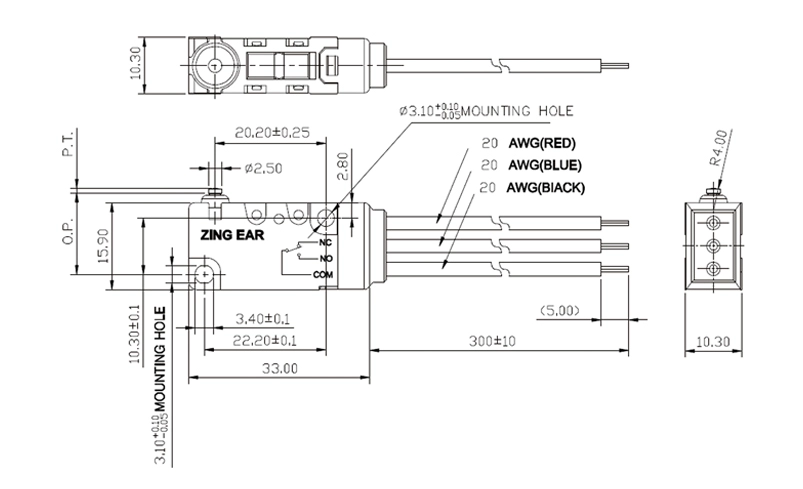

G5W11-WZ200-W2 micro switch drawing

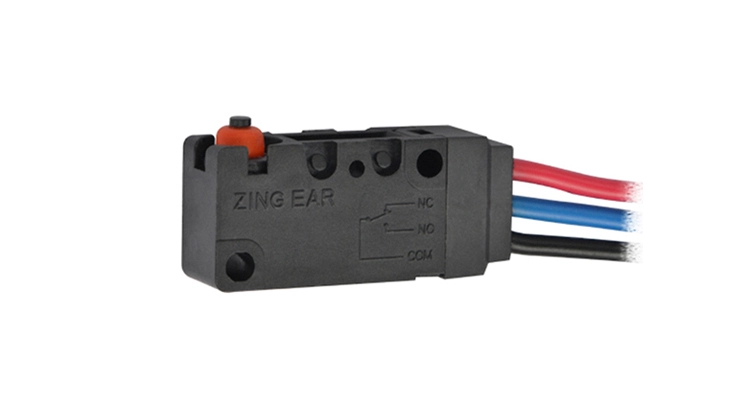

G5W11-WZ200-W2 micro switch picture
G5W11 Micro Switch Specification
Rated W1 | ENEC 0.1A 48VDC, 0.1A 125/250VAC, 40T85, 5E4, u UL 0.1A 48VDC, O.1A 125/250VAC, T85 | ||||||
Rated W2 | ENEC: 5A 48VDC, 0.1A 125/250VAC, 40T85, 5E4, u UL: 5A 125/250VAC, 5A 30VDC T85 | ||||||
Rated W3 | ENEC 10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC, 40T85, u, 2e4 UL 10. 1A 1/10HP 125/250VAC, 0. 5A 125VDC, 0. 25A 250VDC, T85 | ||||||
0 operating frequency - electrical | 10~30 times/minute | ||||||
0 operating frequency - mechanical | 60 times/minute | ||||||
Contact resistance (initial value) - with terminal type | Maximum 50mΩ | ||||||
Contact resistance (initial value) - with line type | 100m Ω max (depending on wire length) | ||||||
Insulation resistance | 500vdc, minimum 100M Ω | ||||||
Dielectric strength -between terminals | AC 1000V 50-60Hz 1 minute | ||||||
Dielectric Strength - Terminals and Housings | AC 1500V 50-60Hz 1 minute | ||||||
Storage temperature | -40°C^+85°C | ||||||
Storage humidity | Maximum 85%RH | ||||||
Protection level-with terminal type | IEC IP67 (without terminals) | ||||||
Protection level-line type | International Electrotechnical Commission IP67 | ||||||
Protection against electric shock level | Level 2 | ||||||
electronic life | 2E4~10E4 cycle (depending on P/N) | ||||||
M-life | Over 500,000 cycles 1,000,000 cycles (60 cycles/minute) | ||||||
Unit net weight | About. 7g (with terminal type, without lever) | ||||||
G5W11 application
Automobile hydraulic lock
car door lock
car tail lock
Automotive wiring harness parts
Lawn mower
Ice maker
ice maker
humidifier
Excavator hydraulic safety lock
Excavator hydraulic safety lock
Elevator electric control box
elevator
Angle grinder/straight grinder
Angle grinder/straight grinder
polisher
Heavy duty truck
Passenger car parts
motorcycle carburetor
golf cart
Solar telescopic garage
Electric vehicle accessories
smart garage
truck hydraulic lock
Heavy truck safety lock
Kitchenware
home equipment
vending machine
ice maker
Built-in dehumidification system
Dispensing equipment
parking equipment
Ultrasonic equipment
Industrial automation equipment
Agricultural automation
Agricultural automation
Construction machinery
Garden Tools
children's rocking bed
electric boat
electric putter
Push rod motor
Coffee machine

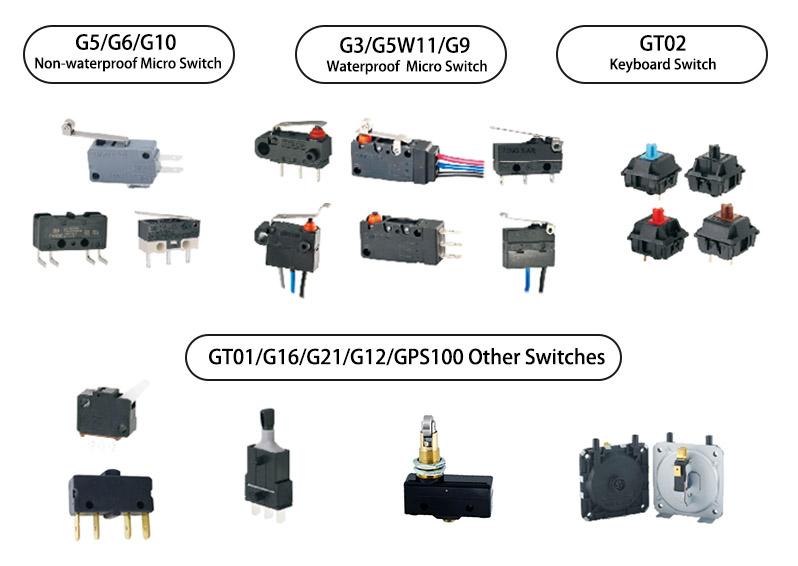

Our main products
