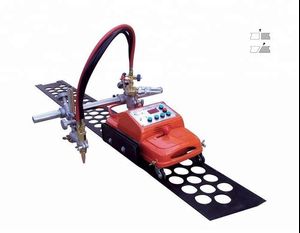

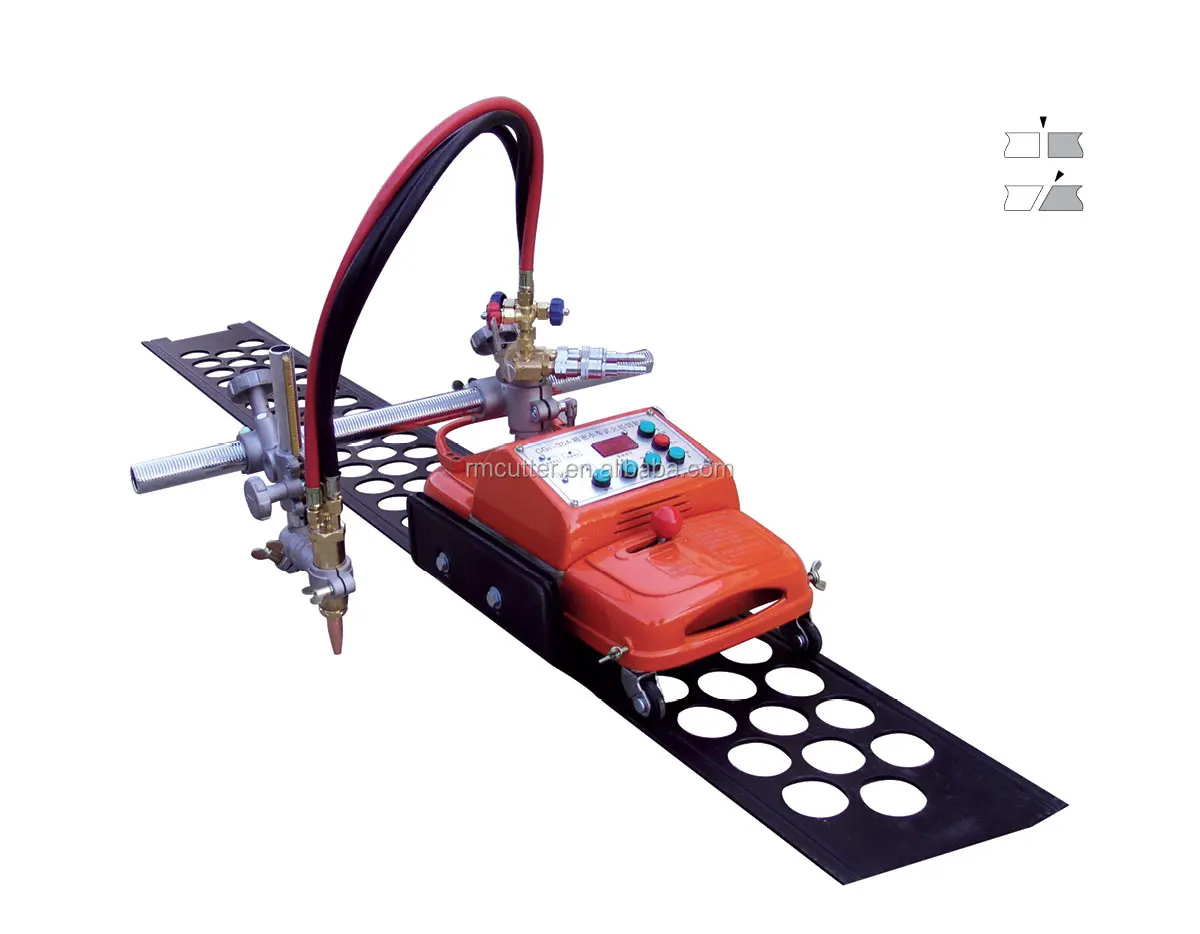

Linear gas flame cutting machine
- $100.00 /set
- 1 set
- Shandong Rayman Machinery Co., Ltd.
- Shandong, China
- Ms Jane Song
| cutting torch: | 1 unit; | Supply Ability: | 1000 Sets per Month; |
| Voltage: | AC220V/50Hz; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Certification: | ce; | Payment Terms: | T/T,Western Union; |
| Brand Name: | Rayman; | Condition: | New; |
| Place of Origin: | Shandong, China; | Port: | Qingdao, Shanghai, Yiwu, etc.; |
| Applicable cutting nozzle: | Acetylene or propane; | Rated Power: | 30W; |
| Keyword: | Linear gas flame cutting machine; | Weight: | 18.5kg; |
| Cutting speed: | 50~750mm/min; | Packaging Detail: | packed in cartons; |
| cutting circle diameter: | 200-2000mm; | Warranty: | 1 year; |
| Dimension(L*W*H): | 470*230*250mm; | Cutting thickness: | 6-100mm; |
CG1-30A, CG1-100A precision car type gas/flame cutting machine is one of the main products of our company. The machine has reasonable internal structure and beautiful appearance. After listening to the user's suggestion, after many technical discussions, we made a lot of technological innovation and process improvement. The machine uses a new type of material, the strict requirements for the processing technology of the parts, so that the machine's operability and durability and insulation ability have been greatly improved. This type of speed regulating system adopts integrated circuit, which is stable in walking and equipped with a fast switch, which greatly improves the work efficiency. The track is machined with good straightness and is not easily deformed. It is suitable for factories such as shipbuilding, petroleum, metallurgy, metal structure and so on.
Model | CG1-30A | CG1-100A |
Weight | 18.5kg | 23kg |
Cutting torch | 1 unit | 2 units |
Groove degree | 0-45°(I,V) | 0-45°(I,V,Y) |
Dimension | 470×230×250mm | |
Speed adjustment | Integrated circuit | |
Voltage | AC220V/50Hz | |
Cutting speed | 50~750mm/min | |
Cutting thickness | 6-100mm | |
Cutting circle diameter | ø200-ø2000mm | |
Applicable cutting nozzle | 1)G02 (Acetylene) | |
2)G03 (propane) | ||
Motor | DC 110V 0.5A 30W rotary speed 3600-4600r/min | |
