cutting metal gas multifunction cutting machine
- $199.00 /set
- 1 set
- Dalian Fyeboon Technology Co., Ltd.
- Liaoning, China
- Mr David Wong
PRODUCT DETAIL
| Cutting thickness: | 6-100mm | Video shipment inspection: | if |
| Origin: | Liaoning, China | After warranty service: | Video technical support, online support |
| Supply capacity: | 200 sets per month | Cutting speed: | 150-800mm/min |
| Certification: | International Organization for Standardization | Showroom location: | Saudi Arabia, Mexico |
| Cutting speed (mm/min): | 50 - 750 | Cutting accuracy (mm): | 1 |
| Marketing Type: | New Products 2020 | Diameter circle cut: | 290-540mm |
| Round rail diameter: | 900/1000mm | Type of machine: | Linear cutting machine |
| port: | Liaoning Dalian Port | Cutting material: | carbon/mild steel |
| Local service location: | Saudi Arabia, Mexico | bevel: | IV 0-45° |
| Warranty: | 1 year | Main selling points: | competitive price |
| brand: | gallop | Cutting thickness (mm): | 6 - 100 |
| Packaging Details: | Size of each machine: carton (no fumigation or phytosanitary) Host: 420x250x290mm Net weight: 13kg Gross weight: 14kg Guide rails and accessories: 1820x190x35 mm Net weight: 28kg Gross weight: 29kg | Mechanical test report: | if |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal | Cutting method: | flame |
| After-sales service provided: | Online support, free spare parts, video technical support | Weight (kg): | 43 |
| Core components: | PLC, gearbox | Straight track length: | 1800mm/customized |
| engine: | 1500 rpm | Voltage: | 220/110V |
| Health status: | new | Applicable industries: | Energy and Mining, Advertising Agencies, Manufacturing Plants |
| Torch number: | a flame | rated power: | 10W |
| Core component warranty: | 1 year |
product information

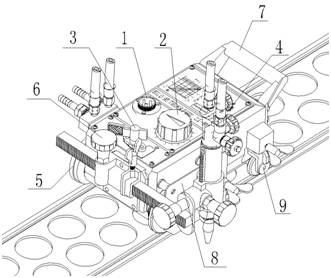

No. | describe | No. | describe |
1 | Power socket: used to connect the power cord to provide electricity | 6 | Torch Side Handle: This handle adjusts the lateral position of the torch |
2 | Governor: Turn the knob clockwise, the machine travels faster | 7 | Handle: Hold the handle to carry the machine. and positioning |
3 | Clutch: Lever operation will stop driving | 8 | Heat Shield: The heat shield protects the machine from heating flames |
4 | Drive Wheels: Tilt the switch in the direction of the arrow to move the machine in that direction | 9 | Idler |
5 | Drive wheel: Engage the clutch (ON) to transmit the driving force, and the machine starts to drive |
main features | ||
1 | The main body is made of high-strength aluminum die-casting | |
2 | Light weight and compact structure ensure the machine is an ideal portable machine | |
3 | The speed control system adopts mechanical adjustment, which can maintain continuous operation at high temperature | |
4 | Advanced motor with fan cooling | |
HK-12 Beetle | ||||||
Straight track length | 1800mm | flashlight number | a flame | |||
Rail diameter | 900/1000mm | reducer | single cone system | |||
Cutting thickness | 6~100mm | wheelbase | 160mm | |||
diameter circle cut | 290-540mm | bevel | One, five (45°) | |||
cutting speed | 150-800mm/min | engine | 1500 rpm | |||
