Low Power BLE 4.0 HM-10 HM10 Master-Slave Module
- $2.50 / >=2 pieces
- 2 pieces
- Shenzhen Hechen Technology Ltd.
- Guangdong, China
- Ms Amy Chen
| place of origin; place of origin: | Guangdong, China | size: | 26.9mm x 13mm x 2.2mm |
| working frequency: | 2.4GHz ISM band | port: | Shenzhen, Hong Kong |
| Certificate: | European Commission | Synchronize: | 1Mbps/1Mbps (Maximum) |
| strength: | +3.3VDC 50mA | Modulation: | GFSK (Gaussian Frequency Shift Keying) |
| brand: | Huamao | Safety: | Authentication and encryption |
| type: | prototype board | Supply capacity: | 100000 pieces per week |
| payment terms: | wire transfer, paypal | model: | HM-10,HM-10 |
| Serve: | Bluetooth SPP (master-slave) | Packaging Details: | Electrostatic bag packaging or sheet packaging or roll packaging |
| thing: | Low Power BLE 4.0 HM-10 HM10 Master-Slave Module |
Low Power BLE 4.0 HM-10 HM10 Master-Slave Module
1. Module parameters
Ø Bluetooth version: BLE Specification V4.0 BLE
Ø There is no byte limit for sending and receiving.
Ø Working frequency: 2.4GHz ISM frequency band
Ø Modulation method: GFSK (Gaussian Frequency Shift Keying)
Ø RF power: -23dbm, -6dbm, 0dbm, 6dbm, can be modified by AT
Command AT+POWE.
Ø Speed: asynchronous: 1-6K bytes
Synchronization: 1-6K bytes
Ø Security: authentication and encryption
Ø Service: Central & Peripheral UUID FFE0,FFE1
Ø Power supply: +3.3VDC 50mA
Ø Long range: 100 meters in open space and iphone4s
Ø Power consumption: sleep mode 60uA~1.5mA, active mode 8.5mA.
Ø Working temperature: –5 ~ +65 degrees Celsius
Ø Size: HM-10 26.9mm x 13mm x 2.2mm; HM-11 18*13.5*2.2mm
2. Module overview
The HM BLE module adopts CSR BlueCore or TI CC2540, master-slave integration, transmission version, remote control version and PIO status acquisition function are combined into one, and it supports AT commands to modify module parameters, which is convenient and flexible.
The transfer version can be used to transfer data between two bluetooth devices.
The Remote Control version can be used to control the PIO port to output high or low level without any other MCU.
PIO status get version can be used without any other MUC to get PIO port status. (Only support Bluetooth V2.1)
3. Module model
| model | voltage | Dimensions (mm) | flash | chip | bluetooth version |
| HM-01 | 3.3V | 26.9*13*2.2 | 8M | BC417143 | V2.1+EDR |
| HM-02 | 2.5-3.7V | 26.9*13*2.2 | 6M | BC3/BC4 | V2.1 |
| HM-03 | 2.5-3.7V | 27.4*12.5*4.3 | 6M | BC3/BC4 | V2.1 |
| HM-05 | 2.5-3.7V |
13.5*18.5*2.3
|
6M | BC3/BC4 | V2.1 |
| HM-06 | 2.5-3.7V | 13.5*18.5*2.3 | 6M | BC3/BC4 | V2.1 |
| HM-07 | 2.5-3.7V | 13.5*18.5*2.3 | 8M | V2.1+EDR | |
| HM-08 | 3.3V | 26.9*13*2.5 | 8M | Level 1 | V2.1+EDR |
| HM-09 | 2.5-3.7V | 26.9*13*2.2 | 8M | V2.1+EDR | |
| HM-10 | 2-3.7V | 26.9*13*2.2 | 256KB | CC2540/1 | V4.0 Bluetooth |
| HM-11 | 2.5-3.7V | 13.5*18.5*2.2 | 256KB | CC2540/1 | V4.0 Bluetooth |
| HM-12 | 2.7-3.7V | 26.9*13*2.2 | 64KB | Corporate Social Responsibility | dual mode |
| HM-13 | 2.7-3.7V | 13.5*18.5*2.2 | 64KB | Corporate Social Responsibility | dual mode |
| HM-14 | 2.7-3.7V | 13*13 | 64KB | Corporate Social Responsibility | dual mode |
| HM-15 | 5V | 65*32*16 | 256KB | CC2540 | V4.0 Bluetooth |
| HM-16 | 2-3.7V | 26.9*13*2.2 | 256KB | Corporate Social Responsibility | V4.1 Bluetooth |
| HM-17 | 2.5-3.7V | 13.5*18.5*2.2 | 256KB | Corporate Social Responsibility | V4.1 Bluetooth |
4. Module certificate
The module has FCC-ID, CE, RoHS
AT Commander (new version V542)
AT (Test command)
AT+BAUD (query/set baud rate)
AT+CHK (query/set parity)
AT+STOP (query/set stop bit)
AT+UART (query/set serial port rate, parity, stop bit)
AT+PIO (query/set PIO pin state long command)
AT+PIO (query/set a PIO pin state short command)
AT+NAME (query/set device friendly name)
AT+PIN (query/set device password)
AT+DEFAULT (reset device settings)
AT+RESTART (restart device)
AT+ROLE (query/set device mode, Master or Slave)
AT+CLEAR (clear the remote device address if there is one)
AT+CONLAST (try to connect to the device that was successfully connected last time)
AT+VERSION (display software version information)
AT+HELP (display help information)
AT+RADD (query remote device address)
AT+LADD (query your own address)
AT+IMME (query/set whether the device is powered on immediately)
AT+WORK (if the device is not working, start working, use AT+IMME command)
AT+TCON (query/set the number of remote connection attempts)
AT+TYPE (query/set device working type, transceiver mode or remote mode)
AT+START (switch remote control mode to transceiver mode)
AT+BUFF (query/set buffer data usage mode, mode switching time)
AT+FILT (query/set device filter during device search)
AT+COD (query/set device category. For example: phone, headset, etc.)

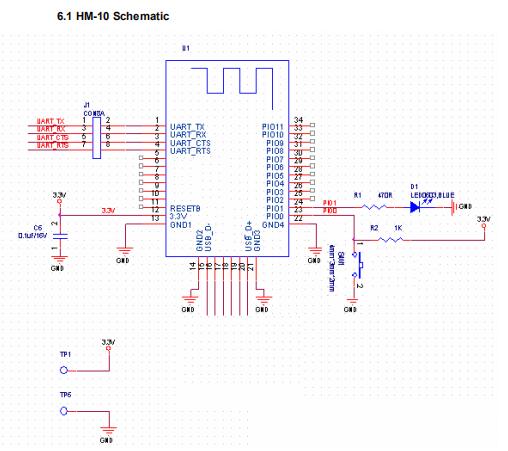

Schematic diagram of HM-10

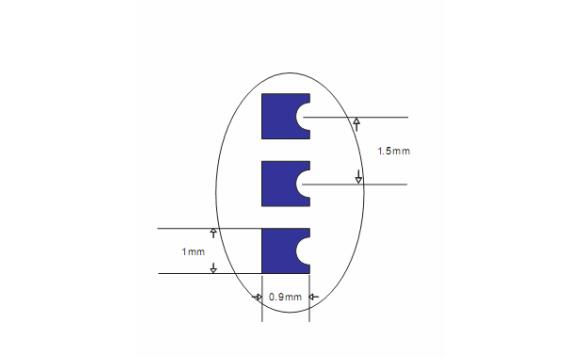

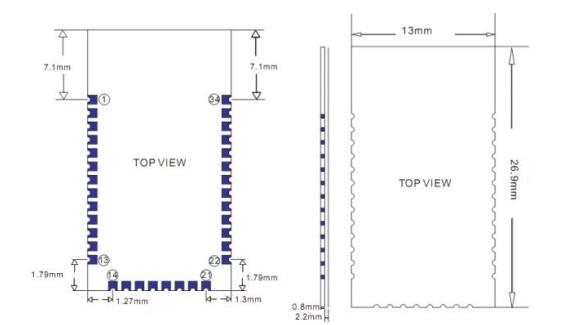

HM-10 size
HM-10 Packaging Information

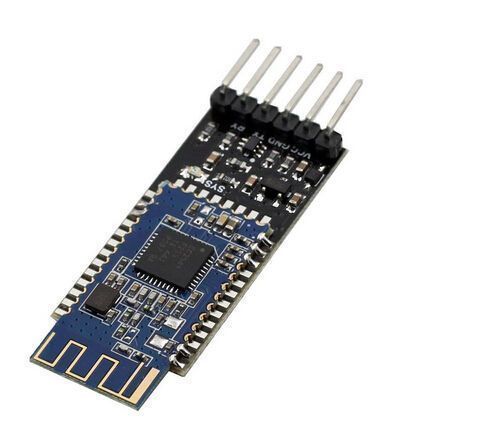

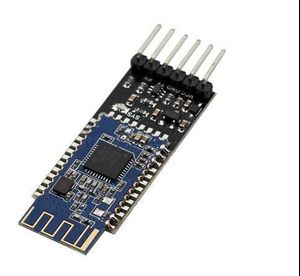

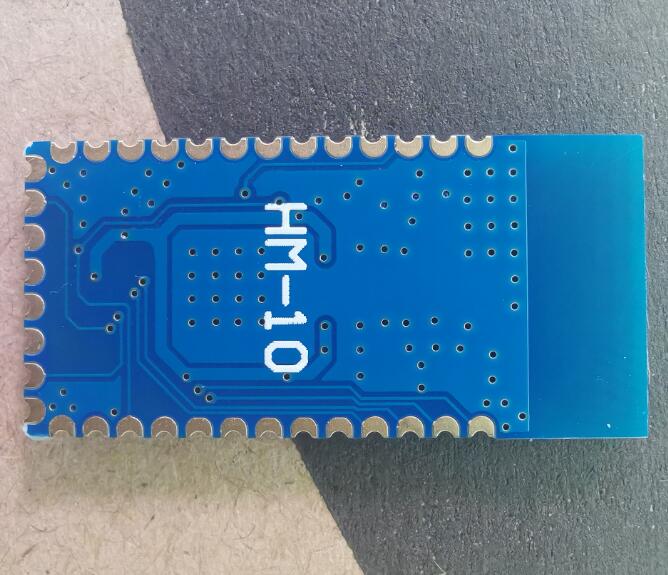

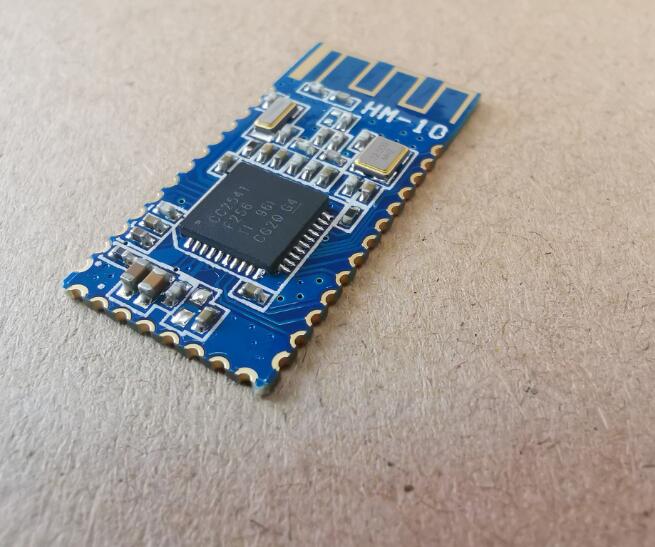

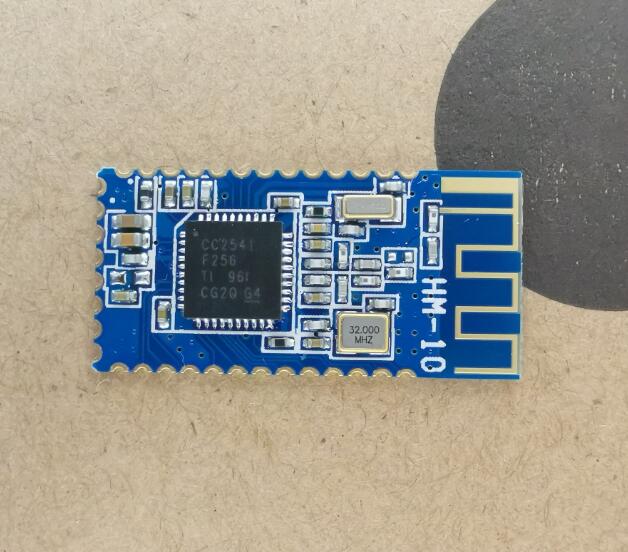

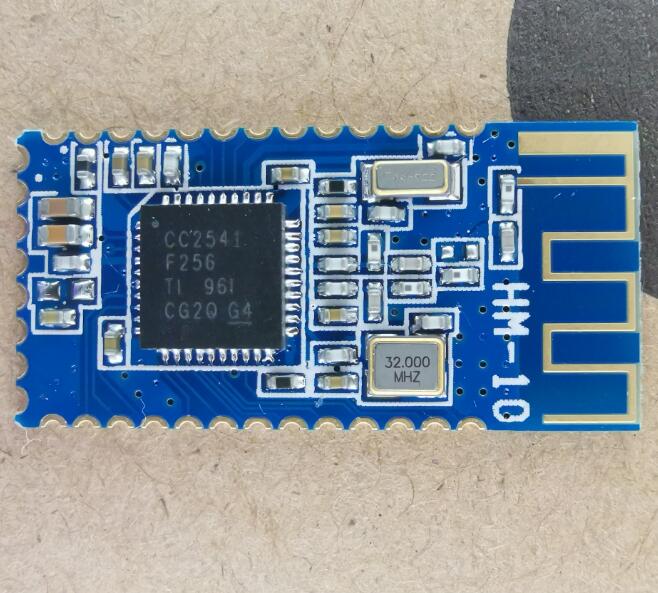

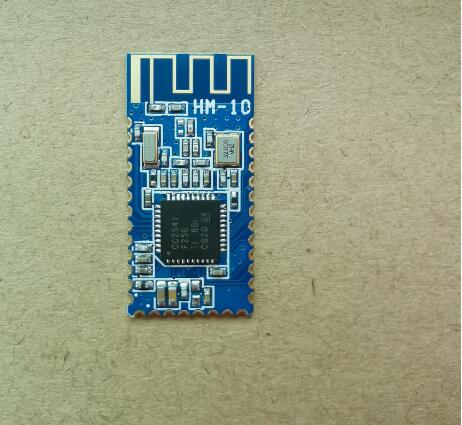

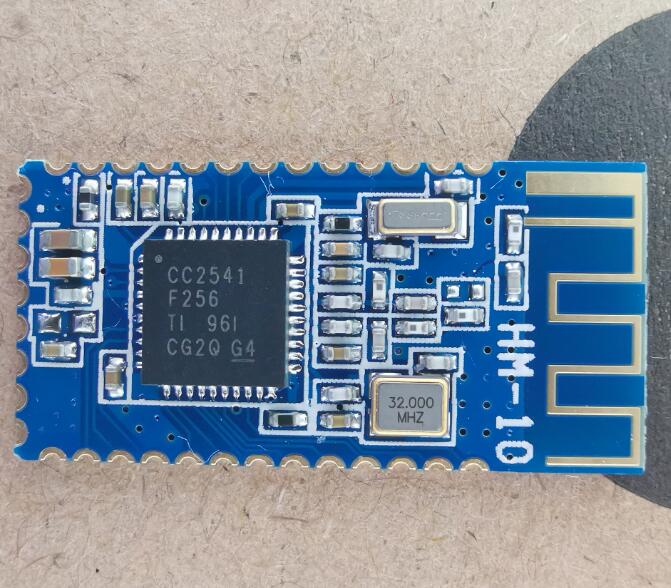

HM-10 BLE module picture
