TP 4056 Lithium battery charger module with battery protection 18650 BMS 5V Type C 1A 18650 Charging board TP4056
- $0.27 / 10 - 99 pieces
$0.25 / 100 - 499 pieces
$0.24 / 500 - 999 pieces
$0.23 / >=1000 pieces - 10 pieces
- Gesp Technology (Dalian) Co., Ltd.
- Liaoning, China
- Ms Miki Liu
PRODUCT DETAIL
| current: | 1A adjustable; | port: | Shenzhen, Dalian, Hong Kong; |
| Sergi Protection: | yes; | Origin: | Liaoning, China; |
| Packaging Details: | Inner packing: vacuum bag Outer packing: carton; | Reverse polarity: | Do not; |
| payment terms: | L/C,D/P,D/A,T/T,paypal; | Maximum output current: | 1A; |
| Cut-off voltage: | 4.2V; | Charging module: | Linear charging; |
| type: | prototype board; | Input voltage: | 4.5V-5.5V; |
| Charging accuracy: | 1.5%; | model: | TP4056; |
| brand: | Global Energy Security Plan; | Supply capacity: | 20,000 pieces per month; |
| Operating temperature: | - 10～85℃; | Board size: | 30*20mm (1.18*0.79 inches); |
product description

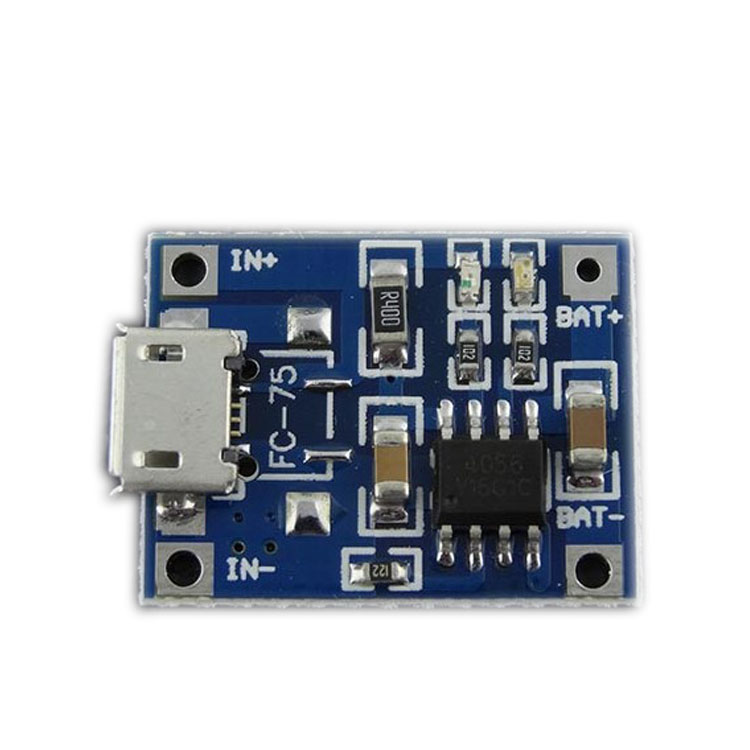

TP4056 5V 1A Lithium Battery Charging Module
Product Details
Solder the correct resistor to obtain the required current using the resistor and current values from the table below:
RPROG (k) | IBAT (mA) |
30 | 50 |
20 | 70 |
10 | 130 |
5 | 250 |
4 | 300 |
3 | 400 |
2 | 580 |
1.66 | 690 |
1.5 | 780 |
notes:
1. The ammeter can only be connected to the 5v input terminal of the module.
2. The charging current is preferably 37% of the battery capacity.If you charge a 1000mAH battery, 400 current is enough.
3. The connecting line should not be too thick.
4. Make sure the connection points are good.
5. If the input voltage is too high, such as 5.2v, the current will be less than 1000mA, which is normal.is a protection function,
The charging current is automatically subtracted to avoid burning the chip.
6. NO reverse polarity.
1. The ammeter can only be connected to the 5v input terminal of the module.
2. The charging current is preferably 37% of the battery capacity.If you charge a 1000mAH battery, 400 current is enough.
3. The connecting line should not be too thick.
4. Make sure the connection points are good.
5. If the input voltage is too high, such as 5.2v, the current will be less than 1000mA, which is normal.is a protection function,
The charging current is automatically subtracted to avoid burning the chip.
6. NO reverse polarity.
Specification
charging module | Linear charging |
current | 1A adjustable (via RPROG) |
Charging accuracy | 1.5% |
Input voltage | 4.5V-5.5V |
full voltage | 4.2V |
Operating temperature | -10°C to +85°C |
size | as small as 25x19x10mm |
reverse polarity | not allowed |
LED indicator | Red is charging, green is fully charged |
input interface | micro usb |
application
Recommended Products
Packaging and Delivery

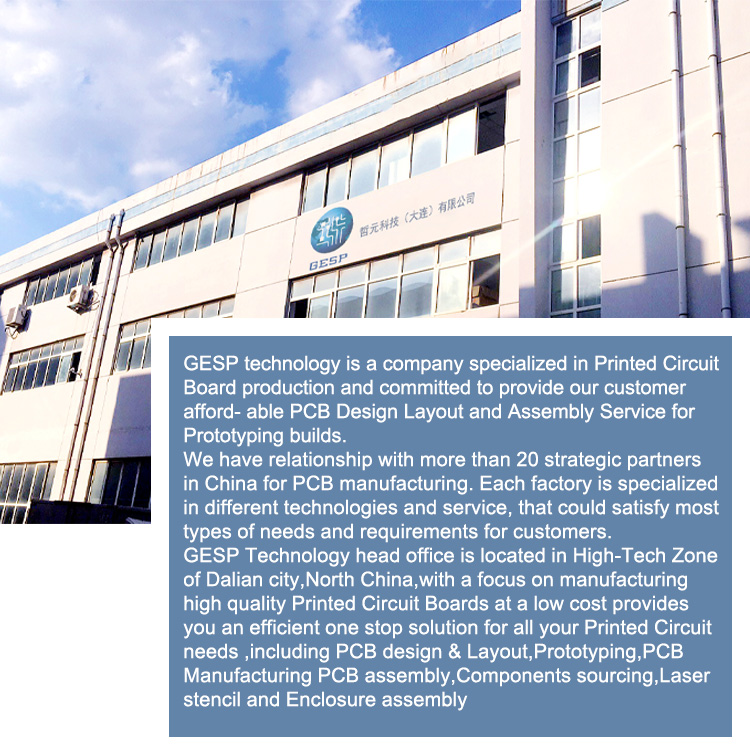

Company Profile
