Low beverage ratio / Low energy consumption / Low maintenance cost Machine for dyeing high temperature clothes

PRODUCT DETAIL
Stainless steel:S31603 (316L);Automatic note:Automatic;
Location of the exhibition hall:India, Mexico, Sri Lanka, Bangladesh;Basic components warranty:1 year;
Power:1200 kg: Main pump 18.5KW;Weight:1200 kg;
Payment terms:L / C, T / T;Controller:EPC T10 or SETEX 787tce + PLC;
Maximum operating temperature:140'C;Tensions:380V / 50Hz;
PLC:MITSHUBISHI;Car type:HTHP;
Operating speed:450 m / min;Applicable industries:Production factory;
Type of marketing:Hot product 2019;Brand Name:SUNSKY;
Condition:New;Preview of the package:;
Production capacity:300 kg per tube;Guarantee:18 months;
Machinery test report:With one condition;Knitting system:XY;
Maximum working pressure:0.36 MPa;But you:Shanghai;
Supply Ability:200 sets per year;Video inspection at the exit:With one condition;
Main ingredients:PLC, Pressure Vessel, Pump;After sales service offered:Engineers available to service overseas machinery;
Dimensions (L * P * H):1200 kg: 7100 * 5400 * 3400;Low drink ratio:1: 3.5 ~ 5;
Packaging Details:Export standard packaging by container;Country of origin:Jiangsu, China;
product description

OH serieslow beverage ratio, low energy consumption, low maintenance cost,Machine for dyeing fabrics with high pressure, high temperatureis suitable for cleaning / bleaching / dyeing / washing all kinds of knitted and woven fabrics: Cotton, Modal, Viscose, Tencel, rayon, Wool, Acrylic, Lyocell, Nylon, Polyester and lycra blend, etc.



The machine is designed and manufactured in accordance with the standards of pressure vessels 150 GB, with a maximum working temperature of 140 degrees and a maximum working pressure of 0.36 Mpa. All parts in contact with colored drinks are made of corrosion-resistant stainless steel material S31603 (316L). With a specially designed nozzle structure, it enables fabrics in loose and extended conditions during the dyeing process. It has an excellent performance in dyeing tight and heavy fabrics and can eliminate the problem of wrinkle marks, which is commonly seen in other dyeing machines. Meanwhile, the car has the ability to load with two ropes.

Technical data
  1. LowLiquor ratio; 1: 3.5 ~ 4.5 (maximum 100% cotton at 1: 4.5)
  2. Operating speed: 450M per minute
  3. Maximum operating temperature: 140 'C
  4. Maximum working pressure: 0.36Mpa
  5. Temperature heating temperature: 5 'C per minute on average from 25 to 100 'C, 2.50C per minute on average from 100 - 130 'C (Dry saturated steam pressure: 0.7Mpa)
  6. Temperature cooling rate: 3 'C per minute on average from 130 to 100 'C, 2 'C per minute on average from 100 to 85 'C (Cooling water pressure: 0.3Mpa, 25 'C).



pattern Nrs of Tubes Load (KG) Length (mm) Width (mm) Height (mm) Main pumps Workforce (KW)
Power (KW)
OH-300-1 1 300 3500 5400 3400 5.5 13
OH-300-2 2 600 4800 5400 3400 7.5 19
OH-300-3 3 900 5900 5400 3400 15 26
OH-300-4 4 1200 7100 5400 3400 18.5 34
OH-300-6 6 1800 9500 5400 3400 37 47
OH-300-8 8 2400 12500 5400 3400 45 56

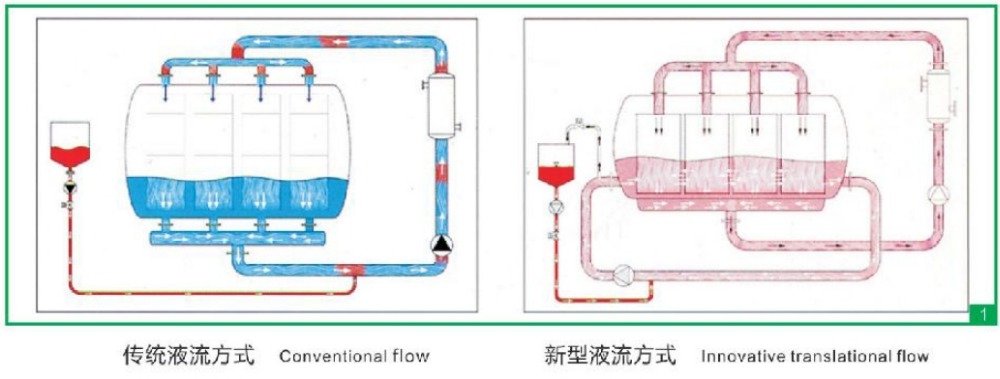

Flow chart comparison

Excellent performance using new technologies

  1. The vertical heat exchanger enables immediate drainage of condensed water and reduces the time in the transition between hot and cold water. Also, it can avoid the formation of water scale, extend the service life of the heat exchanger.
  2. The main pump inlet pipe is optimized, the water inlet height is reduced and thus water consumption is significantly reduced.
  3. The U-shaped fabric tank and the synchronized fabric knitting system increase the loading capacity by 20%, meanwhile, by intertwining in multiple directions, entanglement problems can be completely avoided.
  4. The main dye control system, in combination with the dual balancing flow feed system and the constant pressure and steady flow velocity, guarantees a uniform dyeing.
  5. The height of the machine and the operating platform is reduced and the size of the operating platform is reduced, making operation much more convenient. The bottom of the paint vase is specially designed in order to reduce water retention and effectively reduce the beverage ratio.
  6. With the unique main boiler circulation system, the temperature difference of the entire paint container from top to bottom and the uniformity of the feed is controlled under optimal conditions.
  7. The rotary spray is adopted by the main cleaning of the boiler and the whole vase is within the cleaning radius, ensuring a thorough cleaning.
  8. The color fluid works longitudinally, the longitudinal direction of the colored drinks and the multi-directional suction system greatly reduces the ratio of the drinks and optimizes the uniformity of the colored drinks.

Eco-friendly, energy saving and high efficiency

  1. The low ratio of beverages significantly reduces water consumption.
  2. Compared to the traditional dyeing machine, the consumption of salt, auxiliaries and steam can be saved by 50%
  3. The lowest power installed, ie the lowest electricity consumption.
  4. Fast dyeing cycle, increased productivity.
  5. Easy operation for users and easy maintenance.
Information company

Sunsky is an experienced machinery manufacturer since 2004, located in Wuxi, JiangSu Province, China (50 minutes by train from Shanghai). We are focusing on dyeing and finishing machines for various textiles. After a decade of innovation and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and cleaning machines. We make designs according to our clients' requirements, constantly improve our techniques, optimize designs and also consider the issue of the environment. Sunsky dyeing machine is well received by domestic and foreign customers. Based on 10 years of professional production experience, we have successfully developed a new generation of beverage ratio 1: 3.5 ~ 4.5, energy saving type OH / UH, and 1: 2.8 3.5 3.5-thread dyeing machine model SS241H .

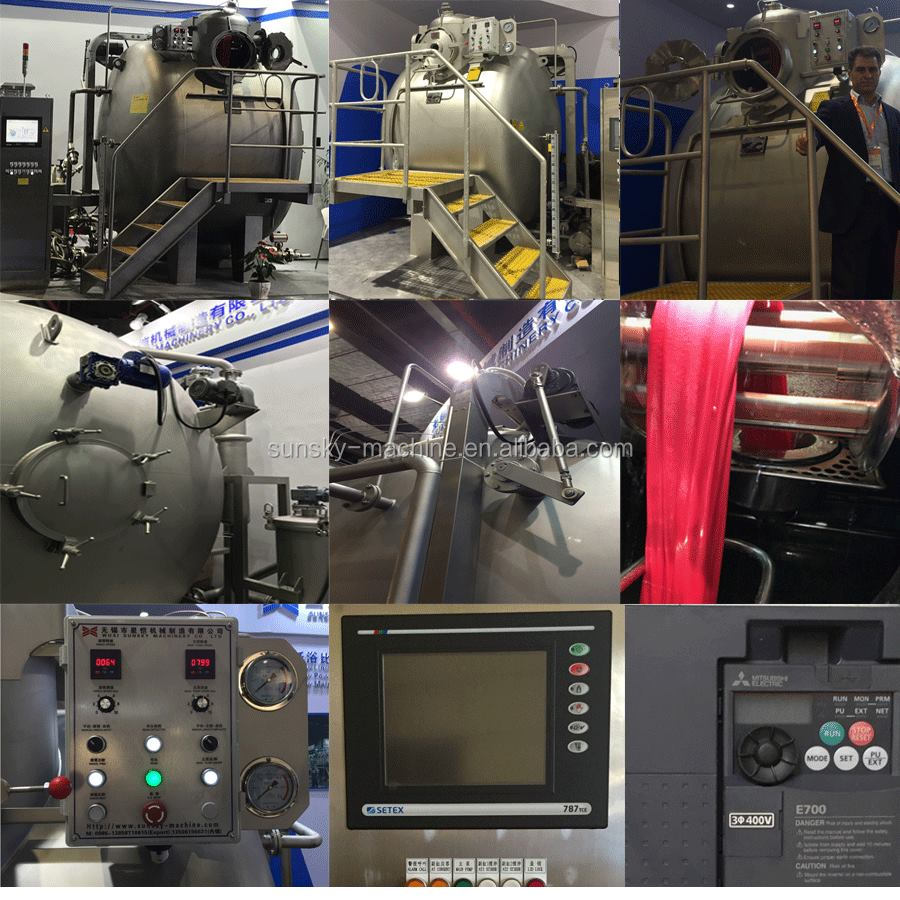

Detailed images

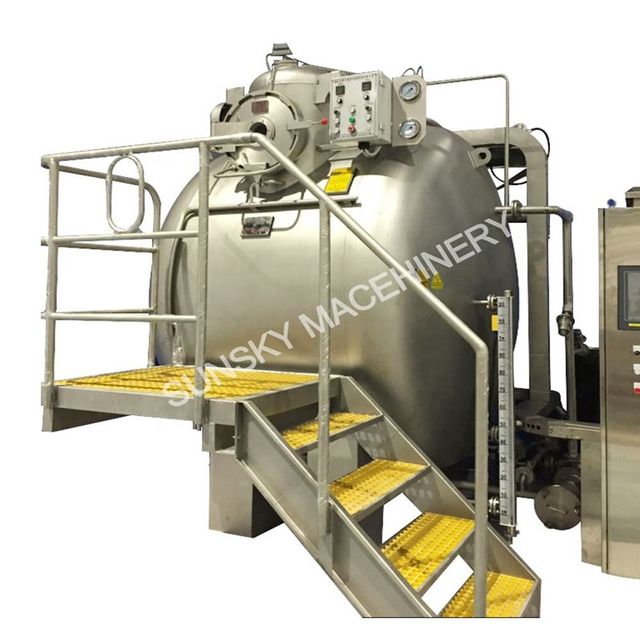

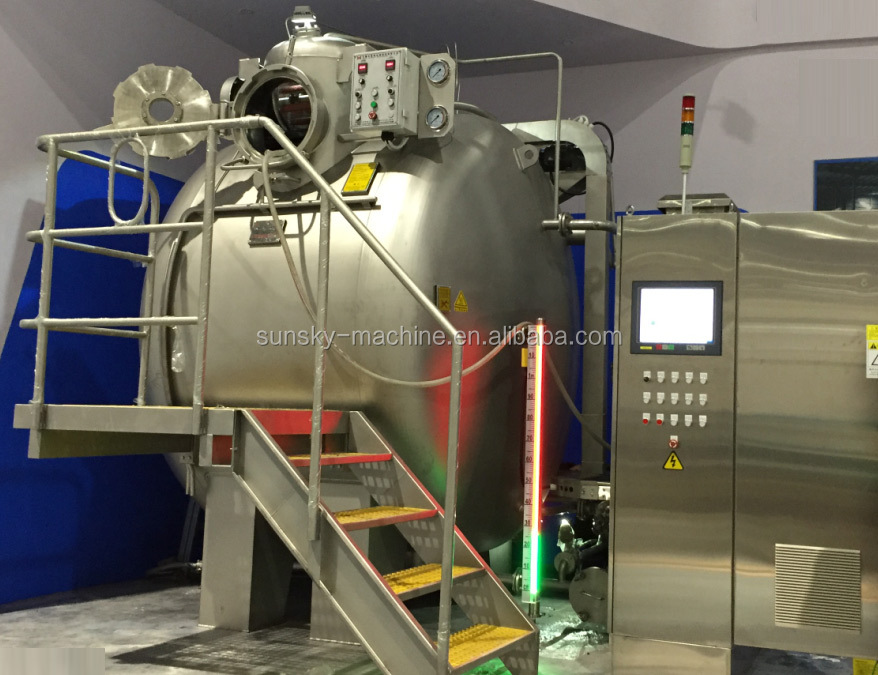

Model OH-300-4 (4 Tubes), Fabric Maximum load capacity at 1200 kg. Main pump 18.5KW, total functional power 34KW. Beverage ratio 1: 3.5, High efficiency energy-efficient dyeing machine, low ratio of Alcoholic beverage consumption, LO, Low maintenance cost.
Packing & Shipping

Electrical control panel packaging:

Our services
  • Any questions you may have will be answered within 12 hours.
  • We offer professional services in fluent English.
  • Quality: we have QC in every process in production.
  • We will provide the right schedule and quality machinery.
  • Without man-made defects, the warranty is 18 months after commissioning, spare parts can be replaced within 3 months from the delivery of the dyeing machine.
  • Engineers available for overseas machinery service, commissioning and technical support, etc.
  • Our factory is located in Wuxi, JiangSu (50 minutes by train from Shanghai)
