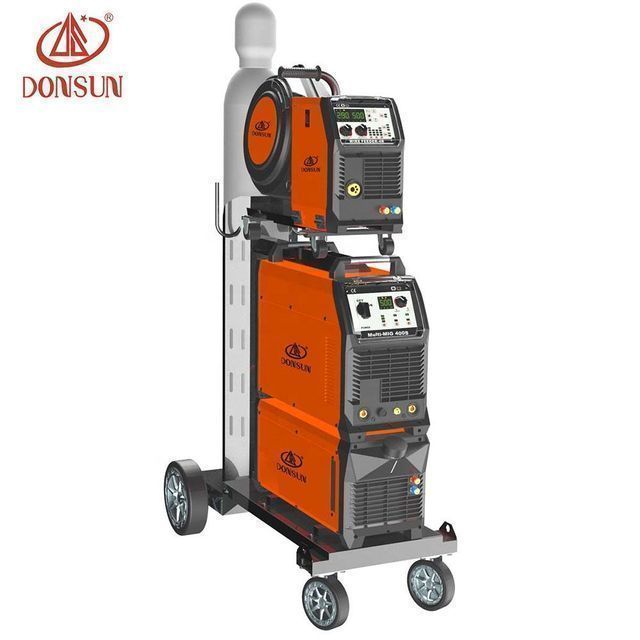

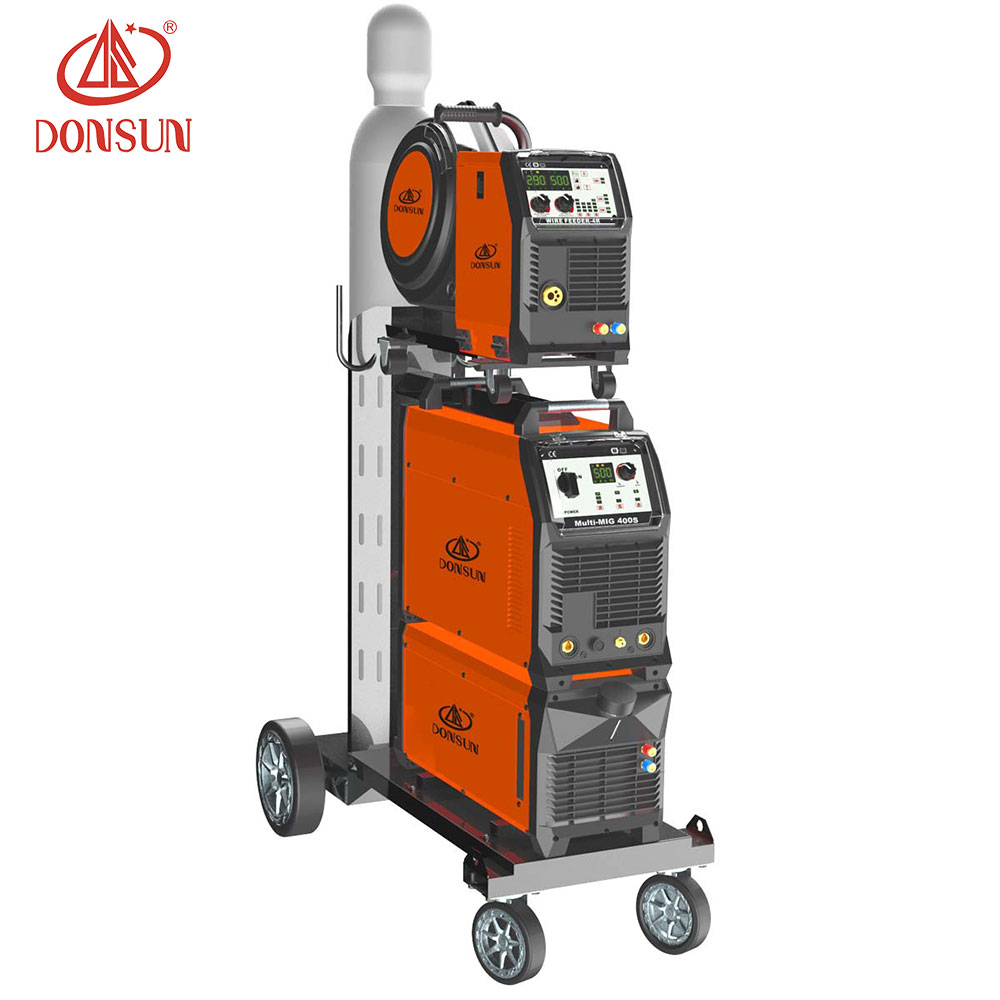

MIG 400F, MultiMIG 400S Industrial general welding generator Mig Welder
- $495.00 / >=30 sets
- 30 sets
- Shanghai Donsun Welding Equipment Co., Ltd.
- Shanghai, China
- Mr William Bill
| Fuse Type: | short-circuit transfer | Wire feed speed: | 18m/min |
| Packaging Details: | Plastic foam welding machine for standard export carton | Material/Metal Finishing: | Carbon steel |
| Mechanical test report: | if | Rated output voltage (MIG): | 40 volts |
| Video external inspection: | if | port: | Shanghai |
| After-sales service provided: | Online support | Health status: | new |
| feature: | portable | Rated output current (MIG): | 400A |
| Applicable industries: | Mechanical Repair Shops, Farms, Retail, Construction Works | Rated input voltage: | 380 volts |
| Weight (kg): | 23.5 kg | Warranty: | 1 year |
| payment terms: | letter of credit, wire transfer | Main selling point: | easy to operate |
| maximum. Load power capacity: | 26KVA | place of origin; place of origin: | China Shanghai |
| Rated Duty Cycle @40°C (MIG): | 60% 400A 100% 310A |
The machine is equipped with Synergic programs for steel, aluminum, stainless steel and CuSi materials. Coroutines provide users with simple and intuitive machine control.
Properties and Equipment
Full set:
Welding source, wire feeder, cooling unit, connecting cable 5 m, trolley
Excellent welding performance
Possibility of remote control connection
Thermal protection with indicator light
Method MMA
Hot start makes it easier to ignite rod electrodes
ANTI STICK allows easy separation of electrodes when adhering to welding material
ARC FORCE ensures arc stability
VRD = MMA safety system; the maximum no-load open circuit voltage on the output terminals is reduced to 15 V
SOFT START MMA prevents circuit breakers from de-energizing
dynamo
Method MIG/MAG
Front air/rear air
slow start
burn back
inductance
spool gun
2 stroke / 4 stroke
S4T (Setting up a multi-step process)
Remote control - UP/DOWN; 10k potentiometer
cooling module
dynamo
Job mode (allows to set up to 100 own welding programs)
gas test
wire feed
spot welding
Method TIG (DC)
Front air/rear air
downhill
2 stroke / 4 stroke
Remote control - UP/DOWN; 10k potentiometer
cooling module
dynamo
| Model | Domig 350S | MULTIMIG 400S | Domig 500S | ||||||
| Supply voltage (V) | 3~400 | 3~400 | 3~400 | ||||||
| MiG | mixed martial arts | TIG welding | MiG | mixed martial arts | TIG welding | MiG | mixed martial arts | TIG welding | |
| Effective current (A) | 18 | 20 | 16 | 26 | 26 | twenty one | 34 | 34 | 27 |
| Rated input power (KW) | 12.8 | 14 | 10 | 15.5 | 16.5 | 12 | twenty three | twenty three | 18 |
| Rated input current (A) | twenty three | 26 | 20 | 33 | 33 | 27 | 44 | 44 | 35 |
| Duty cycle (40℃ 10Min) | 60%350A 100% 275A |
60%400A 100% 310A |
60%500A 100% 400A |
||||||
| No-load voltage (V) | 67 | 14 | 81 | 14 | 68 | 14 | |||
| Welding current range (A) | 15~350 | 10~350 | 15~400 | 10~400 | 15~500 | 10~500 | |||
| Welding voltage range (V) | 14~35(MiG) | 14~40(MiG) | 14~50(MiG) | ||||||
| Net weight/kg) | twenty two | 23.5 | 32.5 | ||||||
| Wire diameter (mm) | Iron: 0.6/0.8/0.9/1.0/1.2 SS: 0.8/0.9/1.0/1.2 Core: 0.6/0.8/0.9/1.0/1.2 |
Iron: 0.6/0.8/0.9/1.0/1.2 SS: 0.8/0.9/1.0/1.2 Core: 0.6/0.8/0.9/1.0/1.2 |
Iron: 0.6/0.8/0.9/1.0/1.2/1.6 SS: 0.8/0.9/1.0/1.2/1.6 Core: 0.6/0.8/0.9/1.0/1.2/1.6 |
||||||
| Dimensions (mm) | 525x240x445 | 618x240x445 | 618x240x445 | ||||||
| Insulation level | H | ||||||||
| Protection class | IP23 | ||||||||
| efficiency | ≥85% | ||||||||
| Frequency (HZ) | 50/60 | ||||||||
| cool down | auto focus | ||||||||
