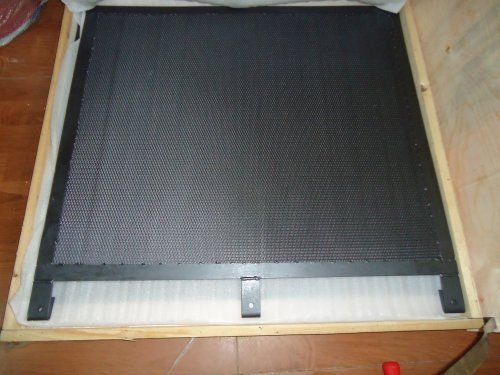

MMO platinized titanium anode mesh for electroplating
- $80.00 / 10 - 99 pieces
$50.00 / >=100 pieces - 10 pieces
- Xian Kig Technology Co., Ltd.
- Shaanxi, China
- Ms Kelly Zeng
| payment terms: | Letter of Credit, T/T, Western Union, MoneyGram | product name: | MMO Titanium Electrode for Brine Electrolysis |
| grade: | titanium | model: | K009 |
| usage: | Cathodic protection, water treatment, water purification, etc. | port: | Qingdao or Shanghai |
| Titanium content (%): | More than 99.95% | Packaging Details: | Packaging suitable for export. 1. Inner packing: plastic bag or woven tape 2. Outer packing: carton and wooden box. 3. We can also pack according to customer requirements. |
| place of origin; place of origin: | Shaanxi, China | Powder or not: | non-powder |
| appearance: | Smooth | brand: | Kiger |
| application: | water circulatory system | Supply capacity: | 10 tons per week |
| Free samples: | Free samples available | type: | Tubular, sheet, mesh, wire |
| size: | According to customer requirements | color: | black or silver |
| Packaging Preview: | standard: | ASTM | |
| Certificate: | ISO9001 | technology: | Sandblasting, Pickling, Brushing |
| technology: | sandblasting brush |

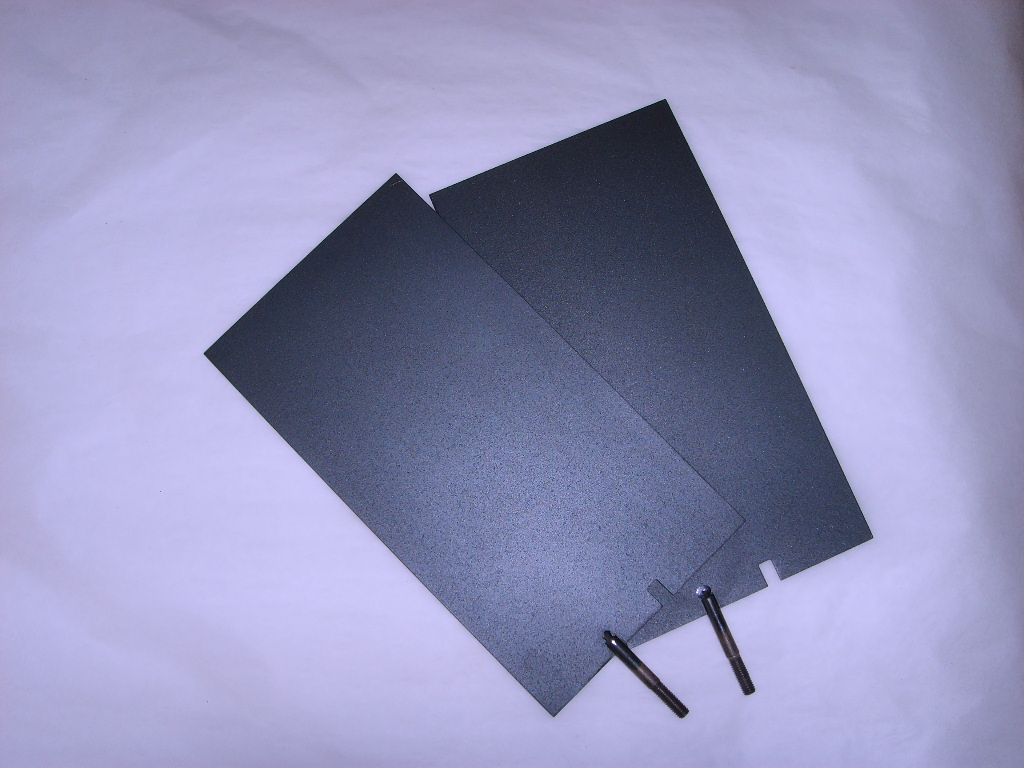

The MMO anode consists of a titanium substrate coated with a mixed metal oxide catalyst. Because the titanium substrate is naturally passivated by the oxide film, the anode remains dimensionally stable over time. The direct current transmission is achieved through mixed metal oxide catalysts, which are highly conductive and fully oxidative, and thus can output higher currents.
|
MMO titanium anode |
|
|
Material |
Gr1/Gr2 Titanium as substrate, mmo coating |
|
technology |
Sandblasting, Pickling, Brushing |
|
size and shape |
Different sizes and shapes are available, and the process is based on Custom Design/Drawing |
|
Working parameters |
1) Current density≤2000A/M2 2) Temperature <60°C 3) PH 0.1~14 4) The maximum fluoride ion content is 200PPM |
| price | Price will be charged according to quantity |
|
feature |
1) Insoluble anode, dimensionally stable, 2) The distance between the positive and negative poles is stable, and the battery voltage is stable 3) Low working voltage, power saving/power saving 4) The electrodeposited material has high purity 5) No pollution to the battery 6) Light weight 7) Titanium material can be recycled 8) High current efficiency and catalytic performance 9) Long service life |
|
application |
Electrodeposition of copper, zinc, nickel, cobalt, manganese, palladium, chromium, silver, gold, rhodium, etc. |
|
Package |
Inside is plastic or paper, outside is plywood box or carton, or according to customer needs |
|
Minimum order quantity |
MOQ is flexible, small samples are acceptable |
MMO anode features:
1. The larger the specific surface area, the larger the output current and the smaller the anode grounding resistance;
2. Compared with other anodes, if you use tubular anodes, it can help you save 15-35% installation cost;
3. The tubular anode has unique flexibility, which is convenient for loading and unloading, transportation and installation.
type:MMO tubular anodes are available as single anodes or anode strings.
PbO2 anode ready size
|
type |
Anode size
|
Current output (A/m2) |
|
KMT001 |
500mm x 500mm*Thickness 1mm |
500 |
|
KMT002 |
600mm x1000mm* thickness 1.5mm |
800 |
|
KMT002 |
800mm x1000mm* thickness 1.5mm |
1000 |
|
KMT002 |
600mm x1200mm* thickness 1.5mm |
1500 |
|
KMT002 |
1200mmx1400mm* thickness 1.5mm |
2000 |
|
Note: We can also do any size according to customer's request |
||
https://hz-productposting.alibaba.com/product/post_product_interface.htm?spm=a2747.manage.0.0.58116b9aUZUBjM&from=manage&import_product_id=60726695154
Product packaging
Product Shipping
1. Delivery time: 5-15 days according to the order quantity.
2. Shipping method: air, sea, railway, express, etc. We can ship according to
customer's request.
3. Economical packaging design, will save your shipping cost.
4 Appropriate packaging materials (non-fumigation) and exquisite packaging technology, can be well protected
Save yourself the hassle of picking up your goods from local customs.
1. Our sales representatives are online 24 hours a day to make sure to get back to you as soon as possible.
2. After the product is finished, it must be checked by our QC first.
3. We have multiple complete production lines, which can not only provide the best quality and competitive price, but also
The production cycle is also reduced.
4. Overtime production is available for urgent orders.
5. We can support OEM and ODM, can be customized according to specific requirements, samples
or sketches.
