Machine for silage packaging Full Automatic 30kg - 40kg

PRODUCT DETAIL
weight:4000kgPackaging Preview:
Showroom location:Turkey, GermanyCore Components Warranty:2 years
Marketing Type:New Products 2022payment terms:Western Union, wire transfer
Warranty:1 yearDimensions (L*W*H):2250*1350*1400mm
port:Mersinbrand:Royemark
Health status:newapplication:silage
Main selling point:automaticCore components:programmable logic controller
Applicable industries:factory, farmtype:square baler
place of origin; place of origin:turkeyMechanical test report:if
Video external inspection:if

introducemachine:

This machine is one of the packaging machines used in industry, agriculture and other fields. Feed corn silage packing machine RYER40 has the type of material packing and similar capabilities in the field of agricultural customers. The weight of the output package varies depending on the type of input material. Different parameters that determine the output package weight. Valid parameters to determine the output package weight; such as material density, moisture, dry matter content, material recycling rate, material viscosity percentage, etc. For example, the world feed corn standard, the edible size is 3-5 cm, the dry matter level is 25-30%, and the moisture is 70-75%.

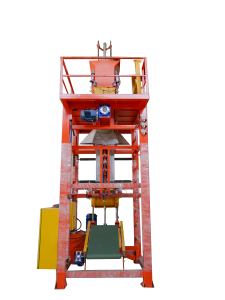

Machine main frame



The main frame is the most important part of the equipment, where all tasks and main operations and activation of the production process are done

conveyor



This section assumes the task of transferring material from the hopper output to the top of the main frame (inside the weighing system)

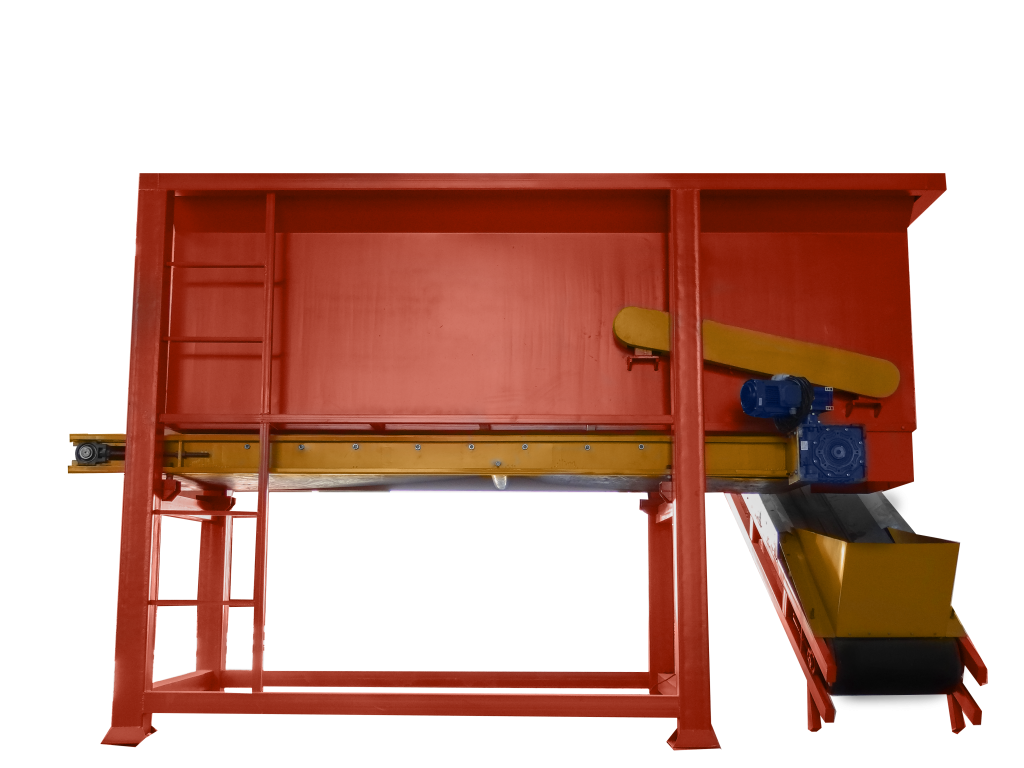

Hoppers and associated conveyors



Hoppers and associated conveyors

This part has two important tasks.

  • Responsible for the uniform conveyance of materials on the conveyor, so that the machine can work under the condition of uniform weight.
  • Do not stay in front of the operator for long periods of time.
  • Second, it has the task of transferring the material from the hopper to the equipment elevator, which operates during the transfer process. It also opens the material and prevents it from clumping.





Vertical SpecificationsPacking Machine

  • The weight of the whole machine is about 4 tons
  • Power required by the machine:

3 Phase, 380V, 50Hz, 32A

  • Air pressure air pump 700 liters at least 7 times at most 9 times
  • Hydraulic oil volume between 140 and 160 liters, maximum pressure 130 bar, hydraulic oil type 46
  • Plastic type uses laminated polyethylene, widths 127 and 100 microns (high heat seam)

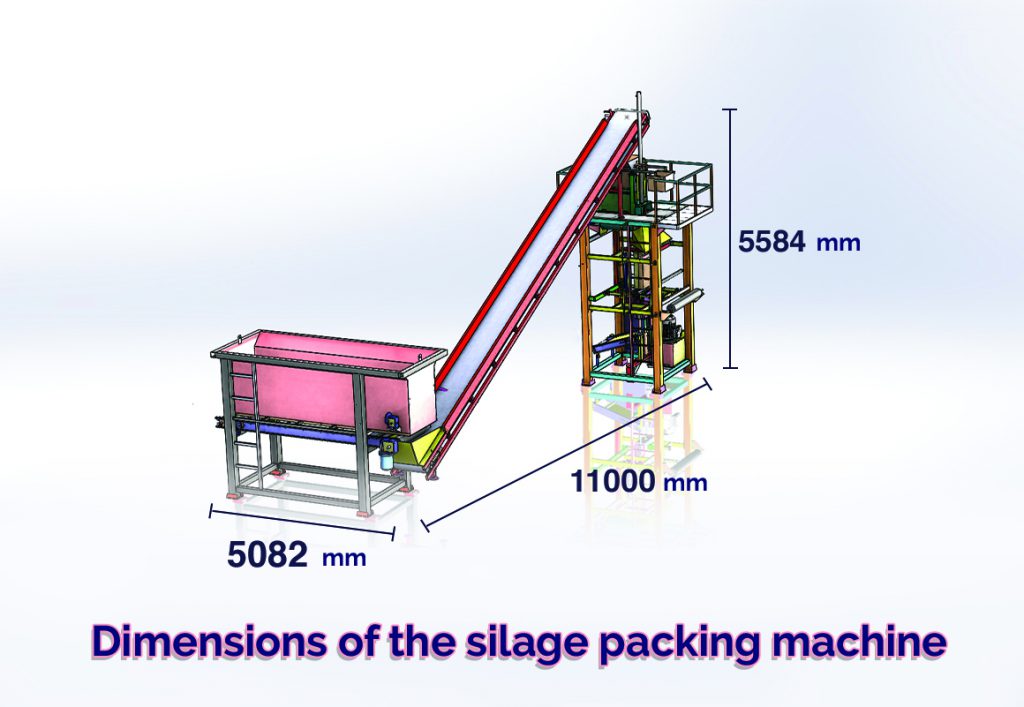

  • The size of the machine after installation is 5.5*11*5 meters

Advantages of packaging compared to silos

Ordinary silos that are prepared in the ground for annual consumption by other methods should be opened on one side. Over time, these silos have been affected by various atmospheric factors and pests and animals, losing much of their original quality, but The silo machines offered by the pack are in small packs that can be stored, transported and consumed very easily even in very small farms, nomads, shepherds, ostrich breeders and traditional ranchers. Once opened, it can be eaten every day without fear of contamination or loss of quality and quantity. Building land silos and buying bulk corn for a year's consumption during harvest requires very high mobility, whereas in a packing system a farmer prepares a week or month's supply of feed corn for her animals

.
