Maquina de moldeo por soplado de botellas de agua de 5 galones
- $5000.00 /set
- 1 set
- Taizhou RC Packaging Technology Co., Ltd.
- Zhejiang, China
- Mr David Wong
PRODUCT DETAIL
| Supply Ability: | 50 Sets per Month; | Warranty: | 3 years; |
| Weight (KG): | 1000 KG; | Showroom Location: | United States,Philippines,Brazil,Peru,Saudi Arabia,Pakistan,Mexico,Russia,Spain,Argentina,Chile,UAE,Colombia,Romania,South Africa,Kazakhstan,Ukraine,Nigeria,Malaysia,Australia; |
| Bottle Volume(ml): | 25000 ml; | Product name: | PET Bottle Blowing Machine; |
| Applicable Industries: | Manufacturing Plant; | Max.Bottle Height(mm): | 600 mm; |
| Preform length: | 15mm-400mm; | Max.mould thickness: | 40mm; |
| Key Selling Points: | High-accuracy best price; | Warranty of core components: | 1 Year; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Theoretical output: | 90-180PCS/H; |
| Machinery Test Report: | Provided; | Packaging Detail: | wooden case and plastic film; |
| Automation: | Semi-automatic; | Place of Origin: | Zhejiang, China; |
| Blow Moulding Type: | Stretch Blow Moulding; | Neck Diameter(mm): | 55 mm; |
| Mould opening stroke: | 38mm; | Condition: | New; |
| Dimension(L*W*H): | 2180*770*1960mm; | Preform inner diameter: | 5mm-200mm; |
| Max.mould plate Dimenstion(L x W): | 420x500mm; | Package Preview: | ; |
| Voltage: | 220/380V, 50/60HZ , 3 Phrase; | Video outgoing-inspection: | Provided; |
| Application: | Bottle; | Delivery time: | The machine and mould will be made within 15 working days; |
| Suitable bottle: | 10L-25L(3-5Gallon); | Max.Bottle Diameter(mm): | 380 mm; |
| Plastic Processed: | PE,PET,PP,HDPE,LDPE,HDPE/PP; | Core Components: | PLC; |
| Hollow part volume: | 5-30L; | Trait: | The machine is small with low investment, easy and safe for operating.; |
| Port: | Ningbo; | Year: | 2021; |
| Marketing Type: | New Product 2020; | Brand Name: | RC MACHINERY; |
Product Description
Model | RC-5G | ||
Container | Product material | PET | |
Volume | 10L-25L（3-5Gallon） | ||
Theoretical output | 90-180PCS/H | ||
Preform length | ≤500mm | ||
Preform inner diameter | φ15mm-200mm | ||
Moulding | Max.mould plate Dimenstion(L x W) | 420x500mm | |
Max.mould thickness | 40mm | ||
Clamping force | 330KN | ||
Mould opening stroke | 38mm | ||
Machine size and weight | Main machine (L x W x H) | 218*77*196cm | |
Main machine weight | 1000Kg | ||
Heater (L x W x H) | 237*68*165cm | ||
Heater weight | 318Kg | ||
Power | 40kw | ||

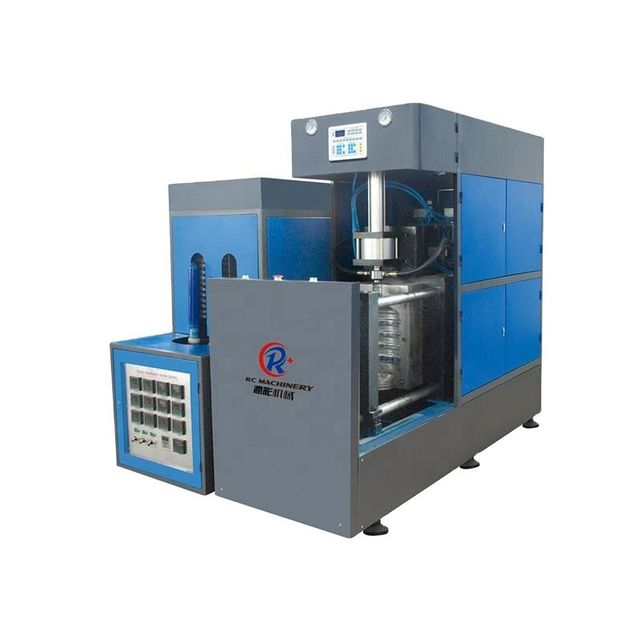

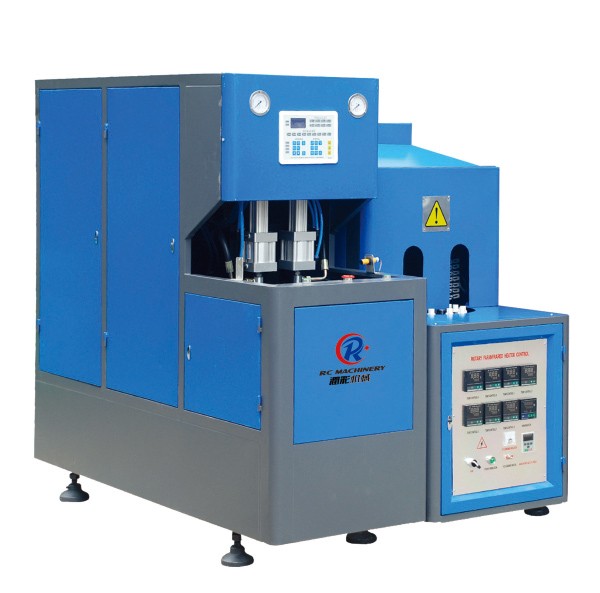

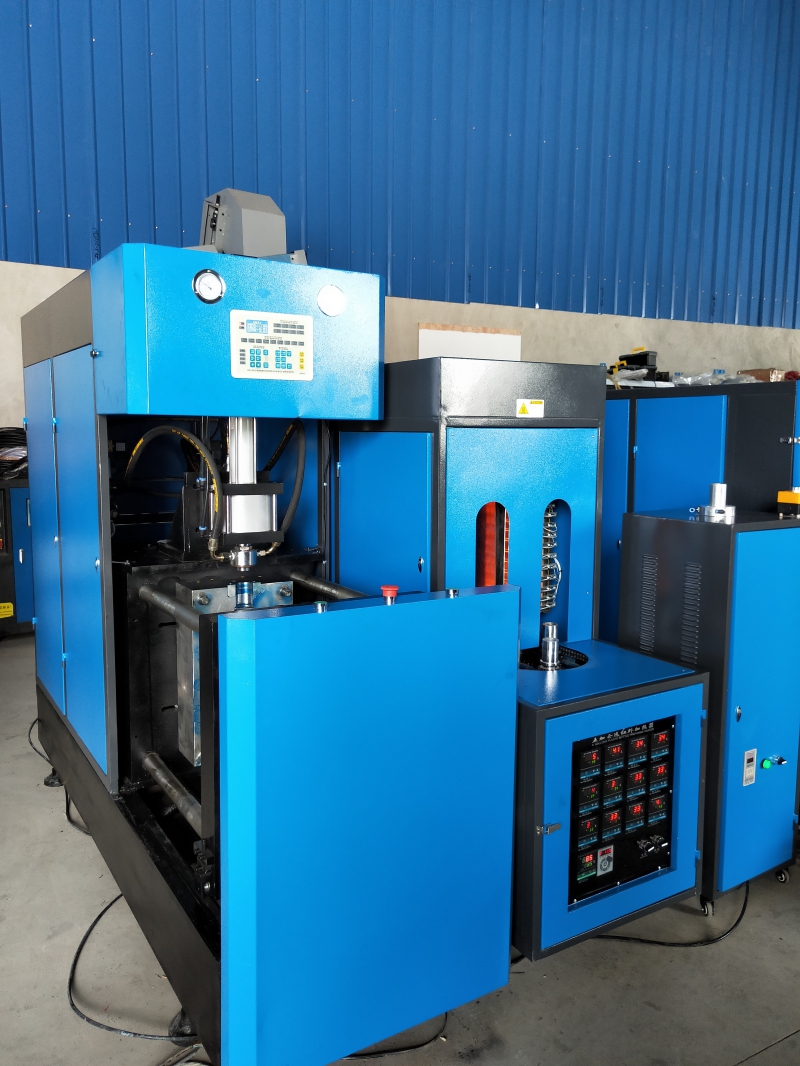

RC-5G semiautomatic bottle Blow Molding Machine
RC-5G blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.

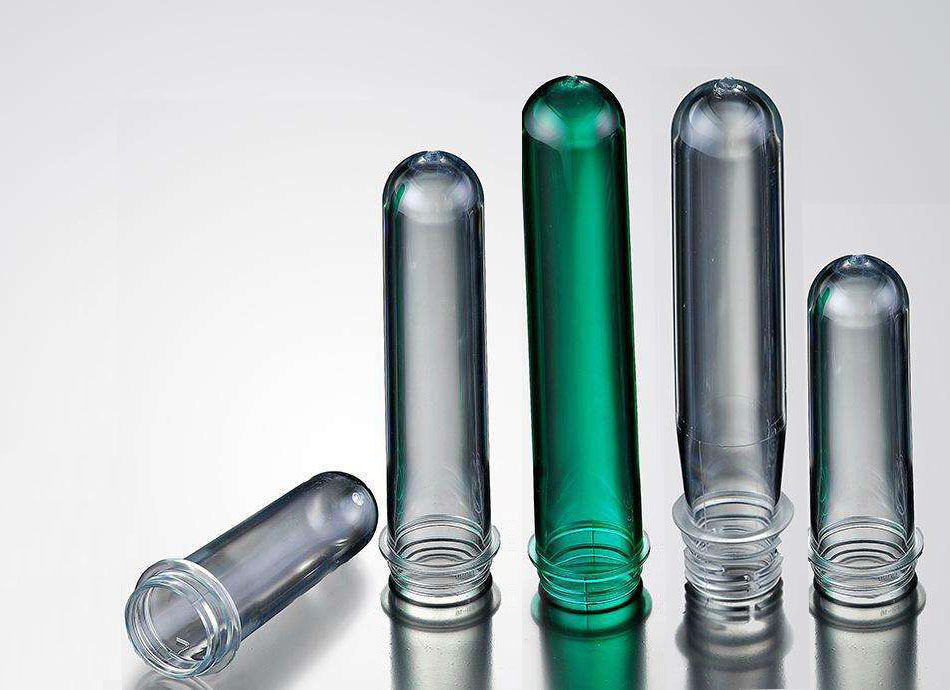

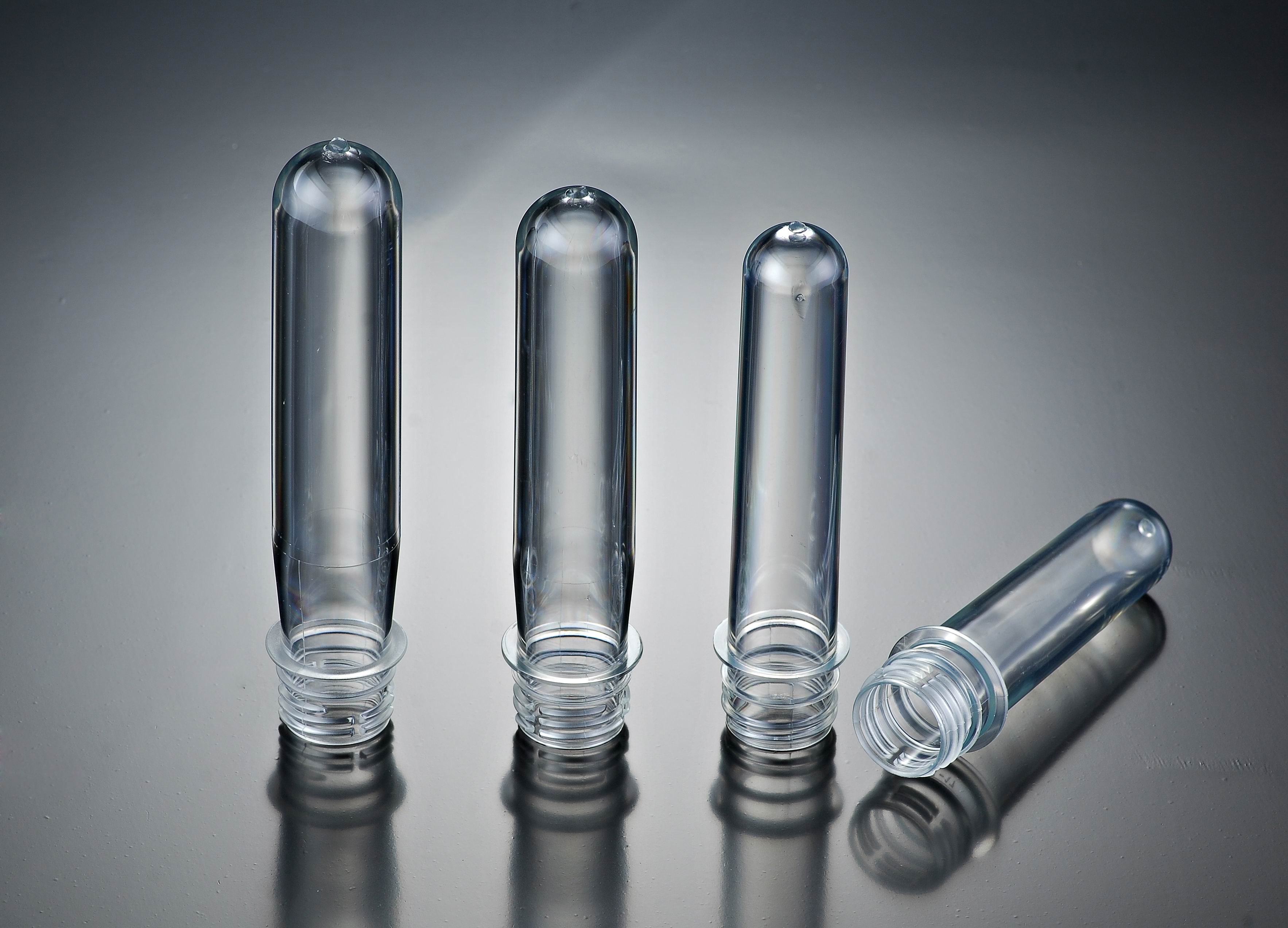

● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.
Main features and PET Bottle Blowing Schematic
Main features | ||||||||
■Semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10L-25L（3-5Gallon）. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
■Adopting double crank to adjust mould, heavy locking mould, stable and fast.

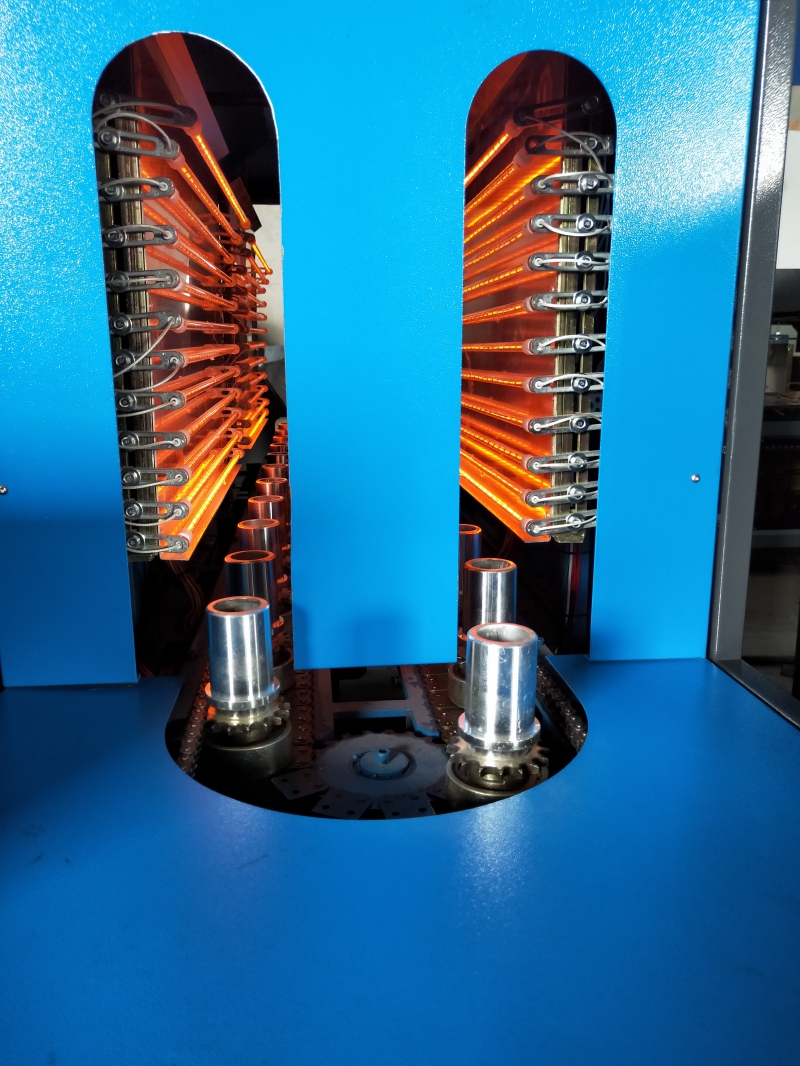

■Adopting infrared oven to heat the preform, the preform rotated and heated equally.

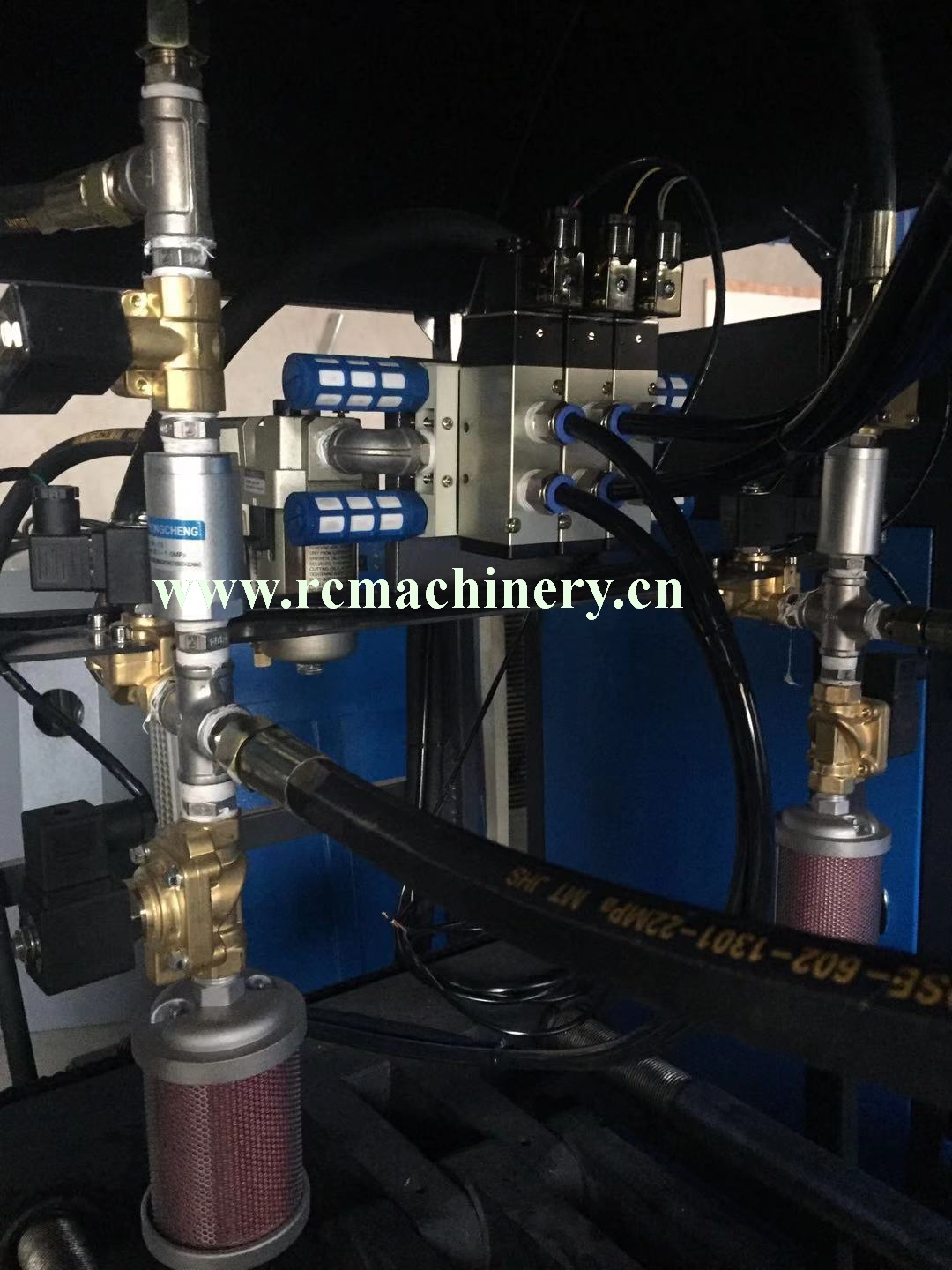

■The air system has been divided into two parts： pneumatic action part and bottle blowing part to meet the different requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
■The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
■The machine can be operated in the step-by-step mode and the semi-auto mode.
■The machine is small with low investment, easy and safe for operating.
PET Bottle Blowing Schematic | ||||||||
Detailed Images

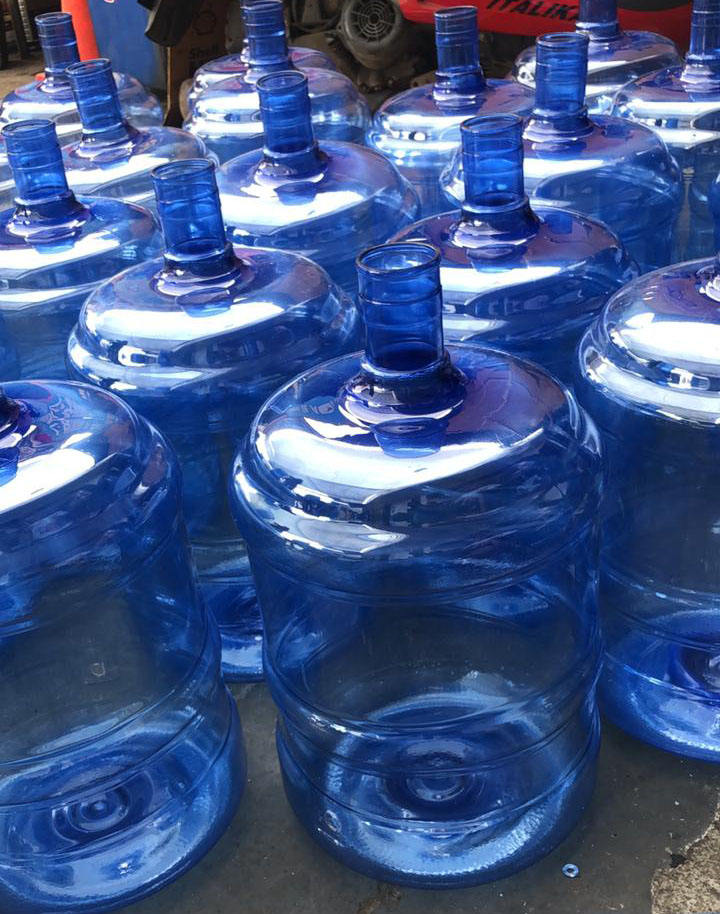

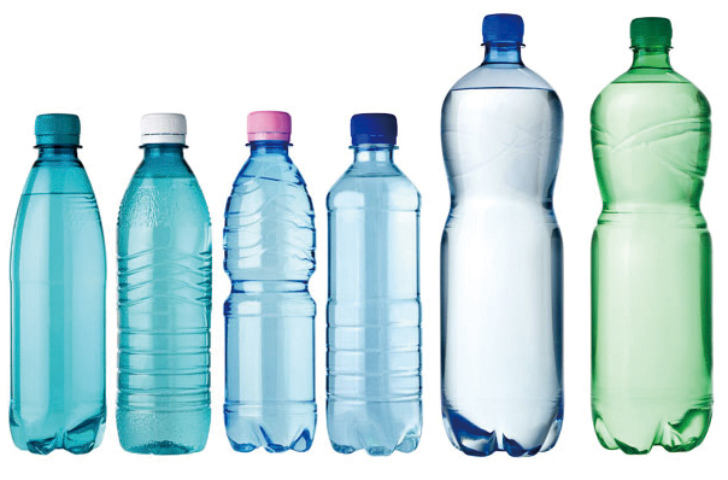

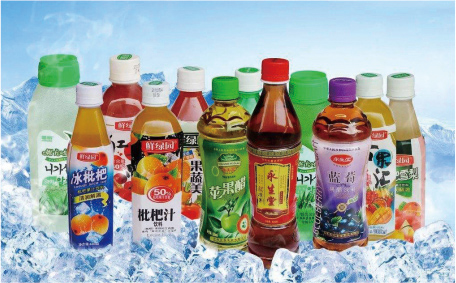

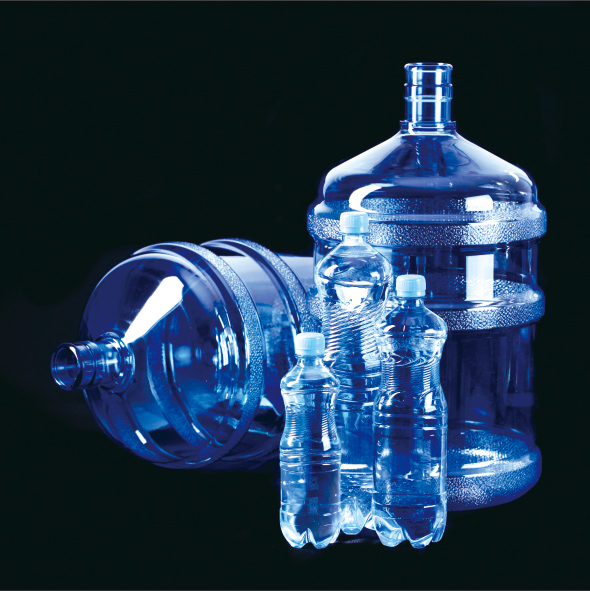

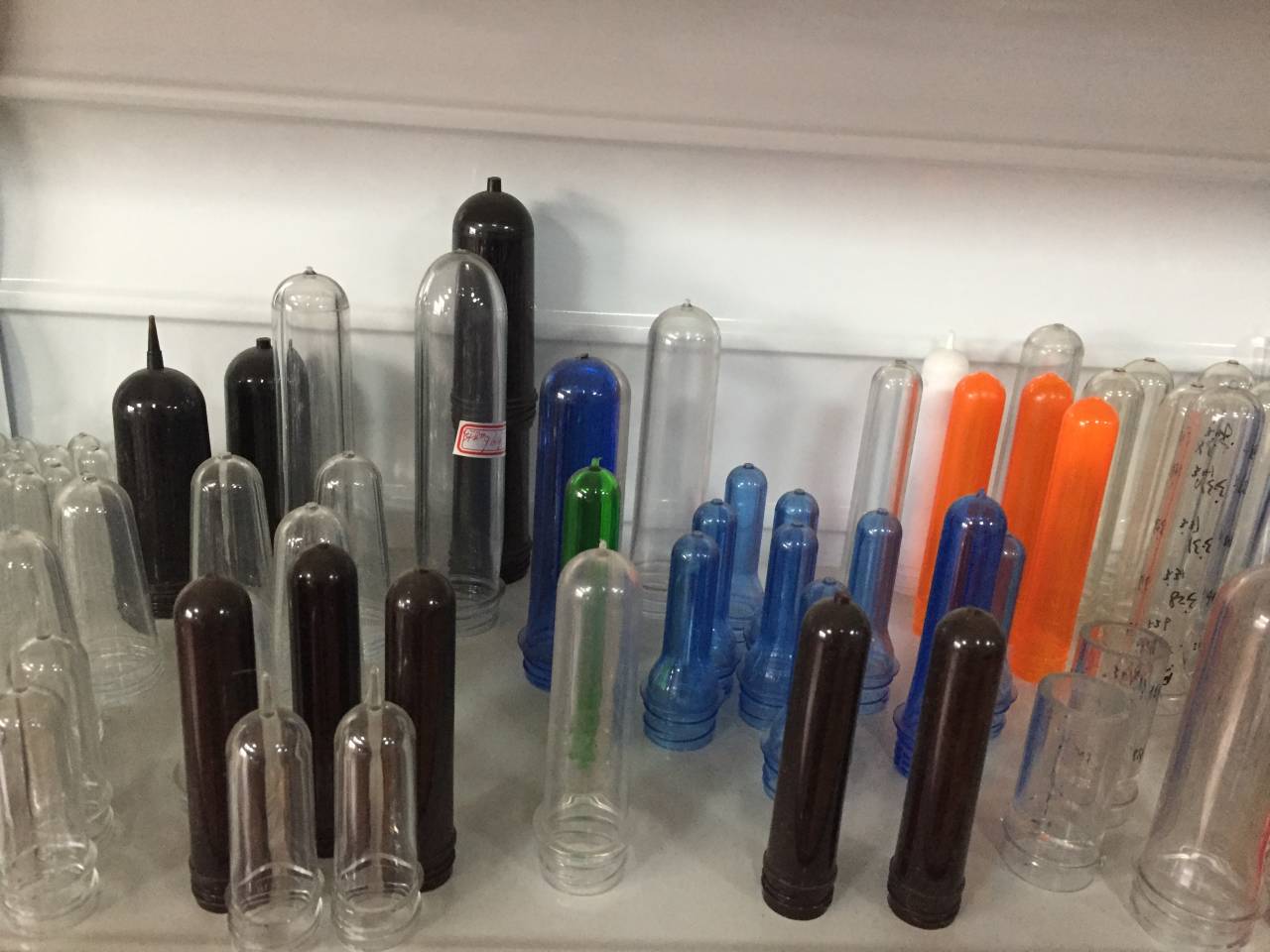

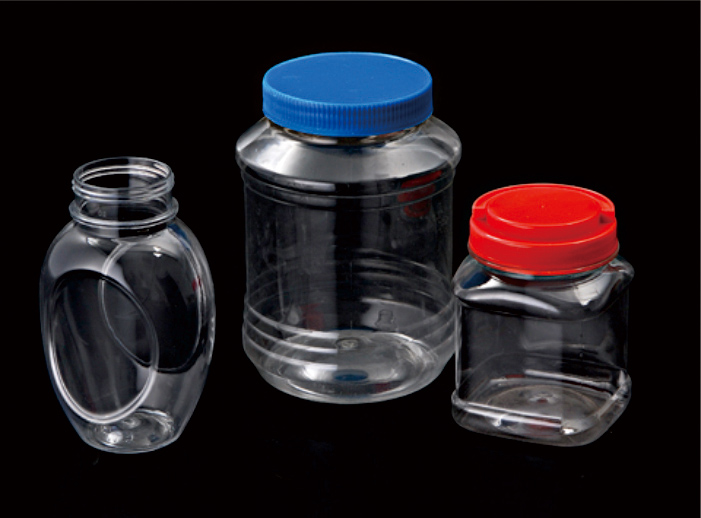

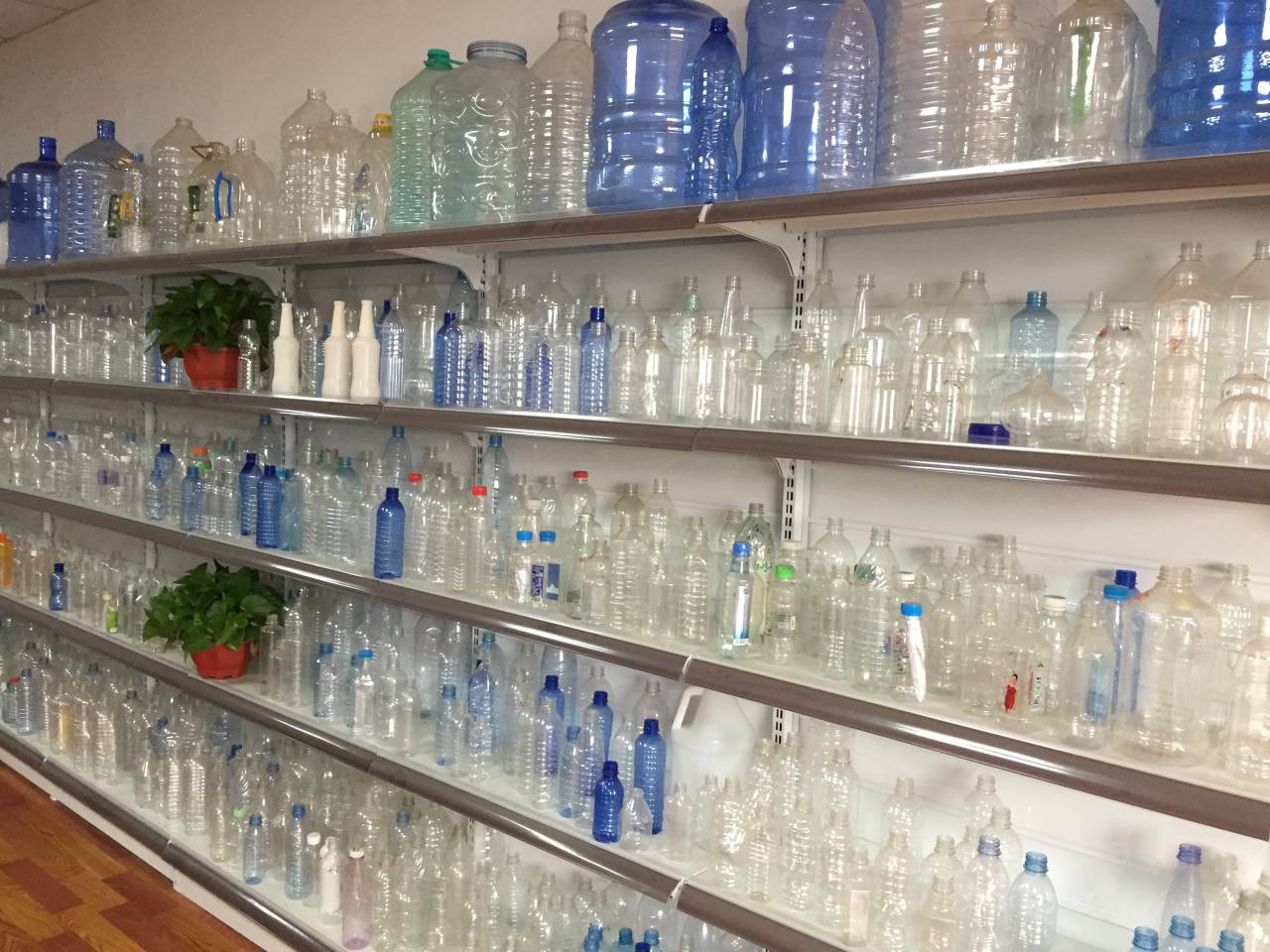

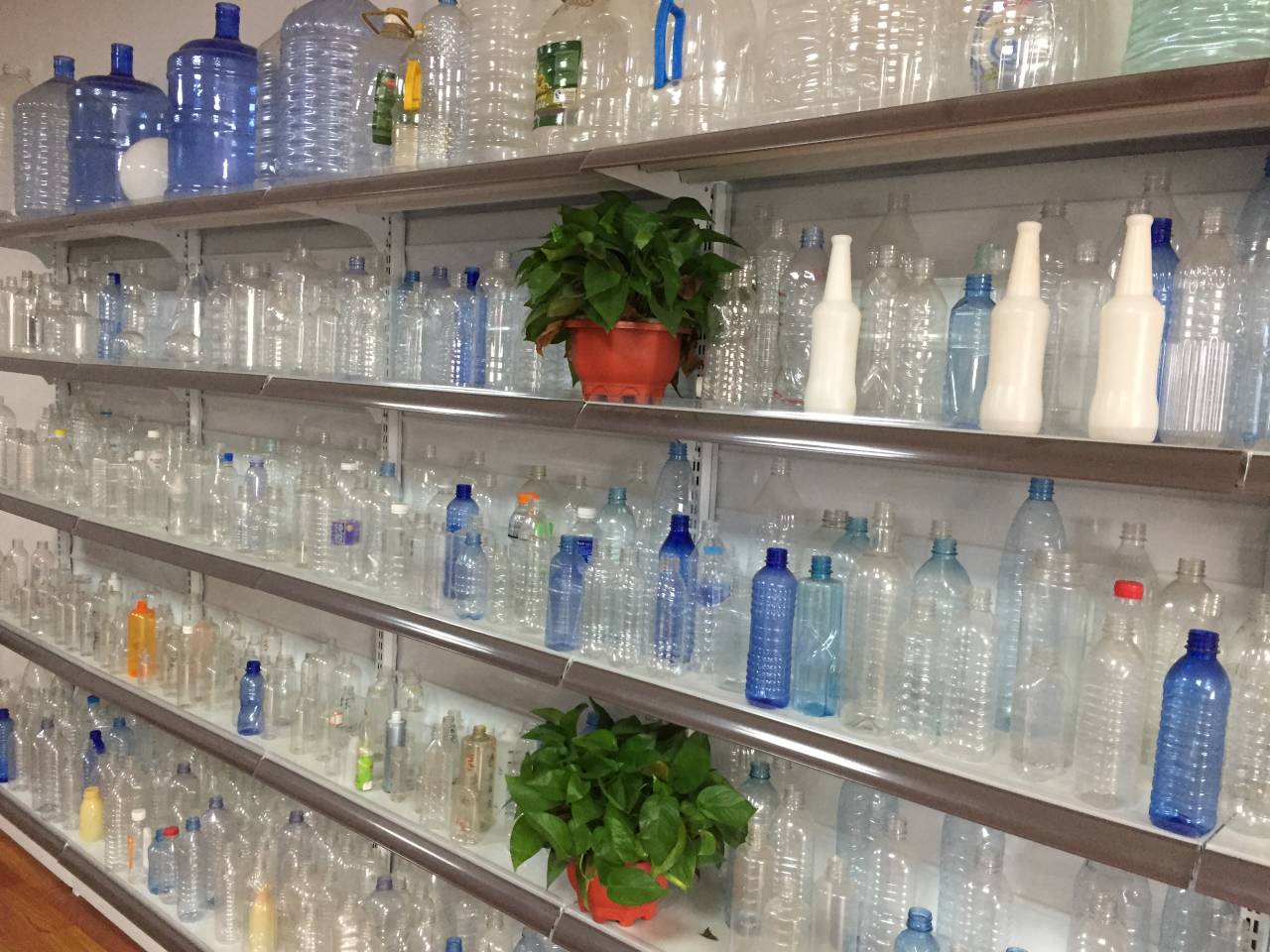

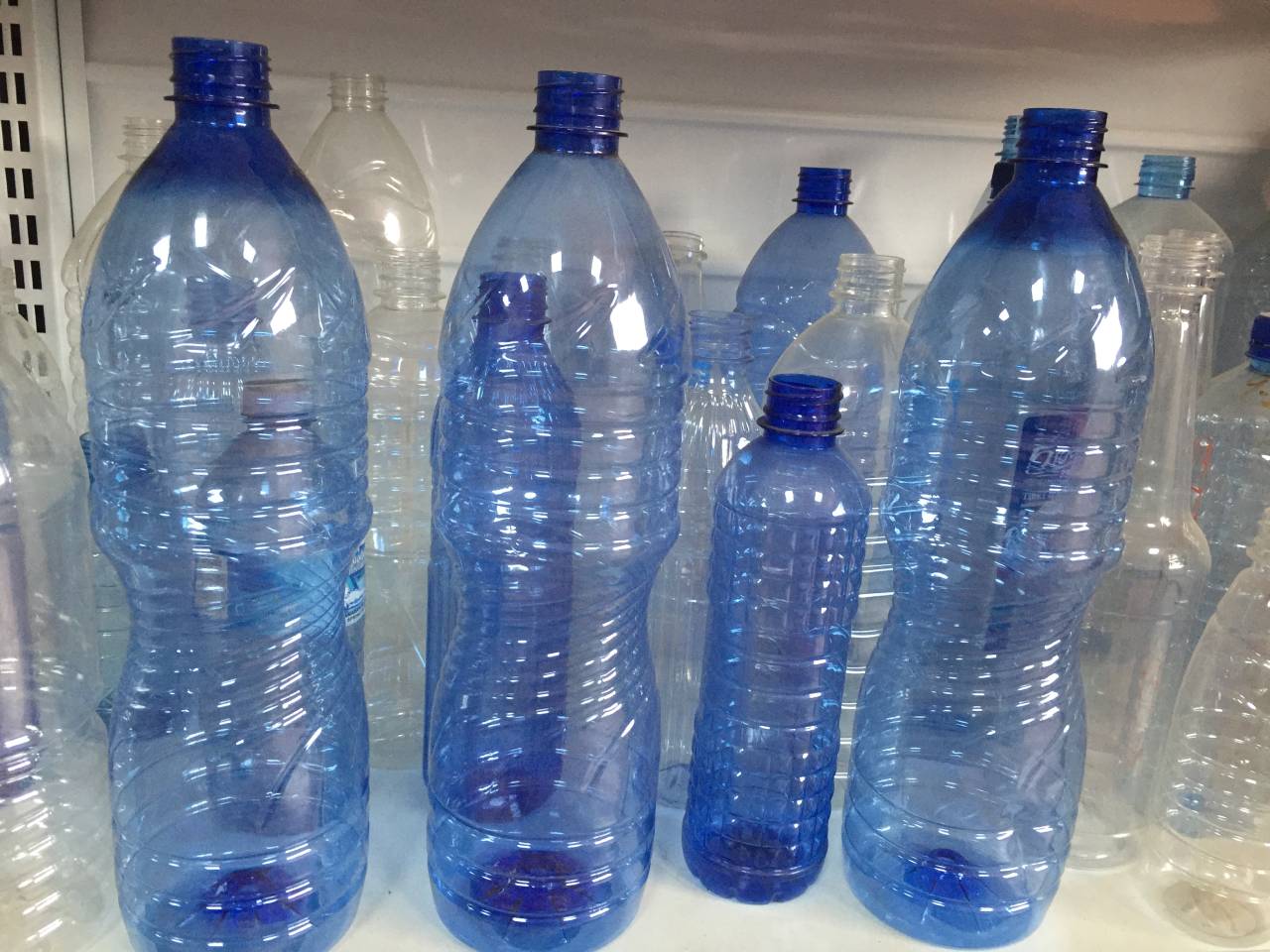

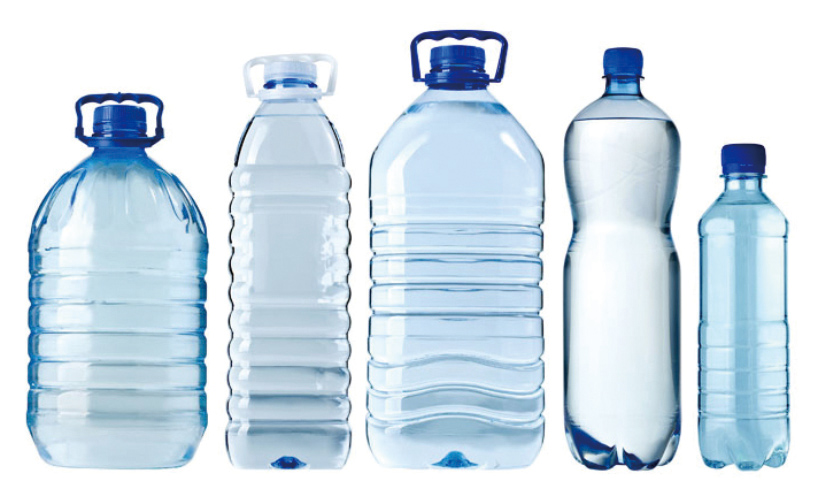

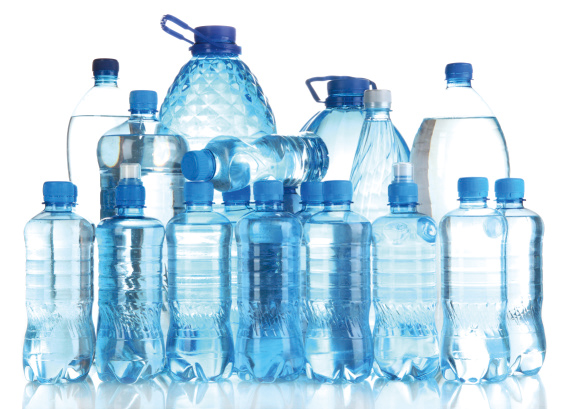

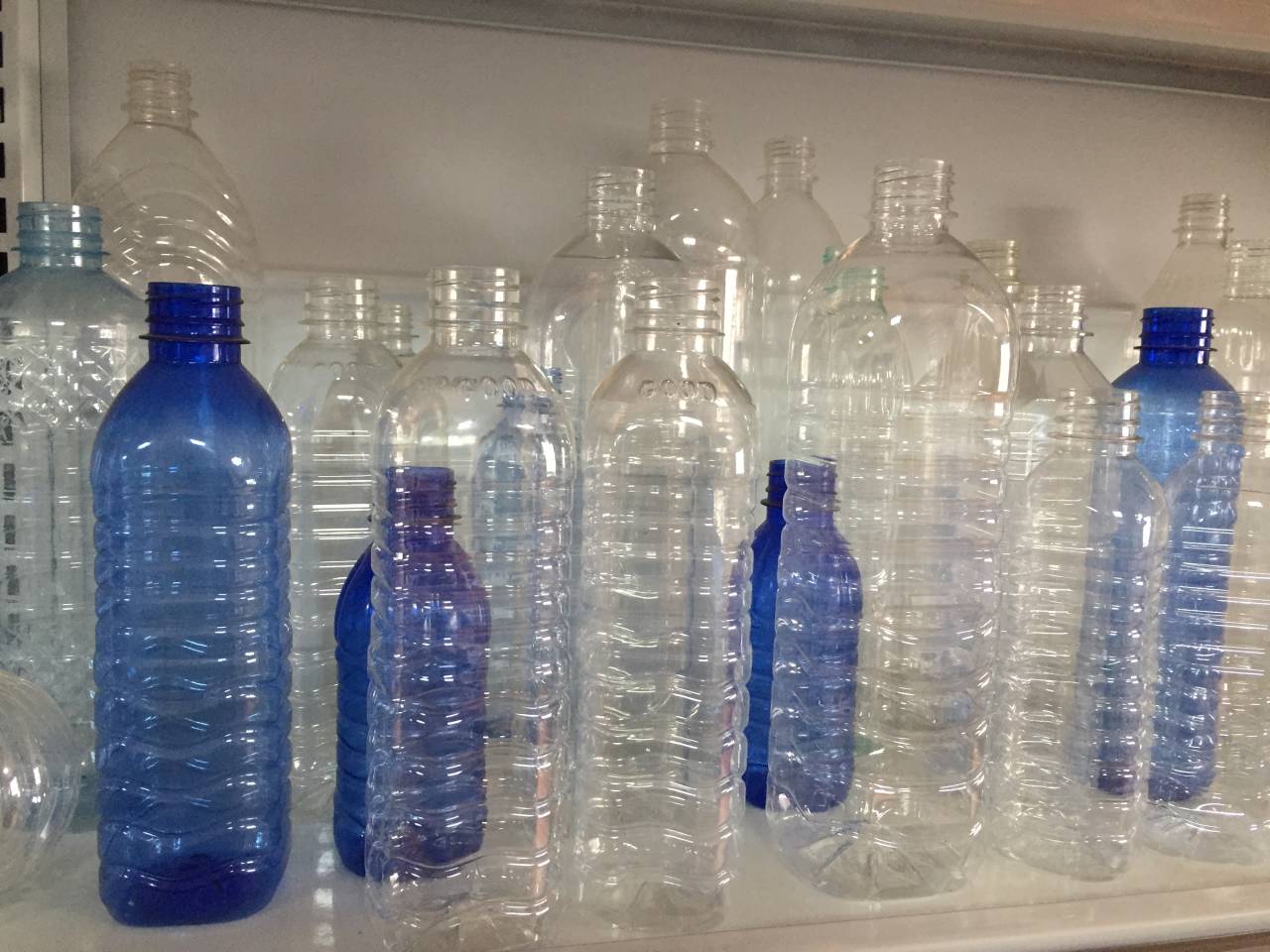

Our Designed Bottle Sample

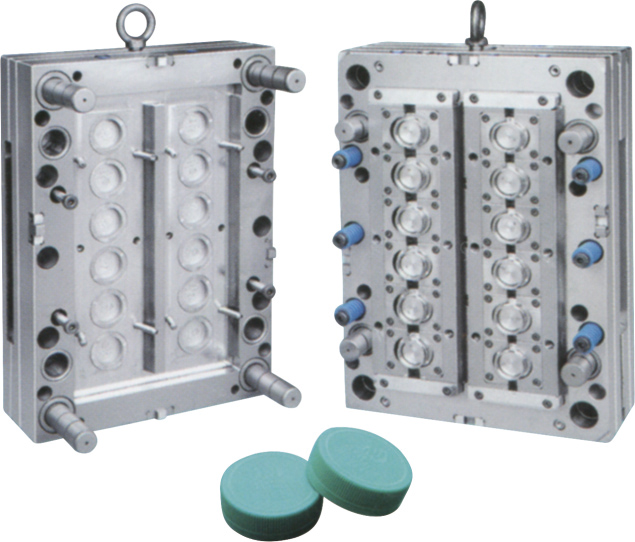

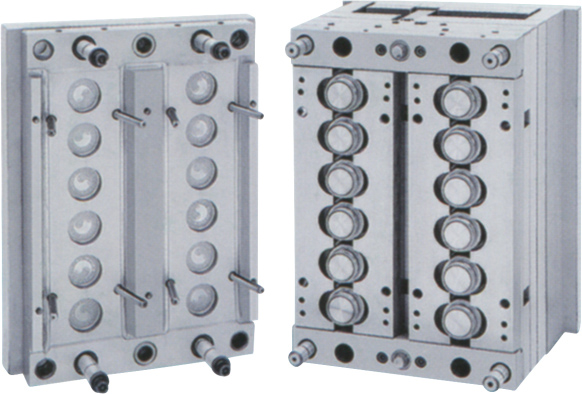

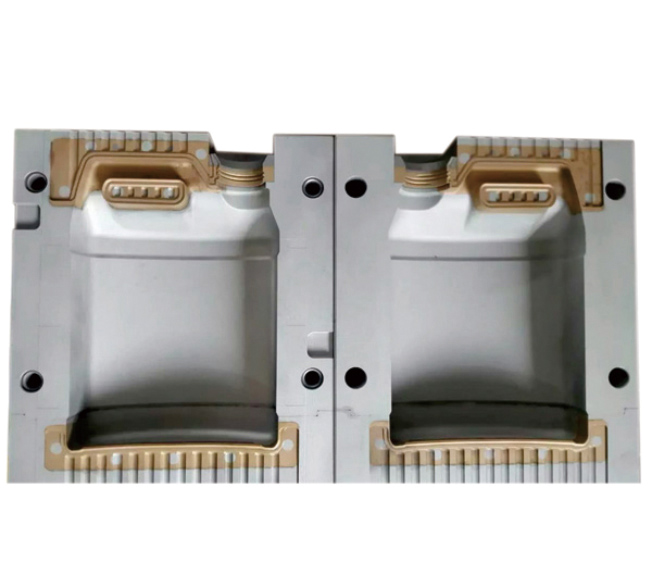

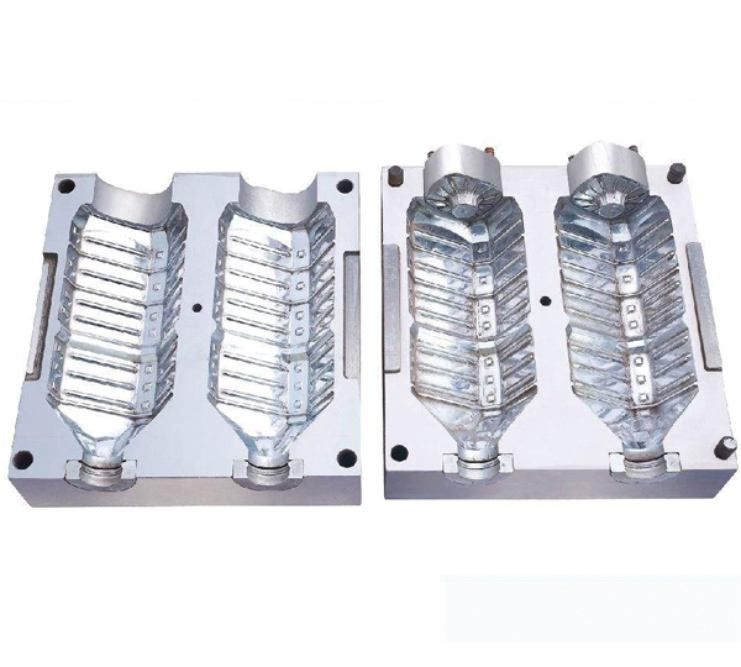

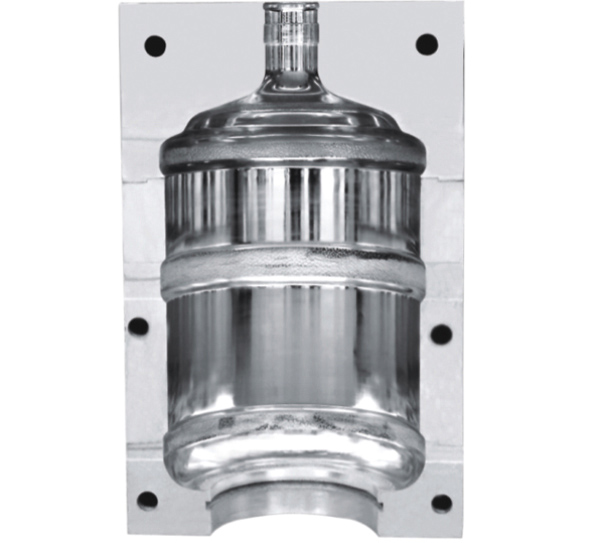

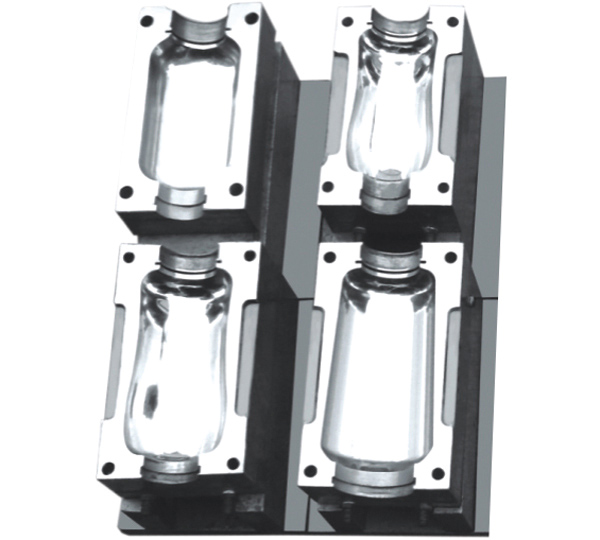

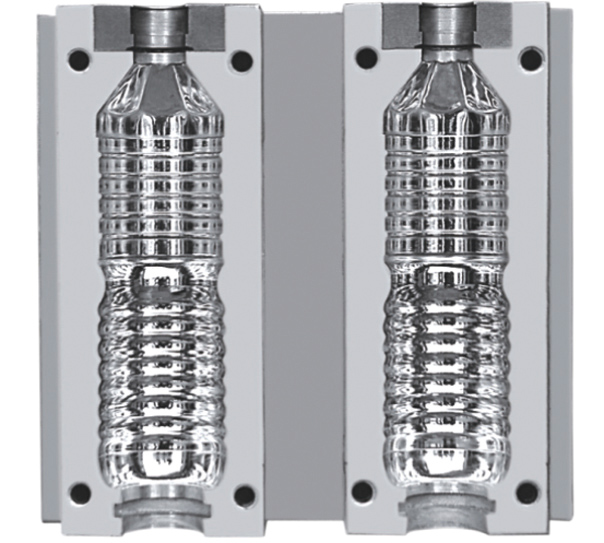

Mold

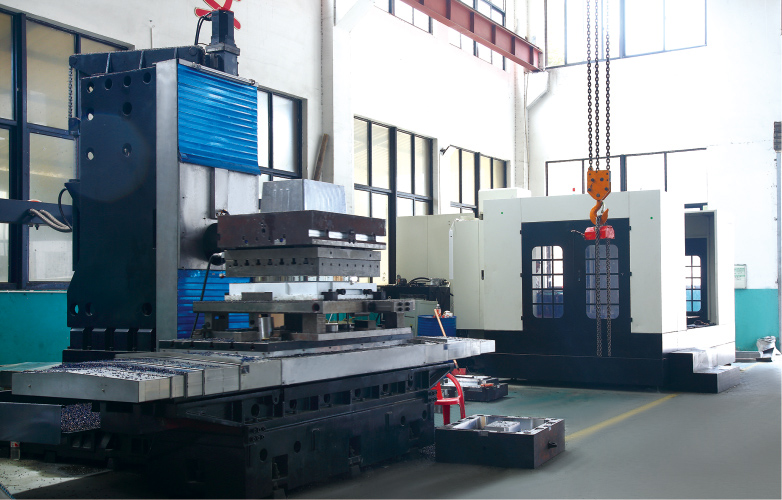

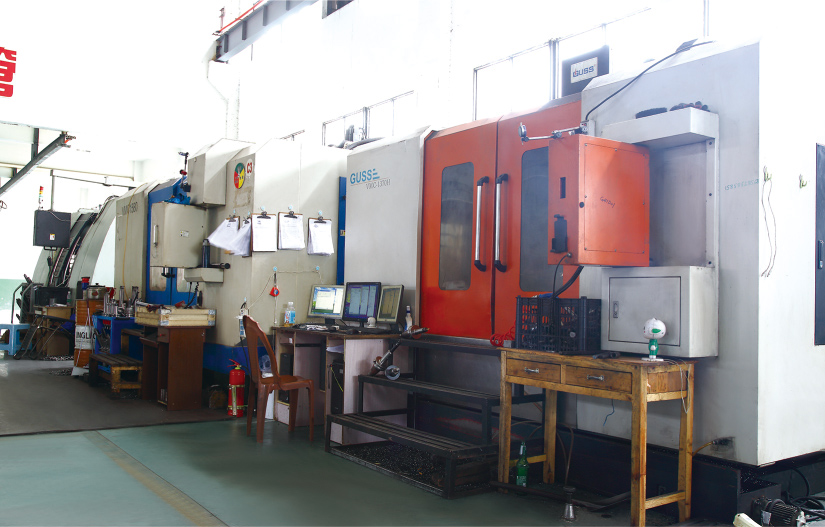

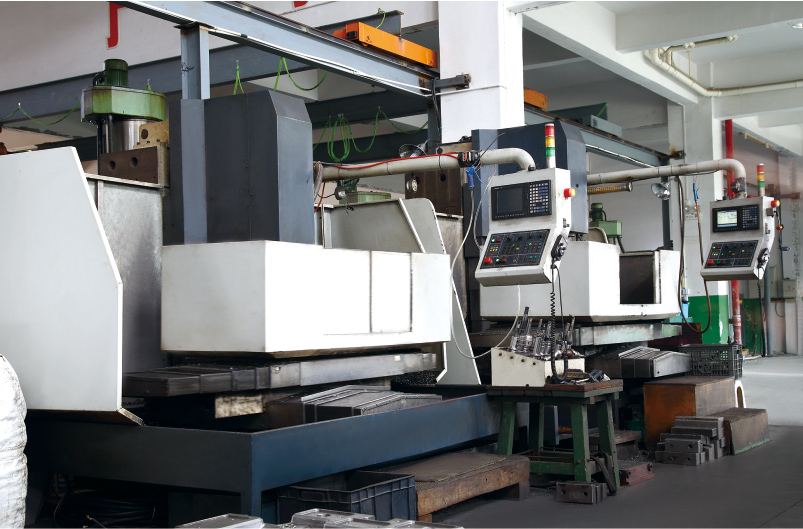

Manufacturing Technique

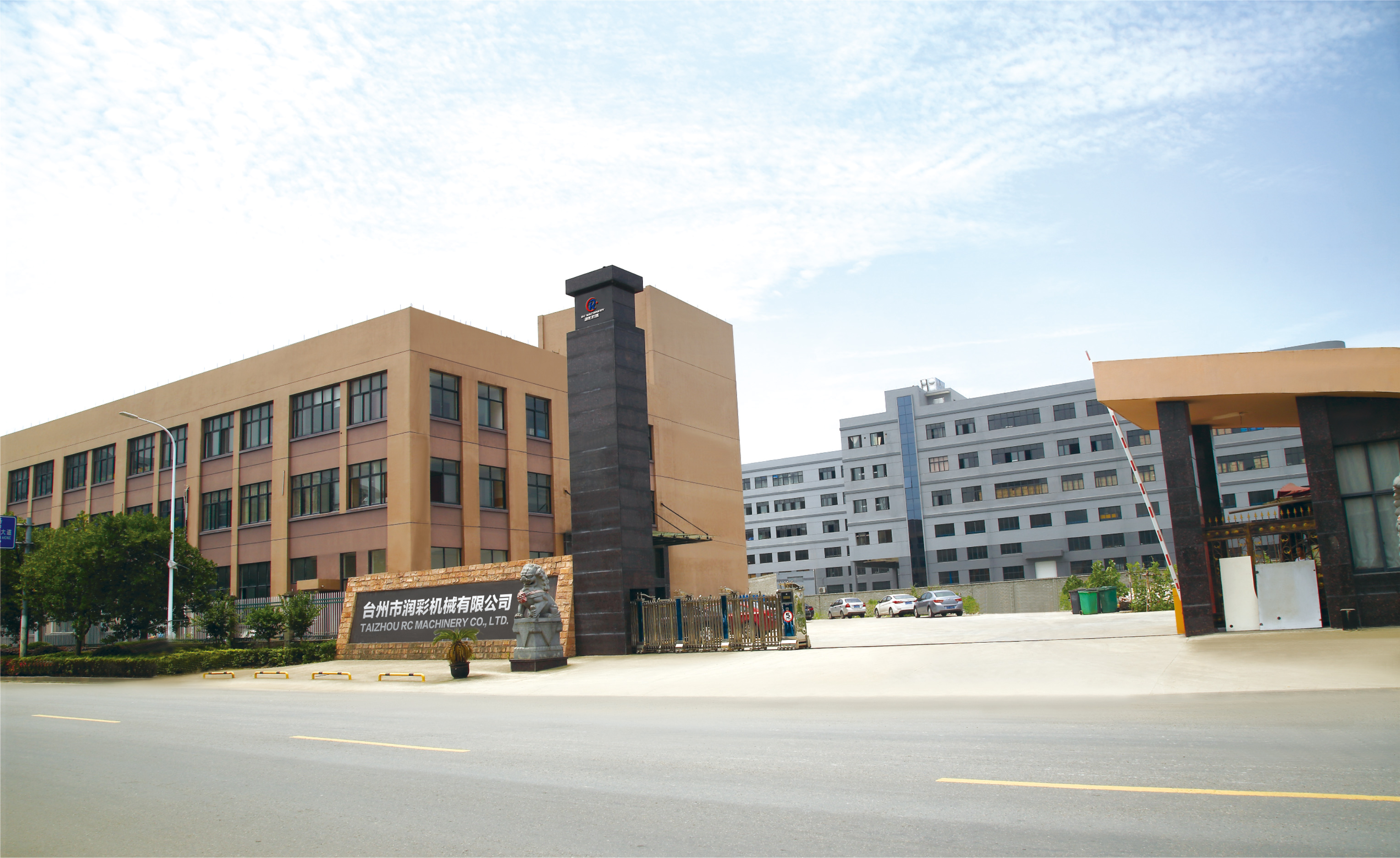

Company Profile
Taizhou RC Machinery Co., Ltd.
Is a company specializing in the research, development and manufacture of plastic bottle blowing machines, molds and related equipment. The Company relies on strong technical force, excellent production equipment, advanced detection instruments and a sound quality management system, products are exported around the world.
RC series blow molding machine are developed by our company with a simple kind of operation, energy saving and environmental protection, and wide applicability, reliable and stable plastic molding equipment. The equipment adopts well-known brand components from Germany, Japan, Taiwan and other countries. The series of blow molding machines are suitable for blowing and hollow molding of various plastic containers such as PET, PP, PC, PA, PS. The company also offers complete equipment solutions from injection molding, mold making, blow molding, filling and packaging.
The company adheres to advanced design concepts and superb production technology, and continuously improves and strengthens the testing methods, with high quality, high precision, convenient maintenance, stable performance, beautiful appearance and long life to one product. Good cost performance and perfect after-sales service have won the trust of customers. The products sell well all over the country and are exported to Europe, America, Middle East, Southeast Asia, Oceania and other countries and regions.
Welcome customers at home and abroad to come to inspection and guidance, and look forward to your cooperation! ! !
