Marine analog power factor meter measuring range 0.5C-1-0.5L

PRODUCT DETAIL
payment terms:L/C, T/T, Western Unionmodel:WDZ72-cos
Supply capacity:30000 pieces per monthport:Wuhan
Origin:Hubei, Chinadial:White
Measuring current range:0-5AWarranty:18 months
Operating temperature:-45---65℃brand:WDLYCH
structure:Dynamicproduct name:power factor meter
Material:ABS+transparent glassPackaging Details:Inner color box and outer standard export carton
level of accuracy:2.5%model:WDZ72-cos
Measuring voltage range:0-1000Vexhibit:simulation only
aspect:96X96mmaspect:72*72mm
Certificate:CCS/CE/ISO9001:2008accuracy:2.5%
introduce

 For single-phase or three-phase circuits, measure cos∅, 3P3W balanced load, 3P3W unbalanced load, 3P4W unbalanced load in power system.

application


WDLYCH series meters are direct acting indicating and analog electrical measuring instruments. Measure non-electricity measurements such as AC and DC current, voltage, frequency, power, power factor, phase sequence, synchrometer, position indication, network insulation monitoring, and running schedule.


It is mainly used in various AC and DC transmission and distribution systems, power control panels and electrical equipment in various industries such as ships, rail transit, aviation, chemical explosion protection, nuclear power, high and medium voltage equipment, generator sets and control engineering. It is a high-end instrument suitable for measuring electric energy/non-electric energy in complex environments.


Technical Parameters
thing
Technical data
international standard
technical standard
GB/T7676-1998
IEC60092-50
environmental standards
GB8355-1987
IEC92-504-74
safety standard
GB4793-20
IEC61010
Operating temperature
-40°C-65°C
temperature effect
-13-33°C, 100% conform to the accuracy class
Indicate angle
240-270° (synchronizer: 360°)
shell color
black/white, frame, terminal block: black
dial color
black/white, other colors on request
Install
vertical installation

aspect
110*110mm, 80*80mm
96*96mm, 72*72mm, 48*48mm
overshoot
Less than 20% when the scale reaches 2/3
Dielectric withstand voltage
Circuit and shell: AC2600V/1 minute (water area)
Vibration resistance
24.5 m/s2
Impact resistance
147 m/s2
Material
Housing/terminal board: ABS; Cover: clear glass

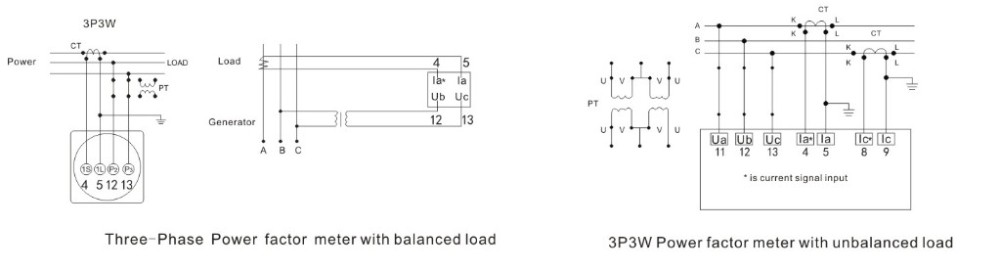

wiring diagram

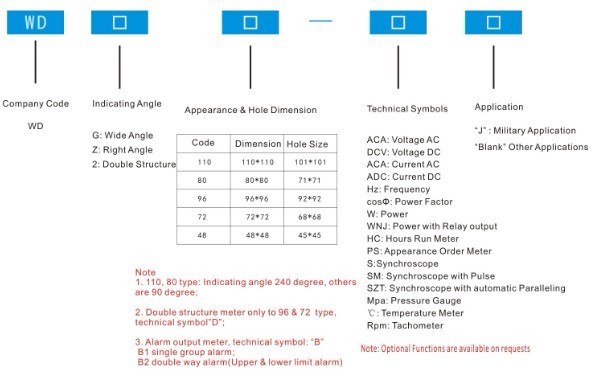

order code
research and development

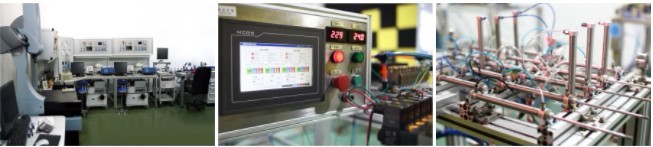

Weidian Union, as always, adheres to the core values ​​of "pursuing precision, perfection, and unity of thought and behavior". WDLYCH technology research has developed from a focus on mechanical processing to a more intensive, compact, and mechatronic integration. The first-class experimental installation and testing facilities provide a strong research and development platform for the continuous innovation and development of the power maintenance alliance.




Based on the rich experience and understanding in the field of industrial automation, Weidian joint technical team continues to upgrade and innovate electromechanical and pneumatic components, focusing on high-frequency, intelligent, and low-power technologies. Multi-function instruments, stern shaft tachometer, etc., are only to make all products more suitable for production, more suitable for the system, and achieve higher safety and stability.

Certificate
