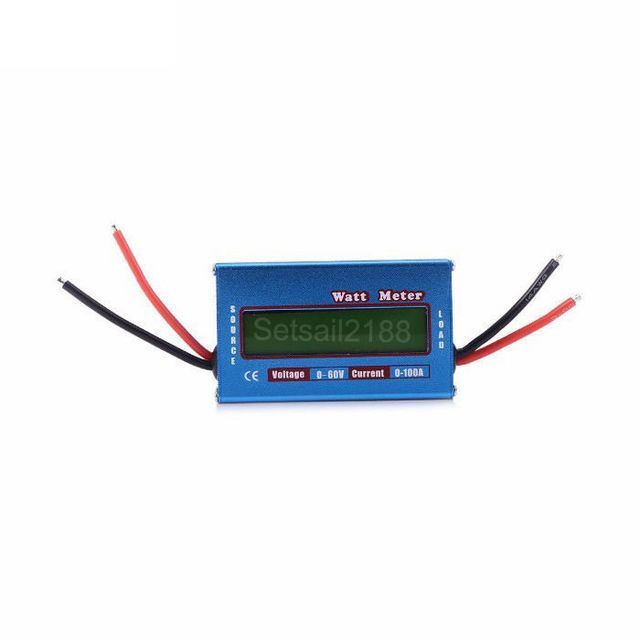

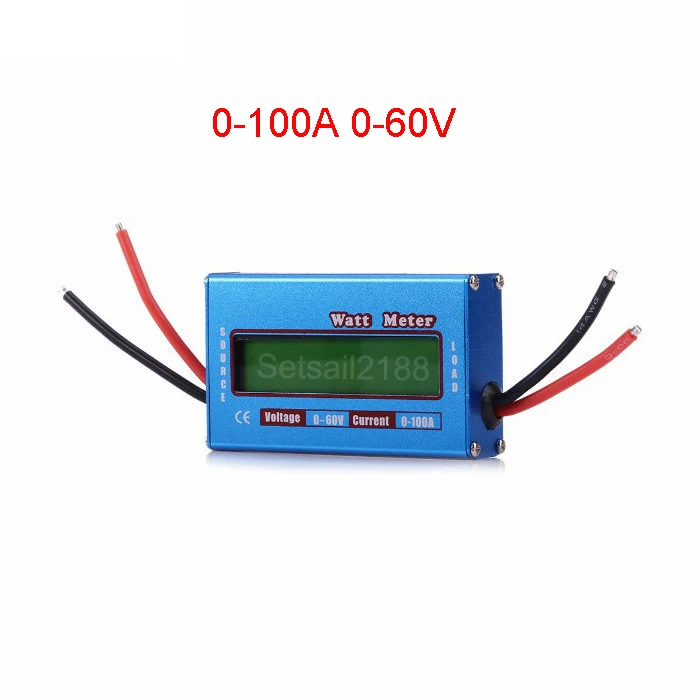

RC Battery Balance Power Analyzer Meter DC 100A 0-100A 0-60V Watt Volt Amp Meter Check for Helicopter Airplane

PRODUCT DETAIL
type:Energy meter;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal RMB;
Dimensions:8.3x4.7x2cm;Measuring Current Range:DCC 0-100A;
Brand Name:Setsail2188;Accuracy Class:1%;
voltage:0-60V;Measuring Voltage Range:DC 0-60V;
Accept Customized:yes;Supply Ability:10000 Pieces per Week;
Model Number:BT99C;Packaging Detail:yes;
Place of Origin:Guangdong, China;Test power:0-6554W;
style:Power meter;capacity:0-65Ah;
current:0-100A;Port:shenzhen;
Operating Temperature:-20~+60;Energy:0-6441Wh;

RC Battery Balance Power Analyzer Meter DC 0-100A 0-60V Watt Volt Amp Meter Check for Helicopter Airplane



Note:1.we have Lead acid battery tester 6-120V.

          2.we have Lithium Tattery tester board 1s-28s

          3.we also have Digital Energy Power meter battery capacity tester.

                              DC 6.5-100V  10A 50A 100A              AC  80~260V 10A 50A 100A





Features:



Digital LCD screen gives clear crisp number readings.
Handles up to 100A intermittently and 50A continuous duty.
Connecting load end to the battery provides real-time battery charging reading.
Handles 0 to 60 volts. Works on 12, 24, 36, and 48v battery bank systems.
Extremely low power consumption of 7 mA. More efficient than any LED meter.
Measure energy(Wh),charge(ah), power(w),current(A) and voltage(V).
Accurate & precise 0.01 A current and 0.01 V voltage resolutions.
Measures-peak-Amps, peak-Watts(except for Doc Wattson) and Voltage minimum(sag).
Rugged- handles 50A continuous and 100 A-peak at 60V.
Acts like a wire so doesn't affect model's performance. Precision Alu-Chrom current
sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7 mA.
Uses DSP to increase ADC resolution and differential measurement amplifiers to increase
noise immunity.



Specifications:



Color: Blue
Voltage: 0-4V-60V 0.01V Resolution
Current: 0-100A peak 0.01A Resolution
Power: 0-6554W 0.1W Resolution
Charge: 0-65Ah 0.001Ah Resolution
Energy: 0-6554Wh 0.1Wh Resolution
Measurement Update period: 400mS
Signal Sampling Rate: sample/s
Data Queue Sequence time: 2 seconds
In Circuit Resistance: 0.001 Ohms
Operation Current: 7mA
Auxiliary Power Voltage: 4.0V ~ 60V

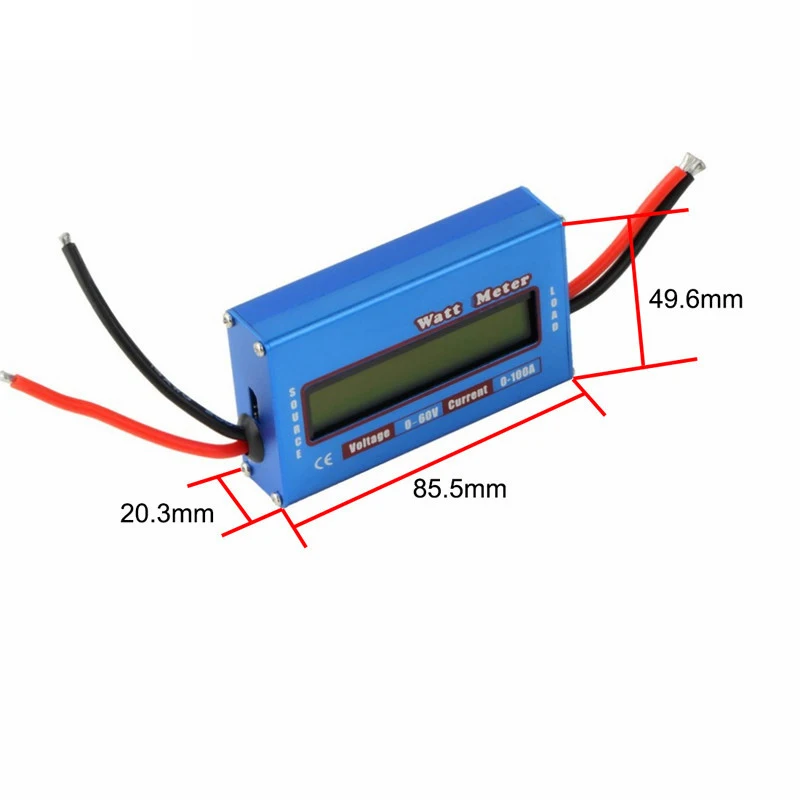

Size: 8.3x4.7x2cm / 3.3"x1.9"x0.8"



Package includes:
1 x Watt Meter



if you need this one,pls contact with me.
