Mini Electric Magnet 12V 20Kg 25kg Lifting Electromagnet 24v Thin DC Rectangular Electromagnet

Price:$30.00 / 2 - 19 pieces
$25.00 / 20 - 199 pieces
$18.00 / 200 - 499 pieces
$8.00 / >=500 pieces
Min. Order:2 pieces
Supplier:Zhongshan Landa Solenoid Co., Ltd.
Region:Guangdong, China
Contact:Ms Miracle Wang

PRODUCT DETAIL

Mechanical test report:	Not available	Voltage:	12v 24v
Marketing Type:	New Products 2020	Weight (kg):	0.32 kg
Dimensions (LWH):	1003017mm	Video external inspection:	if
Core components:	Steel and enameled wire	Warranty:	1 year
brand:	Randa	Holding Force (N):	180-220
Material:	Steel + Magnetic Coil	payment terms:	wire transfer, paypal
Operating mode:	holding type	Packaging Details:	Standard export carton
Supply capacity:	50,000 pieces per month	Core Components Warranty:	1 year
product name:	20kg electromagnet	port:	FOB Zhongshan
Showroom location:	not any	Health status:	new
place of origin; place of origin:	Guangdong, China	Rated power (W):	5-9
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies

Mini electromagnet 12V 20Kg 25kg 30kg Lifting electromagnet 24v Thin DC rectangular electromagnet

Product Description

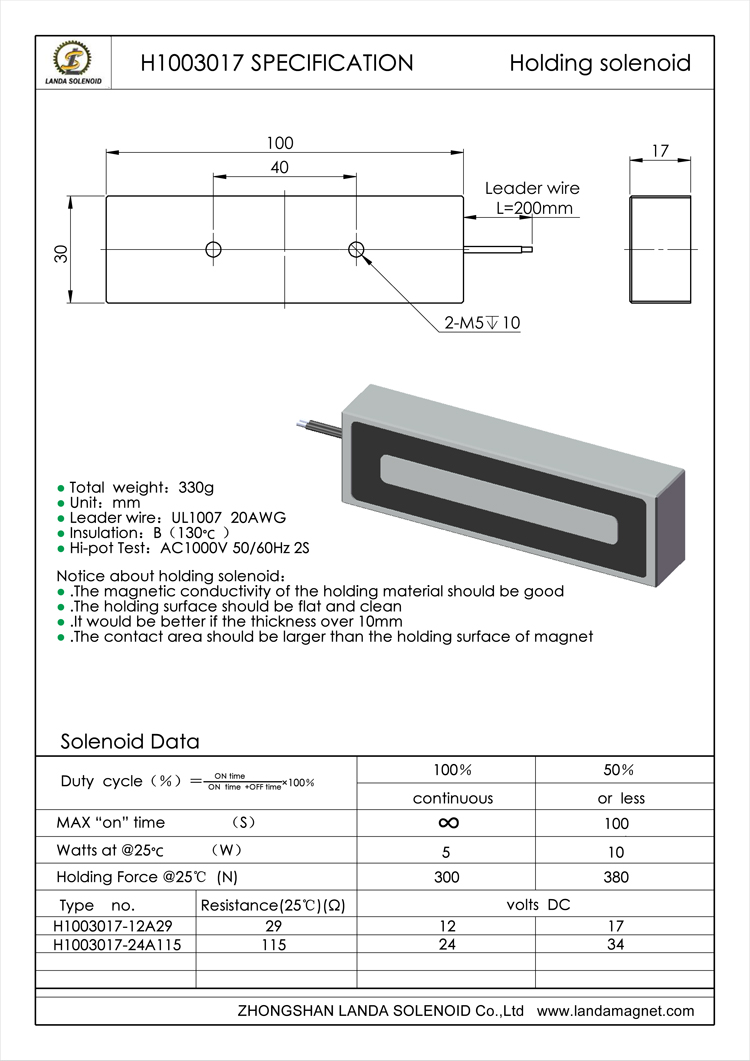

Specification
Card	Randa	product name	Rectangular Electromagnet
Model	H1003017	Rated voltage	DC 12v 24v
strength	5w	strength	300N
waterproof level	IP65	duty cycle	100%
cable length	200mm	Material	Metal, Electronic Parts
Action form	holding type	Weight (NW)	0.33kg

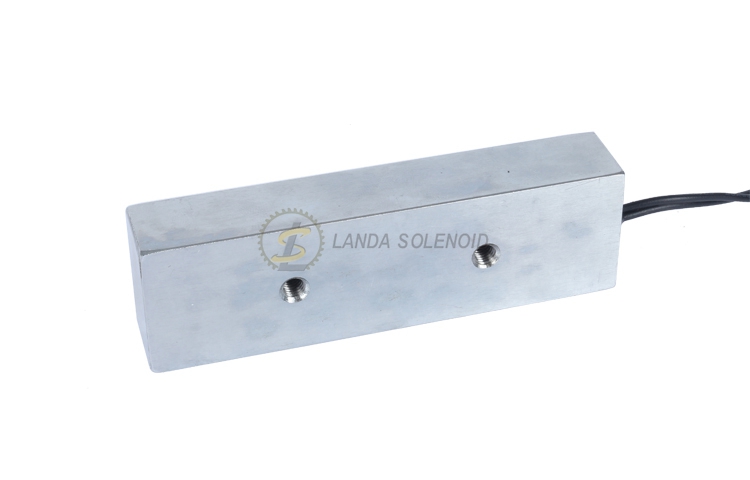

Installation method	tighten	Thread size and depth (mm)	2-M5,10
Pressure test	AC 600V 50/60Hz 2s	Insulation level	Second
Packaging Details
body size	1003017(mm)	Carton Size (Standard)	350310180(mm), customized

Features

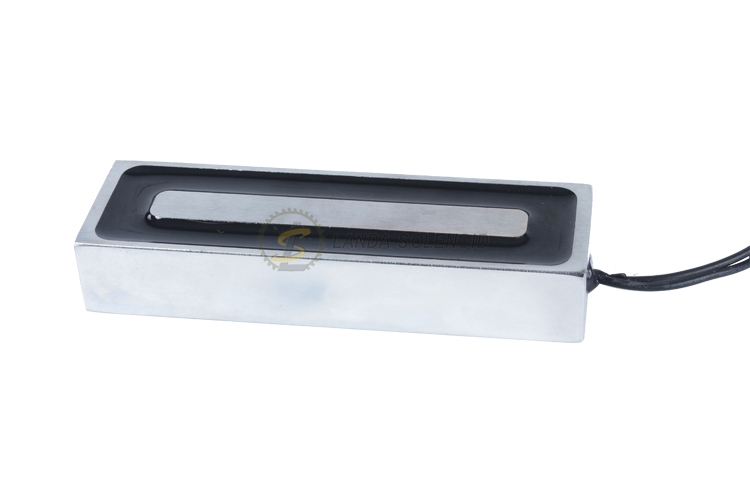

Rectangular Electromagnet

1. Wafer type, rectangular, mini size, IP65 waterproof, DC electromagnet.

2. Electromagnets need to be energized to generate suction, and are widely used in the clamping of ferromagnetic workpieces in machining or assembly processes, safety mechanisms, selection devices in textile machinery, door lock and stop devices, etc.

3. Power-on hold, release power-off. We also offer optional spring loaded thimbles to overcome residual magnetism, and optional armature plates as magnetic counterparts for optimum performance.

4. Customized shapes and energized release electromagnets are also available

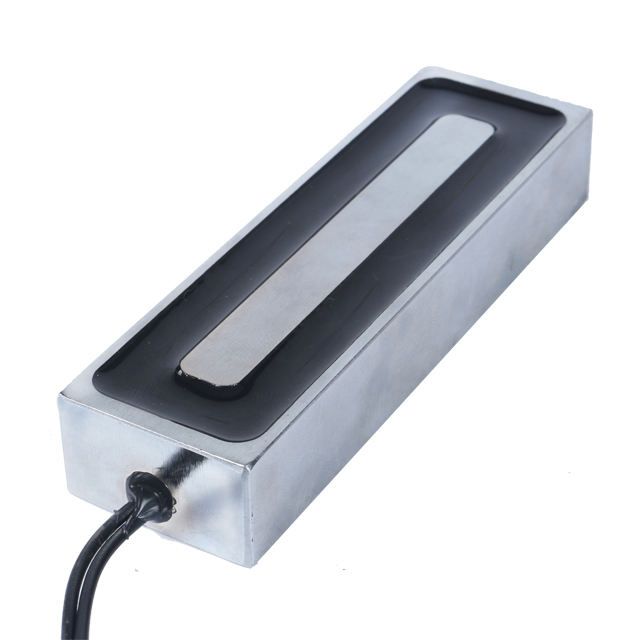

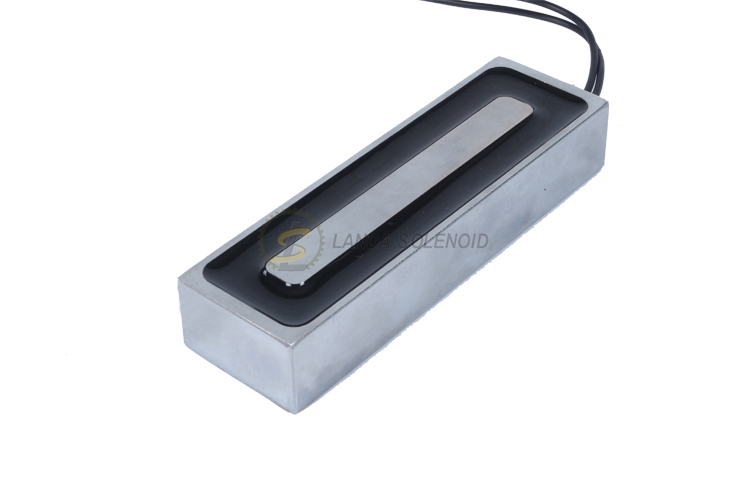

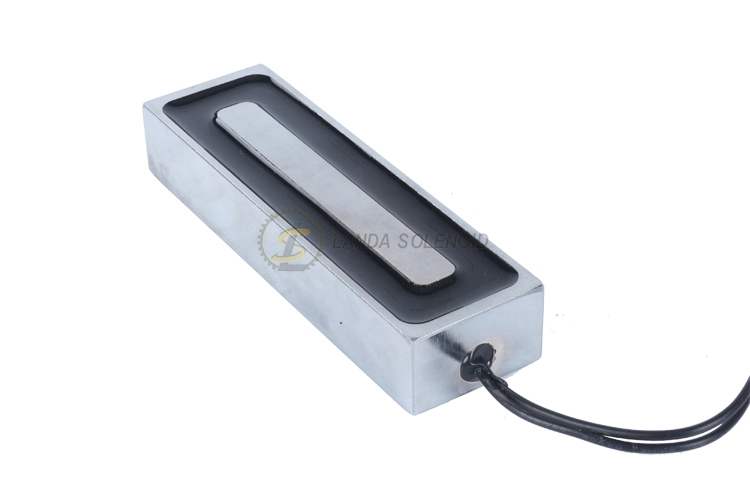

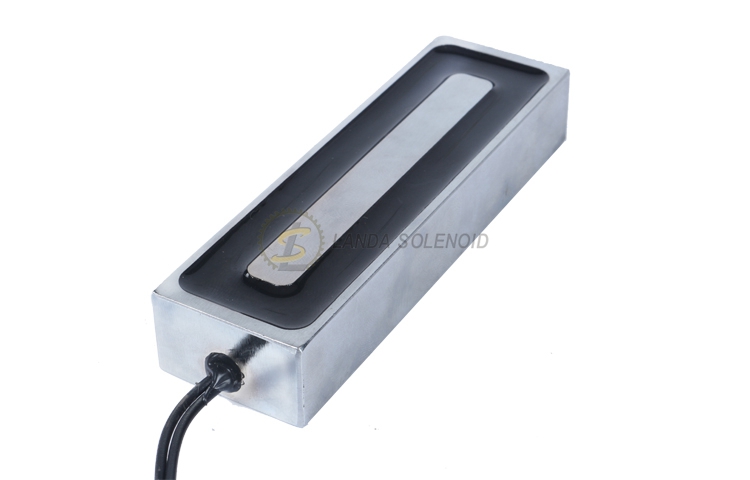

detailed image
