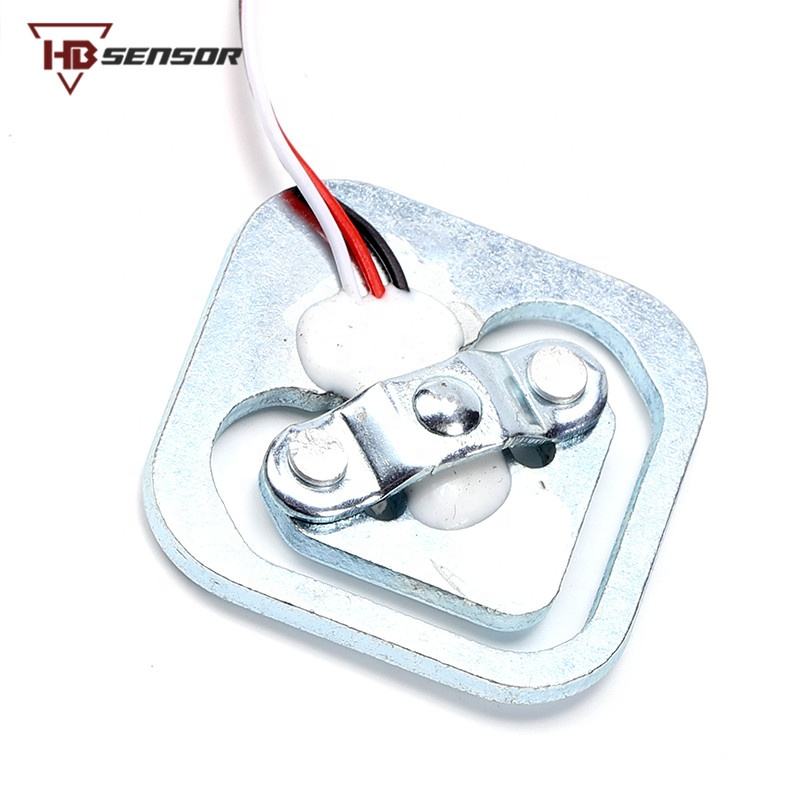

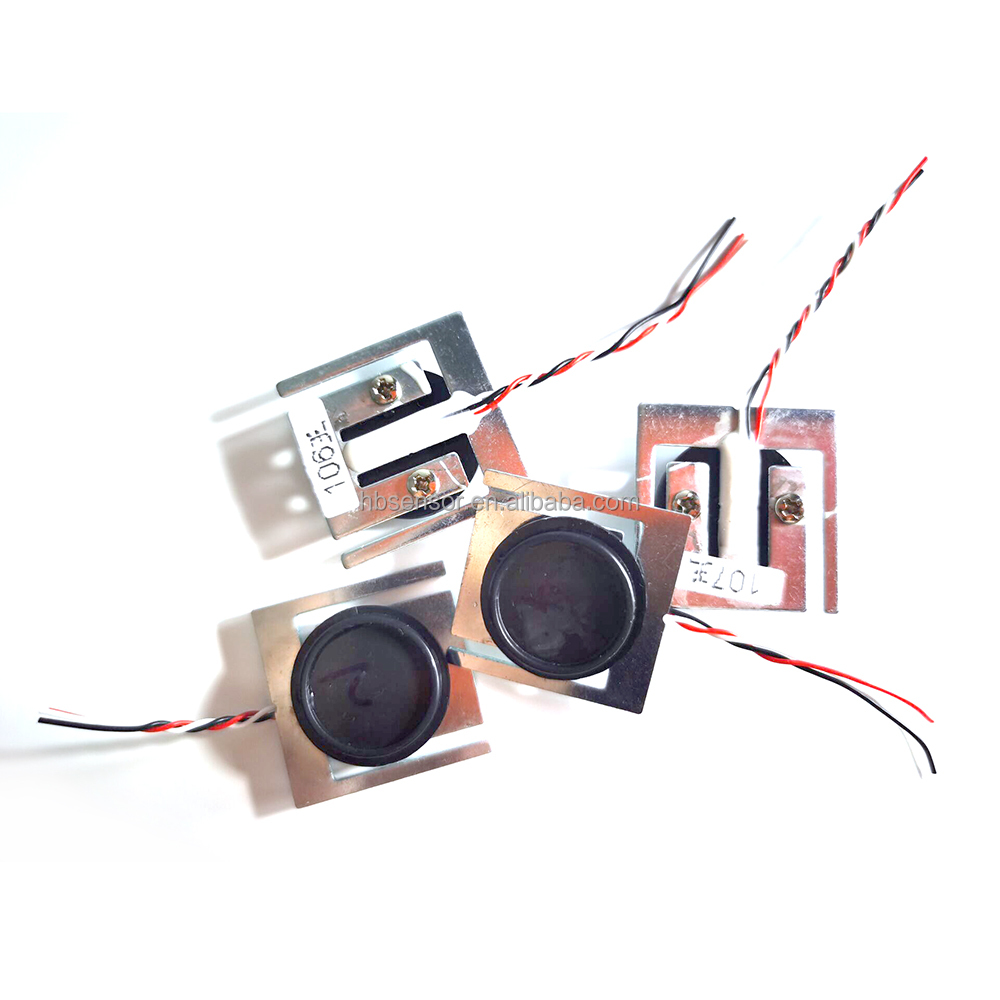

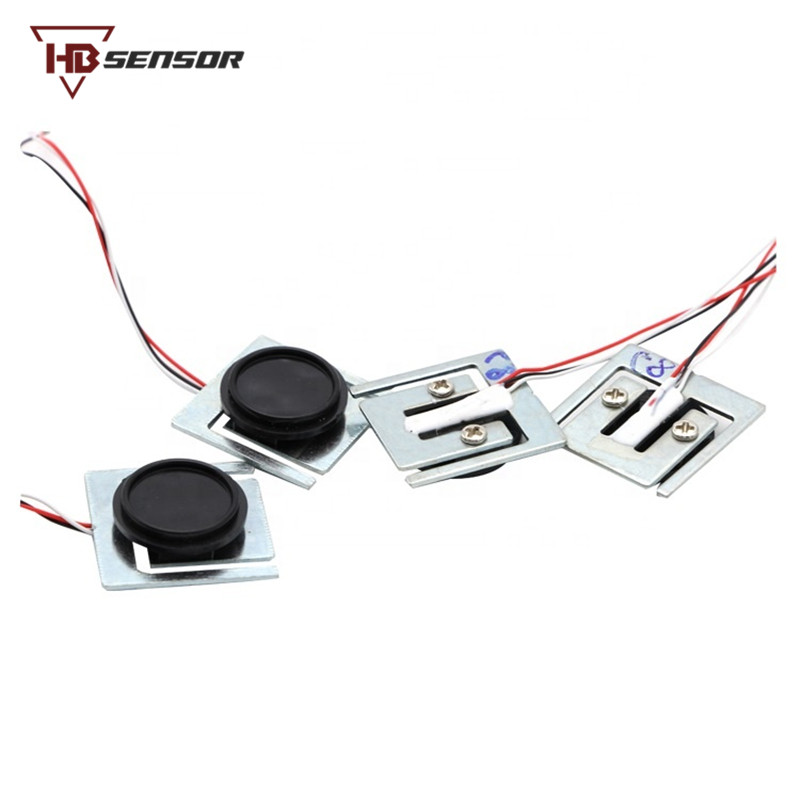

Miniature micro weighting load cells 1kg ,2kg ,4kg ,7.5kg for kitchen scales with micro weighting device .
- $3.90 / 10 - 499 pieces
$2.50 / 500 - 999 pieces
$1.50 / 1000 - 4999 pieces
$0.90 / >=5000 pieces - 10 pieces
- Dongguan Haibo Electric Measurement Technology Co., Ltd.
- Guangdong, China
- Ms Tian Alice
PRODUCT DETAIL
| wire: | flat or wire; | Color: | white; |
| Usage: | Weighting; | Theory: | fore preesure to load cells have output signal; |
| Material: | Aluminum Alloy; | Connector: | Brand; |
| Type: | Load Cell; | Package Preview: | ; |
| Brand Name: | HB; | Gross weight per batch: | 0.500 KG; |
| Description: | LOAD CELLS; | Output: | 2.0±0.02; |
| Place of Origin: | Guangdong, China; | Selling Units: | Multiple of 1; |
| Package size per batch: | 3X3X2 cm; | Packaging Detail: | Cartons; |
| Model Number: | HB913EC01; |
Features:

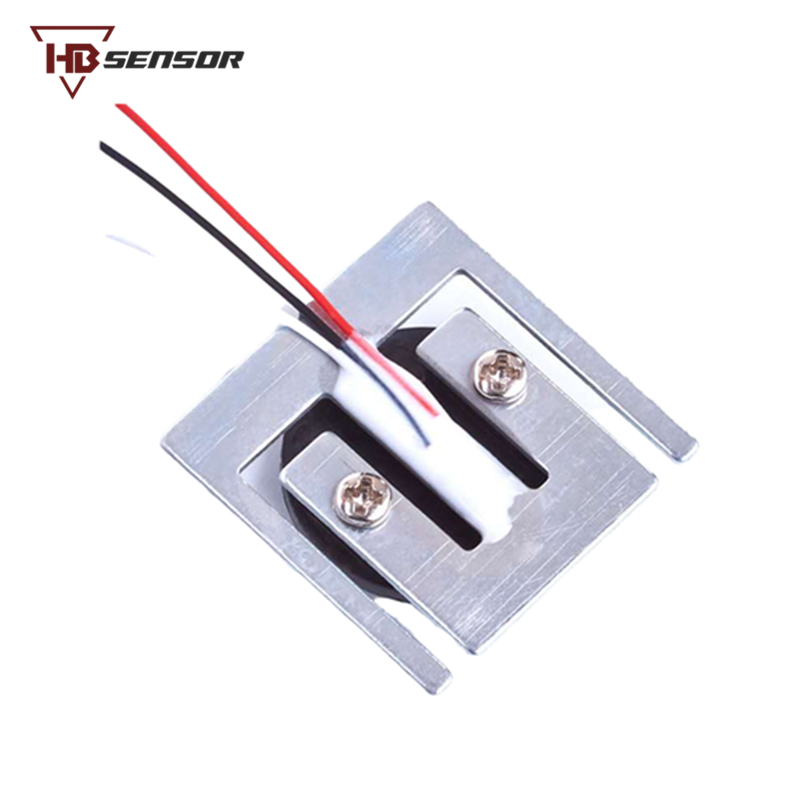

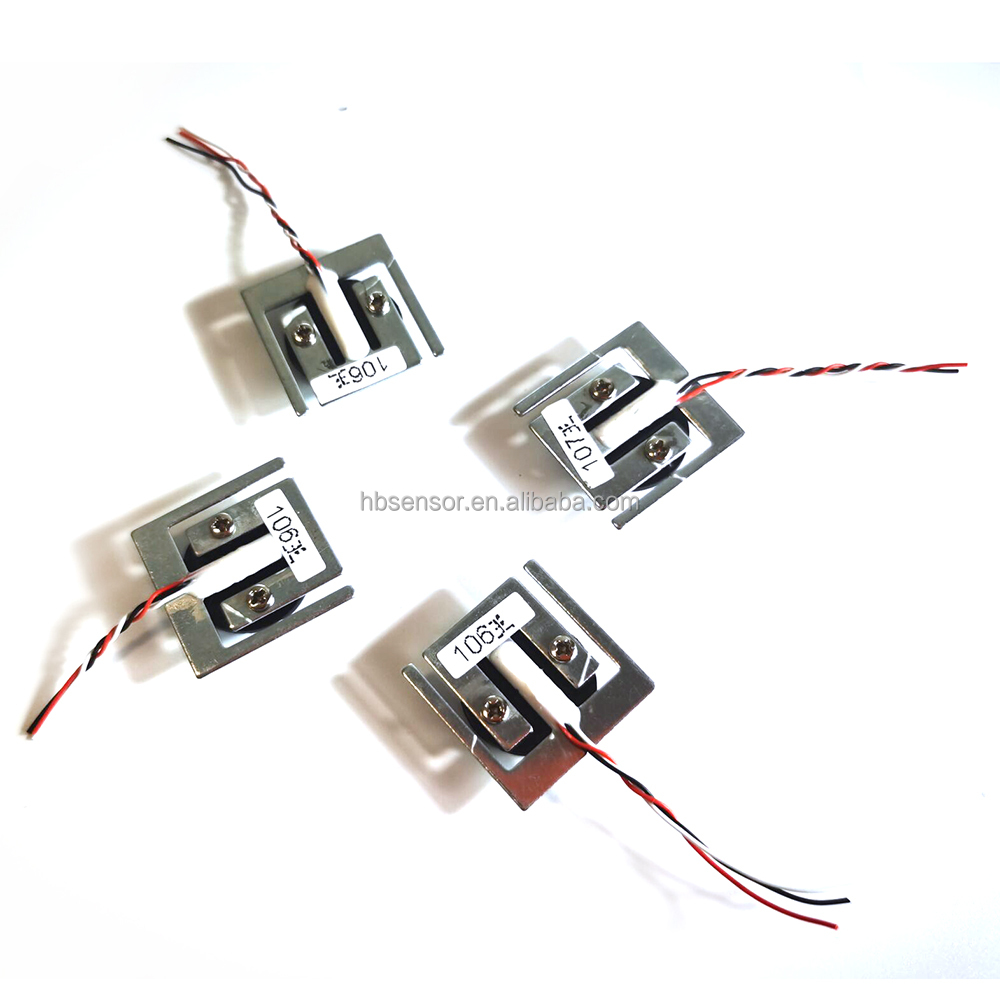

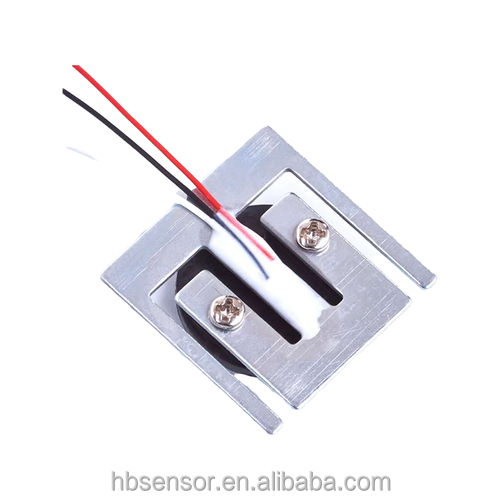

HB91EC is a low profile miniature small micro load cell with aluminum alloy construction and surface anodized, suitable for a wide range 4kg-7.5kg of retail scales. Apply for：
Aluminum alloy constructionCompact Design
Easy to install
Long term, reliable operation
Rated Capacities | 4-7.5kg | Temperature Effect On Output | 0.003 %R.O./℃ |
Rated Output | 2.0 mV/V±10% | Temperature Effect On Output | 0.002 %R.O./℃ |
Zero Balance | ±1.0 %FS | Temperature Effect On Zero | 0.003 %R.O./℃ |
Non-linearity | 0.02 %R.O. | Input Impedance | 410±15 Ω |
Hysteresis | 0.02 %R.O. | Output Impedance | 350±3 Ω |
Repeatability | 0.02 %R.O. | Insulation Impedance | ≥5000 MΩ/(100VDC) |
30mins Creep | 0.02 %R.O. | Recommended Excitation | 9~12 VDC |
Safe Overload | 120 %R.O. | Maximum Excitation | 12VDC |
Ultimate Overload | 150 %R.O. | OperatingTemperatureRange | -10~40 ℃ |
Protection Class | IP65 | Cable | Wire&Flat Cable |
At Haibo are manufacture load cells to suit all capabilities. Our expertise has provided insight and load cell solutions for a range of customers and industries. Our engineering team's philosophy ensures we do everything humanly and technologically possible to match your requirements with quality, cost and delivery and with the highest attention to detail at all stages. Whether it is through the design stage, engineering stage, on through hundreds of tests run daily, we ensure that our products outshine all competitor products.
Are you a manufacture ?
Yes ,our industry in DongGuan City.
Yes .
Before shipping will testing load cells ?
Yes .We have QA team .
Acceptable customized ?
YES ,OEM/ODM
Acceptable samples order?
Yes .Not MOQ.
