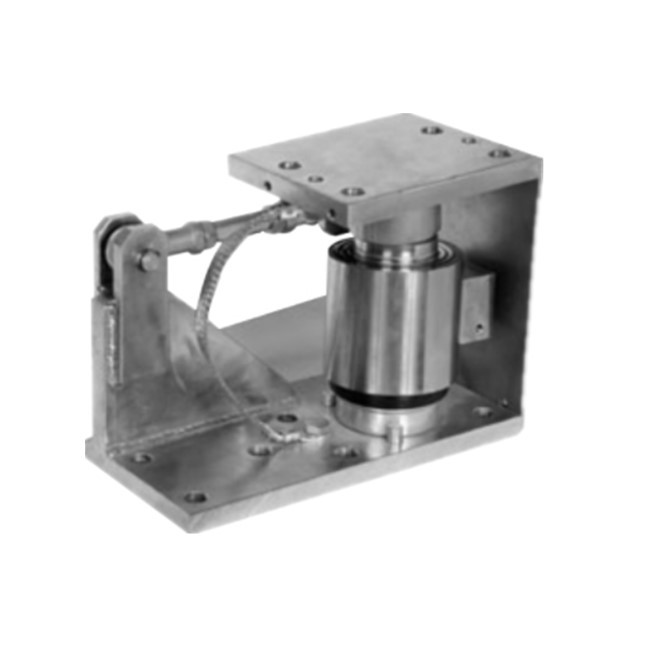

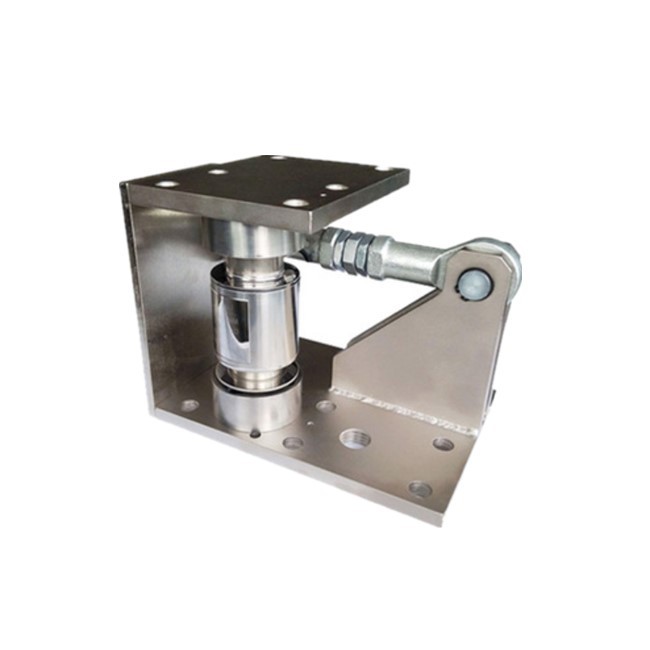

Module Load Cell For Tank Weighing Silo Weighing
- $100.00 /set
- 1 set
- Taian Zhonghang Weighing Apparatus Co., Ltd.
- Shandong, China
- Ms Ivy zhao
| Certificate: | ISO 9001; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Port: | Qingdao port; | Output: | Digital Sensor; |
| Theory: | Resistance Sensor; | Brand Name: | zhonghang; |
| Packaging Detail: | Packaging Details:Foam and carton; | Maximum Excitation Voltage: | 24V(AC or DC); |
| Capacity: | 10t 20t 30t 40t; | Material: | Alloy Steel; |
| Usage: | PRESSURE SENSOR; | Supply Ability: | 1500 Sets per Month; |
| Safe Overload: | 150%F.S.; | Total Error: | ±0.02%F.S.; |
| Product name: | spoke type load cell; | Function: | pression sensor; |
| Model Number: | load cell; | Rated Output: | 2.0000±0.001Mv/v; |
| Zero Balance: | ±1%F.S.; | Place of Origin: | China; |
Module Load Cell For Tank Weighing Silo Weighing
Rated Load | 10t~40t |
Rated Output | 2.0000±0.001Mv/v |
Total Error | ±0.02%F.S. |
Creep(30minutes) | ±0.02%F.S. |
Recommended Excitation Voltage | 5V-18V(AC or DC) |
Maximum Excitation Voltage | 24V(AC or DC) |
Zero Balance | ±1%F.S. |
Input Impedance | 380±10Ω |
Output Impedance | 350±5Ω |
Insulation Impedance | ≥5000MΩ |
Safe Overload | 150%F.S. |
Ultimate Overload | 200%F.S. |
Operating Temperature Range | (-30~+70)℃ |
Temperature Effect On Load | ±0.02%F.S./10℃ |
Compensated Temperature Range | (-20~+60)℃ |
Temperature Effect On Zero | ±0.02%F.S./10℃ |
Construction | Alloy Steel/Aluminum |
Protection Class | IP68&IP67 |
Citation | GB/T7551-2008/OIML R60 |
Mode of Connection | Input+: Red Input+: Black Output+: Green Output+: White |
Our Company.
Taian Zhonghang weighing Apparatus Co., Ltd is a professional large-scale manufacturer of industrial weighing equipment in China. Our main products include intelligent electronic truck scales, electronic pitless scales, OCS electronic hanging scales and electronic platform scales,electronic floor scale,crane scale,load cell. we have been operating in strict accordance with the ISO9001 standard, and we totally guarantee that all products meet related international industrial stipulations.

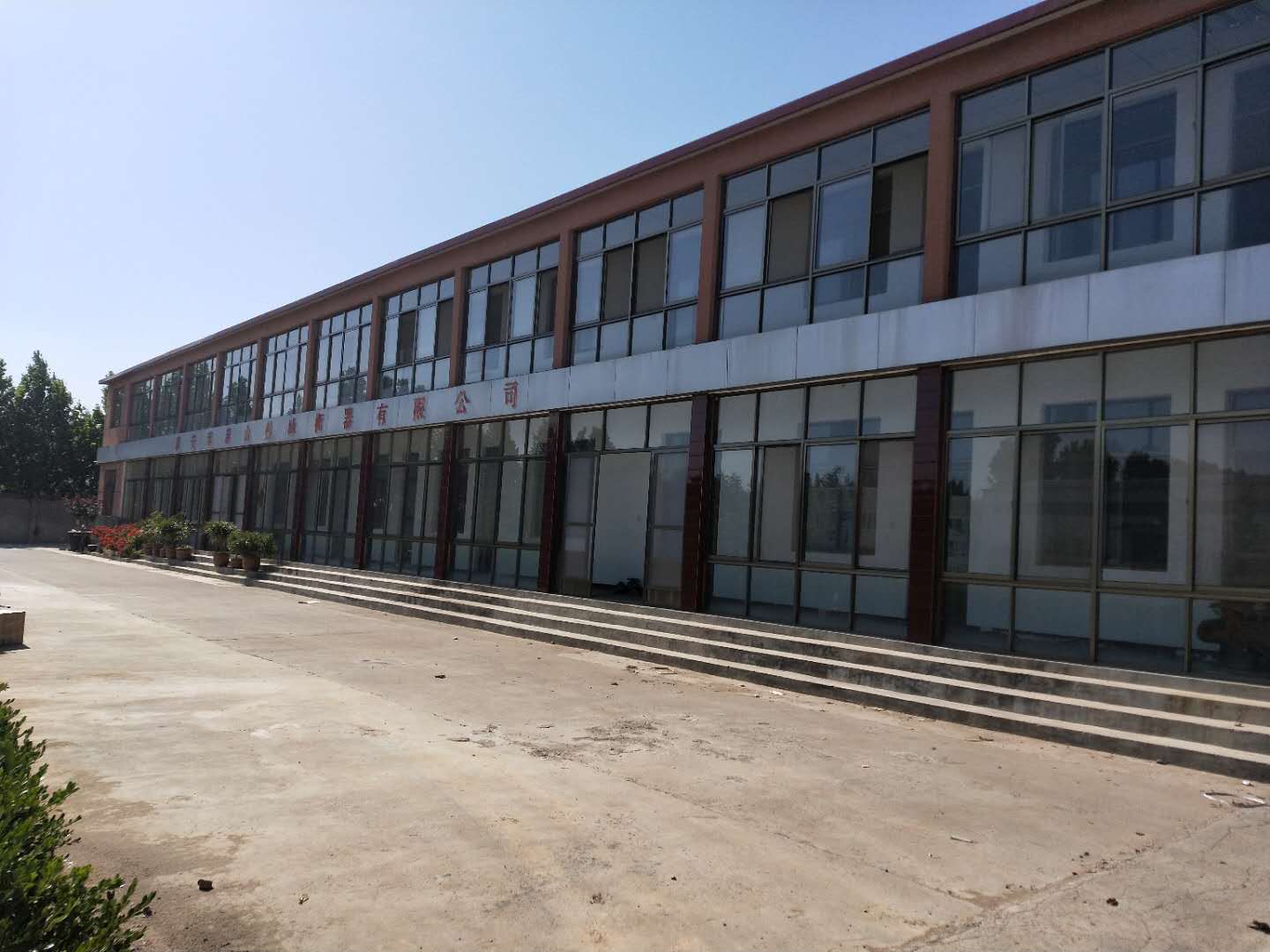

Our Factory.
The company has its own factory in Taian, which has more than 15 years experience in production; Our Company has more than 10 sets of advanced production and testing equipment to ensuring the product quality. With a wide range, good quality, reasonable prices and stylish designs, our products are popular in both overseas and domestic market.
1.Are you a manufacturer?
Yes, we are a manufacturer, and we can provide the competitive price and good quality.
2.Will you have some discount?
Yes, we will provide a good discount to customers who bring repeat orders or large orders.
3.What's the payment methods?
We accept T/T, Paypal ,Western Union,and Alibaba Trade Assurance etc.
4.What is the delivery time?
Within 15-25days after receipt of your deposit.
5.Do you test all your goods before delivery?
Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards.
If you are interested in our machine,please feel free to send message with us, I'll reply as soon as possible.
