Motor winding machine Transformer transformer automatic winding machine

PRODUCT DETAIL
After-sales service provided:On-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support, free spare partspayment terms:L/C, T/T
Package preview:Origin:China Shanghai
Local service location:not anyHealth status:new
Packaging Details:General packing listSupply capacity:20 sets per year
Material:other copperAfter warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services
Showroom location:not anyport:Shanghai Port
brand:TongliCNC or not:CNC
Warranty:1 yearWeight (kg):1200
Main selling points:automaticApplicable industries:Machinery repair shop, manufacturing plant
product display

product display

Product parameters

Product parameters

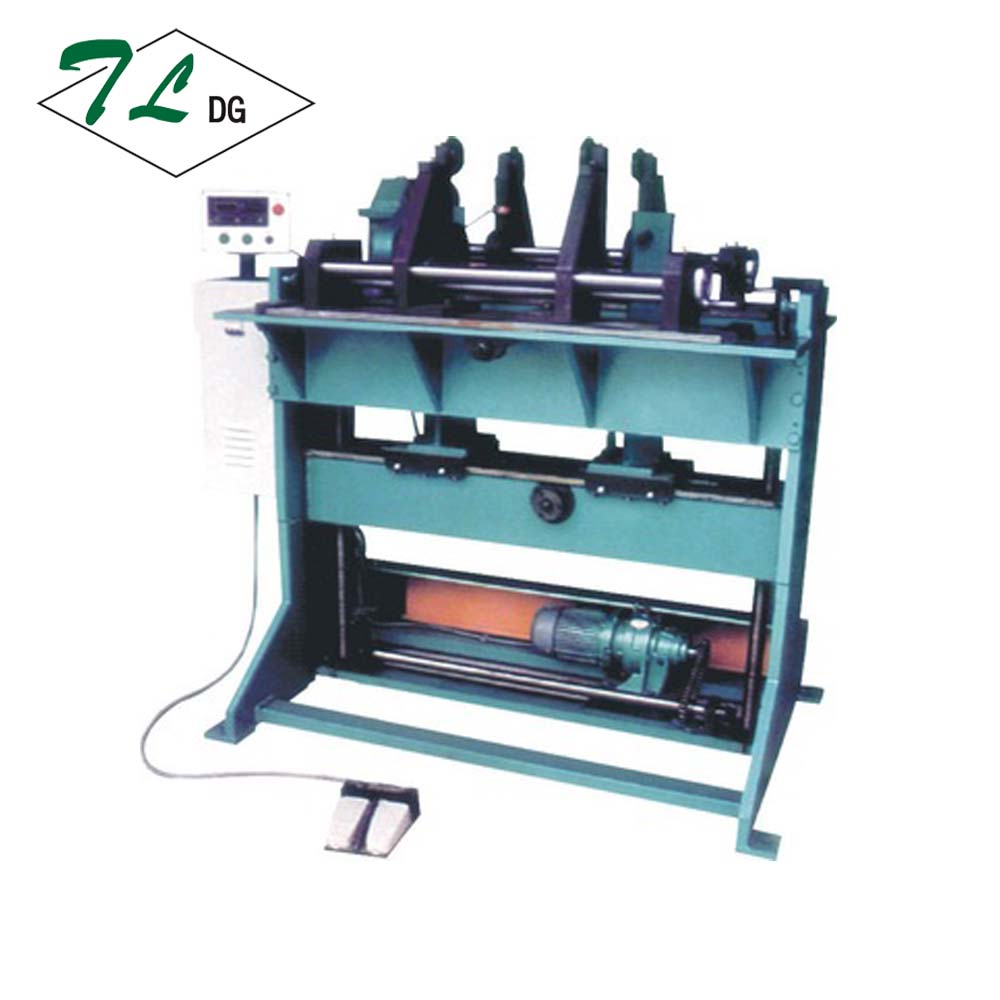

JTR rolling core winding machine can wind S11R30~800KVA transformer core. The machine is reasonable in design and simple in structure. After the iron cores are aligned, the machine easily completes the tasks of clamping and positioning. The machine lifts smoothly, and can complete the winding work of high and low voltage coils in one operation. Imported frequency converter is used for speed regulation, and the power transmission is smooth. The machine has low noise, reversible calculation, good braking performance and long-lasting winding quality.



thing

parameter

Specified core capacity

S11R 30~800KVA

Winding speed

0~250 rpm

Rewinding width (maximum)

700mm

maximum load

2000 kg

workstation lift

≤760mm

Dimensions

168X1000X1700 mm

gross weight

1200 kg

Motor total power

3.75 kW
