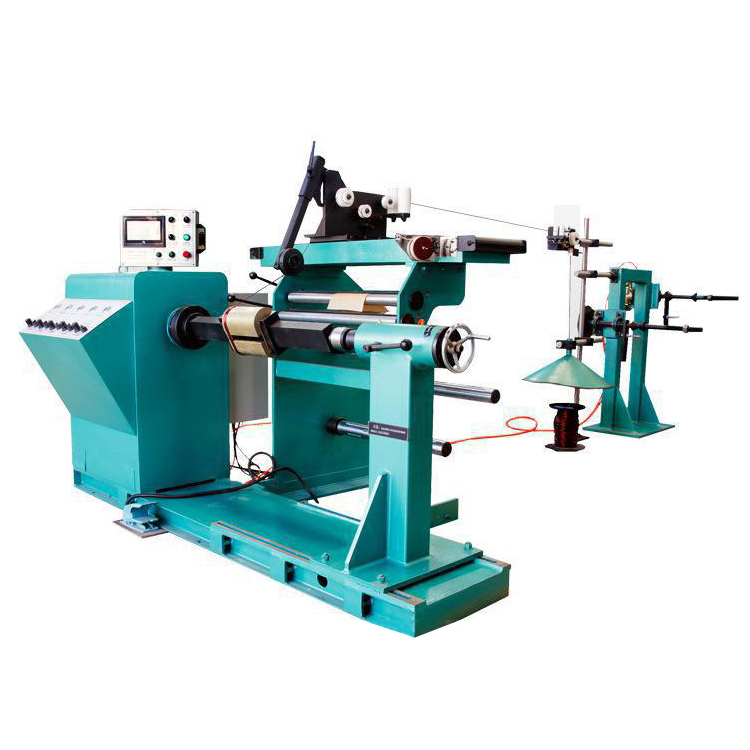

Automatic motor copper winding machine
- $5000.00 /set
- 1 set
- Shanghai Trihope International Co., Ltd.
- Shanghai, China
- Ms Vicky Li
PRODUCT DETAIL
| width: | 180~600mm | Counting accuracy: | 0.001 |
| Winding speed (rpm): | 20 | Health status: | new |
| Material: | other | Packaging Details: | Shipping package, standard package. |
| Roll outer diameter: | Maximum 1000 | Material: | copper, aluminum |
| Axial length: | 180~600mm | Origin: | Zhejiang, China |
| Cutting method: | car | Number of uncoilers: | 1 |
| CNC or not: | CNC | Insulation Quantity: | 2 |
| Coil Type: | round, rectangular | After-sales service provided: | On-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support |
| Uncoiler loading: | 2000 | Maximum winding width (mm): | 800 |
| Reel inner diameter: | 500 | Weight (kg): | 10000 |
| Package preview: | aluminum: | 0.6~3mm | |
| Dimensions (L*W*H): | 4700*3200*2200mm | Loading bucket length: | 650mm |
| brand: | sentinel | port: | Shanghai |
| Warranty: | 1 year | payment terms: | L/C, T/T |
| Shaft length (mm): | 800 | CNC system: | servo motor |
| Applicable industries: | manufacturing plant | Outside diameter (with lead): | Maximum 700 |
| Welding method: | Argon arc welding | copper: | 0.35~2mm |
| Supply capacity: | 30 sets per month | Coil Type: | round, rectangular |
Product Description
1. General introduction
The winding machine is suitable for winding foil coils in the transformer and electrical industry.
2. Technical Specifications and Parameters
2.1 Coil processing range
Axial length 180~600mm
Axial length (with lead) 330~750mm
Outer diameter (lead-free) Φ600
Outer diameter (with lead) MaxΦ700
Coil Type Round, Rectangular
2.2 Coil material
Material copper, aluminum
Width 180~600mm
Thickness (total thickness)
Copper: 0.35~2mm
Aluminum: 0.6~3mm
Reel diameter Φ500
Reel outer diameter MaxΦ1000

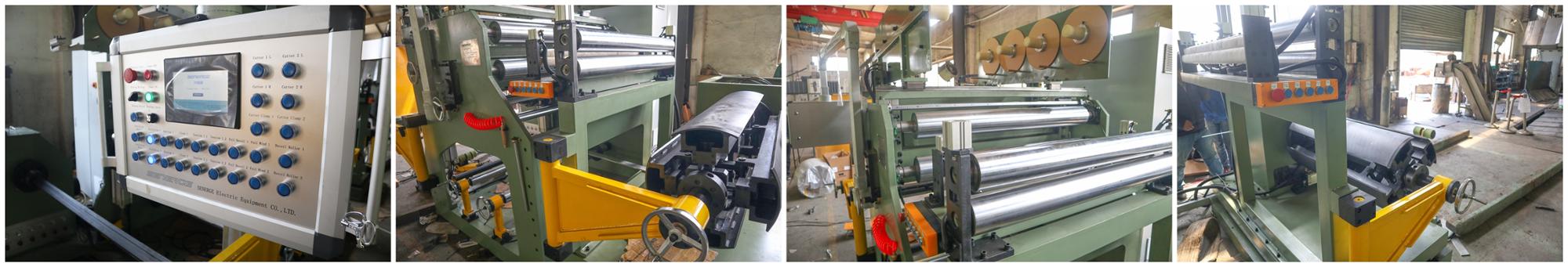

3. Detailed photos

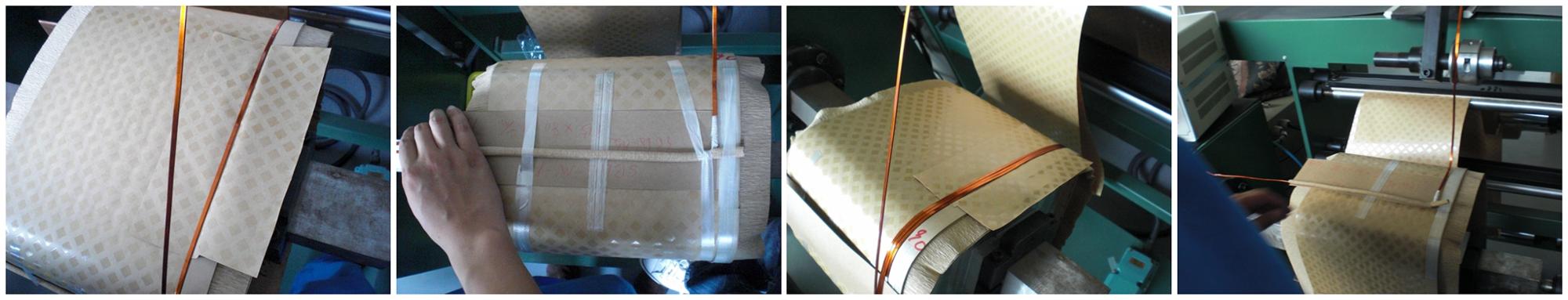

4. Coil production
