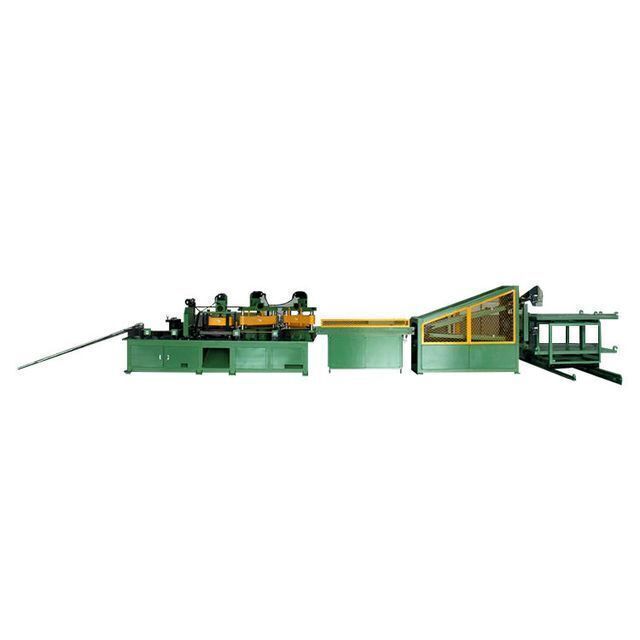

steel coil cut to length machine line with step-lap
- $2000.00 /set
- 1 set
- Shanghai Trihope International Co., Ltd.
- Shanghai, China
- Ms Vicky Li
PRODUCT DETAIL
| Leveling Precision(±mm/m): | 0.02; | Product name: | Core Cutting Machine; |
| Power source: | three-phase AC 380V (±10%) 50HZ; | Brand Name: | senerge; |
| Supply Ability: | 1 Set/Sets per Month; | Maximum burr: | ≤ 0.02mm; |
| Material Thickness(mm): | 0.35 - 2; | Rated Power: | P = 19 kw; |
| After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; | Place of Origin: | Zhejiang China; |
| Cutting Width (mm): | 300 - 1200; | Feeding line speed: | 0~150m/min; |
| Key Selling Points: | Automatic; | Year: | new; |
| Cutting speed: | Max 50 pieces/min; | Packaging Detail: | Core Cutting Machine:Standard packing; |
| Length of cut: | 400~3500 mm; | Rated Power: | 380V ±10% 50Hz; |
| Payment Terms: | L/C,D/A,T/T; | Applicable Industries: | Manufacturing Plant; |
| Condition: | New; | Angle: | ± 0.025; |
| Coil Weight (T): | 2000; | Voltage: | 380V ±10% 50Hz; |
| Certification: | ISO; | Core steel thickness: | 0.23~0.35 mm; |
| Warranty: | 1 Year; | Cutting Speed(m/min): | 50 - 70; |
| Port: | Shanghai; | Core steel width: | 50~600 mm; |
Product Description
1.Equipment Summary
The equipment is the special equipment for processing transformer core. Configuration of two shears, one v-notching, and one punching which can be adapt to the shearing of yoke, side leg, center leg and various piece type.
3.

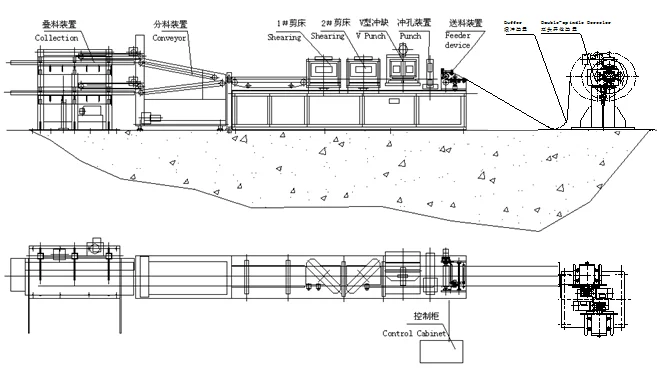

2.Equipment schematic diagram
3.Main technical performance
3.1 processing range
Length 400~3200mm
Width 60~650mm
Thickness 0.23~0.35mm
3.2 Process precision
Tolerance of length:±0.15mm
Shearing angle:±0.025º
Shearing burr:≤0.02mm
3.3 Applicable roll specification requirements
Tolerance of width ≤±0.1mm
Burr ≤0.03mm
Tolerance of S ≤0.2mm/2m
3.3 Productivity
Feeding speed:0~200m/min

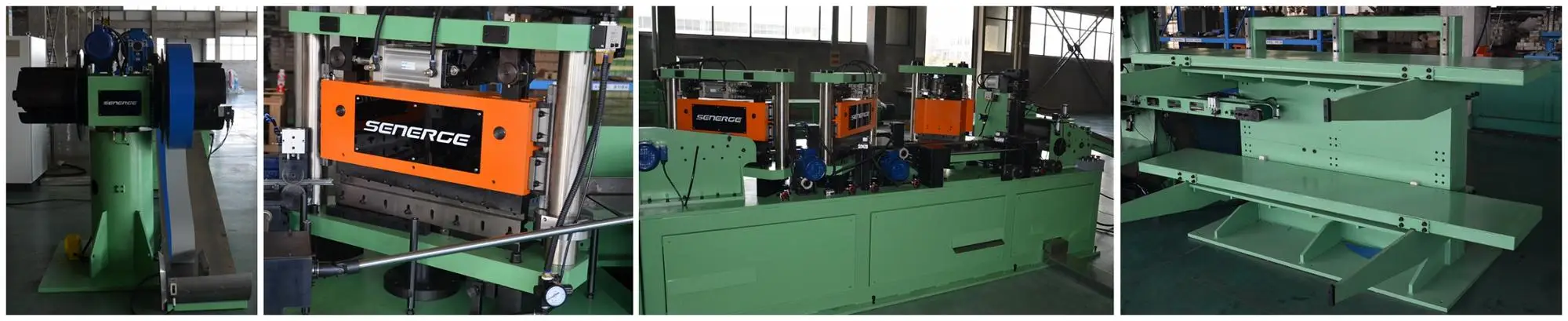

5.Detailed photos

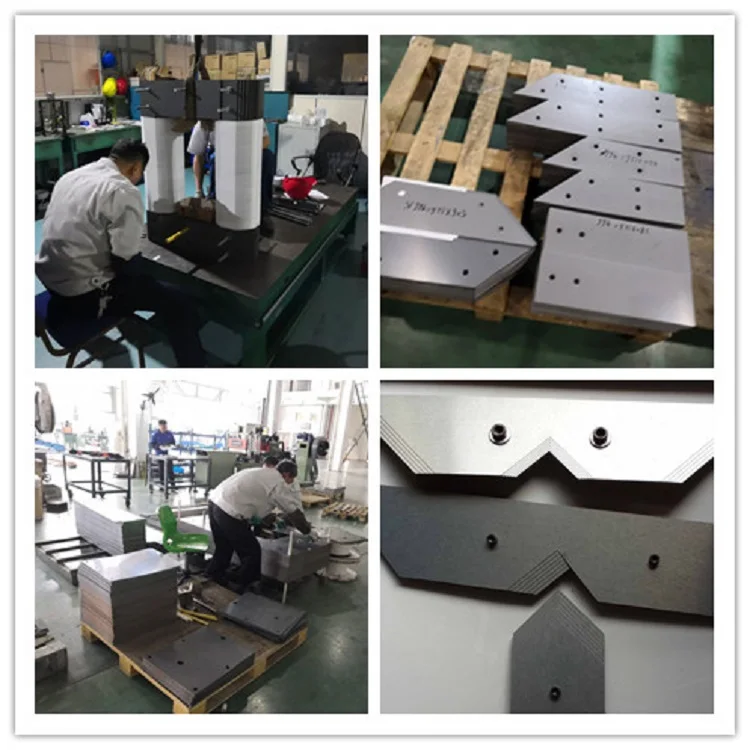

6.Core production
