Transformer tank corrugated fin forming machine
- $10000.00 /set
- 1 set
- Shanghai Trihope International Co., Ltd.
- Shanghai, China
- Ms Vicky Li
PRODUCT DETAIL
| Material thickness S: | 0.5-1.5mm | Supply capacity: | 1 set per month |
| Feeding speed: | 0-28m/min | Number of corrugated board groups n: | 1-4 sets |
| place of origin; place of origin: | China Shanghai | Core components: | Programmable controller, motor |
| Corrugated height H: | 50-400mm | Corrugated plate length L: | ≤2000mm |
| payment terms: | L/C, T/T, Negotiable | brand: | Trihope |
| Main selling point: | Sustainable | Material width B: | 300-1300mm |
| Health status: | new | port: | Shanghai |
| Total Power (kW): | 18 | Dimensions (L*W*H): | 18000mm*3000mm*2600mm |
| Warranty: | 1 year | Material: | steel |
| Fin height (mm): | 50-400 | Corrugated spacing t: | ≥45mm |
| Bending height c: | 25mm or according to customer requirements | Mechanical test report: | if |
| Total weight (T): | 17000 | Net gap e between corrugations: | 6mm |
| Video external inspection: | if | Marketing Type: | normal product |
| Material width (mm): | 300-1300 | Material thickness (mm): | 1-1.5 |
| Core parts warranty: | 1 year | Applicable industries: | manufacturing plant |
| Packaging Details: | Standard packing or sea packing | Showroom location: | not any |
| Cut burrs: | no more than 0.3mm | Fin spacing (mm): | 45 |
corrugating machine
1. General description
1) Special machine for transformer oil tank.
2) Including loading trolley, main engine, hydraulic station, electric control box, etc.
3) Reasonable structure and convenient operation.
4) The hydraulic system is automatically controlled and runs stably.
5) Put all the operating parameters on the screen, and you can complete the forming, shearing, bending and other processes at one time.
6) Main technical parameters
2. Main technical parameters
| 1. Processing range | |
| Material width B | 300-1300mm |
| Material thickness S | 0.5-1.5mm |
| Corrugation height H | 50-400mm |
| Corrugation spacing t | ≥45mm |
| Net gap e between corrugations | 6mm |
| Number of corrugated board groups n | 1-4 sets |
| Corrugated plate length L | ≤2000mm |
| Bending height c | 25mm |
| Front end of corrugated board | ≥25mm |
| Corrugated plate rear end b | ≥25mm |
| Feed rate | 0-28m/min |
| Forming speed | 30-25s/wave |
| system rate pressure | 10MPa |
| system maximum pressure | 14MPa |
| electricity: | AC 3-phase 4-wire 380V/50HZ (or according to customer requirements) |
| total electricity | 18KW |
| Machine size 18000mm*3000mm*2600mm | |
| 2. Loading trolley | |
| maximum load weight | 5000 kg (normal configuration, according to customer requirements) |
| Max up and down stroke | 350mm |
| table width | 540x1300 mm |
| Up and down speed | 50mm/min |

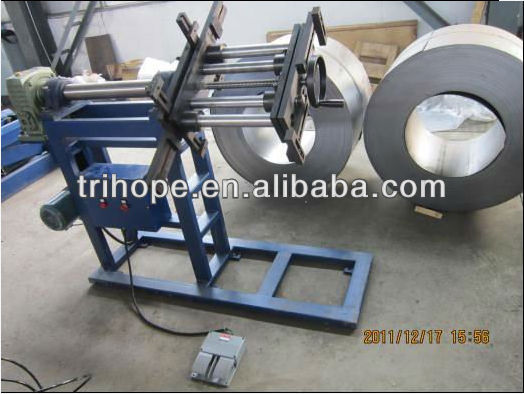

| 3. Uncoiler | |
| maximum load weight | 5000 kg (normal configuration, according to customer requirements) |
| Unwinding speed | 0-28m/min |
| Uncoiler barrel diameter | 480-520 mm |
| 4. Coil size | |
| the inside diameter of | 500 mm |
| outer diameter | 1000 mm |
| width | 300-1300mm (outer diameter should be less than 930mm when the width of the coil is greater than 1000mm) |
| 5. Feeding system | |
| servo motor | 2kW |
| Feed rate | 0-28m/min |
| Feed Roll Diameter | 114 mm |
| Feed roll width | 1400 mm |
| 6. Front mold assembly | |
| dimension | 1300x410 mm |
| Front and rear die distance | 850 mm |
| Front die lift height | 20 mm |
| 7. Rear mold assembly | |
| Back template size | 1470x500 mm |
| Rear formwork lift height | 410 mm |
| 8. Shearing and bending assembly | |
| scissors length | 1400 mm |
| cutting stroke | 420 mm |
| 9. Workbench | |
| aspect | 1400x2000mm |

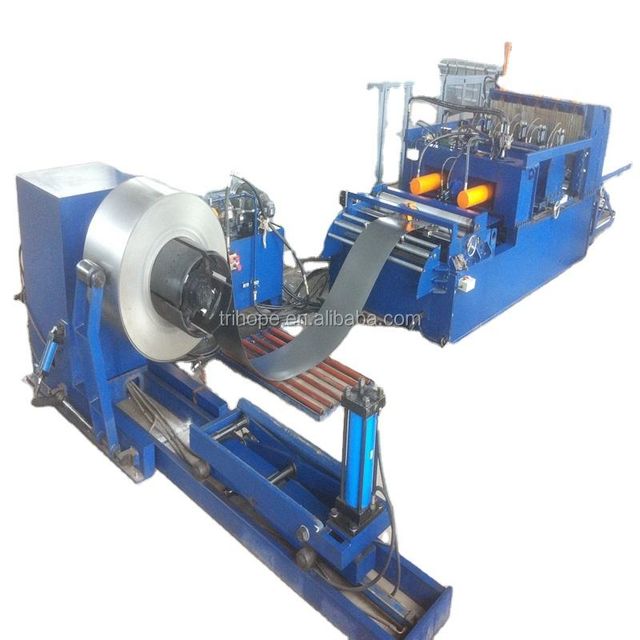

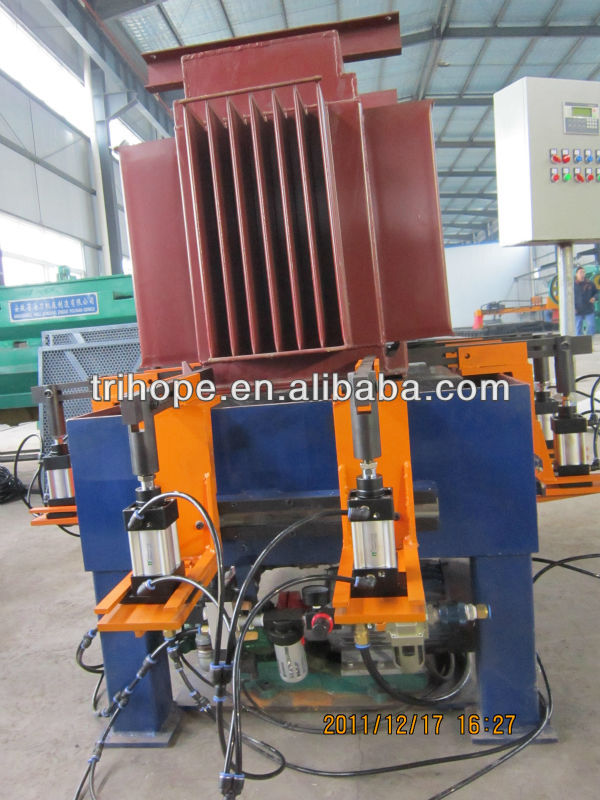

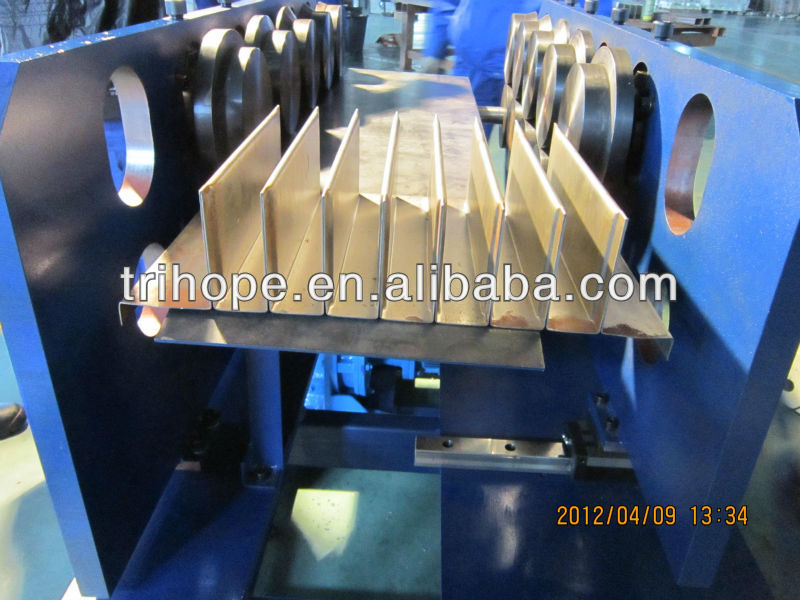

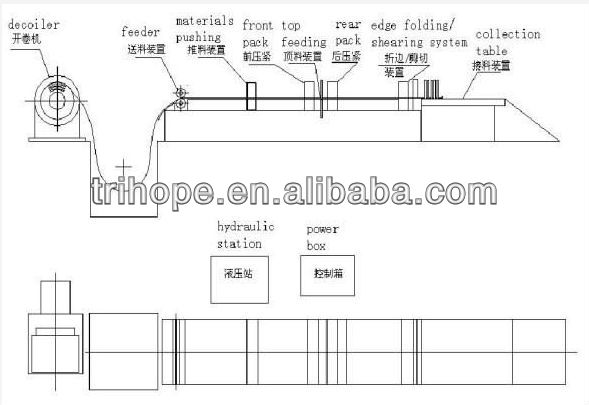

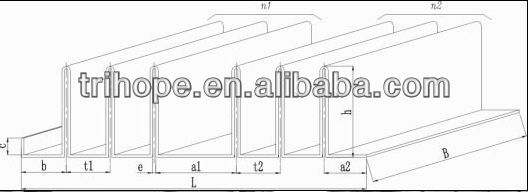

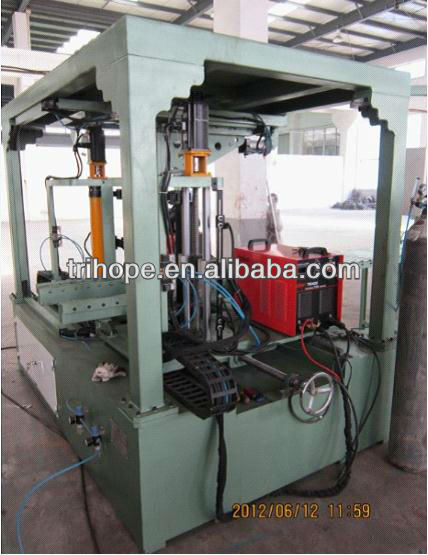

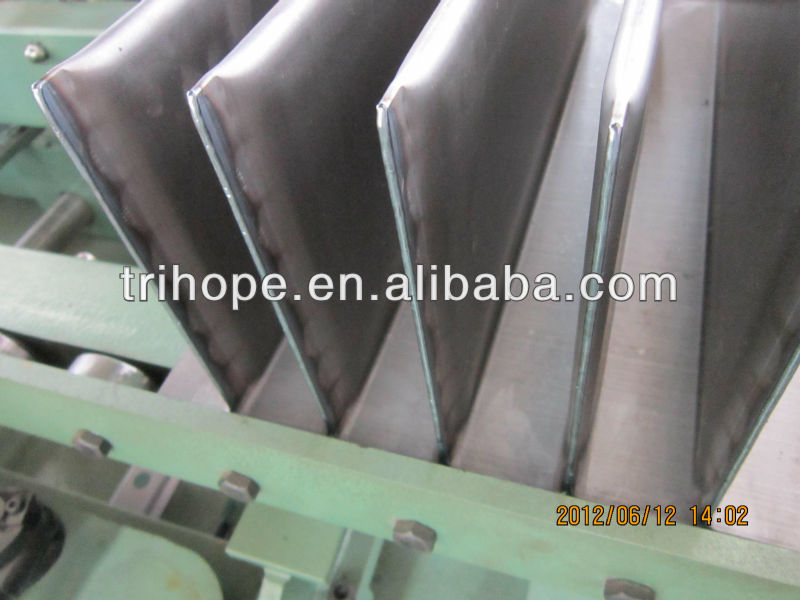

3. Schematic diagram of the machine (Figure 1), schematic diagram of corrugated sheet forming, machine photo
