BW1600 Transformer Corrugated Fin Forming Machine Factory

PRODUCT DETAIL
Ripple height:50-400mmbrand:Sawagi
Packaging Details:Seaworthy packaging, one 40ft containerBend Height:20mm
place of origin; place of origin:Jiangsu, ChinaForming speed:3-6 fins/min
Fin clearance:6mmAfter-sales service provided:Free spare parts, online support, on-site installation, commissioning and training, engineers can service machinery overseas
payment terms:L/C,T/T,NegotiableSupply capacity:5 sets per quarter
Corrugation Spacing:>=45mmBoard width:300-1600mm
port:ShanghaiWarranty:1 year
color:Depends on customer needsPlate thickness:0.5-1.75mm

1. Mechanical description of BW1600 corrugated cooling fins
1) Including guiding, feeding, front bag, back bag, hemming,
Cut and parts collection.
2) The hydraulic system is automatically controlled and runs smoothly.
3) Human-machine interface computer dialogue display, reasonable structure, convenient operation and labor saving
(1~2 labor force).
4) Input all operations to complete the forming, cutting and hemming processes at one time
Parameters on the computer unit.

2. BW1600 Corrugated Fin Mechanical Parts
1) Hydraulic automatic uncoiler

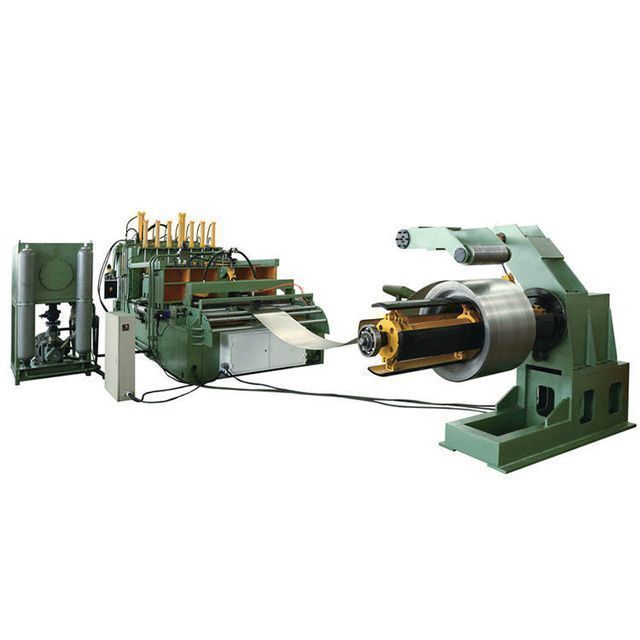

2) Corrugated heat sink forming machine
3) Hydraulic corrugated radiator fin shear bending machine
4) Transformer corrugated heat sink automatic welding machine
5) Hydraulic station
6) PLC control system

3. Features of BW1600 corrugated cooling fin machinery
1) Specifically designed for the forming and welding of transformer fins.
2) PLC control, fully automatic line: automatic conveying, clamping and welding.
3) Touch screen control, easy to operate.
4) High-speed welding, much faster than manual welding.
5) TIG welding, the welding is tight and the surface is very clean and smooth.

4. Mechanical parameters of BW1600 corrugated cooling fins



thing

parameter

board width

300mm-1600mm

plate thickness

0.5mm-1.75mm

corrugation height

50mm-400mm

corrugation spacing

>=45mm

Bending height

20mm

Forming speed

3-4 fins/min

total motor power

40KW

warranty period

twelve months





This line is hot! And welcome to visit our factory to see its running performance!

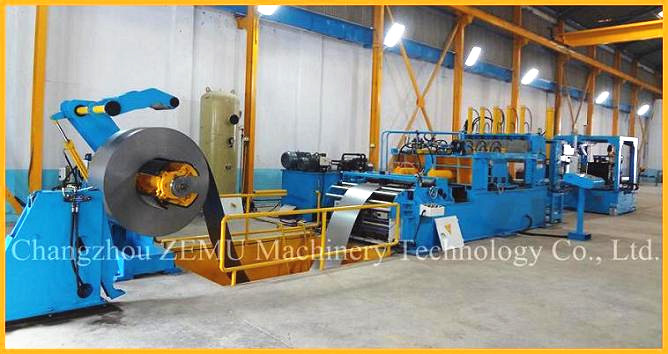

manufactures

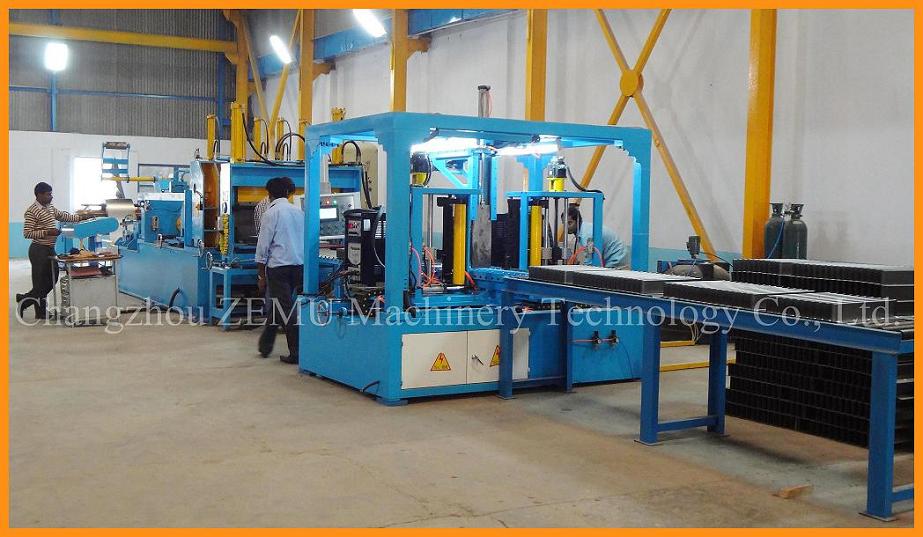

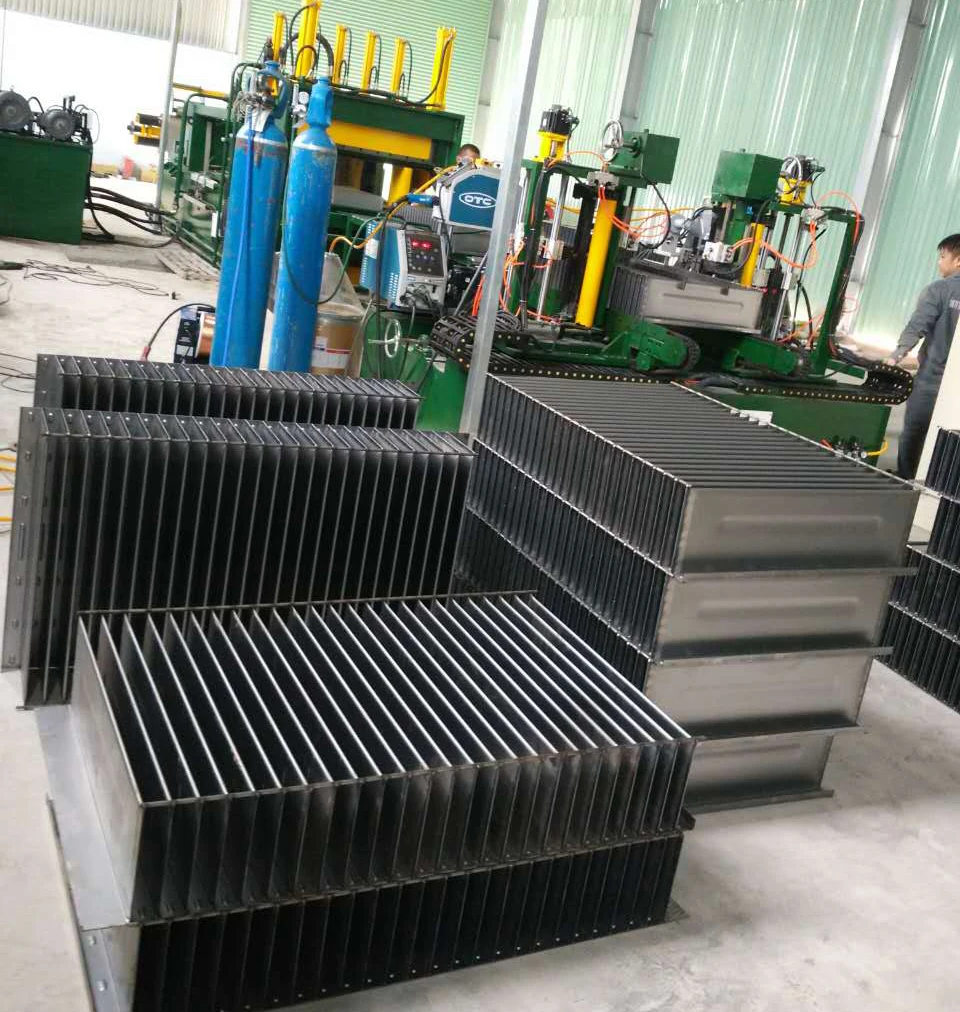

buyer's machine

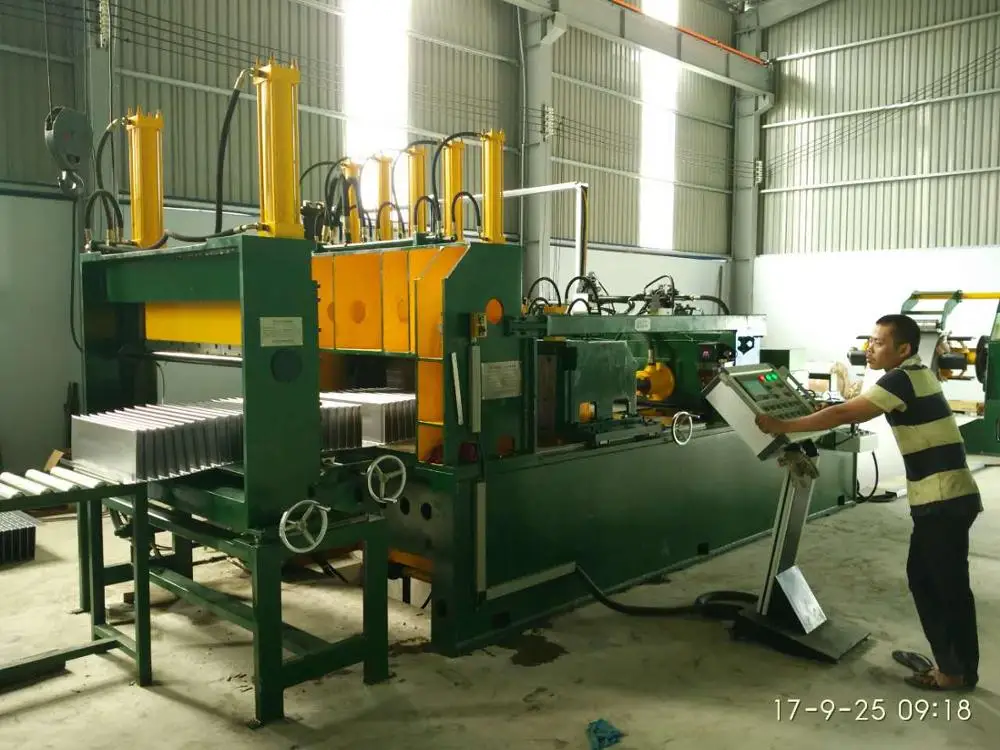

This is the machine of our customer side in Vietnam









contract







VIEW MORE
